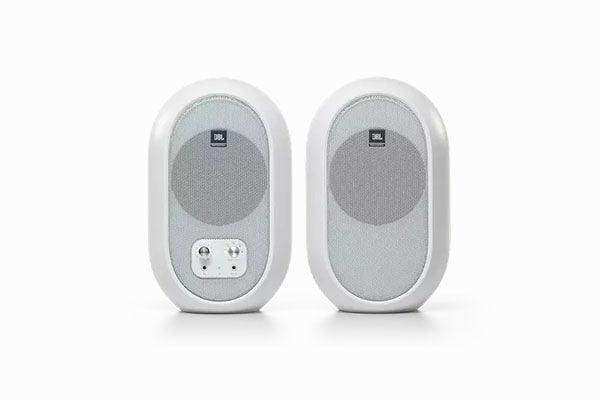

JBL 1 Series 104-BT Compact Powered Desktop Reference Monitors with Bluetooth (White Matte)

Save 36%
JBL SKU: 104SET-BTW-US
No reviews

Price:
Sale price$169.00 Regular price$262.23

Description

Offered here in a stylish white matte finish, the JBL 1 Series 104-BT comprises a pair of monitors suitable for both consumer and critical audio referencing. They take the respected design of the One Series 104 and add Bluetooth 5.0 to the mix, so you can stream music from your favorite compatible media player straight to the speakers. Mixing engineers may also benefit from these desktop monitors, as they can now hear what Bluetooth transmission would do to their mixes.

These monitors employ a coaxial design to give you a smooth representation of the frequency spectrum, so that you have a more accurate picture of the sonic information coming your way. As such, these speakers are useful for home-recording studios, podcasters, video editors who pay attention to sound, and anyone looking for accurate, yet portable monitors.

A 4.5" low-frequency driver and a 0.75" high-frequency driver are situated in a coaxial design, while a 60W amplifier distributes 30W of Class-D power to each speaker. Set your monitoring level with the front-panel volume knob on the master speaker, and you'll find accurate sonic representation at any volume. The frequency response is 60 Hz to 20 kHz, but a low-frequency port ensures presence in the low registers to better judge bass content.

Inputs are made possible through balanced 1/4" jacks, a 3.5mm connection for auxiliary devices, or unbalanced RCA connections. A front-panel headphone jack on the master speaker mutes the speakers and outputs signal directly to your favorite pair of cans. Included with the monitors is a 6.6' monitor extension speaker wire, a 3.5mm-to-RCA audio cable (perfect for stereo receivers, for example), and a power cable.

  • Coaxial 4.5" LF driver and 0.75" soft-dome HF driver
  • Reference mixes via Bluetooth 5.0 streaming
  • Integrated 60W Class-D power amplifier
  • 30 watts distributed to each speaker
  • Acoustically optimized for desktop placement
  • Front-panel input control selects among Bluetooth, Aux, RCA, and TRS
  • Front-panel input control can combine all inputs
  • Front-panel volume control
  • Front-panel headphone jack with speaker-mute feature

JBL 104BT Specs

Monitor Type & Configuration Active 2-Way
Number of Included Monitors Stereo Pair
Enclosure Bass-Reflex/Ported
Total Power Output 30 W RMS per Monitor
Drivers per Monitor
Tweeter 1 x 0.75" / 19.1 mm Coaxial Dome
Woofer 1 x 4.5" / 11.43 cm Coaxial Cone
Amplifiers Full-Range: 2 x 30 W RMS Class-D
Performance
Frequency Range 60 Hz to 20 kHz (-10 dB)
88 Hz to 20 kHz (3 dB)
Maximum Sound Pressure Level (SPL) 104 dB
Signal-to-Noise Ratio 75 dBA
Total Harmonic Distortion (THD) <1%
Maximum Input Level +6 dBV (Unbalanced)
+20.3 dBu (Balanced)
Dispersion 120 x 80° (Horizontal x Vertical)
Protections and Limiting Limiter
EQ None
Filters None
Parametric EQ None
Crossover Frequency High-Pass: 1725 Hz, 6 dB/Octave Slope
Crossover Type Active Butterworth
Connectivity
Audio I/O 2 x 1/4" TRS Balanced Input
1 x Stereo 2RCA Unbalanced Input
1 x 1/8" / 3.5 mm TRS Unbalanced Input
1 x 1/8" / 3.5 mm TRS Unbalanced Output
Network I/O None
USB None
Wireless Bluetooth
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 80 W (Maximum)
0.34 W (Standby)
Physical
Color White
Enclosure Material ABS, Metal Grille
Dimensions (W x H x D) 6 x 9.7 x 4.9" / 15.2 x 24.6 x 12.4 cm (Each)
Weight 4.5 lb / 2.0 kg (Active Speaker)
3.8 lb / 1.7 kg (Passive Speaker)
Packaging Info
Package Weight 11.27 lb
Box Dimensions (LxWxH) 13.9 x 13.2 x 9.1"
