James Loudspeaker VXQ68 - 6" Performance Level 8 Quad Tweeter Rectangle

Product Overview

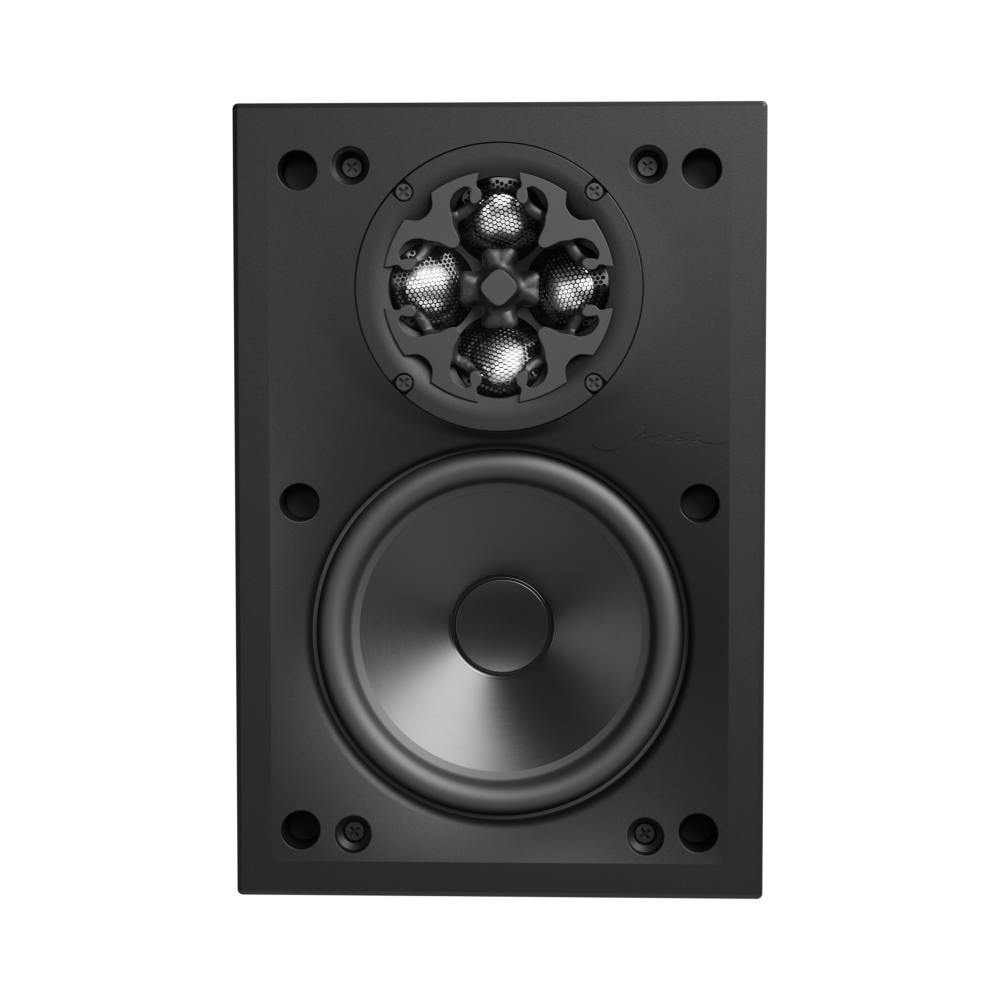

The James Loudspeaker VXQ68 is a 6-inch quad-tweeter architectural flush-mount loudspeaker with a rectangle baffle, designed for high-fidelity ceiling and wall audio in commercial AV environments. Part of the Visual Experience (VXQ) Performance Level 8 series, this rectangle trimless in-ceiling speaker combines a 6-inch driver with a quad-tweeter array for wide high-frequency coverage and added low-frequency output. It is built for integrators who want a discreet rectangular flush-mount speaker that aligns cleanly with linear architectural lines. The VXQ68 suits conference rooms, hospitality, and premium retail where audio performance and clean aesthetics matter equally.

Product Description

The VXQ68 pairs a 6-inch driver with a four-tweeter array to broaden high-frequency dispersion and improve coverage uniformity while delivering more low-end body than the 4-inch model. Its rectangle baffle and trimless XPC grille system allow the speaker to sit flush with the ceiling or wall, with the grille concealing mounting hardware for a clean finished look; the rectangular format suits layouts that favor linear visual alignment. As a passive loudspeaker, it integrates with standard amplifier and distribution-matrix infrastructure, and an optional 70V 20W transformer accessory adapts it for distributed-audio and constant-voltage line systems. The Performance Level 8 designation reflects James Loudspeaker's high-output architectural tier.

Within the rectangle VXQ family, the VXQ68 sits between the compact 4-inch VXQ48 and the larger 8-inch VXQ88, balancing output and footprint. Compatible accessories include the VXQ6-NT trimless rectangle grille, a shallow back-box enclosure, and a custom grille-painting service. Additional models are in the James Loudspeaker collection through Creation Networks.

Key Features

• Quad-Tweeter Array — Four tweeters widen high-frequency dispersion for more uniform coverage across the room.
• 6-Inch Driver — Mid-size driver delivers stronger low-frequency output than the 4-inch model.
• Rectangle Trimless Baffle — XPC trimless grille system lets the speaker sit flush with the surface for clean linear alignment.
• Performance Level 8 — James Loudspeaker's high-output architectural performance tier.
• Passive Operation — Integrates with standard amplifier and matrix infrastructure for low-impedance systems.
• 70V Ready — Optional 70V 20W transformer accessory enables distributed-audio line operation.

Typical Applications

• Corporate conference rooms and presentation spaces
• Hospitality lobbies, lounges, and dining areas
• Premium retail and showroom audio
• Residential whole-home audio with architectural finish requirements
• Commercial spaces requiring discreet rectangular flush-mount speakers

Technical Specifications

Frequently Asked Questions

How is the VXQ68 powered?
It is a passive loudspeaker driven by an external amplifier or matrix; an optional 70V 20W transformer adapts it for constant-voltage systems.

What does the quad-tweeter array do?
Four tweeters broaden high-frequency dispersion for more even coverage across the listening area than a single tweeter.

How does it compare to the VXQ48?
The VXQ68 uses a larger 6-inch driver for stronger low-frequency output, while the VXQ48 is the compact 4-inch option.

Does it mount flush?
Yes. It uses the trimless XPC grille system to sit flush with the ceiling or wall surface.

Is this round or rectangle?
The VXQ68 has a rectangle baffle; the round equivalent is the VXQ68R.

Can I add a back-box enclosure?
Yes. A shallow rectangle enclosure accessory is available for the 6-inch rectangle VXQ models.
