James Loudspeaker SA63-7-ENC

Product Overview

The James Loudspeaker SA63-7-ENC is a small aperture in-ceiling speaker system engineered for high-end residential and architectural installations where audio performance and a discreet footprint matter equally. Part of the Small Aperture® collection, this 3-way concentric design delivers true full-range sound — including deep bass down to 38 Hz — through a 3-inch flush, seamless round or square opening. It is a strong fit for whole-house audio and critical-listening rooms that need a hidden in-ceiling speaker without compromising fidelity. Browse the full James Loudspeaker collection for matching systems.

Product Description

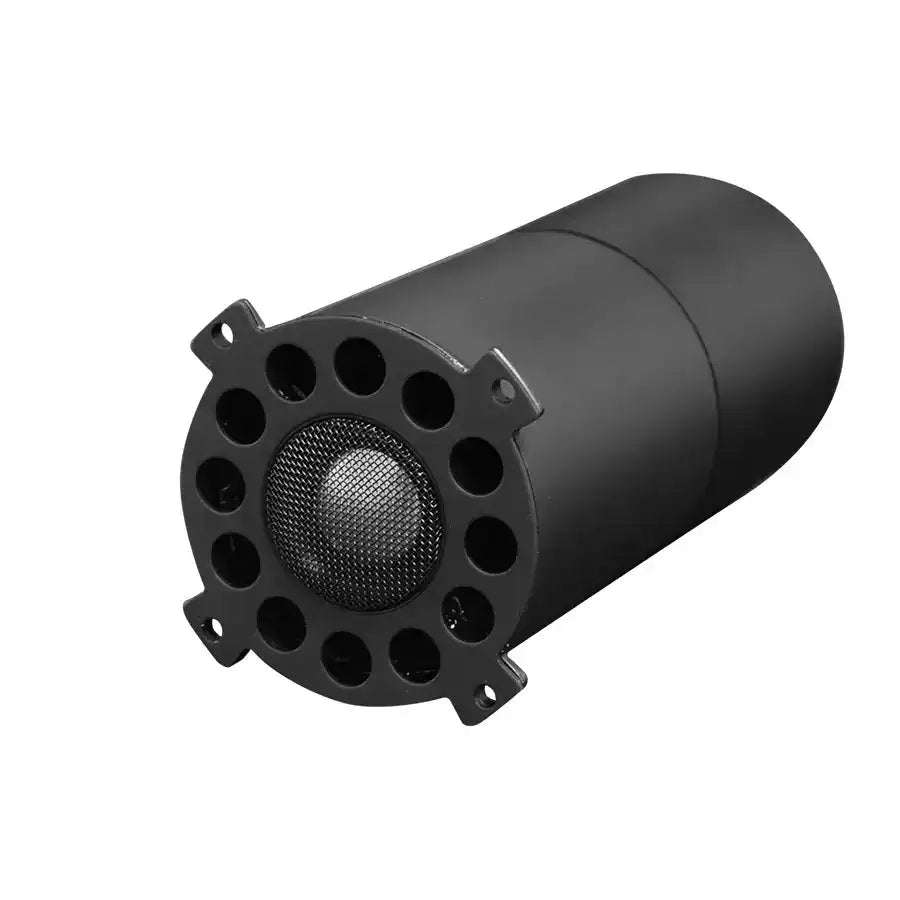

The SA63-7-ENC is a true full-range, 3-way system that mounts a 0.75 in (19 mm) aluminum dome tweeter, a 2 in (50 mm) aluminum midrange driver, and a 6.5 in (165 mm) aluminum mini PowerPipe subwoofer concentrically behind a single 3-inch aperture. The point-source mid/high module provides wide, even off-axis response, while the hidden mini PowerPipe woofer produces bass down to 38 Hz, so the listener hears a full musical range yet only sees a seamless flush opening. This flush mount in-wall and in-ceiling speaker system is designed for whole-house audio installations and high-end homes where critical listening and clean architectural aesthetics are both priorities.

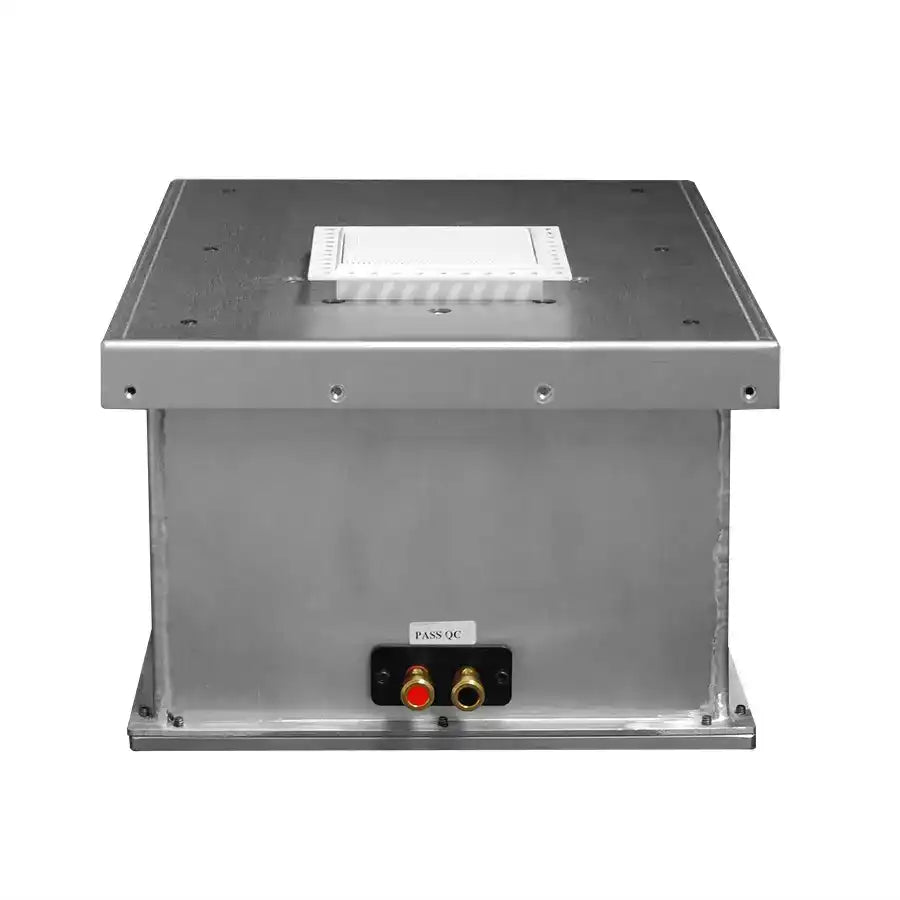

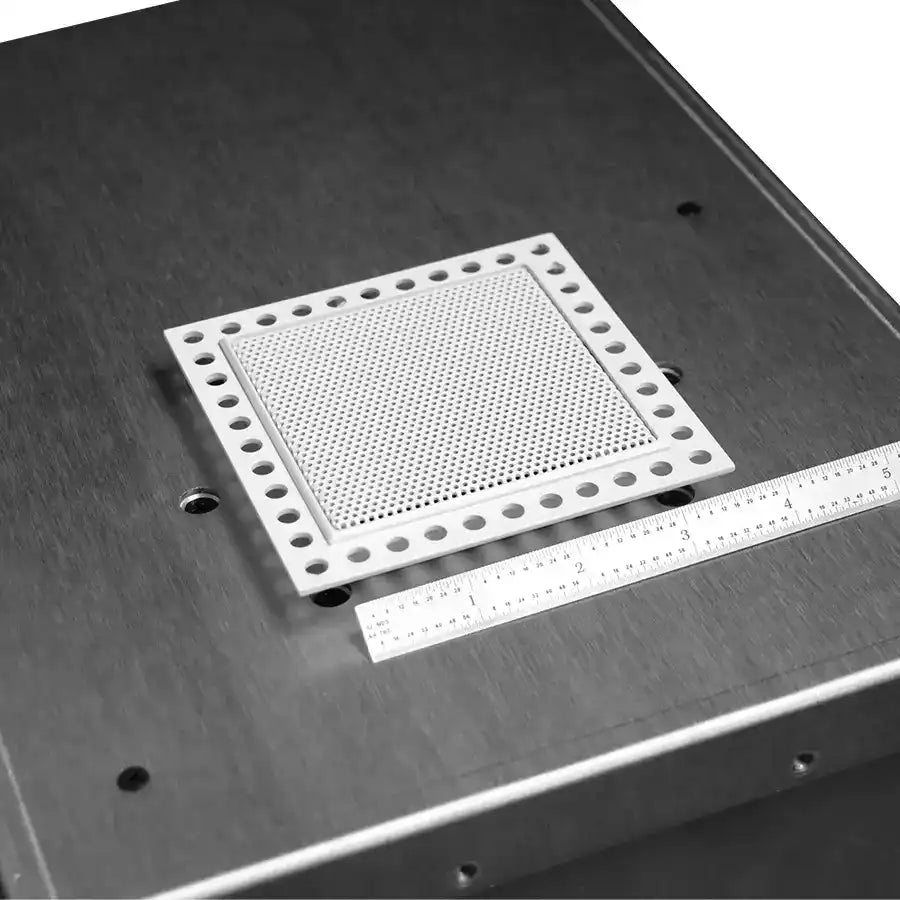

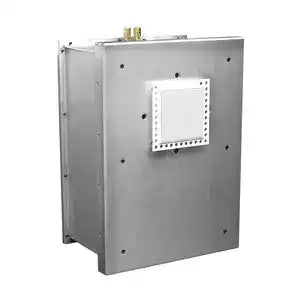

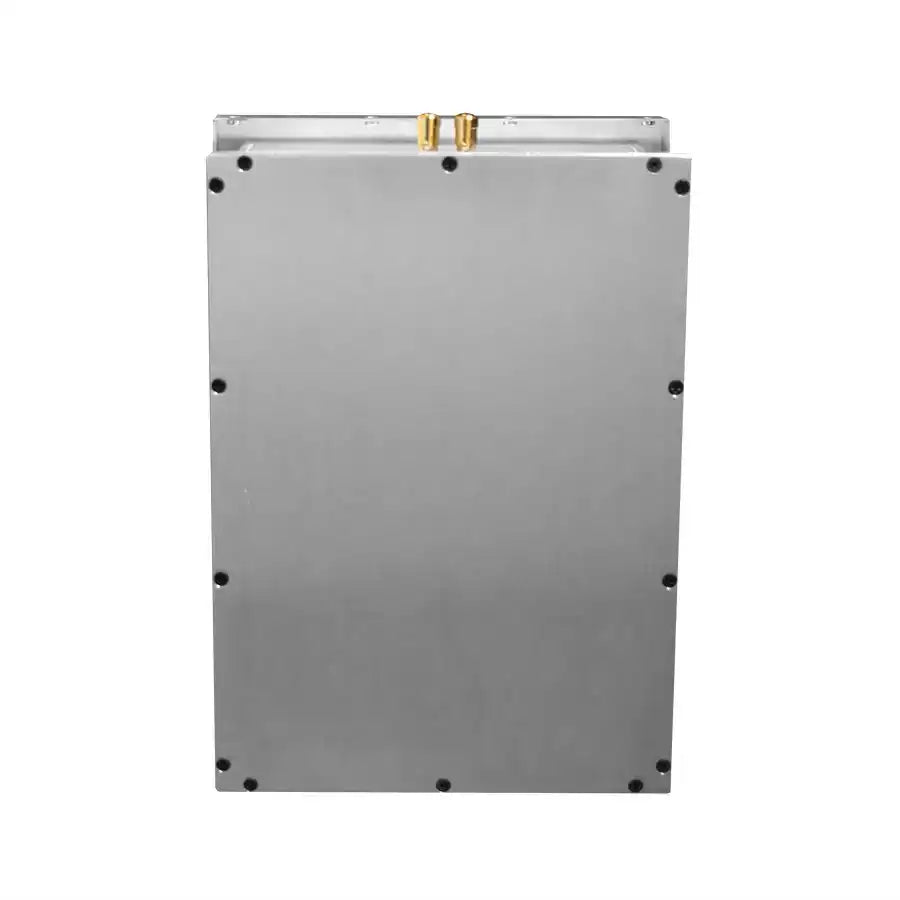

The enclosure is machined from aircraft marine-grade aluminum for long-term durability, and the grille accepts industry-standard mounting along with high-end lighting trim kits so the speaker can visually match adjacent lighting fixtures. The SA63-7-ENC conforms to UL2043 and UL1480 standards, making it suitable as a plenum-rated ceiling speaker in commercial spaces with return-air ceilings. For shallow ceilings, it can be ordered with shorter brackets that collapse to 7 5/8 in and expand to 13 in — specify at time of order. A matching 3-inch round and square router template is available (SKU 60370) to speed installation. The system can also be ordered with a 50W/70V transformer for distributed 70V audio system integration.

Key Features

• Small Aperture® 3-way design — A concentric tweeter, midrange, and mini PowerPipe subwoofer deliver full-range audio through a single 3-inch opening.
• Deep bass to 38 Hz — The hidden 6.5 in aluminum mini PowerPipe woofer reproduces low frequencies most discreet ceiling speakers cannot reach.
• Point-source imaging — Concentric driver mounting provides wide, consistent off-axis response across the listening area.
• Aircraft marine-grade aluminum enclosure — A machined metal housing supports reliable long-term performance in built-in installations.
• UL2043 and UL1480 rated — Compliant for plenum-rated ceiling speaker use in commercial return-air ceilings.
• Lighting trim kit compatible — The grille accepts high-end trim kits so the aperture matches surrounding lighting fixtures.

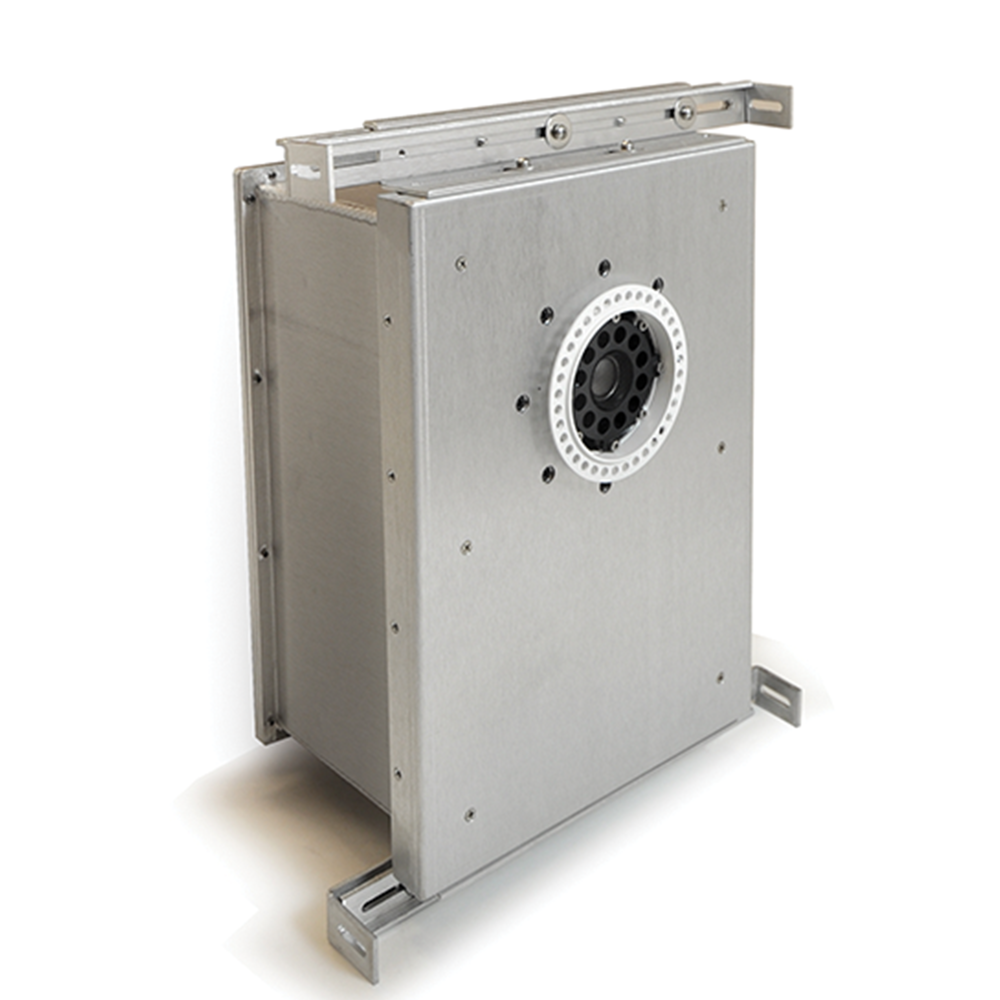

• Adjustable mounting brackets — Optional short brackets collapse to 7 5/8 in for shallow ceiling depths.
• Optional 70V operation — Available with a 50W/70V transformer for distributed-audio commercial deployment.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

What amplifier does the SA63-7-ENC require?
It is a 4-ohm, low-impedance system with a recommended power range of 25 W to 125 W (protection limited). Match it to an amplifier channel that delivers clean power within that range. A 50W/70V transformer option is available for distributed 70V systems.

How much ceiling or wall depth is needed for installation?
The system requires a minimum mounting depth of 7 in (177.80 mm). For shallow ceilings, order the optional short brackets, which collapse to 7 5/8 in and expand to 13 in. Specify the bracket requirement at time of order.

Can it be used in a commercial plenum ceiling?
Yes. The SA63-7-ENC conforms to UL2043 and UL1480, so it is suitable for plenum-rated ceiling speaker applications in return-air ceilings common to commercial spaces.

How does it integrate with a distributed audio system?
Order the 50W/70V transformer version to place the speaker on a 70V line alongside other zones. For low-impedance zones, wire it as a standard 4-ohm load to a matched amplifier or matrix.

Does it install discreetly in finished spaces?
Yes. Only a 3-inch round or square seamless flush opening is visible, and the grille accepts lighting trim kits so the aperture can match nearby fixtures. A router template (SKU 60370) is available for accurate cutouts.

What warranty and support are available?
James Loudspeaker systems are covered by the manufacturer's warranty. For current warranty terms, system design assistance, or volume pricing, contact the Creation Networks team via creationnetworks.net.
