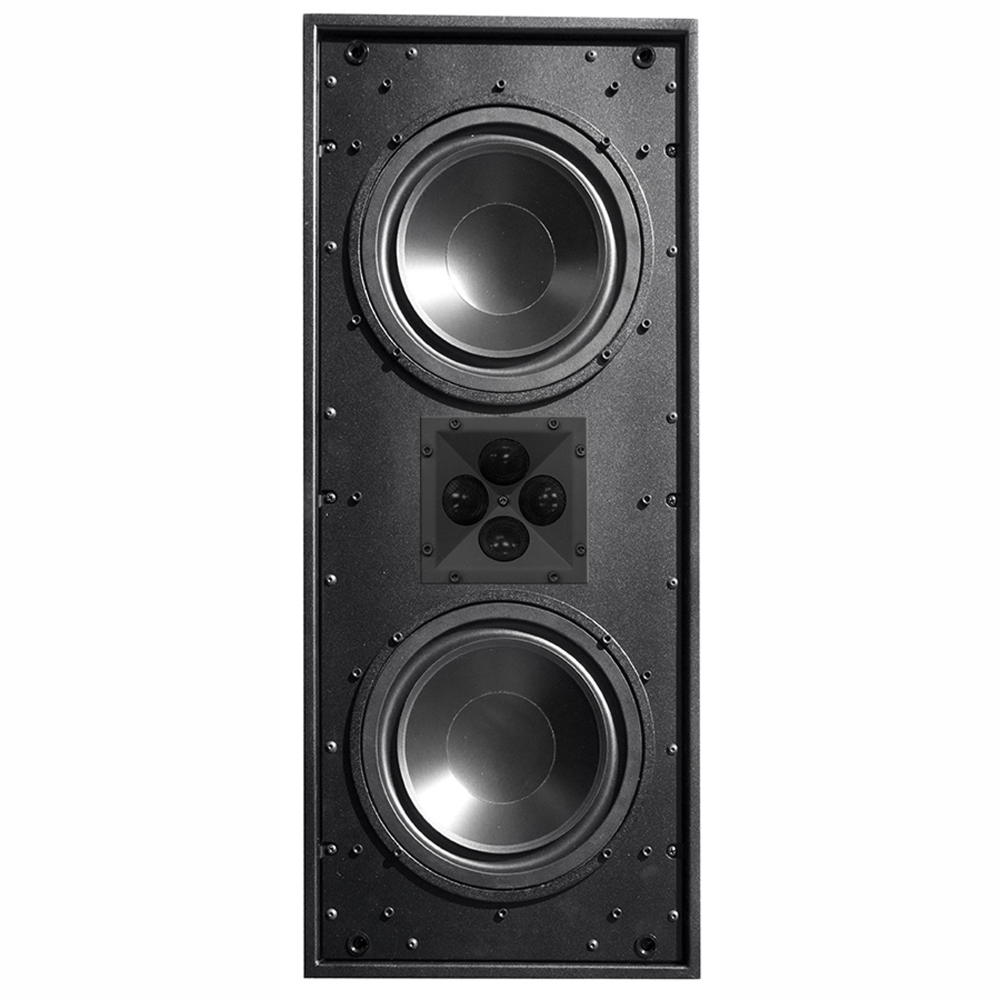

James Loudspeaker QX830 - 3-Way Dual 8" Quad Tweeter Array

Product Overview

The James Loudspeaker QX830 is a 3-way dual 8-inch quad tweeter in-wall array speaker built for demanding commercial AV installations that require maximum output, extended frequency response, and wide coverage. As a 3-way dual-woofer in-wall quad-tweeter array, it pairs two 8-inch woofers and a dedicated midrange section with a four-tweeter array. This passive in-wall speaker is suited to auditoriums, large worship spaces, and high-output architectural audio designs. The QX830 is the flagship of the James Loudspeaker quad-tweeter array family.

Product Description

The QX830 is the most capable model in the QX in-wall series, using a 3-way topology with dual 8-inch woofers and a separate midrange to deliver full-range reproduction with high headroom. The dedicated midrange section improves vocal articulation and instrument detail compared with 2-way designs, while the quad-tweeter array maintains wide, even high-frequency dispersion across large rooms. The dual 8-inch woofers provide the low-frequency output needed for foreground music and full-scale program material in large venues. Because the QX830 operates passively, it integrates with standard commercial amplifiers and distributed audio systems. Integrators typically deploy it where the dual 8-inch 2-way QX820 or dual 6.5-inch QX630 cannot supply enough output or low-frequency extension. Explore the complete lineup in the James Loudspeaker collection to align models with venue size and coverage targets. Pre-construction brackets streamline rough-in framing and flush-mount finishing for new builds and renovations.

Key Features

• 3-Way Design — A dedicated midrange section improves vocal articulation and full-range detail.
• Dual 8-Inch Woofers — Two 8-inch drivers deliver high output and extended low-frequency response.
• Quad-Tweeter Array — Four tweeters widen high-frequency dispersion for consistent coverage.
• In-Wall Mounting — Flush architectural installation keeps the system visually discreet.
• Passive Operation — Works with standard external amplification and distributed audio systems.

Typical Applications

• Auditoriums and large worship spaces
• Performance and lecture venues
• Architectural and distributed audio systems
• High-output commercial entertainment spaces

Technical Specifications

Frequently Asked Questions

What makes the QX830 a 3-way speaker?
It adds a dedicated midrange section alongside dual 8-inch woofers and the quad-tweeter array.

Is the QX830 passive or active?
It is a passive speaker requiring an external amplifier or distributed audio system.

How does it compare to the QX820?
The QX830 is a 3-way dual-woofer design with more output and extension than the 2-way QX820.

Where is the QX830 installed?
It is an in-wall speaker designed for flush architectural mounting.

Is a pre-construction bracket available?
Yes, the QX830PB and flush-mount QX830PBF brackets support rough-in and finishing.

What venues suit the QX830?
It suits auditoriums, large worship spaces, and high-output distributed audio systems.
