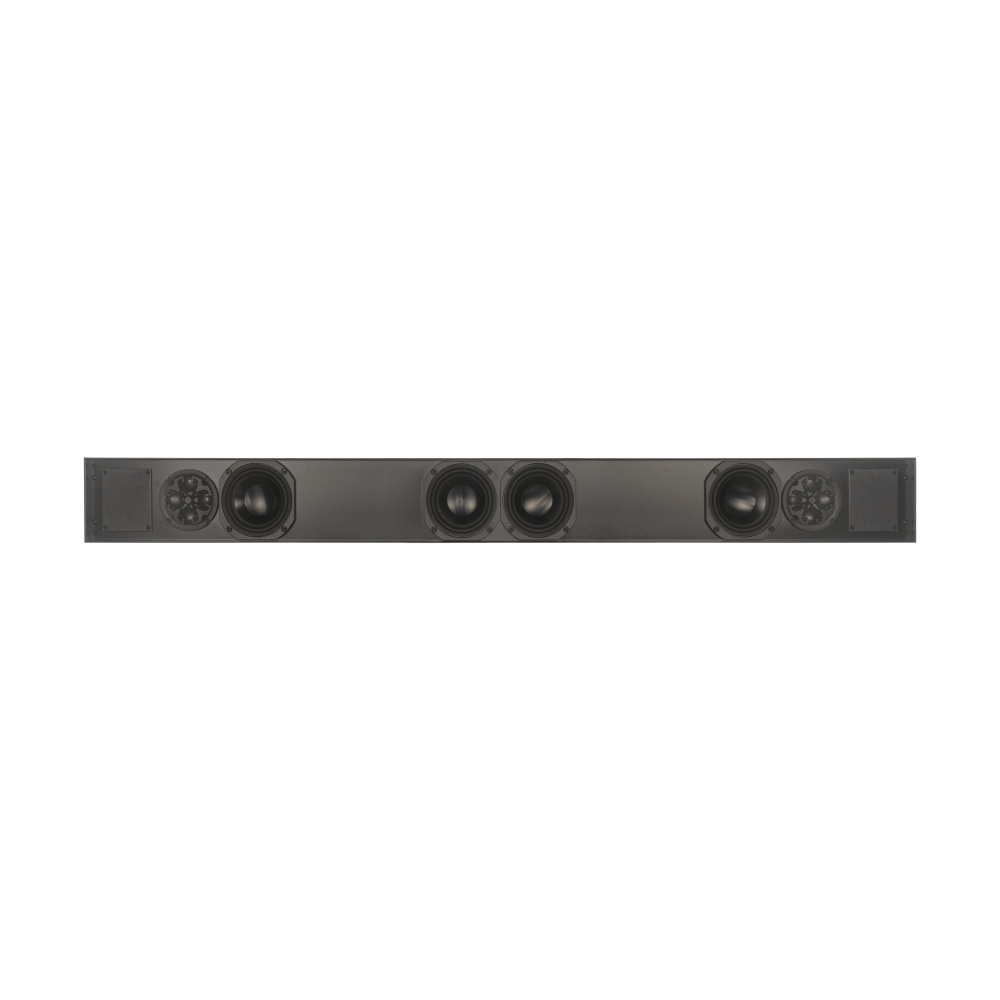

James Loudspeaker QX-SPL5-LCR - LCR Bar 5" Quad Tweeter

Product Overview

The James Loudspeaker QX-SPL5-LCR is an on-wall LCR 5-inch quad tweeter bar that places discrete left, center, and right channels with a QuadraTech quad-tweeter array in a single low-profile enclosure for commercial AV rooms and dedicated home theaters. As an all-in-one LCR soundbar with larger 5-inch drivers, it delivers a complete front stage above or below a flat-panel display with added output and extended high-frequency dispersion. This passive QX-series bar gives integrators a discreet, display-matched front array for cinema and presentation audio. It is built for projects that need full front-channel separation, more output, and quad-tweeter detail in a single thin form factor.

Product Description

The QX-SPL5-LCR integrates independent left, center, and right channels into one slim on-wall bar built around 5-inch drivers and a QuadraTech quad-tweeter high-frequency array, mounting directly above or below a television or projection screen. It operates passively, with each of the three channels driven by its own external amplifier channel, giving integrators full control over power and processing. Combining all three front channels in one enclosure simplifies installation and alignment compared with separate speakers, while the larger driver complement supports more output than the 3-inch QX bars and the quad-tweeter array widens high-frequency coverage. The result is a coherent front stage with dialogue locked to the screen and a wide, detailed image in a profile that stays subordinate to the display.

Within the QX-SPL5 range, the QX-SPL5-LCR is the three-channel option above the QX-SPL5-LR stereo bar and alongside the 2.1 QX-SPL5-LRSUB for projects preferring added bass over a center channel. Additional models are available in the James Loudspeaker collection through Creation Networks.

Key Features

• Three-Channel LCR Design — Discrete left, center, and right channels in one slim on-wall enclosure.
• 5-Inch Driver Format — Larger driver complement supports added output versus the 3-inch QX bars.
• QuadraTech Quad-Tweeter Array — Four-tweeter high-frequency array broadens detail and dispersion across the room.
• Single-Bar Front Stage — Delivers a complete front array without mounting three separate speakers.
• Passive Operation — Each channel is driven by its own external amplifier channel for full system control.

Typical Applications

• Dedicated home theaters and private cinemas
• Conference rooms and boardrooms needing a full front stage
• On-wall L/C/R front array above or below a display
• Commercial AV spaces needing wide coverage and added output

Technical Specifications

Frequently Asked Questions

How is the QX-SPL5-LCR powered?
It is passive and requires three channels of external amplification, one per channel.

Is the QX-SPL5-LCR in-wall or on-wall?
It is an on-wall bar; only the QX-SPL CS dual monaural models are in-wall.

How does it differ from the QX-SPL3-LCR?
It uses larger 5-inch drivers for added output while keeping the same LCR, quad-tweeter concept.

What is the QuadraTech quad-tweeter array?
It is a four-tweeter high-frequency array that broadens detail and dispersion across the room.

How does it relate to the rest of the QX-SPL5 range?
It is the three-channel option above the QX-SPL5-LR stereo bar, with the QX-SPL5-LRSUB available for added bass.
