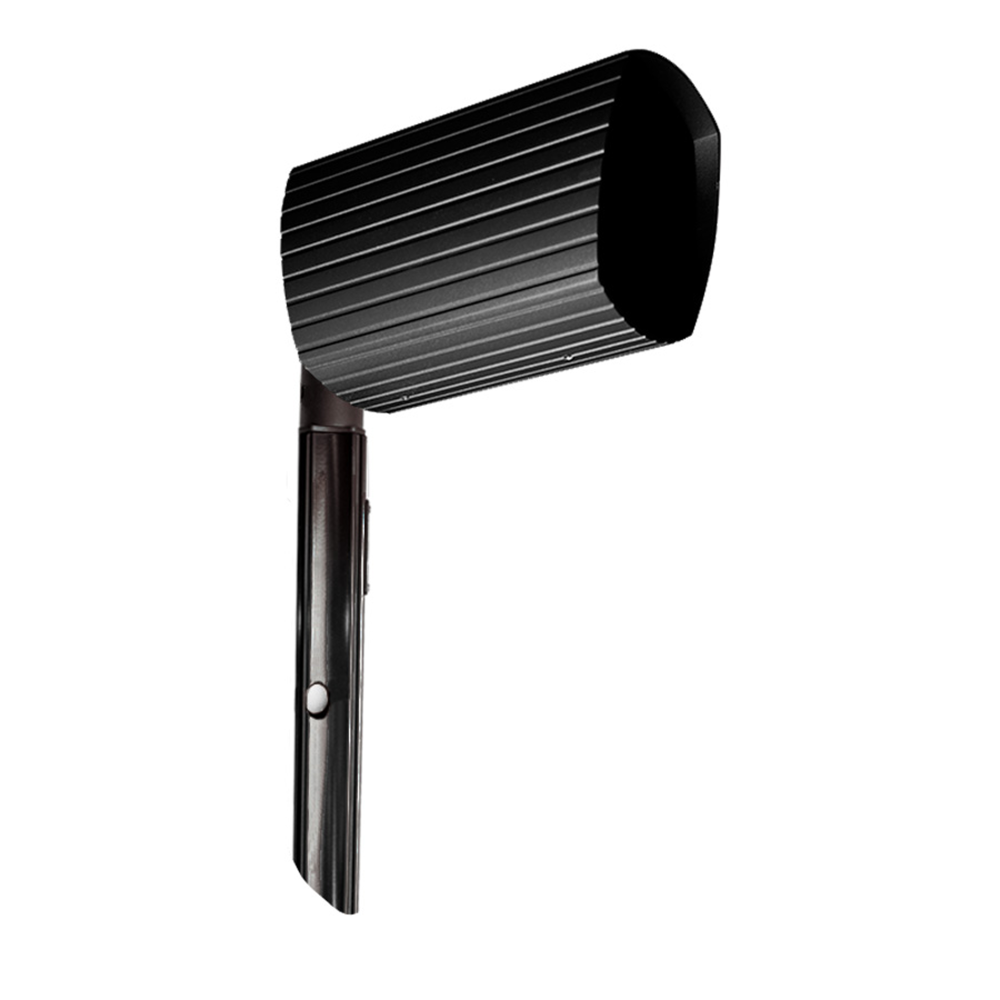

James Loudspeaker OMNI89-70-P - Omni Directional 3" Coax Pedestal 70V

Product Overview

The James Loudspeaker OMNI89-70-P is a pedestal-mounted omnidirectional outdoor loudspeaker engineered for 70V commercial audio distribution across landscapes, courtyards, and hospitality grounds. Its 360-degree dispersion delivers even coverage where in-ground or planter installations are not practical, making it a strong fit for outdoor commercial sound design and distributed paging. The marine-grade aluminum construction supports long-term outdoor deployment in demanding environments. This model ships pre-configured for 70V line systems, simplifying multi-zone integration on a single amplifier tap.

Product Description

The OMNI89-70-P combines four 3-inch coaxial drivers with an 8-inch down-firing woofer in a single pedestal enclosure, projecting full-range sound uniformly in every direction. Because it radiates omnidirectionally, a single unit can replace several aimed satellite speakers in an open outdoor area, reducing fixture count and cabling on a project. The pedestal form factor lets integrators place the speaker on hardscape, planting beds, or pathways without trenching or structural cuts. Built from marine-grade aluminum, the cabinet is designed to withstand sustained sun, moisture, and temperature swings in exterior commercial settings. The 70V transformer tap allows long cable runs and many speakers per amplifier channel, which is the standard topology for large outdoor distributed audio. This makes the OMNI89-70-P suitable for resorts, restaurant patios, civic plazas, and corporate campuses where consistent background music or paging is required. For 4-ohm low-impedance applications, the companion OMNI89-4-P offers the same enclosure on a dedicated stereo or home-theater amplifier. Explore the full James Loudspeaker range at our James Loudspeaker collection.

Key Features

• Omnidirectional 360-Degree Coverage — The radial driver layout distributes sound evenly in all directions, so a single pedestal can cover an open area that would otherwise need multiple aimed speakers.
• Coaxial Driver Array — Four 3-inch coaxial drivers reproduce the midrange and high frequencies with consistent off-axis response around the full perimeter of the unit.
• Down-Firing Woofer — An 8-inch down-firing woofer adds low-frequency weight for full-range outdoor playback without a separate subwoofer in many zones.
• 70V Line Operation — The integrated 70V transformer supports long cable runs and high speaker counts per amplifier channel for large distributed-audio systems.
• Marine-Grade Aluminum Construction — The aluminum enclosure resists corrosion, moisture, and UV exposure for reliable long-term outdoor service.
• Pedestal Mounting — The pedestal base allows surface placement on hardscape or in planting beds without trenching or structural modification.

Typical Applications

• Resort and hospitality grounds
• Restaurant and bar patios
• Corporate campus exteriors
• Civic plazas and public spaces
• Outdoor commercial background music and paging zones

Technical Specifications

Frequently Asked Questions

Is the OMNI89-70-P designed for 70V distributed audio systems?
Yes. This model includes a 70V transformer tap, so it connects to constant-voltage amplifier channels and supports many units on a single run for large outdoor zones.

How is it different from the OMNI89-4-P?
The OMNI89-4-P is the 4-ohm low-impedance version of the same pedestal enclosure. Choose the 70V model for distributed multi-speaker zones and the 4-ohm model for direct amplifier or home-theater drive.

Can one unit cover an open outdoor area on its own?
Because it radiates omnidirectionally, a single OMNI89-70-P can cover an open area that would otherwise require several aimed satellite speakers, reducing fixture count.

Is it suitable for permanent outdoor installation?
Yes. The marine-grade aluminum enclosure is built to withstand sustained moisture, UV, and temperature changes for long-term exterior use.

Does it require a separate subwoofer?
The integrated 8-inch down-firing woofer provides low-frequency output for full-range playback in many zones, though a dedicated subwoofer can be added for higher-output applications.
