INOGENI HD2USB3 4K-Upgradable 1080p HDMI to USB 3.1 Gen 1 Converter

Product Overview

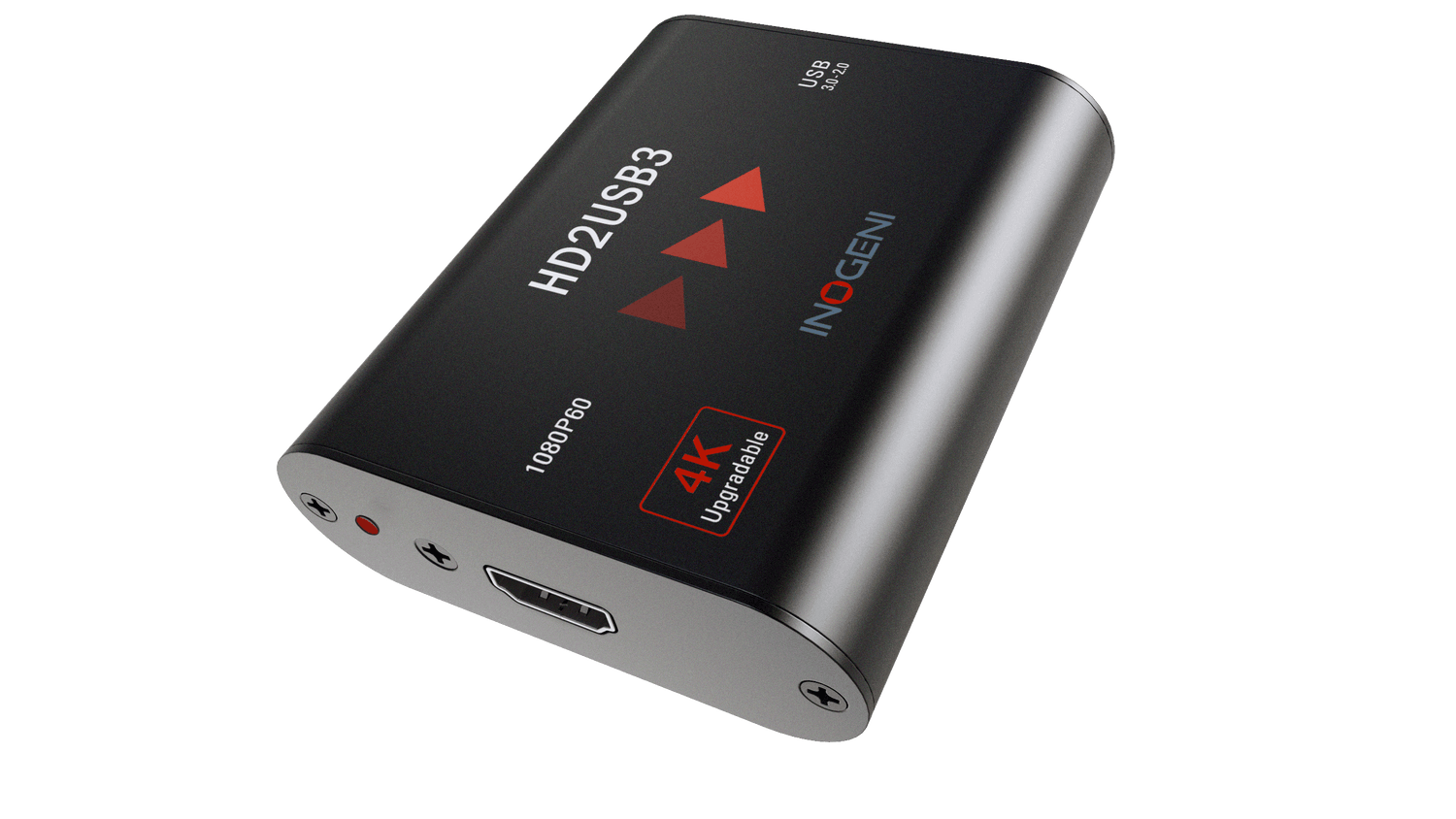

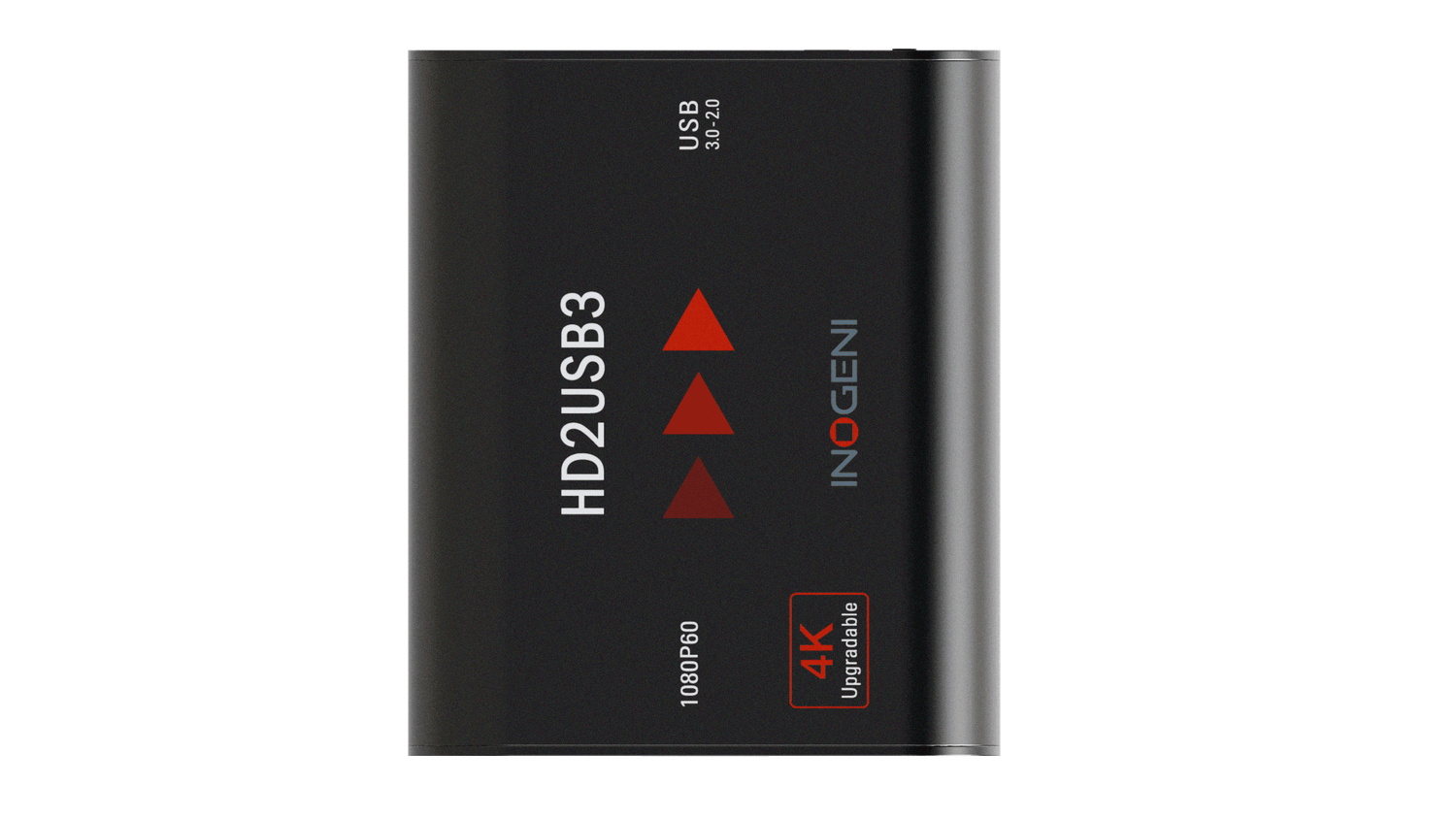

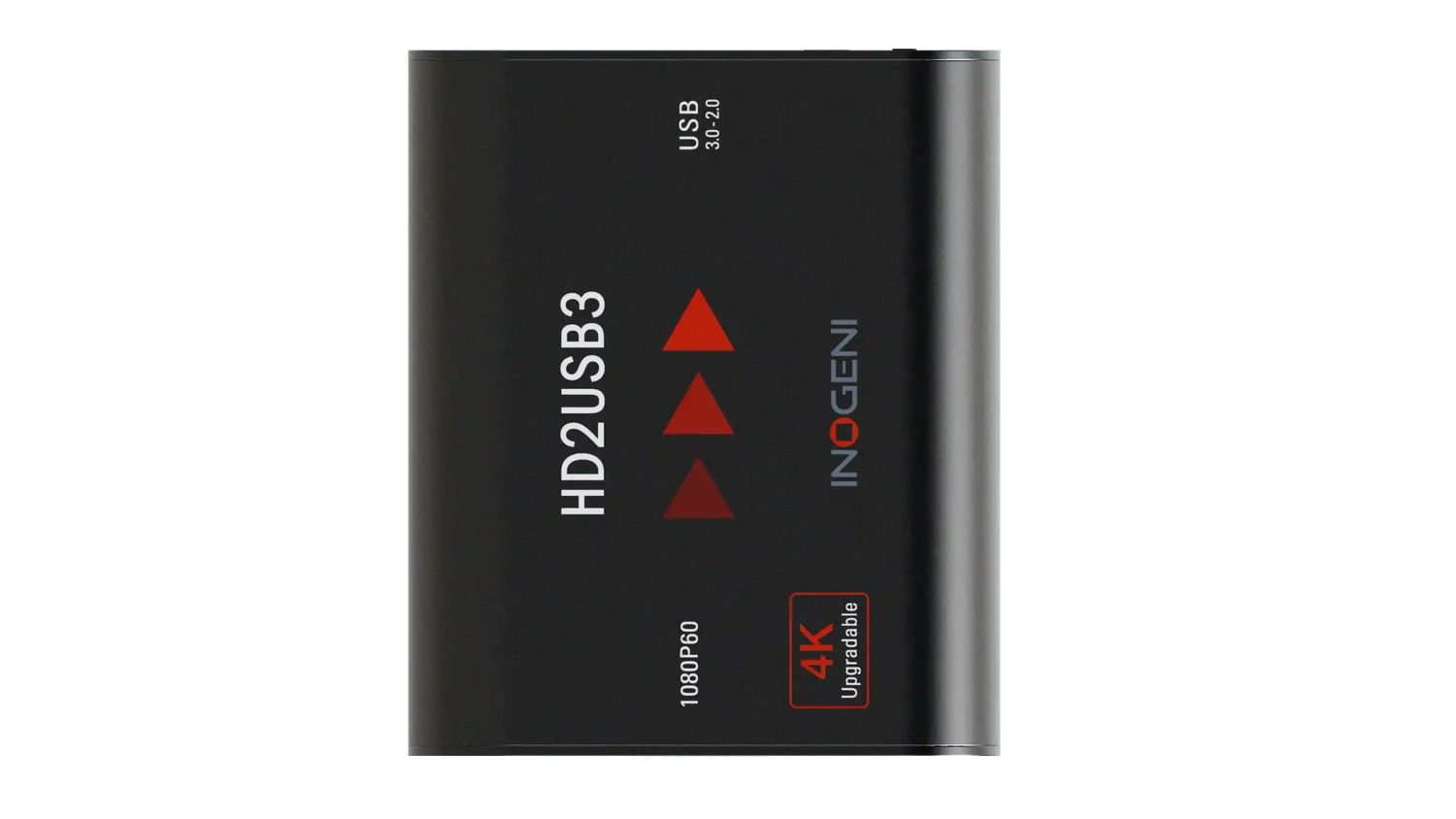

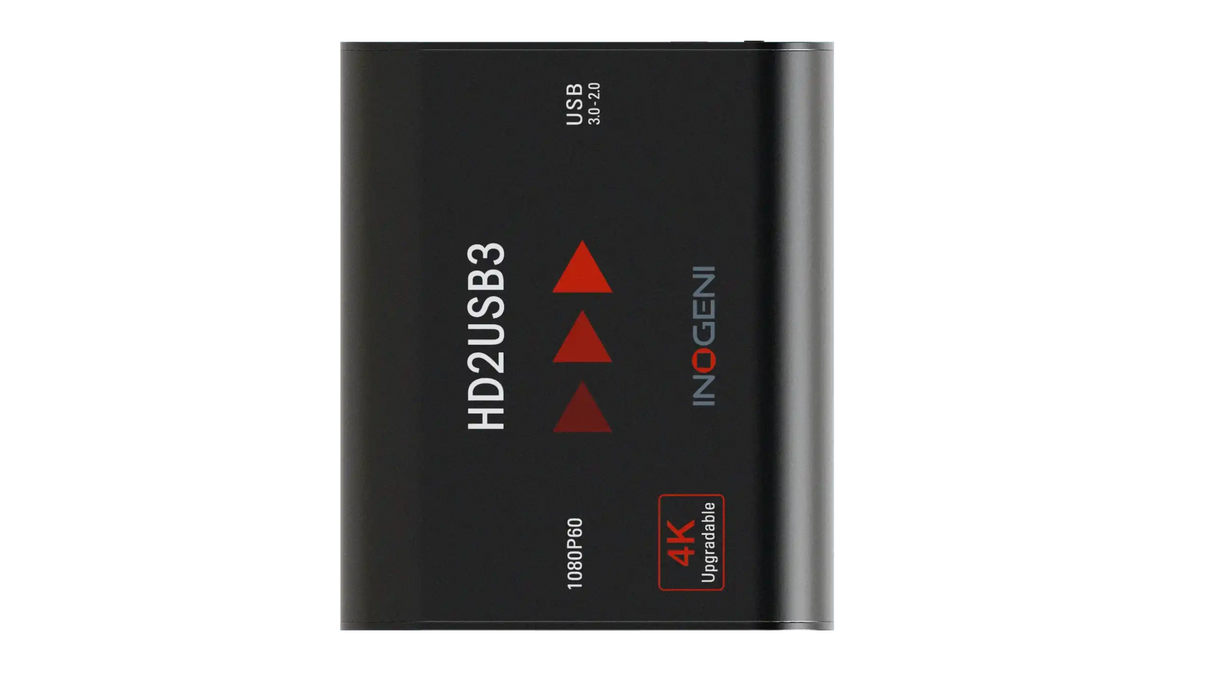

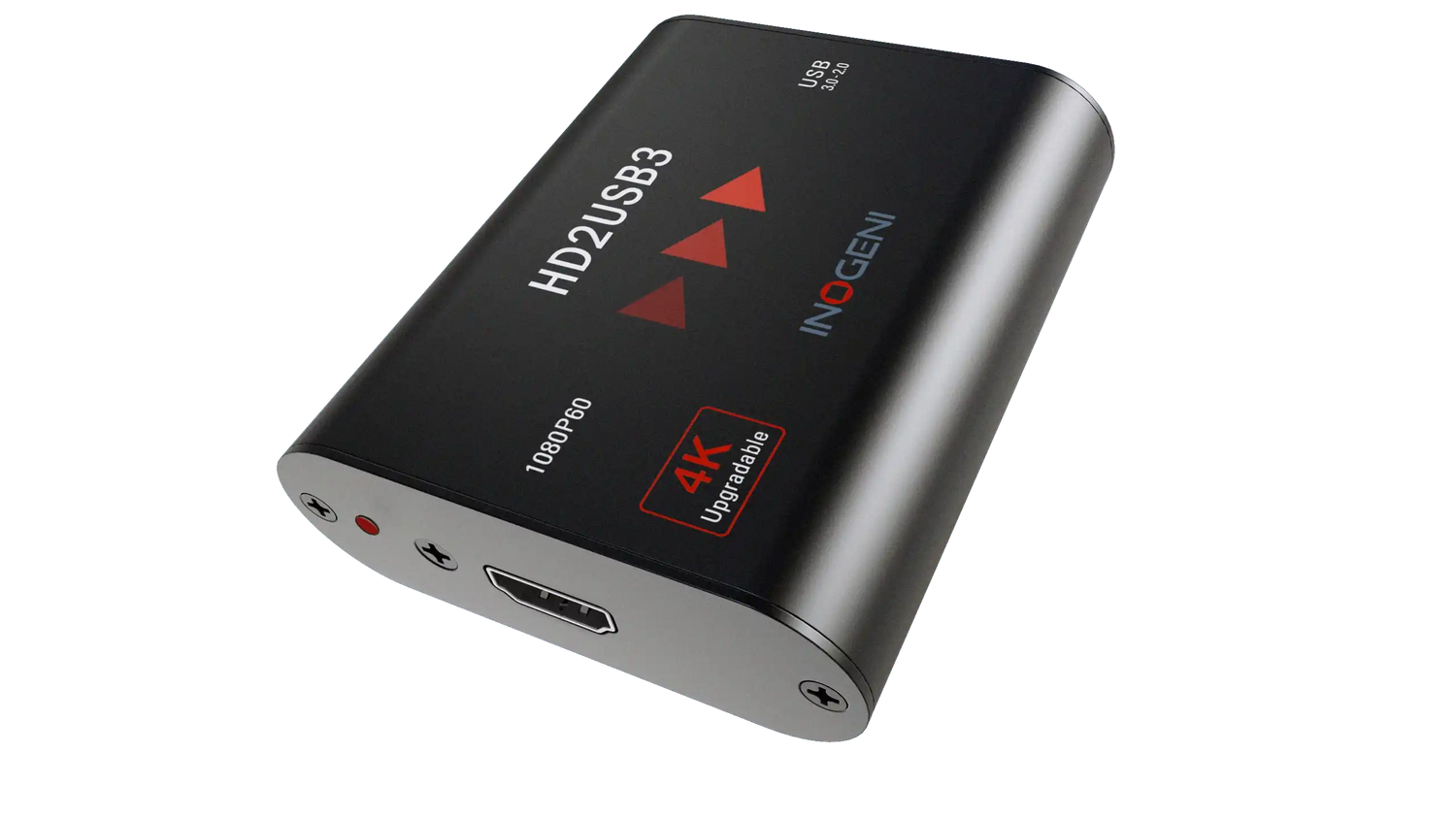

The INOGENI HD2USB3 is a 1080p HDMI to USB 3.1 Gen 1 capture card that converts an HDMI camera or source into a UVC-compliant USB webcam device recognized by any conferencing platform or recording application. At its base configuration it supports resolutions up to 1200p at 60 fps, and the firmware is field-upgradable to 4K for a nominal fee — protecting the investment as room requirements evolve. The HD2USB3 is a Zoom-certified HDMI to USB 3.0 converter for conference rooms, training rooms, and broadcast applications where a driver-free, plug-and-play capture solution is required.

Product Description

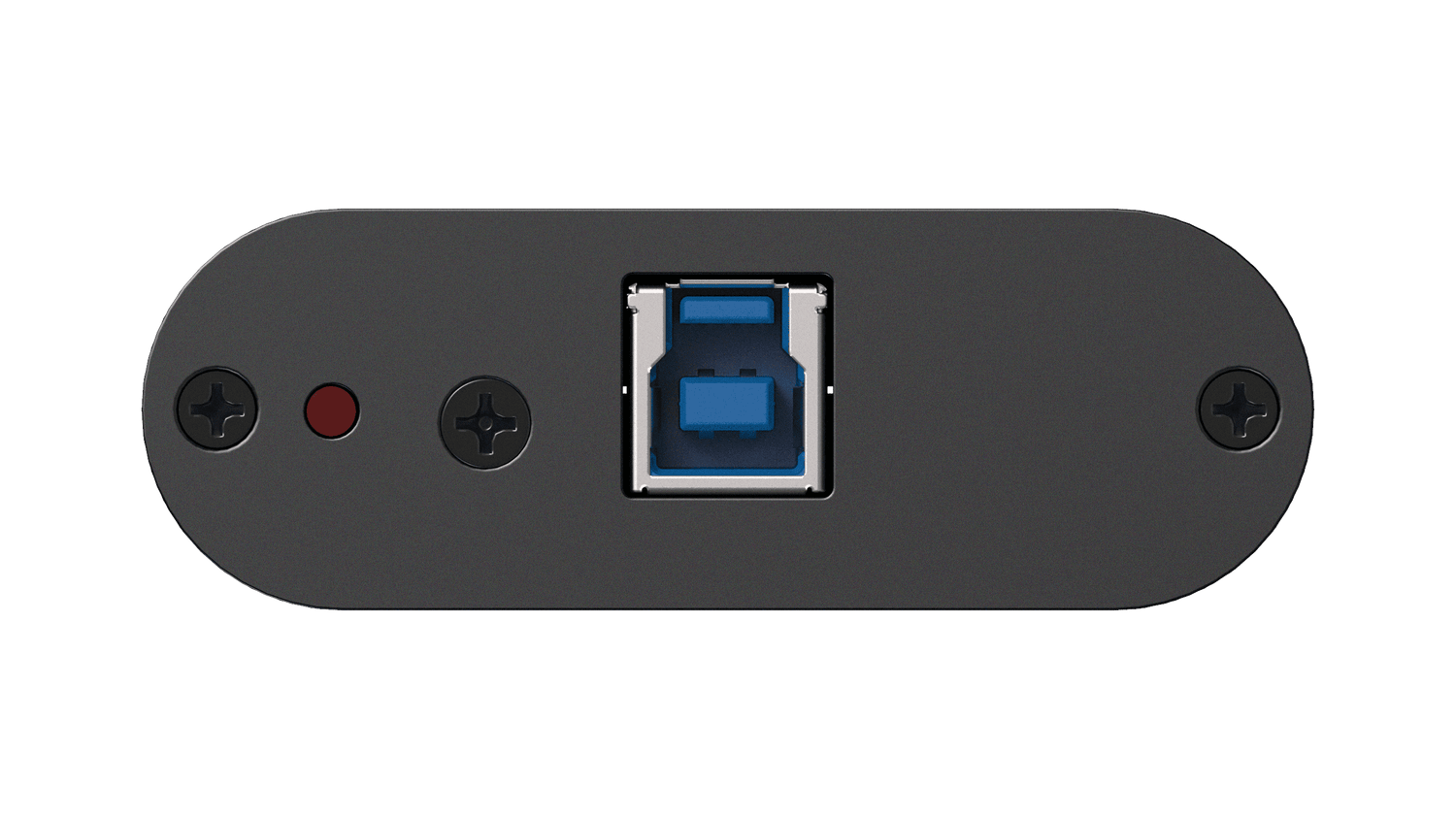

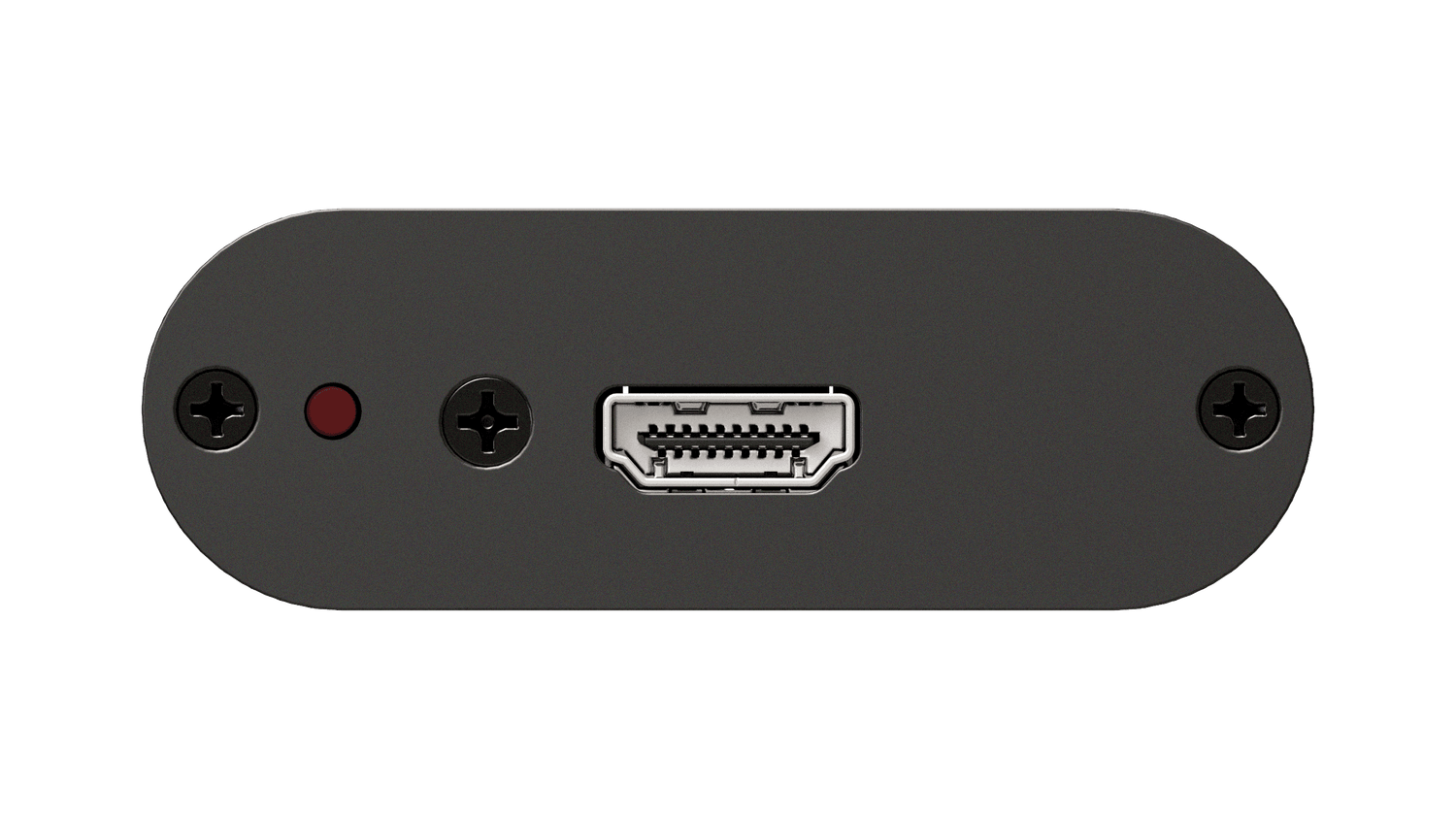

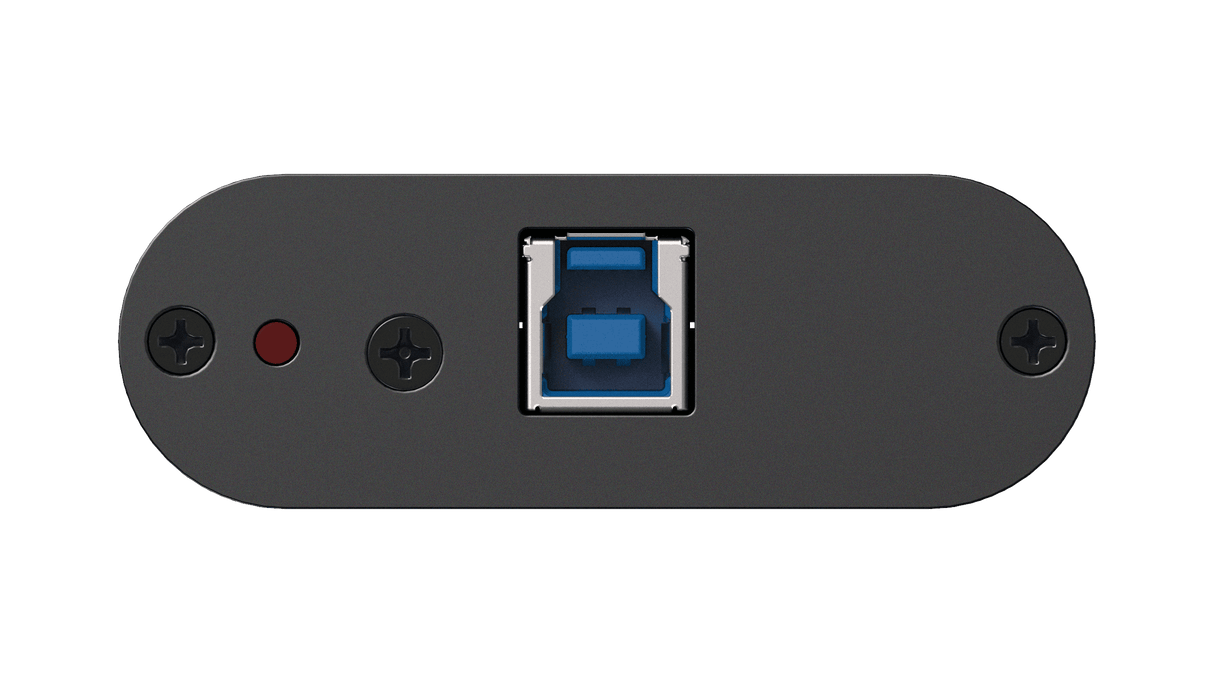

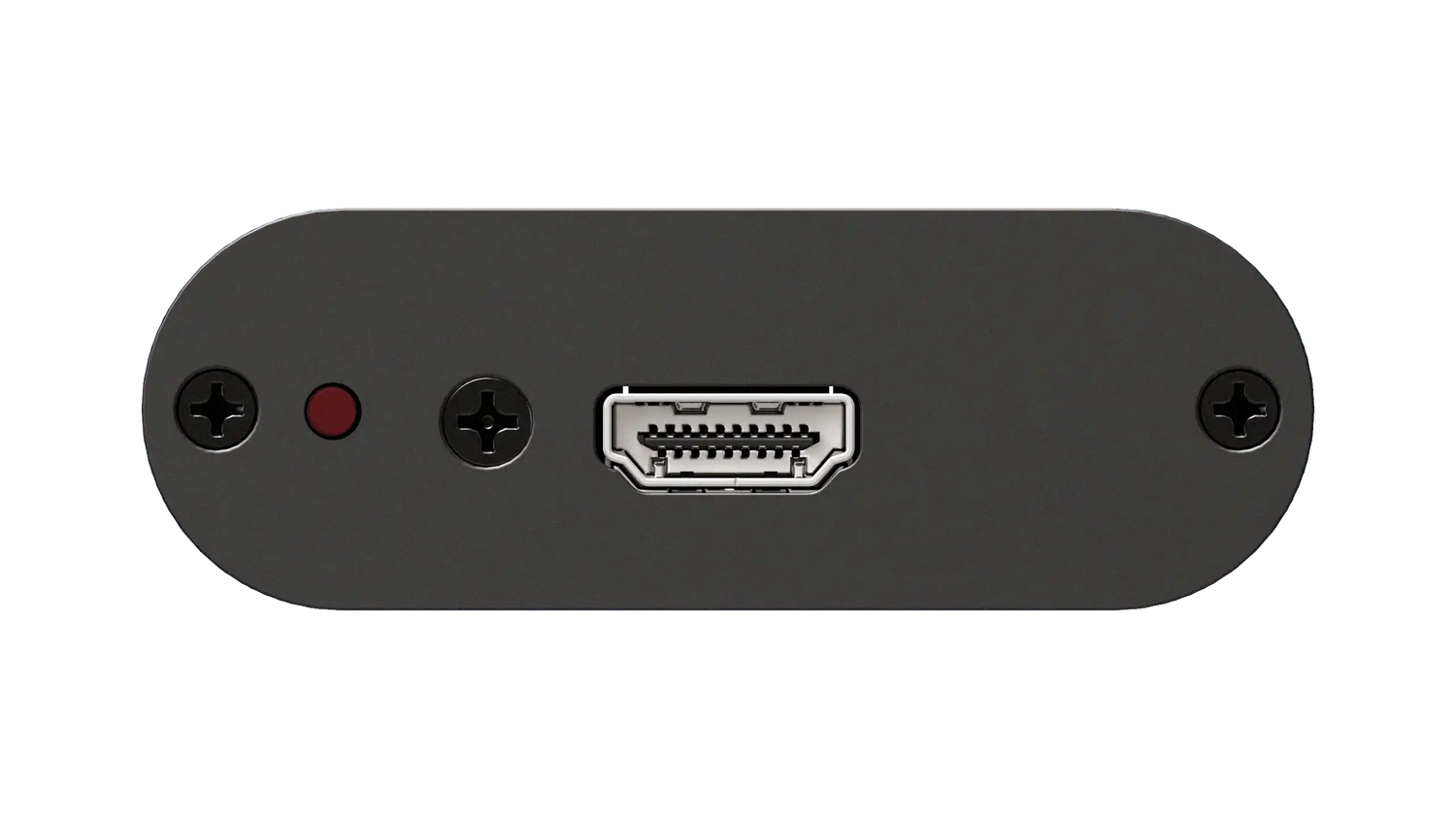

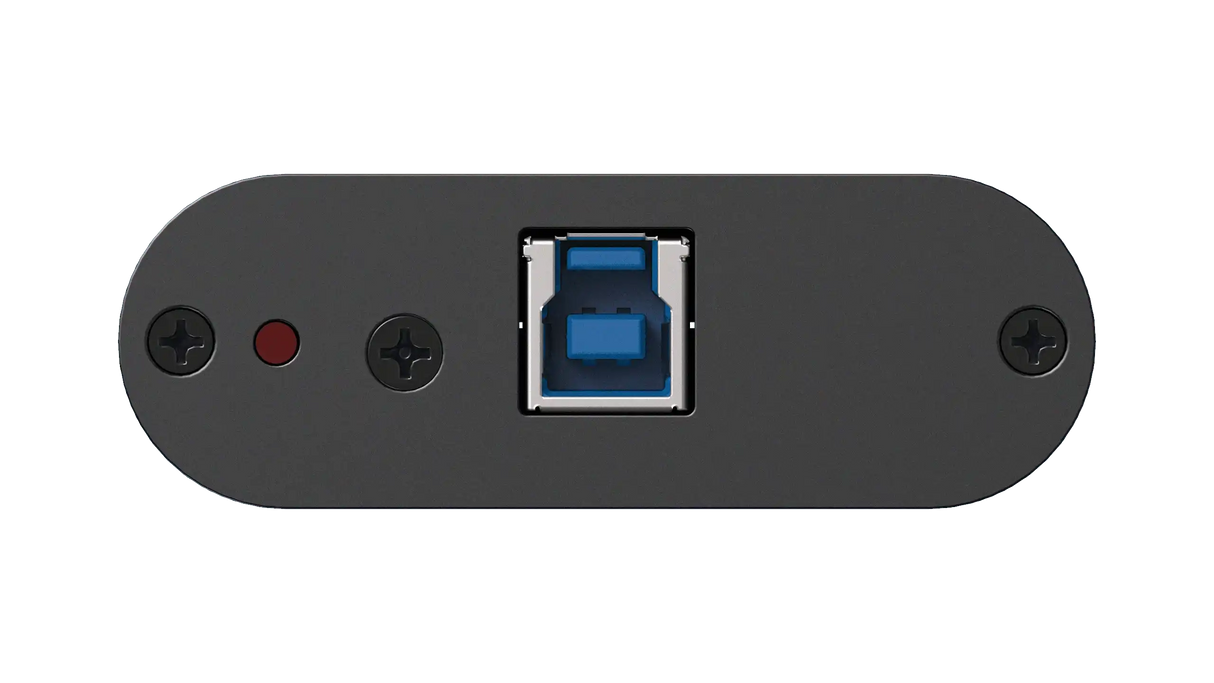

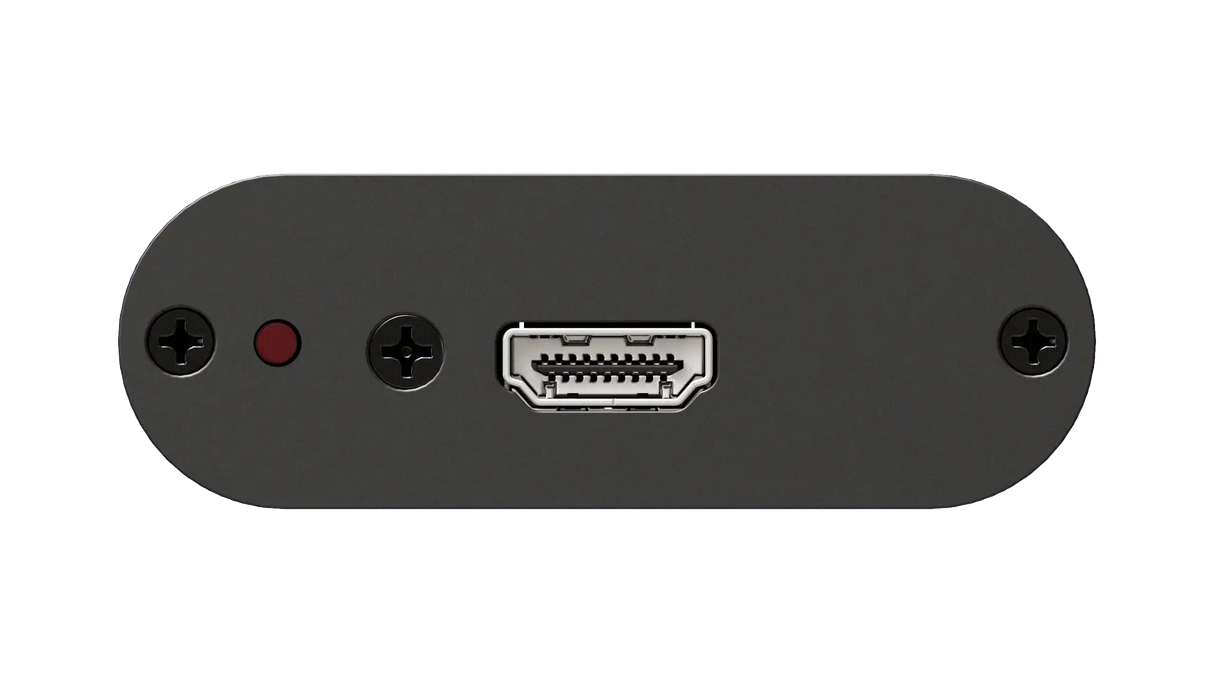

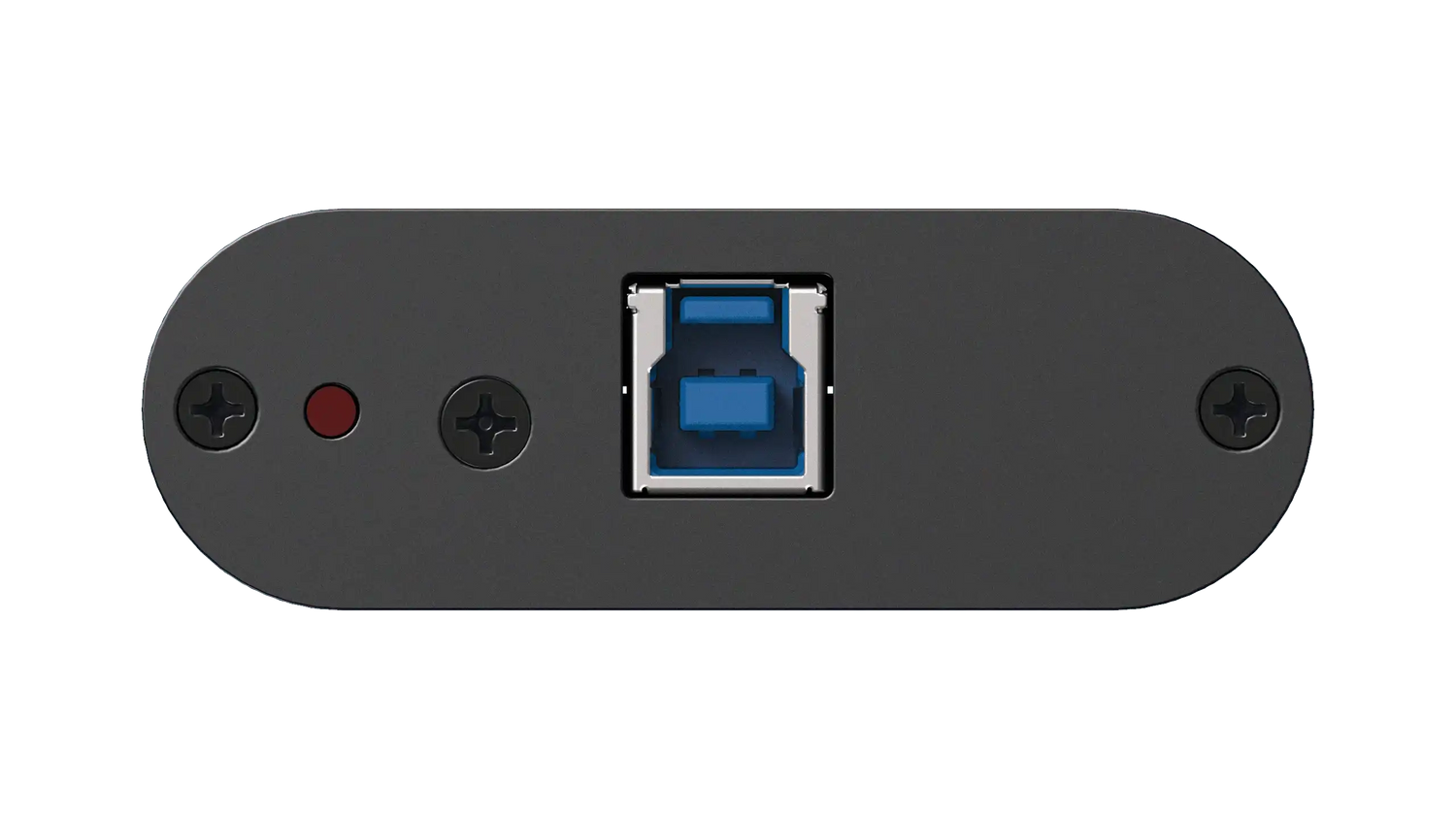

The HD2USB3 features a single HDMI input and USB 3.0 output, drawing power entirely from the host USB port with no external supply needed. It captures SD and HD video formats as well as most computer graphic resolutions, with all signals converted to standard USB video output that any host recognizes as a camera source. INOGENI's Digital Fluid technology uses internal frame buffers to sustain high frame rates even on host PCs with limited USB bandwidth. Hardware-based color space and sampling conversion handles the signal processing on-board, avoiding software overhead. Automatic scaling and frame rate conversion eliminate manual configuration when switching between source resolutions. Image processing controls for brightness, contrast, saturation, and hue are accessible via the INOGENI Control App. The HD2USB3 is Zoom-certified and verified compatible with Microsoft Teams, Google Meet, Webex, and BlueJeans. It also works with Barco ClickShare Conference (CX-20, CX-30, CX-50) and Logitech UC CODECs including Rally Bar and Rally Bar series in Appliance Mode. Multiple HD2USB3 units can operate on a single host PC simultaneously. The unit carries a 5-year warranty and is TAA-compliant, manufactured in Canada.

Key Features

• 4K-Upgradable Firmware — Field upgrade to 4K capability for a minimal fee, extending the product's useful life as display and camera standards advance.
• Up to 1200p at 60 fps — Supports 1080p, 1080i, 720p, 480p, 576p, and graphic resolutions up to 1920x1200 at 60 fps in base configuration.
• UVC-Compliant, No Drivers — Recognized as a standard USB camera by all major operating systems and conferencing platforms without driver installation.
• Zoom-Certified — Officially certified by Zoom for use in Zoom Rooms environments as both a camera converter and HDMI content source.
• HDMI Audio Support — Captures embedded HDMI audio alongside video and delivers both over the single USB 3.0 connection.
• Digital Fluid Technology — Internal frame buffers maximize sustained frame rate on any host PC regardless of USB traffic conditions.
• Bus-Powered — Draws power directly from the USB 3.0 host port; no power adapter or separate cabling required.
• 5-Year Warranty, TAA-Compliant — Covered by INOGENI's extended warranty and eligible for U.S. federal and regulated commercial procurement.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Commercial meeting space
• Training room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Q: What does "4K-upgradable" mean, and how does the upgrade work?

A: The HD2USB3 ships with firmware that supports up to 1200p60. For a nominal fee, INOGENI provides a firmware upgrade that unlocks 4K capture capability on the same hardware. This is done through INOGENI's upgrade program and allows the device to continue serving higher-resolution room camera installations without replacement.

Q: Is the HD2USB3 Zoom-certified?

A: Yes. The HD2USB3 is officially Zoom-certified for Zoom Rooms deployments. It can function both as an HDMI camera converter and as a content source (e.g., connecting a laptop's HDMI output as a presentation source in Zoom Rooms).

Q: Does the HD2USB3 require drivers?

A: No. The HD2USB3 is UVC-compliant and plug-and-play on Windows, macOS, and Linux. It registers as a standard USB camera without any driver installation.

Q: Which cameras are compatible with the HD2USB3?

A: The HD2USB3 works with any HDMI output camera. Tested brands include Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Marshall, and Logitech cameras with HDMI outputs. A full tested camera list is available on the INOGENI website.

Q: Can the HD2USB3 be used with Logitech UC CODECs like Rally Bar?

A: Yes. The HD2USB3 is verified compatible with Logitech UC CODECs including Rally Bar and Rally Bar series in Appliance Mode for both MTR and Zoom Rooms configurations.

Q: Can I run multiple HD2USB3 units on one computer?

A: Yes. Multiple HD2USB3 devices can operate simultaneously on a single host PC, making it suitable for multi-source capture in broadcast studios or multi-camera conference room setups.

Q: Does the HD2USB3 need an external power supply?

A: No. The HD2USB3 is fully bus-powered from the USB 3.0 host port. No power adapter or additional cabling is needed.
