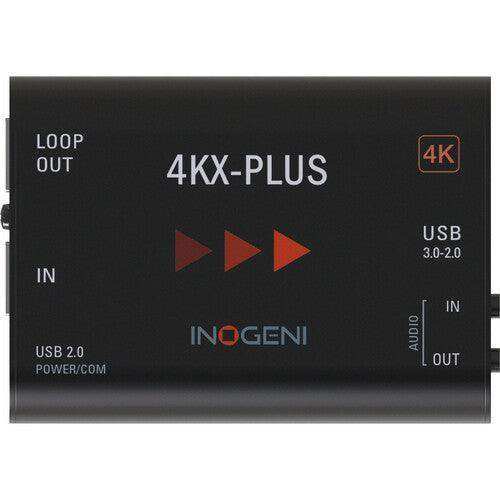

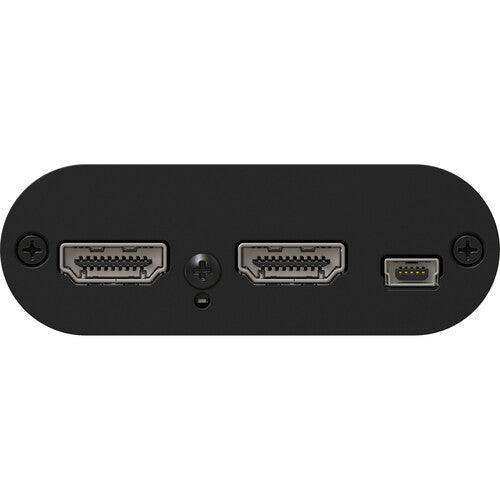

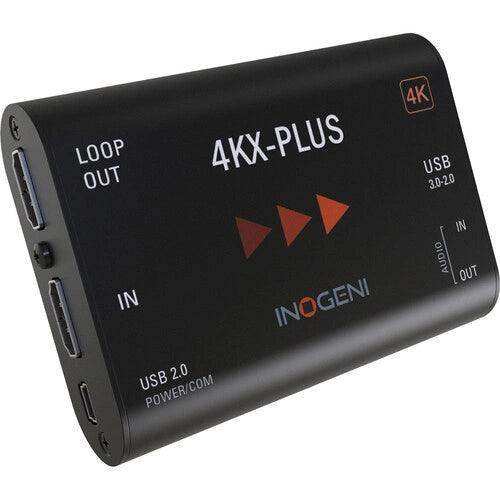

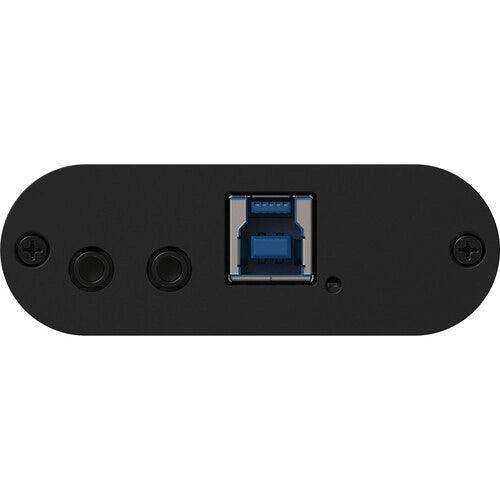

INOGENI 4KX-PLUS HDMI to USB 3.0 converter

INOGENI SKU: 4KX-PLUS
No reviews
Price:
$665.00

Description

 

Convert your HDMI signal from cameras or other video sources to USB video compatible with USB 2.0 or 3.0 with the 4KX-Plus HDMI to USB 3.0 Converter from INOGENI. It features an HDMI input, HDMI loop-through output, and a USB 3.0 output. Compact in size and powered directly from a USB port or via an external power supply, the converter is a practical and easy-to-use USB 3.0/2.0 capture solution. It is compatible with Windows, Mac OS X, and Linux operating systems.

In addition, the 4KX-Plus is compatible with Cisco Webex Room Series conferencing cameras. The device can deliver 4K footage over USB 3.0 and is backward compatible with a USB 2.0 host connection delivering compressed MJPEG files.

 Functions
  • HDMI capture to USB 3.0
  • Compatible with USB 2.0 (high-quality MJPEG)
  • HDMI loop output
  • Up to Ultra HD 4K (3840/4096 x 2160) at 30 fps and 1080p at 60 fps
  • HDMI audio support
  • Analog audio I/O
  • Digital Fluid technology: Internal frame buffers maximize frame rates
  • Hardware-based color space and sampling conversion
  • Automatic scaling and frame rate conversion (UHD upscaling not supported)
  • Image controls: Brightness, contrast, saturation, and hue settings
  • Supports multiple devices on the same PC
  • Compatible with Windows, Mac OSX, Linux, and Android
  • Powered from an external adapter or USB 2.0 (included)
 Compatible with Cisco Webex Room Series
  • Activate 'Enable USB mode' on the Touch 10
  • It works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet, or BlueJeans
  • The 4KX-PLUS with Cisco Devices enables multiple displays; the 4K2USB3 works only for one display
  • The external power supply maintains the connection between the Cisco Webex CODEC and the 2nd display, even if the laptop is not connected to the 4KX-PLUS
  • Convert Ultra HD to USB 3.0
  • HDMI Loop-Out
  • Analog Audio In/Out
  • USB or External Power

INOGENI 4KX-Plus Specs
Video Inputs 1 x HDMI (HDMI 1.4a)
Audio Inputs 1 x 1/8" / 3.5 mm TRS
Video Outputs 2 x HDMI (HDMI 1.4a)
Audio Outputs 1 x 1/8" / 3.5 mm TRS
Expansion Slots None
Input Video Format HDMI (4:4:4/4:2:2 RGB, YCC)
UHD 4K at 23.98/24/25/29.97/30 fps
1440p 23.98/24/25/29.97/30/50/56/59.94/60 fps
1080p 23.98/24/25/30/50/59.94/60 fps
1080i 23.98/24/25/29.97/30/50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
WUXGA (1920 x 1200) 23.98/24/25/29.97/30/50/59.94/60 fps
SXVGA (1280 x 1024) 23.98/24/25/29.97/30/50/59.94/60 fps
SXGA- (1280 x 960) 23.98/24/25/29.97/30/50/59.94/60 fps
WXGA (1280 x 800) 23.98/24/25/29.97/30/59.94/60 fps
XGA (1024 x 768) 23.98/24/25/29.97/30/50/59.94/60 fps
480p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 23.98/24/25/29.97/30/50/59.94/60 fps
SVGA (800 x 600) 23.98/24/25/29.97/30/50/59.94/60 fps
VGA (640 x 480) 23.98/24/25/29.97/30/59.94/60 fps
Input Audio Format Analog
Output Video Format HDMI (4:4:4/4:2:2 RGB, YCC)
UHD 4K at 23.98/24/25/29.97/30 fps
1440p 23.98/24/25/29.97/30/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 23.98/24/25/29.97/30/50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 24/25/29.97/30/50/59.94/60 fps
480p 23.98/24/25/29.97/30/50/59.94/60 fps
WUXGA (1920 x 1200) 23.98/24/25/29.97/30/50/59.94/60 fps
SXGA (1280 x 1024) 23.98/24/25/29.97/30/50/59.94/60 fps
1280 x 960 23.98/24/25/29.97/30/50/59.94/60 fps
WXGA (1280 x 800) 23.98/24/25/29.97/30/50/59.94/60 fps
XGA (1024 x 768) 23.98/24/25/29.97/30/50/59.94/60 fps
SVGA (800 x 600) 23.98/24/25/29.97/30/50/59.94/60 fps
VGA (640 x 480) 23.98/24/25/29.97/30/50/59.94/60 fps
USB-B (4:2:2/4:2:0 YUV)
UHD 4K
1440p
1080p
1080i
720p
576p
480p
WUXGA (1920 x 1200)
SXGA (1280 x 1024)
1280 x 960
WXGA (1280 x 800)
XGA (1024 x 768)
SVGA (800 x 600)
VGA (640 x 480)
Output Audio Format Analog
Embedded Audio HDMI: 2-Channel
Standards
HDCP Support None
HDR Compatibility Not Specified by Manufacturer
Hardware
Wi-Fi None
OS Compatibility Windows 7 or Later
macOS 10.10 or Later
Linux 2.6.38 or Later
*As of December, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x Barrel (5 VDC at 0.9 A) Input
1 x Mini-USB (5 VDC at 0.9 A) Input
Environmental
Operating Temperature 32 to 113°F / 0 to 45°C
Storage Temperature -40 to 221°F / -40 to 105°C
Operating Humidity 0 to 90% (Non-Condensing)
General
Dimensions 3.9 x 2.8 x 0.9" / 99 x 70 x 24 mm
Weight 4.6 oz / 129 g
Packaging Info
Package Weight 1.385 lb
Box Dimensions (LxWxH) 8.8 x 4.3 x 3.5"
