Sonance R1SUR – Reference In-Wall Surround Speaker

Product Overview

The Sonance R1SUR is the Reference Series in-wall surround speaker built to pair with the R1 LCR model. Its dual-driver array is designed for diffuse surround imaging in home theaters and media rooms.

Product Description

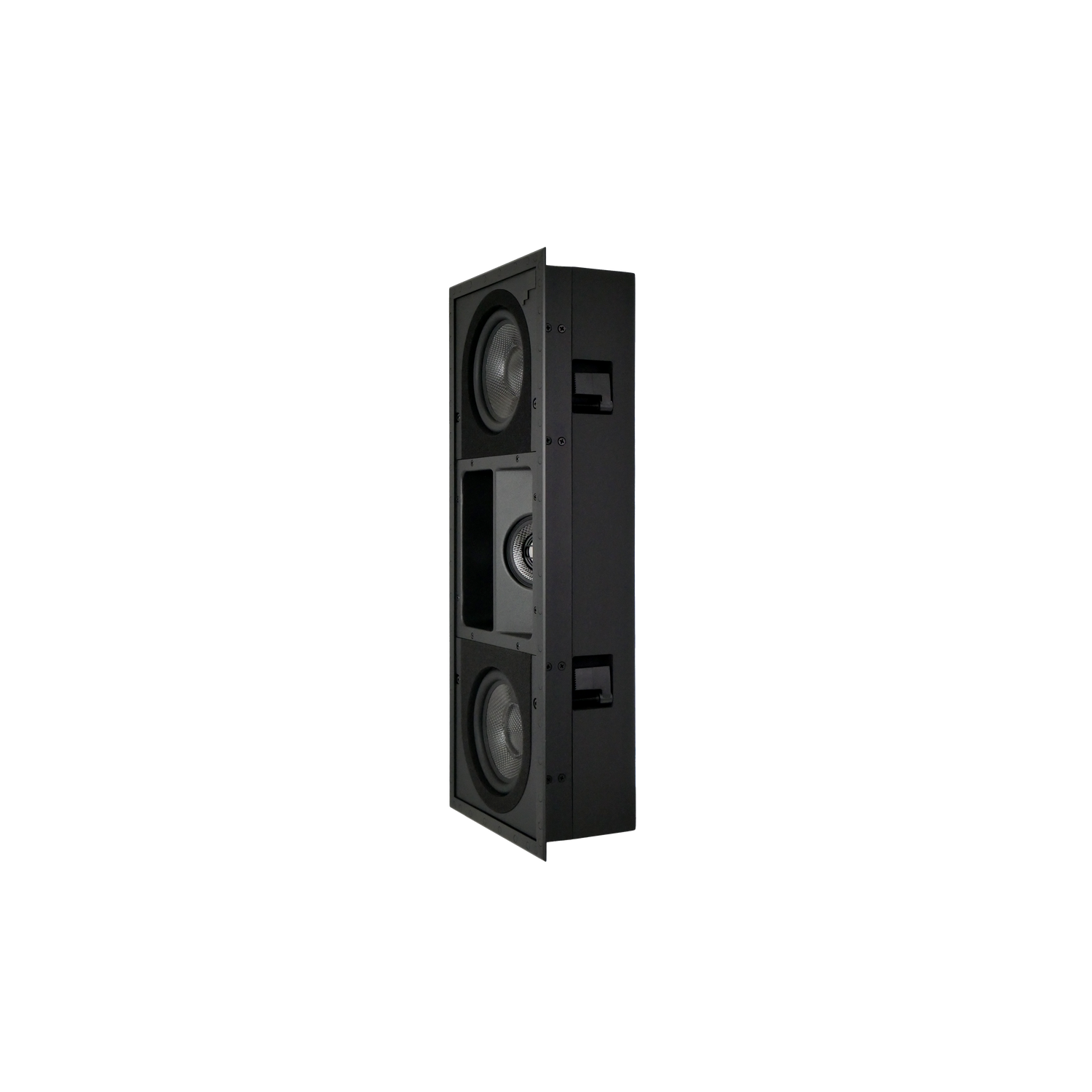

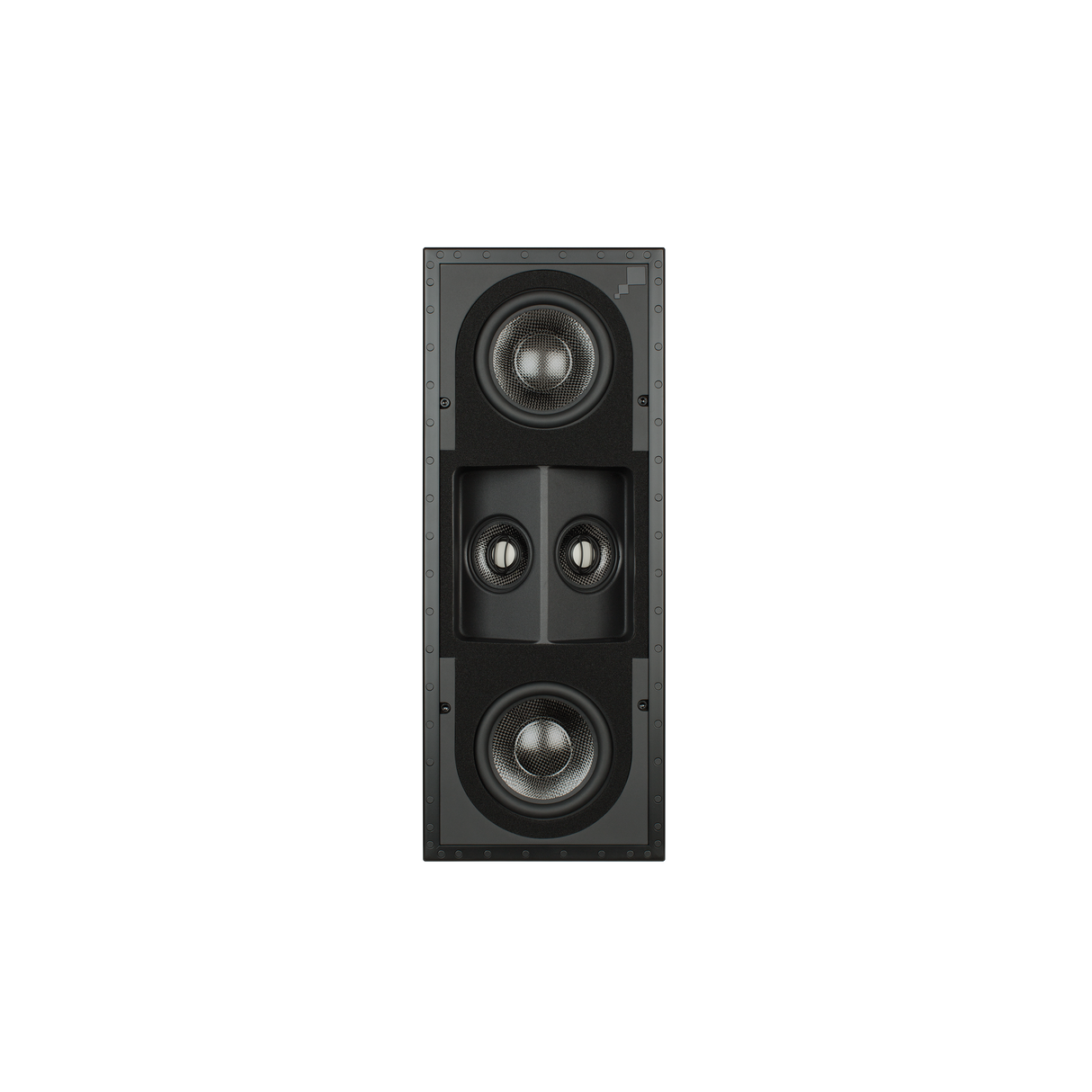

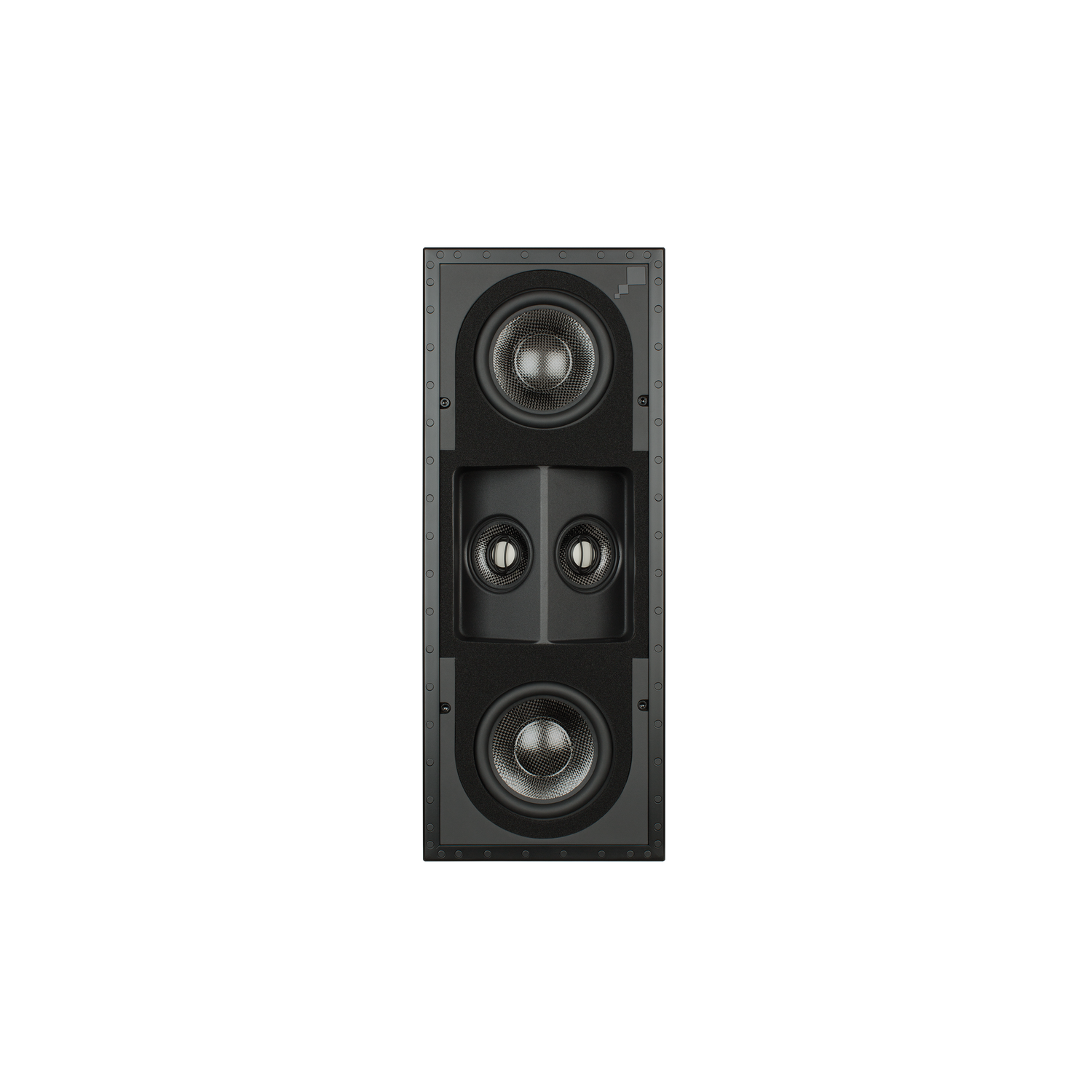

Unlike the single-coaxial-driver R1 LCR speaker, the R1SUR uses a symmetrical array of two 1-inch ferrofluid-cooled ceramic dome tweeters, two 3-inch carbon fiber/Rohacell midrange drivers, and two 5.25-inch carbon fiber/Rohacell woofers, which is a layout suited to producing diffuse, enveloping surround sound rather than a single point source. It handles 5 to 150 watts RMS, with a frequency response of 70Hz-30kHz and sensitivity of 90dB (2.83V/1m). Dimensions run 8.88 by 21.75 by 3.88 inches, with a 7.5 by 20.5-inch cutout, so the R1SUR needs a wider bay than a standard LCR speaker. As part of the Sonance Reference Series, it is designed to fit standard wall or ceiling cavities and can be mixed and matched with the R1 and other Reference models to complete a full surround layout, and it pairs with Sonance DSP amplifiers for custom-tuned performance. Integrators building a full in-wall speaker theater layout commonly pair the R1SUR with the R1 for front and surround duty.

Key Features

• Dual-Driver Surround Array — Two tweeters, two midrange drivers, and two woofers arranged for diffuse surround imaging.
• 150W RMS Power Handling — Handles 5 to 150 watts RMS with 70Hz-30kHz frequency response and 90dB sensitivity.
• Carbon Fiber/Rohacell Cones — Midrange and woofer drivers use carbon fiber/Rohacell laminated cones.

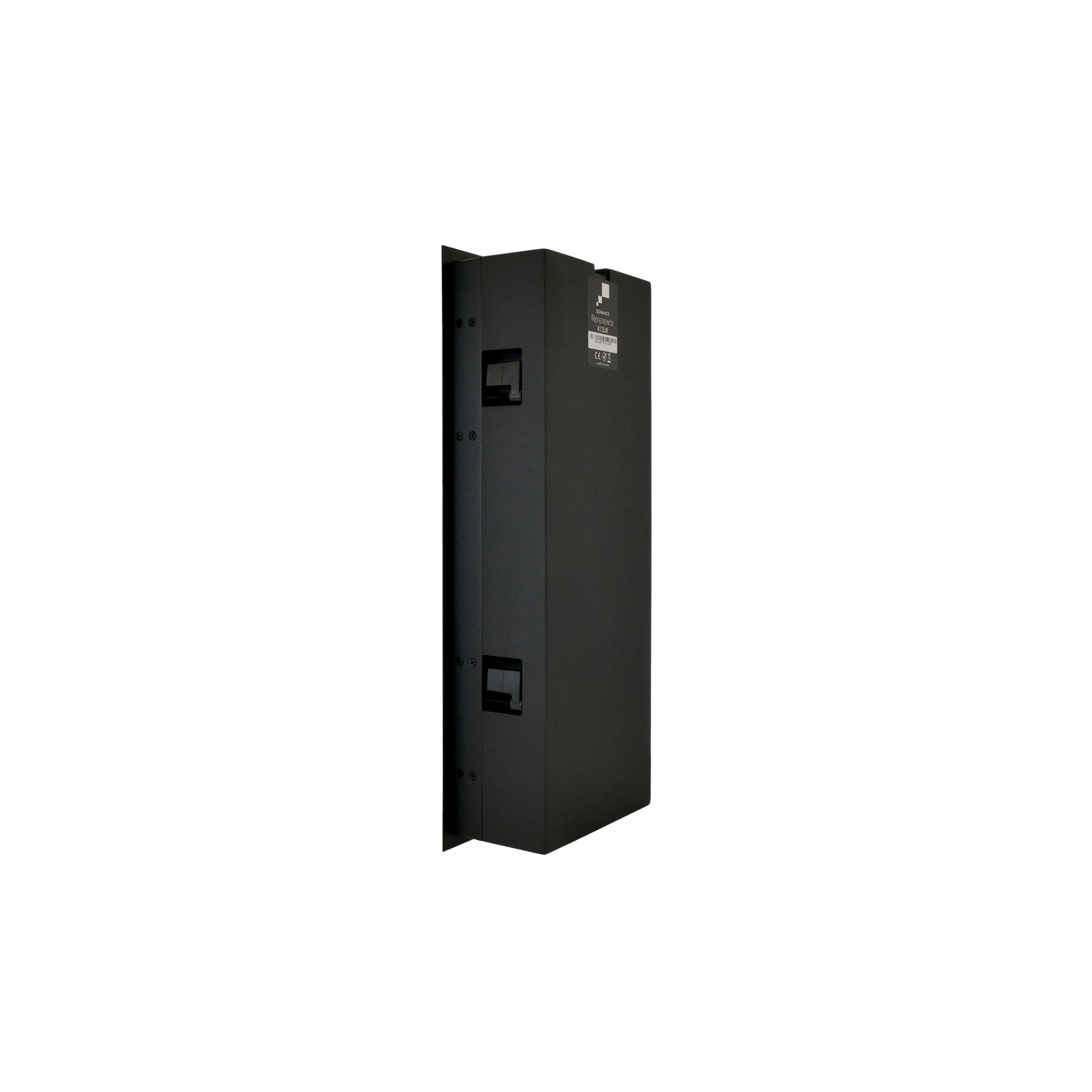

• Integrated Enclosure — Designed to fit standard wall or ceiling cavities while reducing sound disturbance to adjoining rooms.
• Mix-and-Match Reference Series — Pairs with the R1 and other Reference Series models to complete a surround layout.

Typical Applications

• Home theaters and dedicated media rooms
• Surround-channel duty alongside R1 front speakers
• Residential installations using standard wall construction

Technical Specifications

Frequently Asked Questions

How is the R1SUR different from the R1?

The R1SUR is the surround speaker in the pair, using a dual-driver array (two tweeters, two midrange, two woofers) for diffuse surround sound, while the R1 uses a single coaxial driver for LCR duty.

What is the power handling of the R1SUR?

5 watts minimum to 150 watts maximum RMS.

What cutout size does the R1SUR require?

7.5 inches by 20.5 inches.

What is the frequency response of the R1SUR?

70Hz to 30kHz (±3dB).

Can the R1SUR be paired with Sonance DSP amplifiers?

Yes, it can be paired with Sonance DSP amplifiers for custom-tuned system performance.
