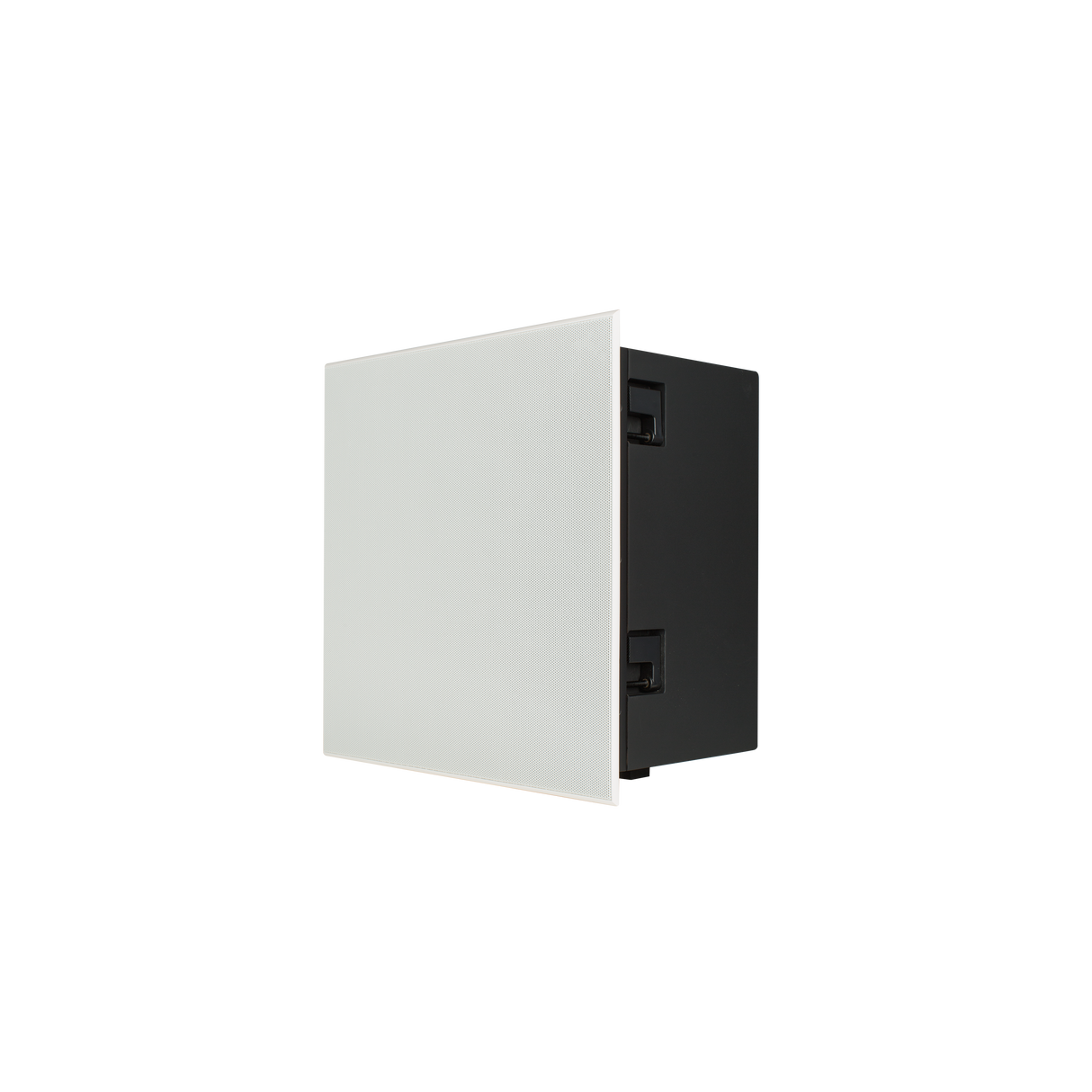

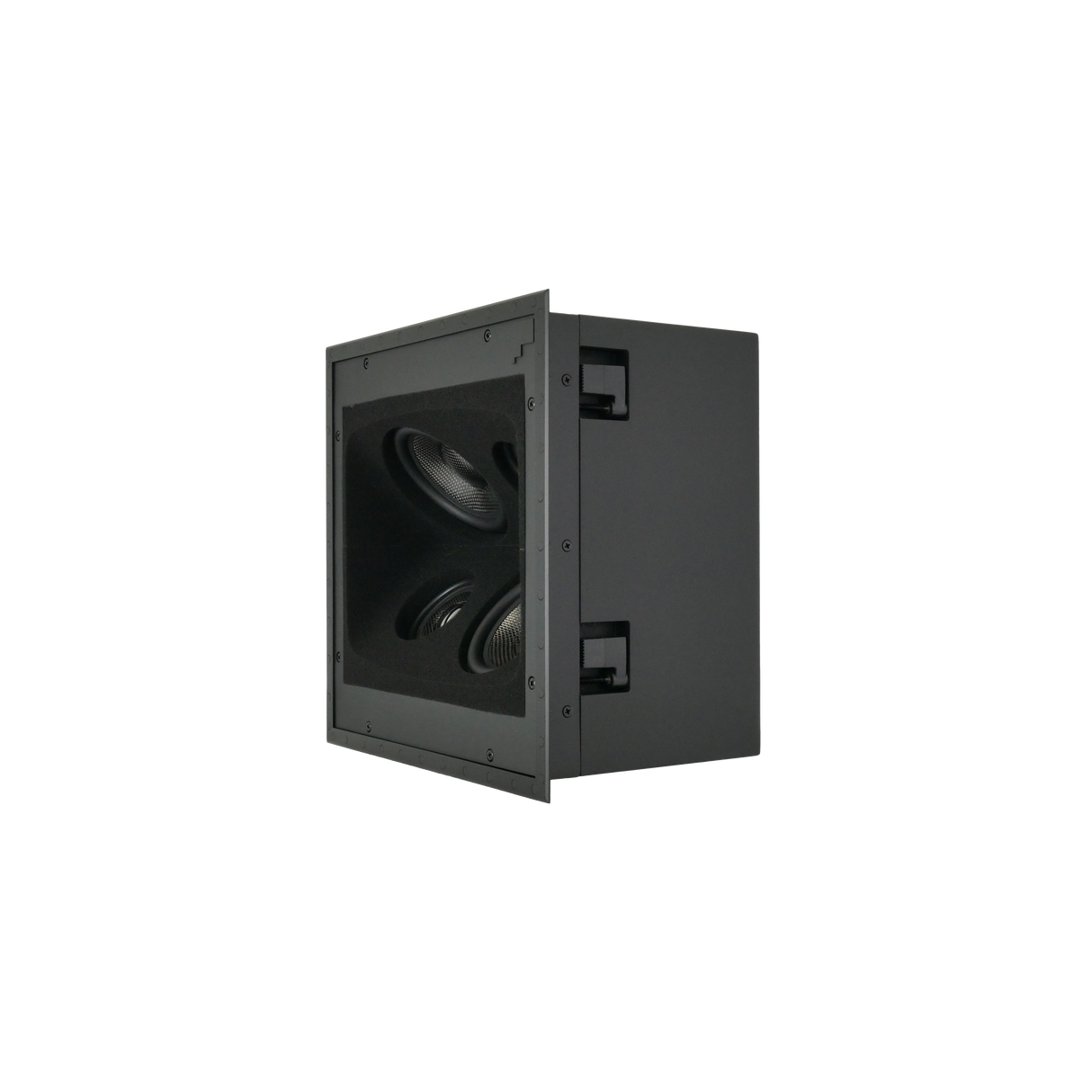

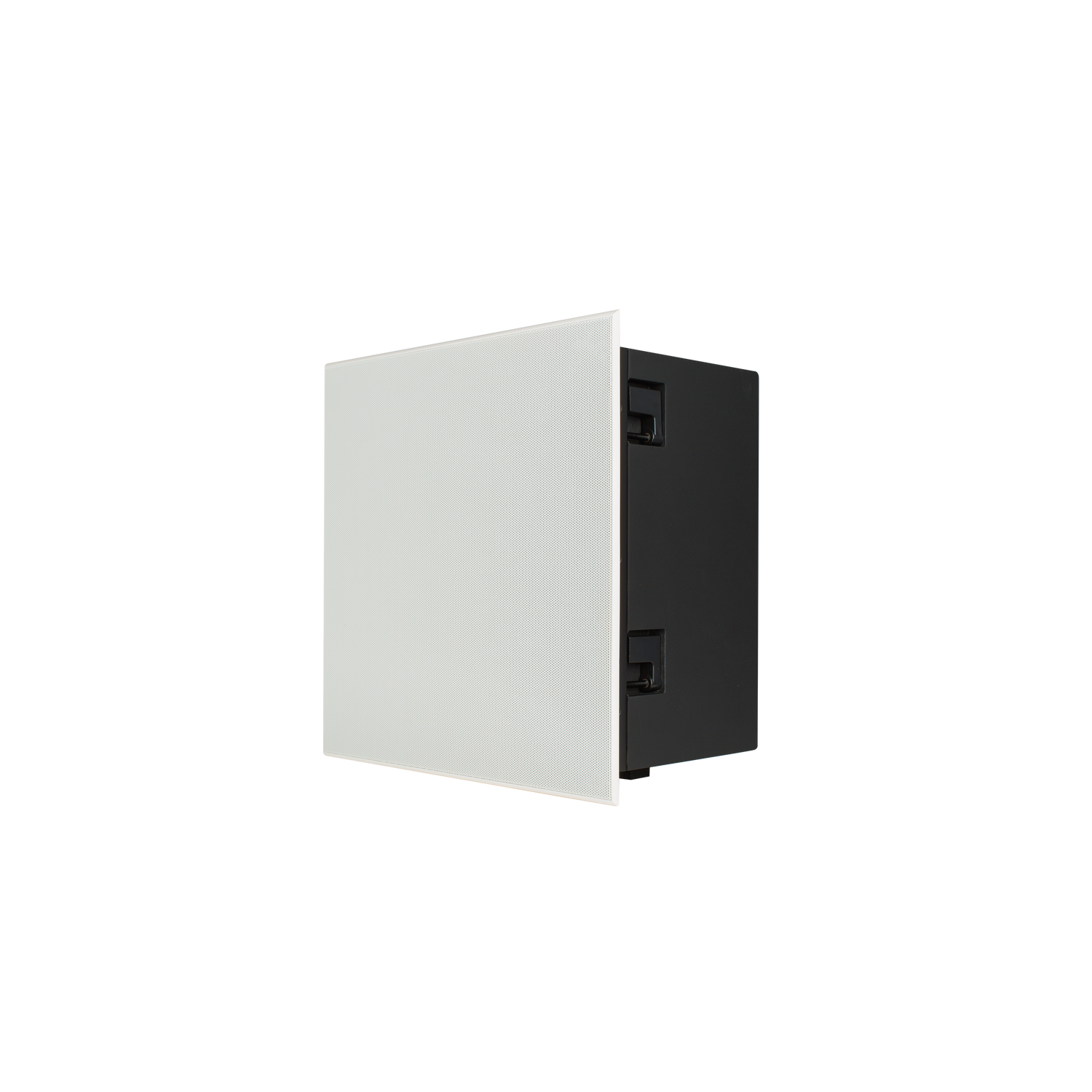

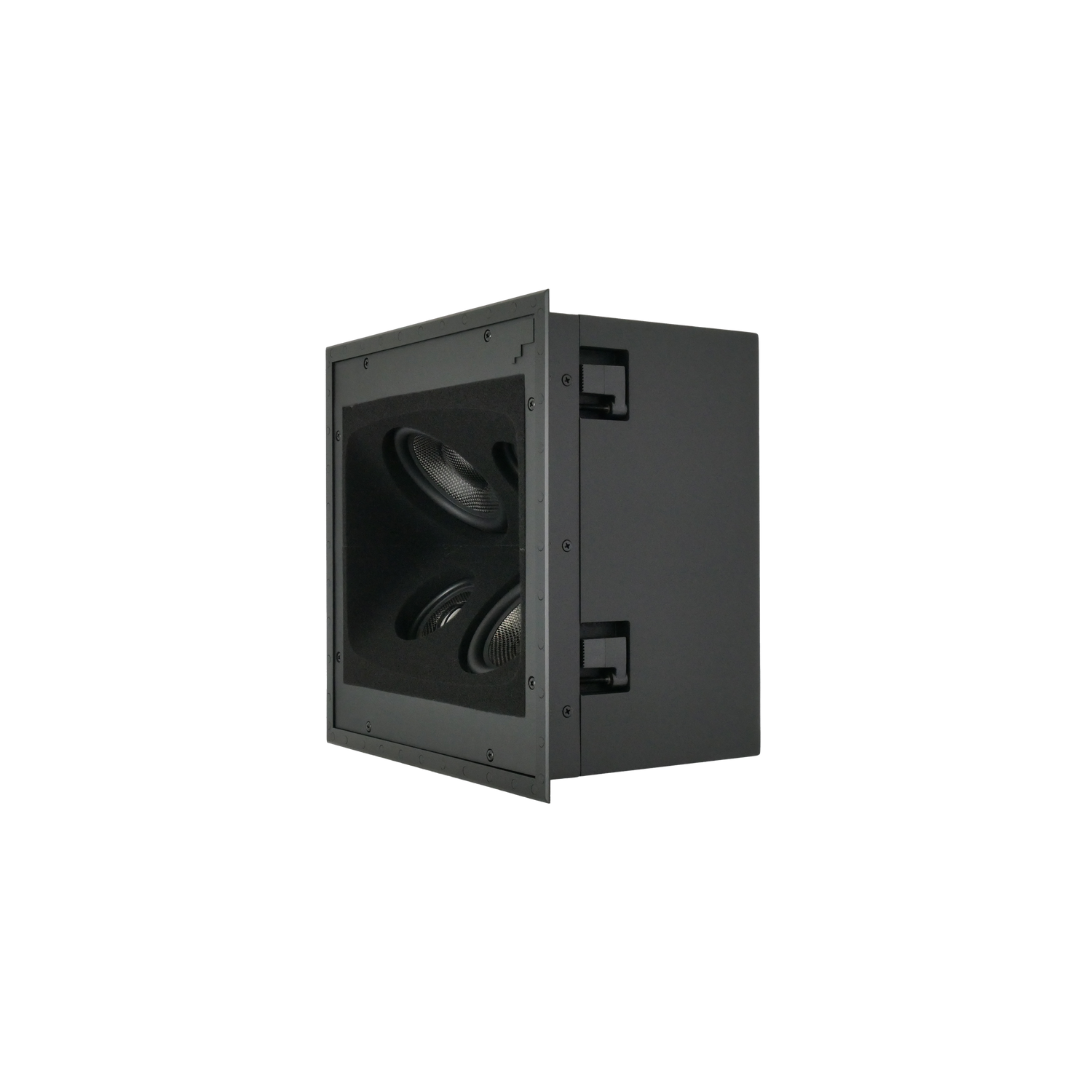

Sonance R1CSUR – Reference In-Ceiling Surround Speaker

Product Overview

The Sonance R1CSUR is the Reference Series in-ceiling surround speaker built to pair with the R1C in-ceiling LCR model. Its dual-driver array is designed to deliver diffuse surround imaging from the ceiling.

Product Description

The R1CSUR uses two 1-inch ferrofluid-cooled ceramic dome tweeters along with two 5.25-inch carbon fiber/Rohacell woofers and two 5.25-inch carbon fiber/Rohacell midrange drivers, handling 5 to 150 watts RMS with a 70Hz-30kHz frequency response and 90dB sensitivity (2.83V/1m). At 13.78 by 13.78 by 7.56 inches with a 12.375-inch round cutout, it needs a deeper ceiling cavity than a standard in-ceiling speaker, so installers should confirm joist and cavity depth before cutting in. As part of the Sonance Reference Series, the R1CSUR is designed to fit standard ceiling cavities and can be mixed and matched with the R1C and other Reference models to complete a surround layout, and it pairs with Sonance DSP amplifiers for custom-tuned performance. Integrators building an in-ceiling speaker theater layout typically pair the R1CSUR with the R1C for front and surround duty.

Key Features

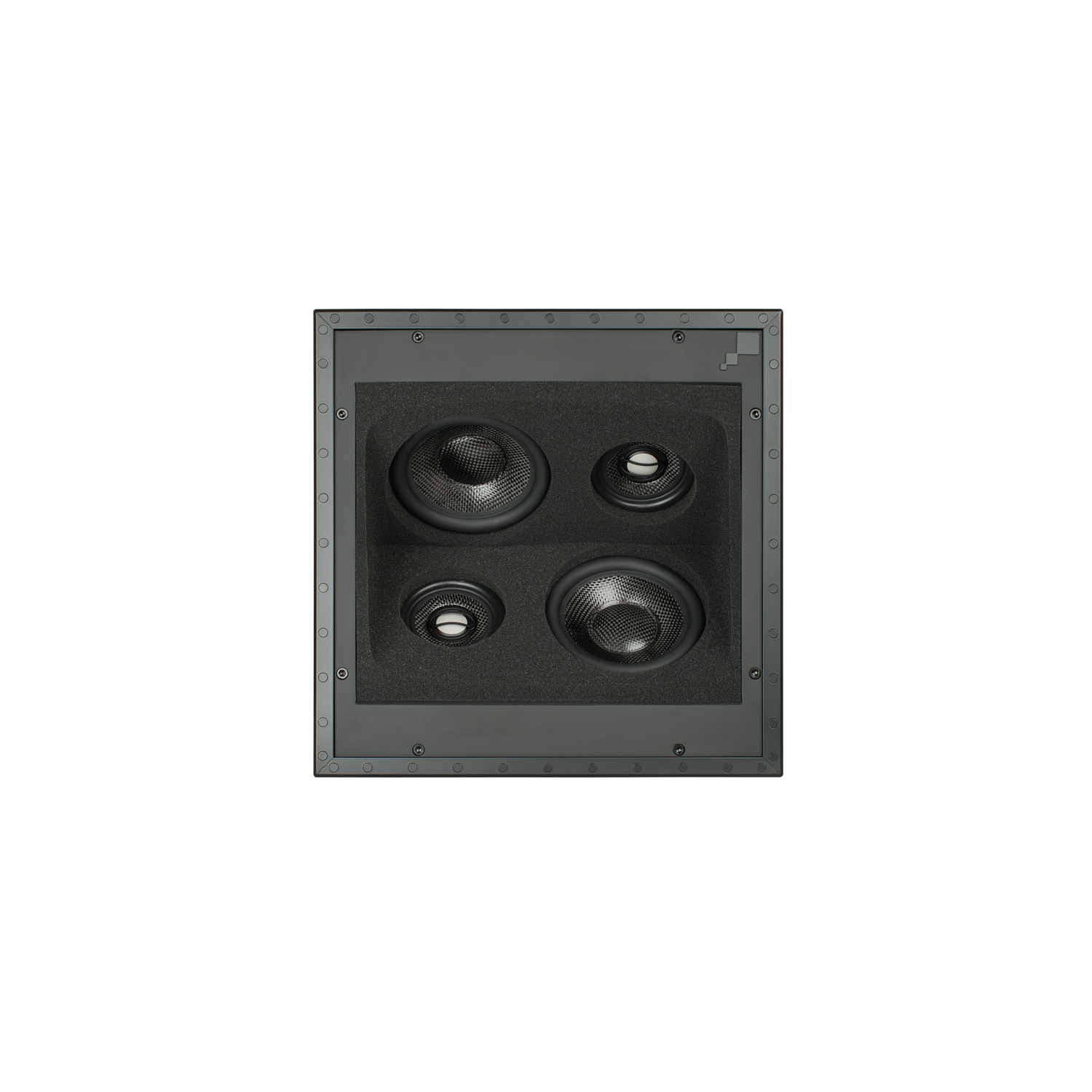

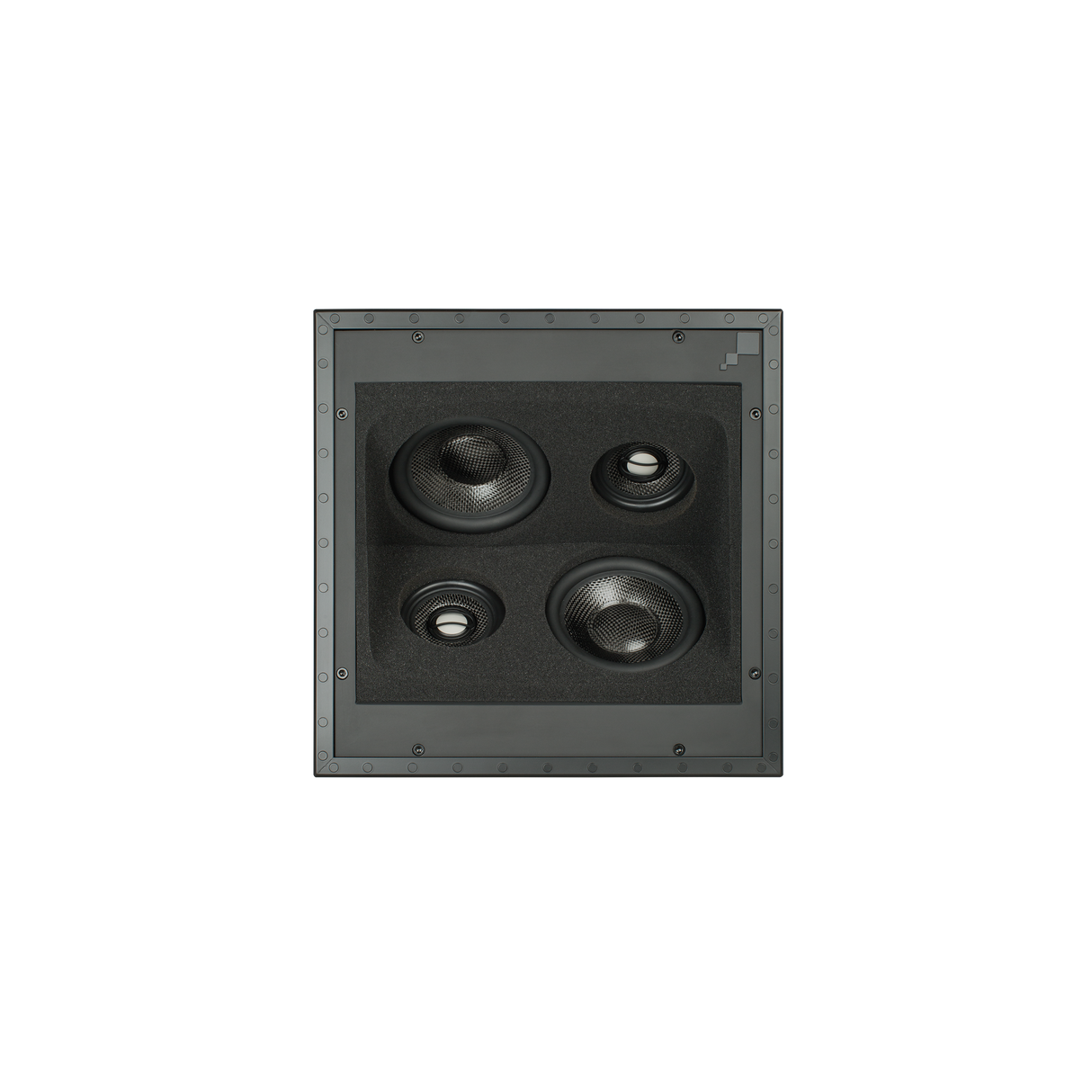

• Dual-Driver Surround Array — Two tweeters, two midrange drivers, and two woofers arranged for diffuse surround imaging from the ceiling.
• 150W RMS Power Handling — Handles 5 to 150 watts RMS with 70Hz-30kHz frequency response and 90dB sensitivity.
• Carbon Fiber/Rohacell Cones — Midrange and woofer drivers use carbon fiber/Rohacell laminated cones.
• 7.56-Inch Mounting Depth — Requires a deeper ceiling cavity than a standard in-ceiling speaker.
• Mix-and-Match Reference Series — Pairs with the R1C and other Reference Series models to complete a surround layout.
• Designed to bring out the best in television, movies, gaming and concerts
• 4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
• Individual crossover networks for accurate, detailed sound

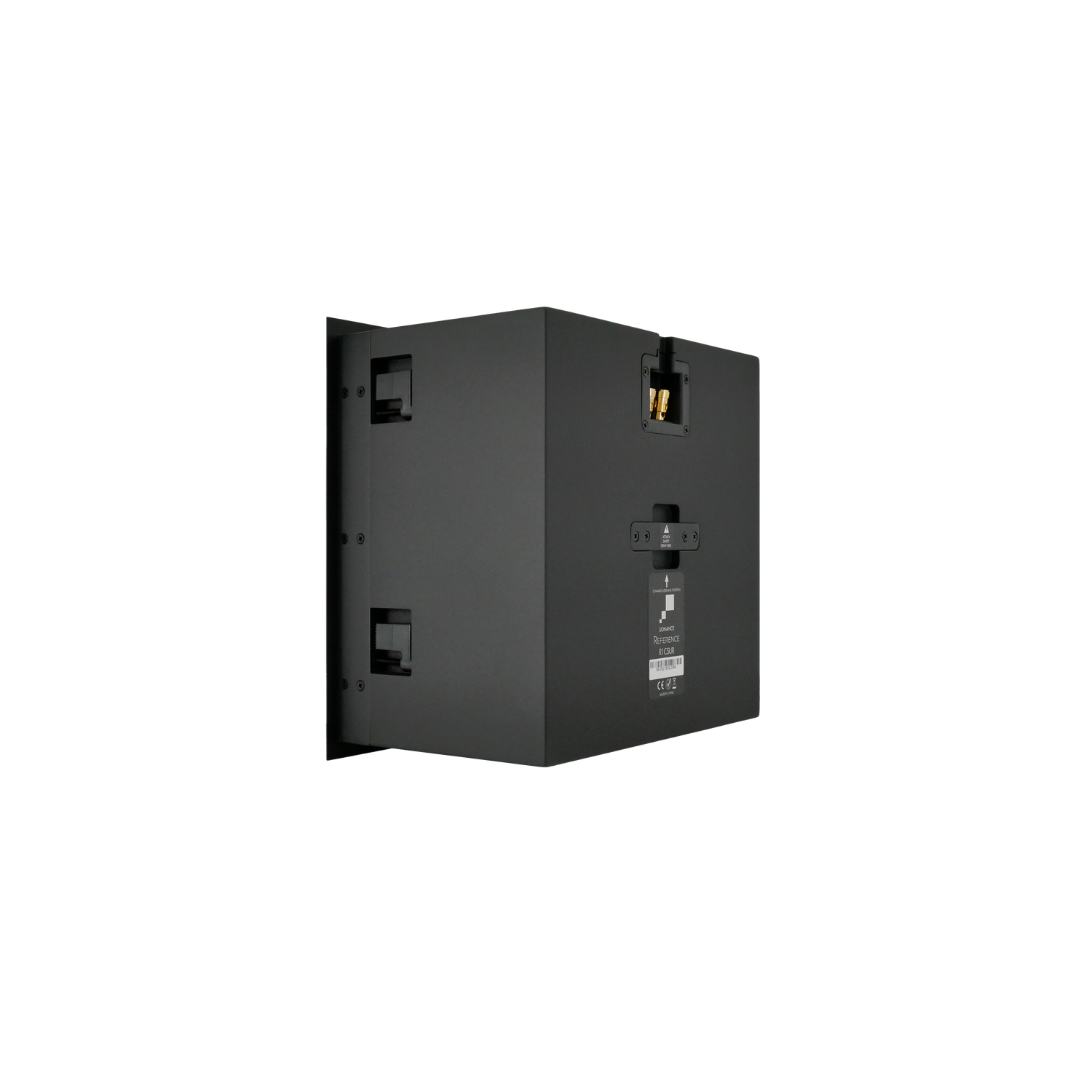

• Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
• Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
• Any Reference model can be mixed and matched to achieve optimal sound in any room layout
• Matches grille aesthetic of Sonance Visual Performance Series
• Pair with Sonance DSP Amplifiers for custom-tuned performance
• Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from Creation Networks

Typical Applications

• Home theaters and dedicated media rooms
• Ceiling surround-channel duty alongside R1C front speakers
• Residential installations with standard ceiling cavities

Technical Specifications

Specifications

Frequently Asked Questions

How is the R1CSUR different from the R1C?

The R1CSUR is the surround speaker in the pair, using a dual-driver array for diffuse surround sound, while the R1C uses a coaxial driver arrangement for ceiling LCR duty.

What mounting depth does the R1CSUR require?

7.56 inches, with a 12.375-inch round cutout.

What is the power handling of the R1CSUR?

5 watts minimum to 150 watts maximum RMS.

Can the R1CSUR be paired with Sonance DSP amplifiers?

Yes, it can be paired with Sonance DSP amplifiers for custom-tuned system performance.

What warranty applies to the R1CSUR?

Sonance Reference Series products carry a Limited Lifetime Warranty, with 5-year coverage on Reference grilles.
