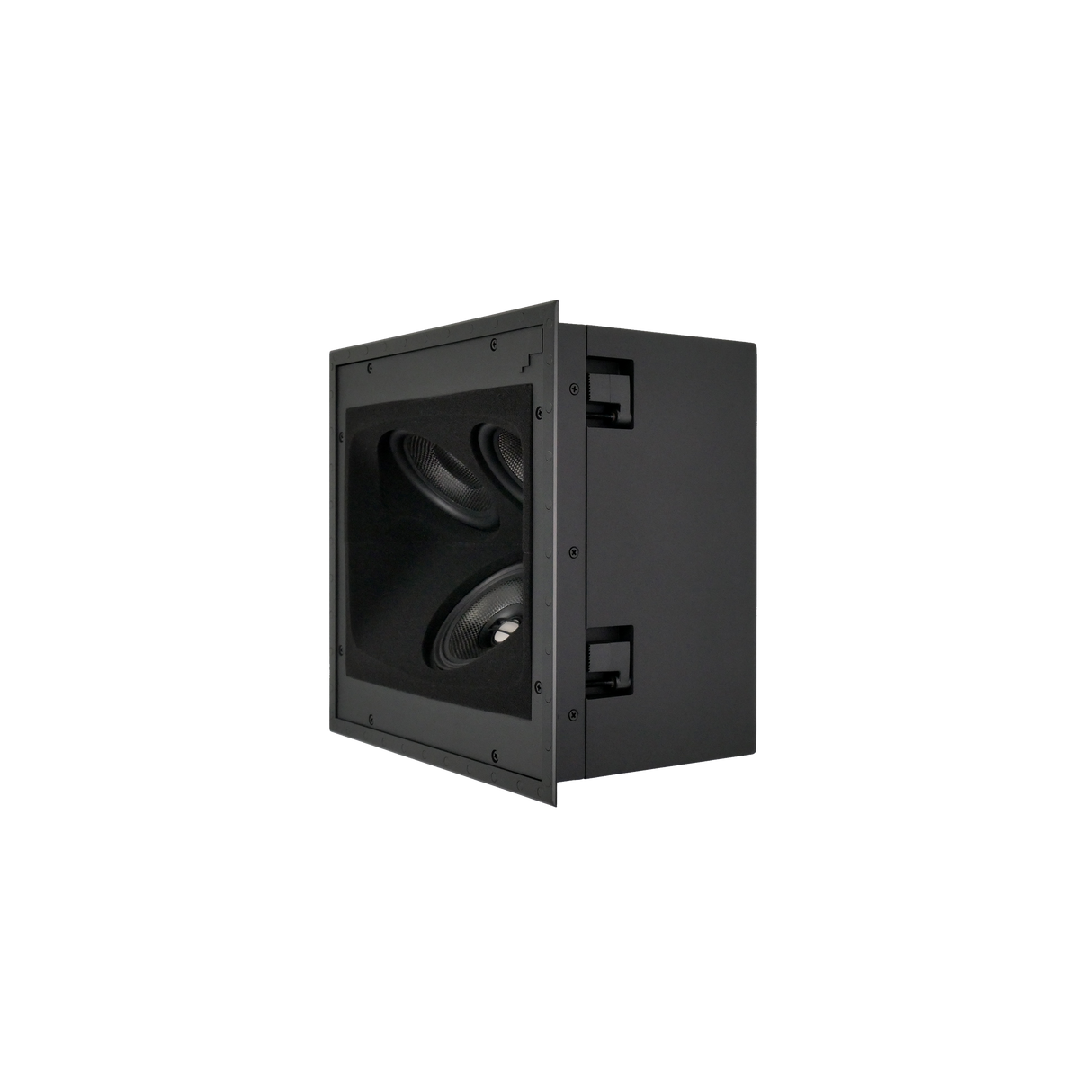

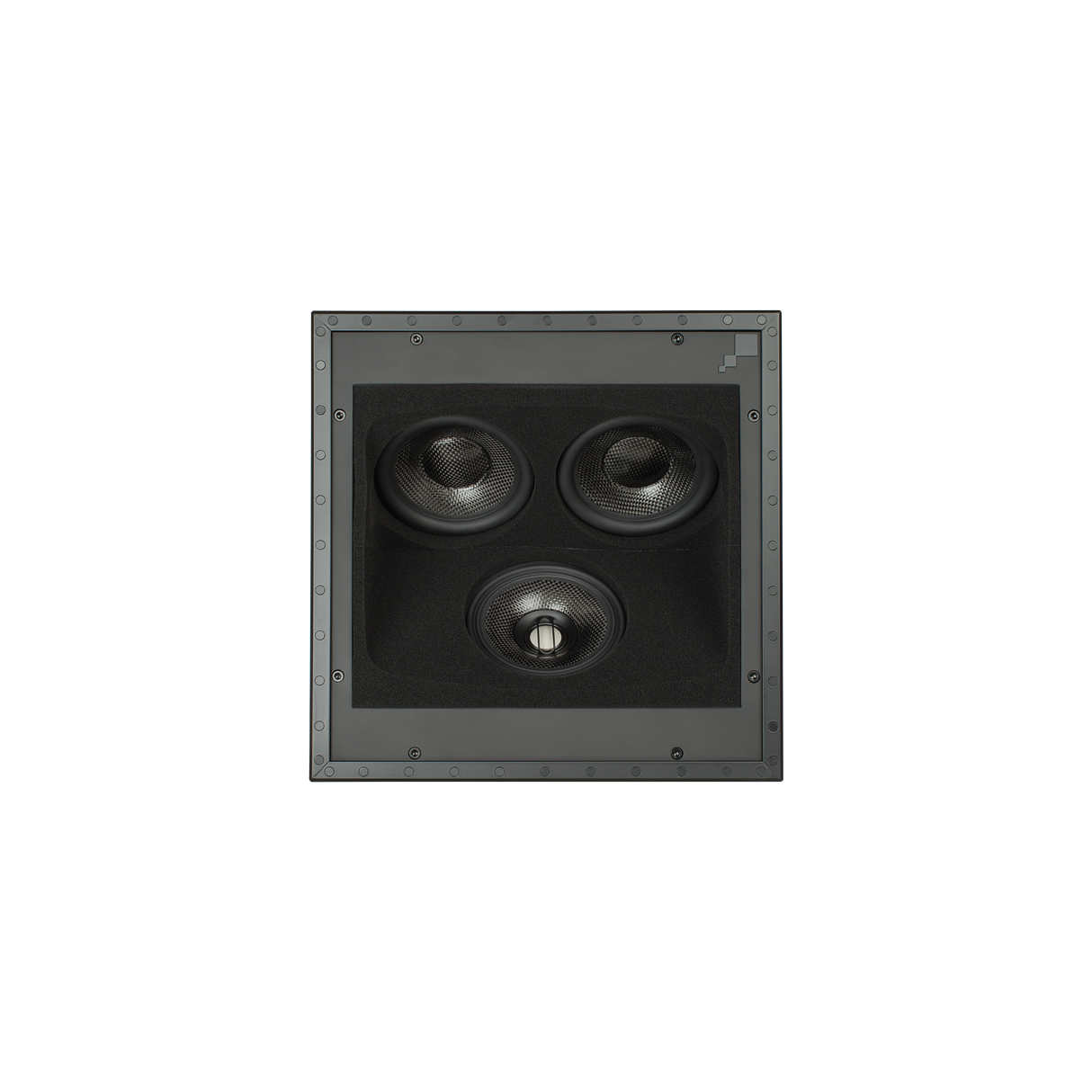

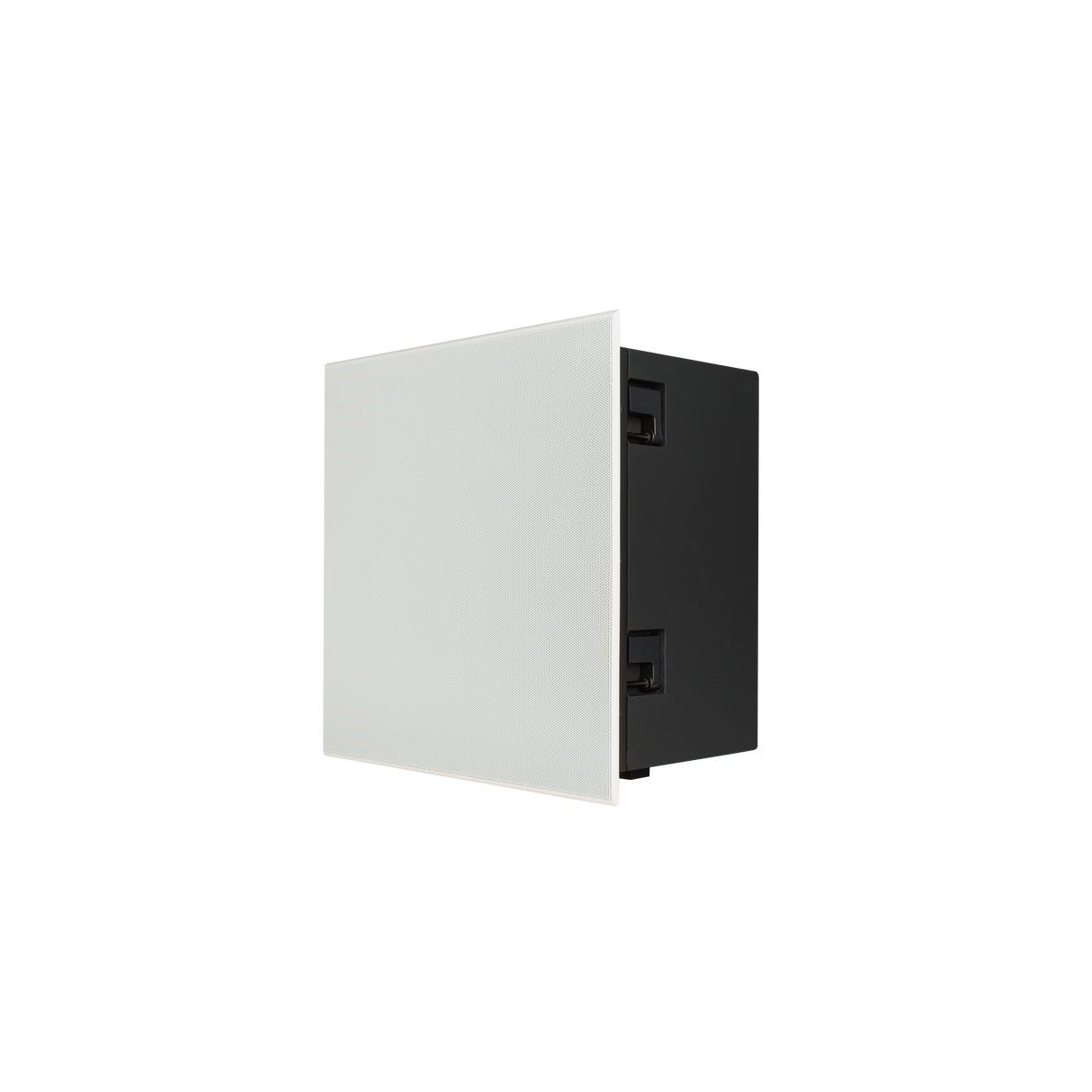

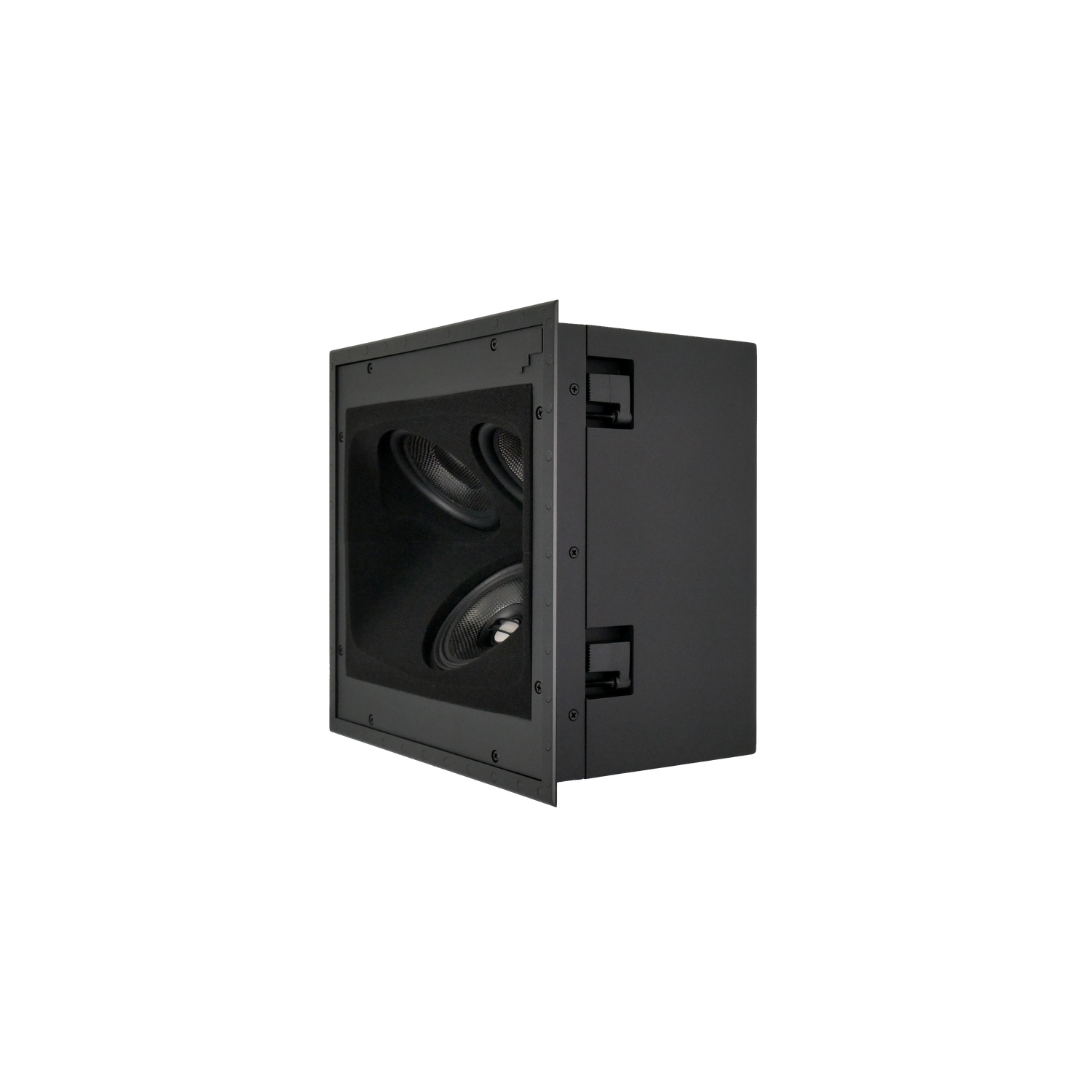

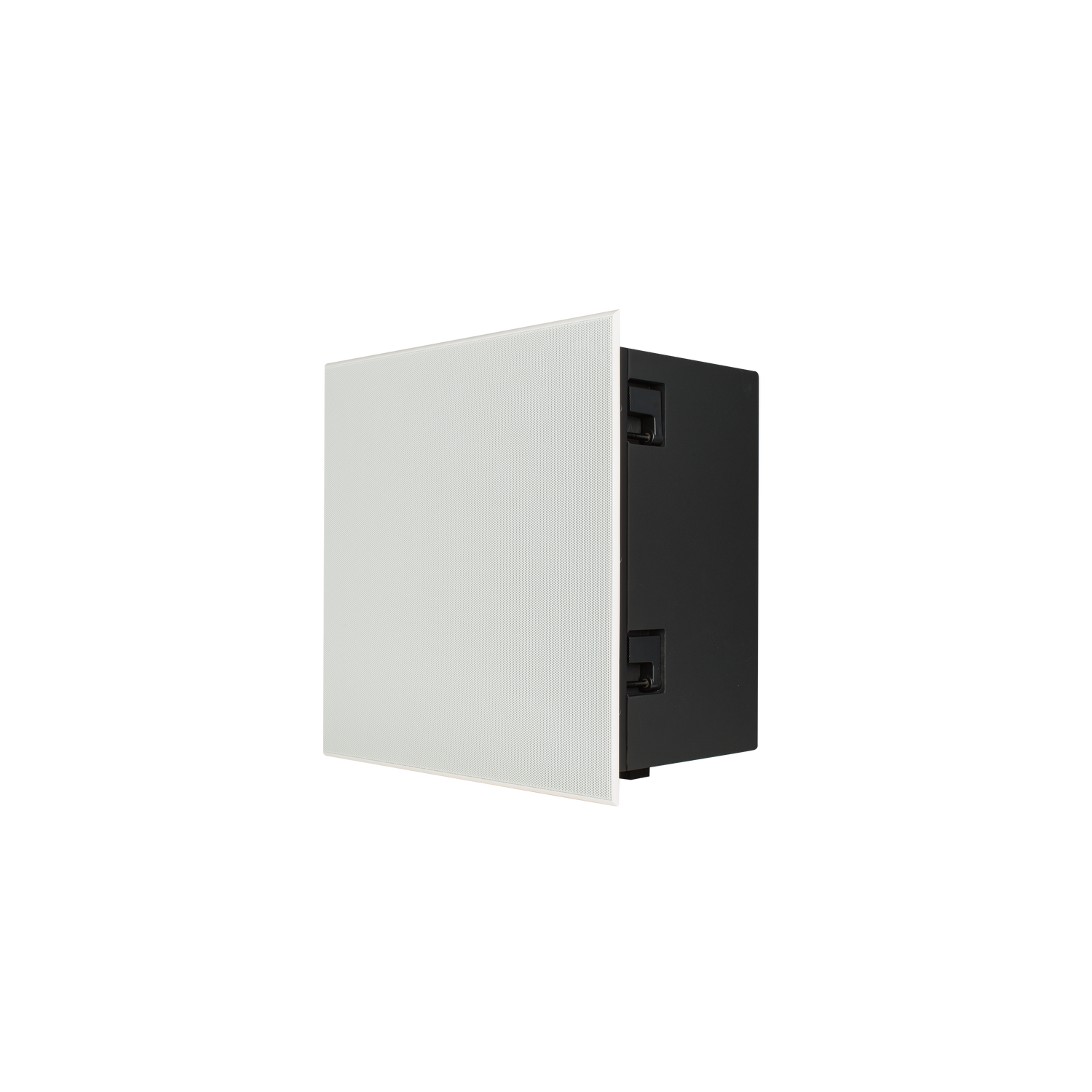

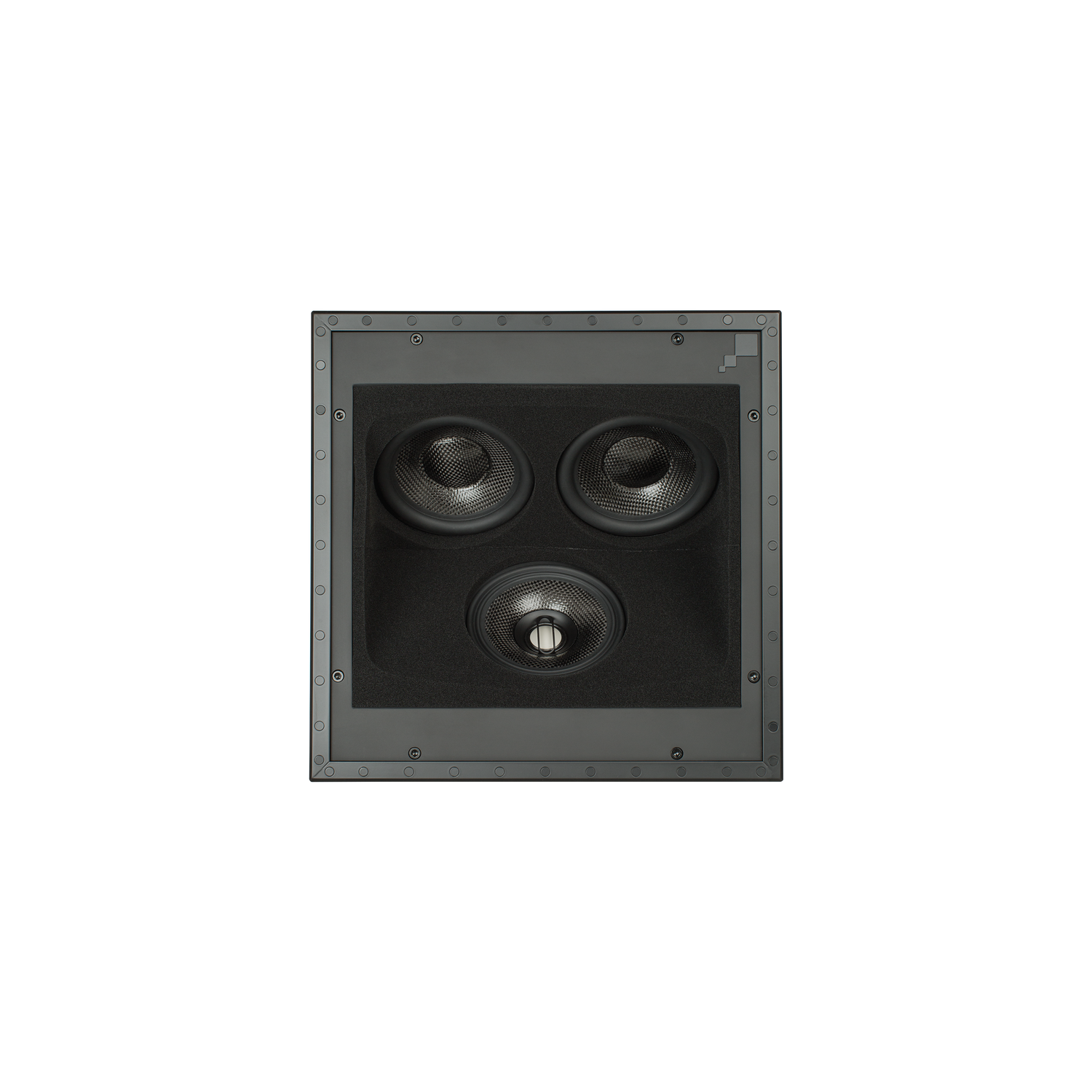

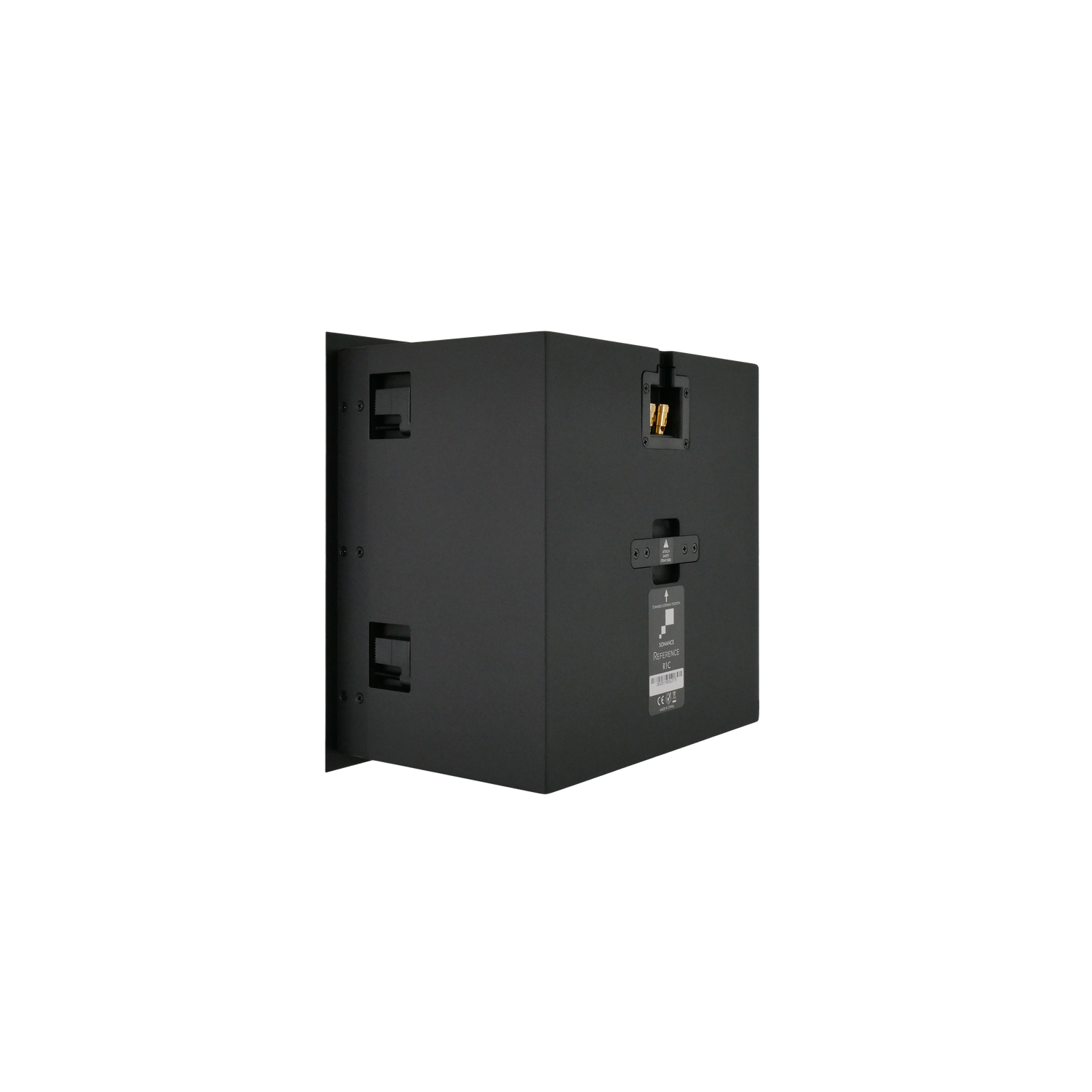

Sonance R1C – Reference In-Ceiling LCR Speaker
Product Overview
The Sonance R1C is the Reference Series in-ceiling LCR speaker, built with a coaxial tweeter and midrange plus dual woofers. It is designed for integrators who need ceiling-mounted front-channel or overhead audio with clear dialogue reproduction.
Product Description
The R1C combines a 4th generation coaxial tweeter and midrange assembly with two 5.25-inch carbon fiber/Rohacell woofers, handling 5 to 150 watts RMS with a 70Hz-30kHz frequency response and 90dB sensitivity (2.83V/1m). At 13.78 by 13.78 by 7.56 inches with a 12.375-inch round cutout, it requires a deeper ceiling cavity than a standard in-ceiling speaker, and the integrated enclosure is designed to reduce sound disturbance into adjoining rooms. As part of the Sonance Reference Series, the R1C is designed to fit standard ceiling cavities and can be mixed and matched with the R1CSUR surround and other Reference models, and it pairs with Sonance DSP amplifiers for custom-tuned performance. Integrators specifying overhead or front-channel in-ceiling speaker placement commonly select the R1C for its low-profile grille and Reference Series driver platform.
Key Features
- Coaxial Tweeter and Midrange — 4th generation coaxial midrange and tweeter for accurate imaging and clear dialogue.
- Dual Woofer Array — Two 5.25-inch carbon fiber/Rohacell woofers for extended low-frequency output.
- 150W RMS Power Handling — Handles 5 to 150 watts RMS with 70Hz-30kHz frequency response and 90dB sensitivity.
- 7.56-Inch Mounting Depth — Requires a deeper ceiling cavity than a standard in-ceiling speaker, with a 12.375-inch cutout.
- Mix-and-Match Reference Series — Pairs with the R1CSUR and other Reference Series models to complete a surround layout.
- Designed to bring out the best in television, movies, gaming and concerts
- 4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
- Individual crossover networks for accurate, detailed sound
- Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
- Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
- Any Reference model can be mixed and matched to achieve optimal sound in any room layout
- Matches grille aesthetic of Sonance Visual Performance Series
- Pair with Sonance DSP Amplifiers for custom-tuned performance
- Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from an authorized Sonance dealer or distributor
Typical Applications
- Home theaters and dedicated media rooms
- Overhead or front-channel ceiling placement
- Residential installations with standard ceiling cavities
Technical Specifications
| Drivers | 1x 1" ceramic dome tweeter (ferrofluid-cooled); 1x 5.25" carbon fiber/Rohacell midrange; 2x 5.25" carbon fiber/Rohacell woofer |
| Power Handling (RMS) | 5W minimum; 150W maximum |
| Frequency Response (±3dB) | 70Hz - 30kHz |
| Sensitivity | 90dB (2.83V/1m) |
| Dimensions (WxHxD) | 13.78" x 13.78" x 7.56" |
| Cutout Diameter | 12.375" |
| Mounting Depth | 7.56" |
| Grille | Perforated steel, white |
Frequently Asked Questions
What mounting depth does the R1C require?
7.56 inches, with a 12.375-inch round cutout.
What is the power handling of the R1C?
5 watts minimum to 150 watts maximum RMS.
What is the frequency response of the R1C?
70Hz to 30kHz (±3dB).
Can the R1C be paired with a matching surround speaker?
Yes, the R1CSUR is the matching Reference in-ceiling surround model.
Can the R1C be paired with Sonance DSP amplifiers?
Yes, it can be paired with Sonance DSP amplifiers for custom-tuned system performance.
