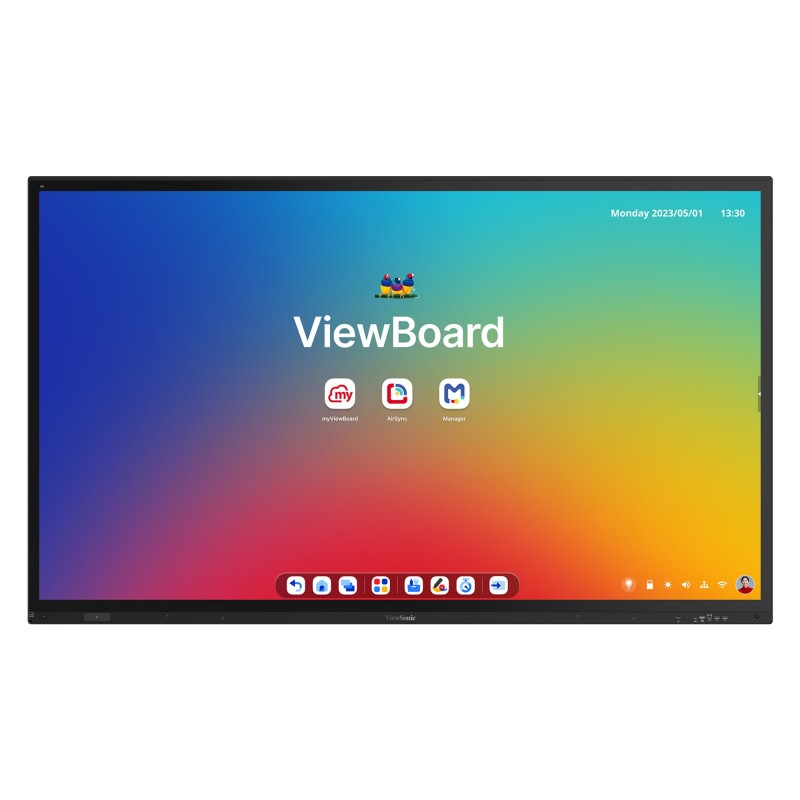

ViewSonic IFP8663 – 86-Inch Interactive Flat Panel with Camera

Product Overview

The ViewSonic IFP8663 is an 86-inch PCAP 4K interactive flat panel display engineered for high-demand commercial meeting rooms, training facilities, and collaborative workspaces. Running on the Android EDLA platform, this 4K UHD interactive flat panel integrates natively with Google Workspace and Microsoft 365, delivering a familiar and secure digital whiteboard experience without additional hardware. The built-in beamforming microphone array and USB-C single-cable connectivity make it a complete conferencing and collaboration solution for AV system integrators deploying large-format commercial-grade displays at the 86-inch class.

Product Description

The IFP8663 combines projected capacitive (PCAP) touch technology with a 3840x2160 4K UHD IPS panel, offering precise, low-latency pen and finger input well-suited for executive boardrooms, government spaces, and large conference rooms. EDLA certification ensures full Google Play Store access with enterprise-grade security, including automatic Google updates, data encryption, and two-way authentication — features that matter to IT and facilities managers who need centralized device management at scale.

AV system designers benefit from the IFP8663's comprehensive I/O: four HDMI 2.1 inputs, DisplayPort, VGA, four USB-C ports, dual Gigabit Ethernet, and an Intel OPS slot for a slot-in PC module. The integrated 52W front-facing soundbar with beamforming 8-array microphone (range up to 8 meters) eliminates the need for separate audio peripherals in most deployments. ViewSonic Manager, Google Workspace Enterprise Management, and Microsoft Intune provide centralized control for IT teams managing multiple locations.

Write-Away technology enables immediate annotation without startup delays. The 40-point multi-touch surface with 7H glass hardness withstands intensive daily use, and the 50,000-hour DLED backlight supports long commercial deployment cycles. EPEAT certification and ENERGY STAR 8.0 compliance support sustainability procurement requirements in government and enterprise environments.

Key Features

• PCAP 4K UHD Touch Display — Projected capacitive technology on a 3840x2160 IPS panel delivers precise, responsive input for annotation and collaboration.
• Android EDLA Platform — Full Google Play Store access with enterprise security, Google Play Protect, and backward-compatible non-GMS mode.
• Integrated Beamforming Microphone — 8-array mic captures voices up to 8 meters, with full-duplex noise cancellation for clear hybrid meetings.
• 52W Front-Facing Soundbar — 16W x2 speakers plus 20W subwoofer deliver room-filling audio without external speakers.
• Single-Cable USB-C Connectivity — USB-C handles video, data, touch, and power in one cable, reducing setup complexity for integrators.
• Dual Gigabit Ethernet — Separate LAN ports for Android OS and OPS PC module allow independent network management.
• Intel OPS Slot — 80-pin slot accommodates ViewSonic or third-party OPS PC modules for Windows-based workflows.
• NFC Authentication — NFC badge login and QR/SSO sign-in minimize session transition time in shared-space deployments.
• Write-Away Technology — Immediate annotation capability with no boot delay maximizes productive collaboration time.
• EPEAT and ENERGY STAR 8.0 Certified — Meets sustainability procurement standards for government and enterprise buyers.
• ViewSonic Manager & myViewBoard — Bundled software for remote device management, content sharing, and interactive lessons at no added cost.
• 3-Year Onsite Warranty — Includes parts, labor, and backlight coverage with onsite service for commercial deployments.

Typical Applications

• Boardroom
• Conference room
• Government space
• Commercial meeting space
• Training room
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

Is the IFP8663 compatible with Microsoft Teams and Zoom?

Yes. The Android EDLA platform provides full access to the Google Play Store, where Microsoft Teams, Zoom, and other conferencing apps can be installed and run natively. It also works as a display for room systems connected via HDMI or USB-C.

Can the IFP8663 be managed centrally across multiple locations?

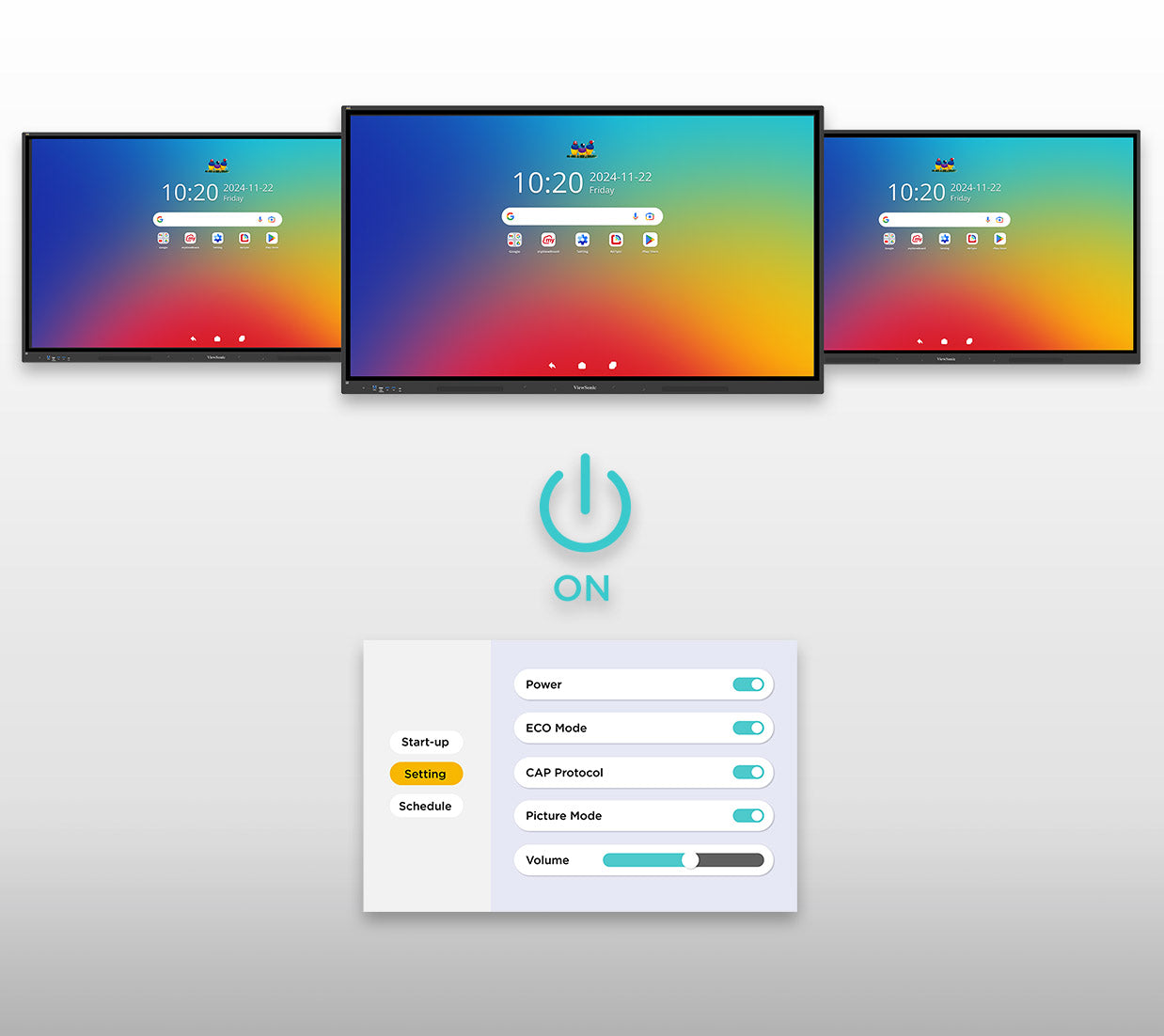

Yes. The display supports ViewSonic Manager, Google Workspace Enterprise Management, and Microsoft Intune for remote device management, app deployment, and policy enforcement across distributed deployments.

What OPS modules are compatible with the IFP8663?

The IFP8663 includes an Intel OPS 80-pin slot compatible with ViewSonic OPS modules (such as VPC2C-W33-O1, VPC35-W55-G1, VPCF5-W55-G1) and third-party OPS-compliant PC modules for Windows-based operation.

Does the IFP8663 require an external audio system?

In most conference room deployments it does not. The integrated 52W soundbar (16W x2 + 20W subwoofer) and 8-array beamforming microphone cover rooms up to typical conference room dimensions. For large auditoriums, integration with an external PA via the SPDIF or line-in connections is supported.

What wall mount is compatible with the IFP8663?

The IFP8663 uses 800 x 600 mm VESA mounting. ViewSonic offers the WMK-047-2 wall mount bracket, and third-party mounts rated for this VESA pattern and the display's 63.35 kg (139.66 lb) net weight are also compatible.

What is the warranty on the IFP8663?

ViewSonic provides a 3-year limited warranty covering parts, labor, and backlight, including onsite service. Extended warranty options are available through ViewSonic.

Does the IFP8663 include Wi-Fi?

Yes, the VB-WIFI-005 Wi-Fi adapter (802.11ax, dual-band 2.4/5GHz, Bluetooth 5.2) is included in the box.
