ViewSonic IFP7541 – 75-Inch 4K Interactive Flat Panel Display
Product Overview

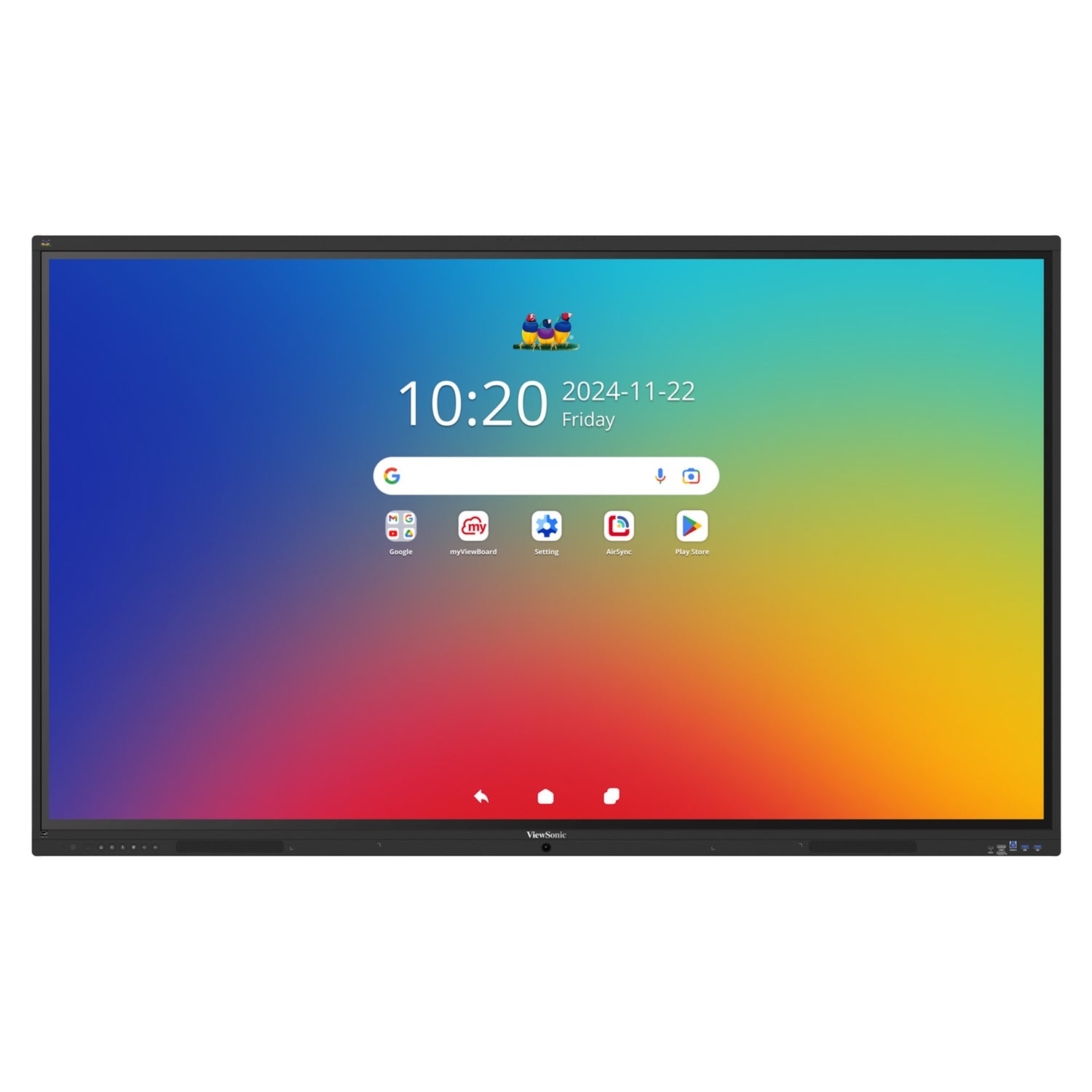

The ViewSonic IFP7541 is a 75-inch 4K UHD interactive flat panel display built for commercial meeting rooms, training spaces, and collaborative environments where single-cable simplicity, strong audio performance, and enterprise-grade security are required. Powered by a Rockchip RK3576 octa-core CPU with DDR5 memory and running the Android EDLA platform, this large-format 4K interactive display handles multitasking across conferencing platforms, digital whiteboard applications, and productivity apps without performance compromise. The 100W USB-C single-cable connection makes it particularly practical for AV integrators and IT teams managing deployments where setup speed and cable reduction matter.
Product Description
The IFP7541 features a 3840x2160 panel at 350 cd/m2 with 64-point IR multi-touch, palm rejection, and dual stylus tip detection (3mm and 10mm), providing a writing experience suited for detailed annotation in conference and training room settings. The 55W front-facing soundbar (20W x2 + 15W subwoofer) and 8-microphone beamforming array — picking up voice from up to 8 meters with full-duplex echo cancellation — deliver complete in-room audio for hybrid meetings.
For AV system integrators, the IFP7541 offers three HDMI 2.1 inputs, DisplayPort, VGA, dual USB-C (100W + 15W), five USB-A ports, dual Gigabit Ethernet, RS232, and an Intel OPS 80-pin slot for a slot-in PC module. IT departments can manage the device via ViewSonic Manager or Google Workspace Enterprise Management, with Microsoft Intune also supported. Smart PIR and ambient light sensors automate standby and wake, contributing to EPEAT Silver and ENERGY STAR 8.0 compliance. The 3-year onsite warranty and commercial-grade components support long-term deployment planning.
Key Features
- Rockchip RK3576 Octa-Core CPU with DDR5 Memory — Smooth, lag-free multitasking across apps, video conferencing, and multimedia content.
- 64-Point IR Multi-Touch with Palm Rejection — Precise pen and finger input with dual tip detection (3mm/10mm) for accurate annotation.
- 100W USB-C Single-Cable Connection — Video, touch, audio, data, Ethernet, and 100W power delivery over one cable.
- 55W Front-Facing Soundbar — 20W x2 + 15W subwoofer for clear, room-filling audio without external speakers.
- 8-Array Beamforming Microphone — Captures voice up to 8 meters with full-duplex echo cancellation for hybrid conferencing.
- Android EDLA Certified — Full Google Play Store access, enterprise security, and optional non-GMS compatibility mode.
- Intel OPS Slot — 80-pin slot for Windows OPS PC modules enables hybrid Android/Windows operation.
- Dual Gigabit Ethernet — Separate ports for Android OS and OPS PC module network traffic.
- Smart PIR and Ambient Light Sensors — Automatic standby and wake-on-presence for energy efficiency.
- EPEAT Silver & ENERGY STAR 8.0 — Certified for sustainable commercial procurement.
- ViewSonic Software Included — myViewBoard, AirSync, Manager included at no additional cost.
- 3-Year Onsite Warranty — Parts, labor, and backlight covered with onsite service.
Typical Applications
- Conference room
- Commercial meeting space
- Training room
- Multi-purpose room
- Boardroom
- All-hands room
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Size | 75" |
| Display Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m2 |
| Static Contrast Ratio | 5,000:1 |
| Dynamic Contrast Ratio | 5,000:1 |
| Panel Surface | Anti-glare, 9H pencil hardness / 3.2mm thickness |
| Response Time | 8ms (GTG) |
| Refresh Rate | 60Hz |
| Backlight Life | 50,000 hours |
| Viewing Angles | 178° horizontal / 178° vertical |
| OS | ViewBoard OS EDLA |
| CPU | Rockchip RK3576 (octa-core) |
| Memory | 8GB LPDDR |
| Storage | 128GB eMMC |
| Touch Technology | IR Recognition |
| Touch Points | 64 points |
| Touch Latency | ≤5ms |
| Palm Rejection | Yes |
| Tip Detection | 3mm and 10mm / Finger: 12–15mm / Palm: 30mm |
| HDMI 2.1 In | 3 |
| HDMI Out | 1 |
| DisplayPort | 1 |
| VGA | 1 |
| USB Type-A | 5 |
| USB Type-B | 3 |
| USB Type-C | 100W x1, 15W x1 |
| RS232 | 1 |
| Ethernet LAN (RJ45) | 2 (10/100/1000 Mbps) |
| OPS Slot | Intel OPS 80-pin |
| Microphone | 8-array beamforming, full-duplex echo cancellation |
| Speakers | 55W total (20W x2 + 15W subwoofer) |
| Wi-Fi | VB-WIFI-004 adapter, 802.11AX, dual-band |
| Bluetooth | 5.0 |
| VESA Mount | 800 x 400 mm |
| Power | 100–240 VAC |
| Standby Power | <0.5W |
| Operating Temperature | 0–40°C (32–104°F) |
| Certifications | CTUVus, FCC, ENERGY STAR 8.0, EPEAT, CEC |
| Warranty | 3-year limited (parts, labor, backlight) with onsite service |
| Physical Dimensions (WxHxD) | 67.21" x 40.58" x 3.44" (1709.1 x 1030.8 x 87.4 mm) |
| Net Weight | 101.2 lbs (45.9 kg) |
Frequently Asked Questions
- How does the 100W USB-C connection work on the IFP7541?
- The 100W USB-C port supports DisplayPort Alt Mode for 4K video, USB 2.0 for touch and data, audio, Ethernet, and up to 100W power delivery to a connected laptop — all through a single cable connection from the laptop to the display.
- What is the difference between the IFP7541 and the IFP7553-ED-M?
- Both are 75-inch 4K interactive flat panels on Android EDLA. The IFP7553-ED-M is TAA compliant for government procurement, has a higher brightness (450 vs. 350 cd/m2), uses four USB-C ports and four HDMI inputs, and includes NFC authentication. The IFP7541 features the newer RK3576 processor, 64-point touch (vs. 40-point), and palm rejection.
- Can the IFP7541 be used with Zoom Rooms or Microsoft Teams Rooms?
- Yes. With an OPS PC module or an external UC bar connected via HDMI/USB-C, the IFP7541 can function as the display for a certified Zoom Rooms or Microsoft Teams Rooms system. It can also run Teams and Zoom natively via the Android EDLA Google Play Store.
- Is the IFP7541 compatible with Crestron or Extron control systems?
- Yes. The RS232 port and Ethernet LAN support integration with Crestron, Extron, AMX, and similar AV control systems using standard RS232 or IP control commands.
- Does the IFP7541 support wireless screen casting?
- Yes. The included AirSync software supports wireless screen casting from Windows, Mac, iOS, Android, and Chromebook devices. AirPlay and Google Cast are also supported when the Wi-Fi adapter is installed.
- What is the warranty on the IFP7541?
- ViewSonic provides a 3-year limited warranty covering parts, labor, and backlight with onsite service.
- Is a Wi-Fi adapter included?
- Yes. The VB-WIFI-004 adapter (802.11AX, dual-band 2.4/5GHz, Bluetooth 5.0) is included in the box.
