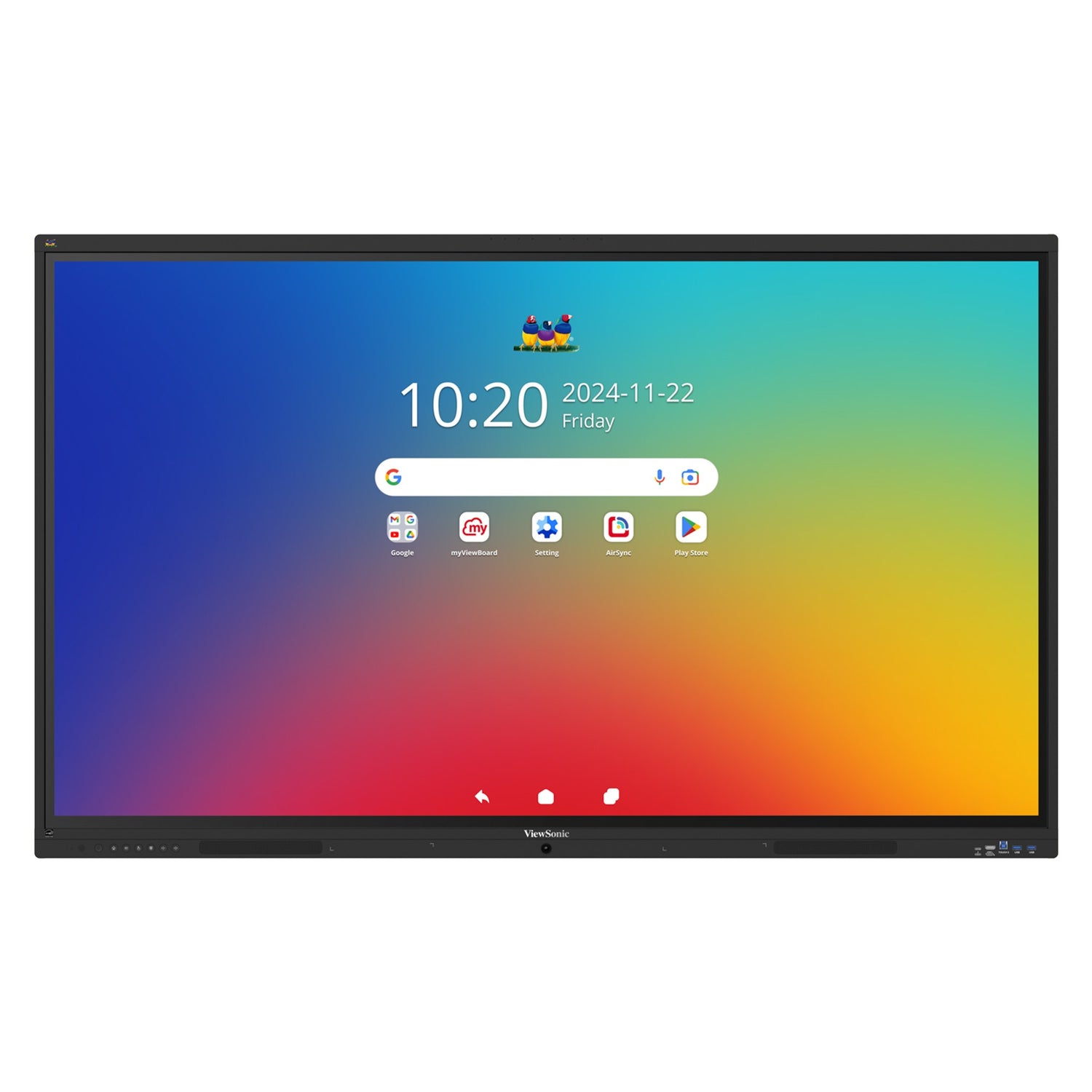

ViewSonic IFP6541 – 65-Inch 4K Interactive Flat Panel Display

Product Overview

The ViewSonic ViewBoard IFP6541 is a 65-inch 4K UHD interactive flat panel display built for education and enterprise collaboration spaces that need a larger working surface than a 55-inch panel provides. Running Android EDLA on a Rockchip RK3576 octa-core processor, this interactive flat panel display integrates natively with Google Workspace and Microsoft 365 without requiring an external compute device. A single USB-C connection delivers video, touch, audio, data, networking, and 100W power delivery from a connected laptop, reducing cable management complexity for IT installers. The IFP6541 is suited for large classrooms, corporate boardrooms, training rooms, and any environment where multiple participants need to view and interact with content simultaneously.

Product Description

The IFP6541 shares the same core computing platform as the IFP5541 — Rockchip RK3576, 8GB LPDDR RAM, 128GB eMMC — scaled up to a 65-inch panel for environments requiring greater viewing distance or a larger collaboration area. The display delivers 400 nits brightness at 3840x2160 resolution with a 5,000:1 contrast ratio and a 9H anti-glare glass surface. The front-facing 55W soundbar with integrated subwoofer and an 8-microphone beamforming array with echo cancellation provide clear audio coverage for rooms accommodating up to 30 participants. The 64-point IR touch surface at sub-5ms latency supports simultaneous multi-user annotation with palm rejection, making it effective for active learning and group brainstorming sessions. Dual RJ45 Ethernet ports provide separate network paths for the Android OS and an optional OPS module, supporting network segmentation policies. ViewSonic EDLA certification enables Google Workspace Enterprise Management, Microsoft Intune integration, and automatic Google security updates. The included myViewBoard, AirSync, and Manager software suite supports real-time annotation, wireless screen sharing, quizzes, and remote fleet management. EPEAT Silver and ENERGY STAR 8.0 certifications confirm the unit meets institutional sustainability procurement requirements.

Key Features

• 65-Inch 4K UHD Panel, 400 nits — Larger working surface for group instruction and presentations; DLED backlight rated 65,000 hours.

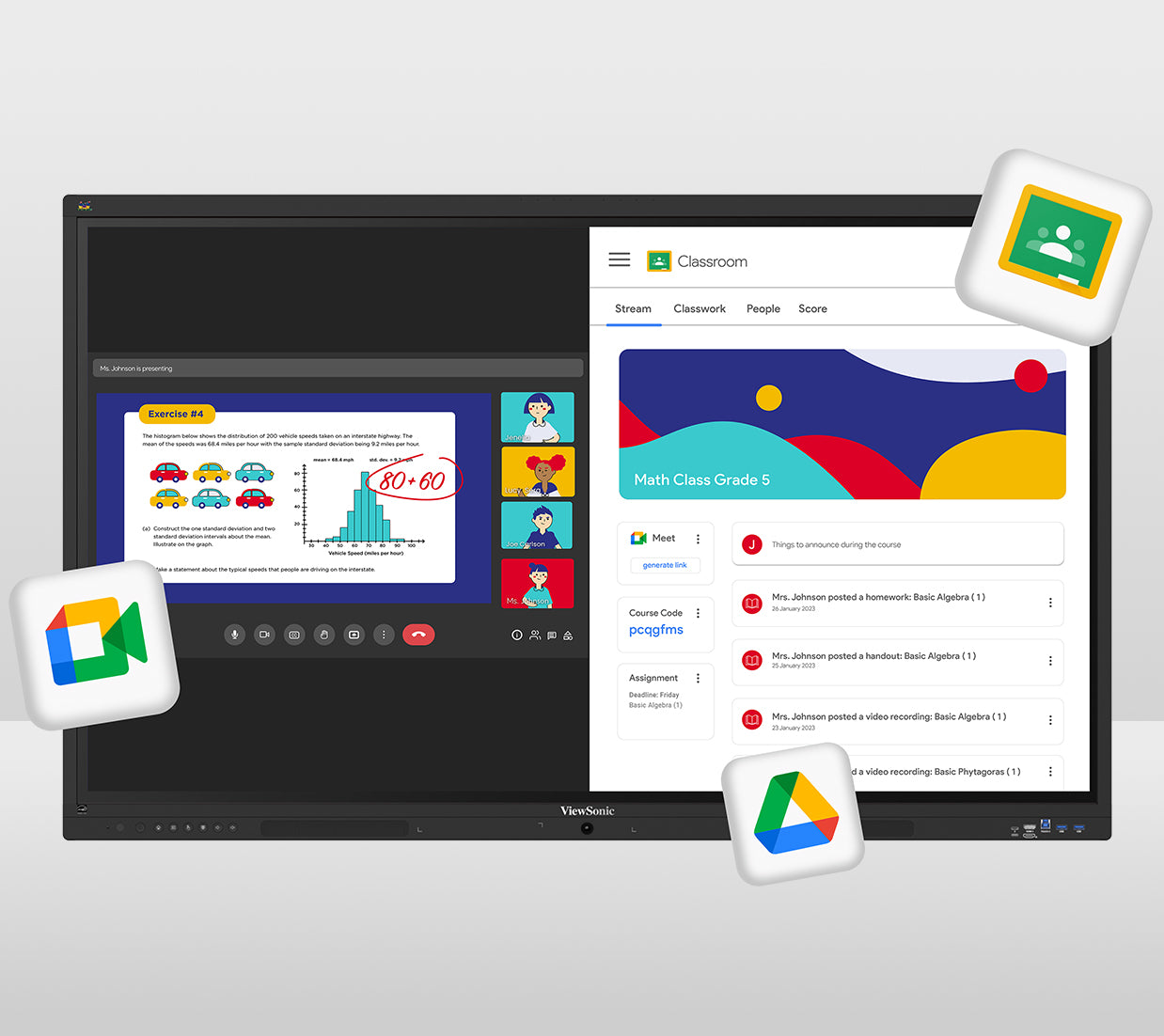

• Android EDLA Platform — Google-certified for enterprise security management, Play Protect, and Workspace integration.
• Rockchip RK3576 Octa-Core / 8GB LPDDR / 128GB eMMC — Sufficient compute for concurrent Android applications without external PC.
• 55W Soundbar + 8-Mic Beamforming — Full-room audio coverage; microphone captures voices up to 8 meters with noise cancellation for hybrid meetings.

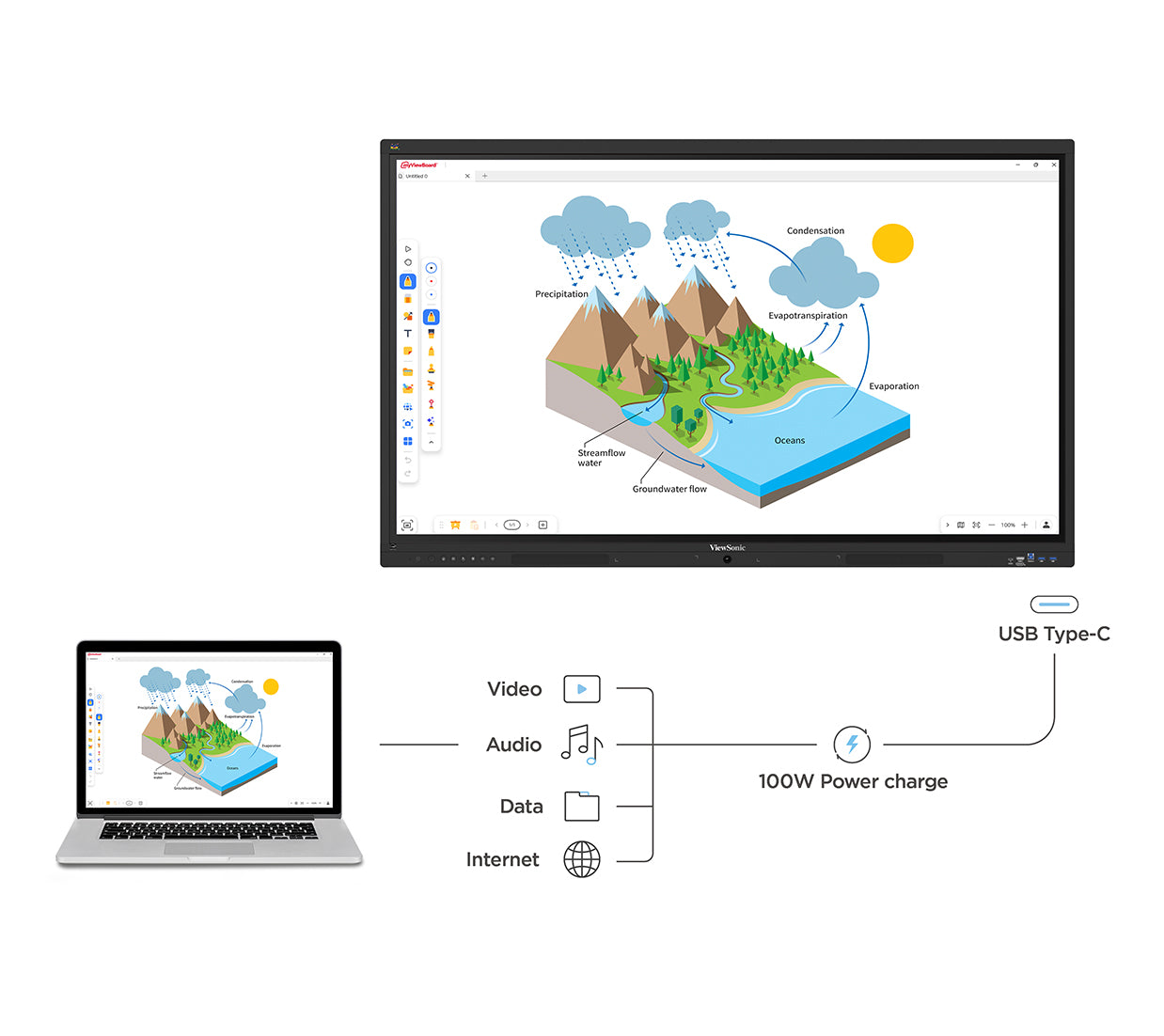

• 100W USB-C Single-Cable Connection — Handles video, touch, audio, data, networking, and laptop charging over one cable.
• 64-Point Multi-Touch, ≤5ms Latency — Multi-user simultaneous interaction with palm rejection.
• Intel OPS Slot (80-pin) — Optional Windows compute module for mixed-OS environments.
• Dual Gigabit Ethernet (2x RJ45) — Separate interfaces for Android and OPS networking.
• myViewBoard + AirSync + Manager Included — Annotation, casting, quizzes, and centralized fleet management with no additional license fees.
• EPEAT Silver / ENERGY STAR 8.0 — PIR and ambient light sensor automation; standby under 0.5W.

Typical Applications

• Large K-12 and higher education classrooms requiring Google Workspace EDLA certification
• Corporate boardrooms and executive conference rooms
• Training rooms accommodating larger groups with multi-user annotation needs
• Government facilities requiring enterprise Android security management
• Command centers and operations rooms where screen size matters for situational awareness

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the IFP6541 and the IFP5541?

The IFP6541 uses the same computing platform (Rockchip RK3576, 8GB RAM, 128GB storage) and feature set as the IFP5541, with the primary difference being screen size: 65 inches versus 55 inches. The IFP6541 also uses a 600x400mm VESA pattern compared to 400x200mm on the IFP5541.

Q: Does the IFP6541 require a dedicated Wi-Fi access point nearby?

The unit includes a VB-WIFI-004 adapter (802.11AX) and two Gigabit Ethernet ports. Wired Ethernet is recommended for stable enterprise deployments; Wi-Fi provides flexibility for spaces where cabling is not practical.

Q: Can this display be used without any external computer?

Yes. The Android EDLA platform runs independently, providing access to Google Play apps, Google Workspace, and ViewSonic software without a connected PC.

Q: How is the IFP6541 managed across a multi-room deployment?

ViewSonic Manager (included) provides centralized remote management. Google Workspace Enterprise Management and Microsoft Intune are also supported for IT teams already using those platforms.

Q: What is the recommended viewing distance for the 65-inch panel?

For 4K content, a viewing distance of 5 to 8 feet is typical for conference and classroom use. The 178-degree viewing angle ensures participants seated off-axis still receive accurate color and contrast.

Q: Is this model TAA compliant?

The IFP6541 is not TAA compliant. For government procurement requiring TAA compliance, refer to the IFP6553-ED-M.

Q: What warranty is included?

A 3-year limited warranty covering parts, labor, and backlight with onsite service is included.
