Atlas Sound Atmosphere CLOUD Restaurant 4 Zone Audio System Bundle

Product Overview

The AtlasIED Atmosphere CLOUD Restaurant 4-Zone Audio System Bundle is a complete commercial audio package engineered for restaurant audio system installation across dining rooms, bars, patios, and private event spaces. Built around the Atmosphere AZM4 4-zone audio processor and the AZA404 400-watt networkable 4-channel power amplifier, the bundle gives integrators everything needed for a four-zone background music and paging deployment in one SKU. Wall controllers, ambient noise sensors, and remote Bluetooth and XLR inputs are included, so staff can manage sources and volume without touching a rack. It is a practical, pre-engineered solution for commercial AV integrators and facilities managers who need predictable performance and simplified procurement.

Product Description

At the core of this restaurant zone audio system is the Atmosphere AZM4, a 4-zone audio processor that combines DSP processing with automation features purpose-built for hospitality environments. The AZM4 includes a built-in message player, bell scheduler, room combine and groups, auto noise compensation, loud noise detection, and a full sound masking configuration suite. Programming is handled through a modern on-board web interface built on Progressive Web App technology, so the control interface works from any device, and built-in Wi-Fi allows tablets to connect directly to the processor during commercial audio installation. Amplification comes from the AZA404, a 1RU 4-channel amplifier that ships ready to use in four-channel 70V mode and can be configured in channel pairs for 70V, 100V, 8-ohm, or 4-ohm speaker loads. The bundle includes four C-ZSV zone, source, and volume wall controllers and two C-V volume controllers, letting managers adjust each dining zone independently. Two X-ANS ambient noise sensors enable the AZM4's learning noise compensation, automatically raising background music as the room gets louder during peak service. An A-BT remote Bluetooth audio input and an A-XLR input plate give staff and entertainers simple local source connections at the point of use. Up to 16 plug-and-play accessories can connect across the AZM4's two accessory ports, with reliable operation at cable runs up to 1,000 feet, and control modules are available for Crestron, Extron, AMX, and RTI for integration into a larger commercial AV control system. Pair the bundle with 70V commercial loudspeakers from our AtlasIED collection to complete the multi-zone audio system design.

Key Features

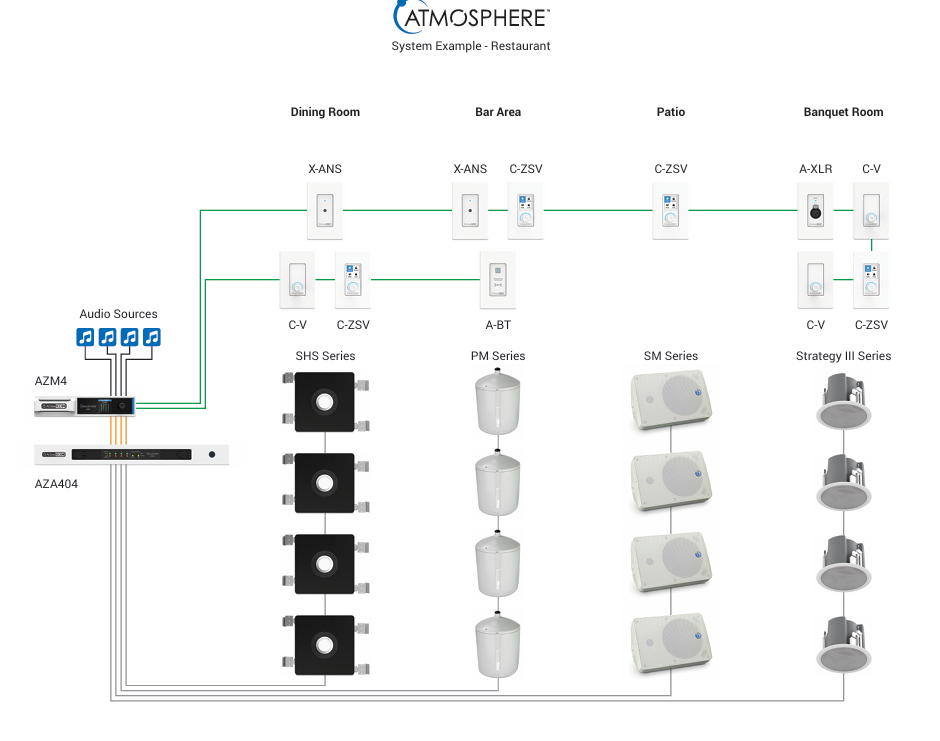

• Complete 4-Zone Bundle — Includes the AZM4 processor, AZA404 amplifier, six wall controllers, two ambient noise sensors, and Bluetooth and XLR input plates for a full restaurant audio deployment.
• Atmosphere AZM4 DSP Processor — Delivers a wide selection of audio DSP objects plus message player, bell scheduler, and room combine for automated multi-zone audio control.
• 400-Watt 4-Channel Amplification — The AZA404 operates out of the box in four-channel 70V mode and supports 70V, 100V, 8-ohm, or 4-ohm loads configurable in channel pairs.
• Auto Noise Compensation — Two X-ANS sensors let the system learn ambient noise levels and adjust zone volume automatically as crowd noise changes.
• Simple Zone Control — Four C-ZSV controllers allow source, zone, and volume changes at the wall, and settings can be cloned between controllers for fast installation.
• Local Source Inputs — A-BT Bluetooth and A-XLR wall plates give staff and performers convenient audio inputs anywhere in the venue.
• Web-Based Configuration — Device-agnostic browser interface with built-in Wi-Fi access point eliminates dedicated software for setup and day-to-day management.
• Third-Party Control Ready — Control modules are available for Crestron, Extron, AMX, and RTI for integration with existing commercial AV control systems.
• App-less Virtual Wall Controllers — Staff access zone control from a phone via QR code or distributed URL, with no app installation required.
• High-Priority GPI Input — Integrates with alarm and life-safety systems to mute or override audio when required.

Typical Applications

• Multi-purpose room
• Commercial meeting space
• House of worship
• Training room
• All-hands room
• Auditorium

Technical Specifications

Frequently Asked Questions

Does this bundle include loudspeakers?

No. The bundle covers processing, amplification, control, and inputs. Pair it with 70V or low-impedance commercial speakers sized for each zone; our team can recommend models from the AtlasIED line for your floor plan.

What is Atmosphere CLOUD?

Atmosphere Cloud is AtlasIED's remote management platform for Atmosphere systems, allowing dealers and operators to monitor systems and update firmware remotely per the Atmosphere Cloud User Guide.

Can the system integrate with a Crestron or Extron control system?

Yes. AtlasIED publishes control modules for Crestron, Extron, AMX, and RTI, and the AZM4 supports third-party control over the network.

How difficult is installation for a typical restaurant?

Wall plate accessories are plug-and-play over a single cable per port with runs up to 1,000 feet, and the AZA404 amplifier works in 70V mode out of the box, which keeps commercial audio installation time low for experienced integrators.

Can volume adjust automatically during busy service?

Yes. The included X-ANS ambient noise sensors feed the AZM4's learning auto noise compensation, which raises or lowers zone levels as room noise changes.

What warranty applies?

AtlasIED covers Atmosphere components with a 36-month warranty from date of purchase, and Creation Networks provides pre- and post-sale support for system design and configuration questions.
