ViewSonic ID2456-4K – 24-Inch 4K Pen Display Tablet
Product Overview

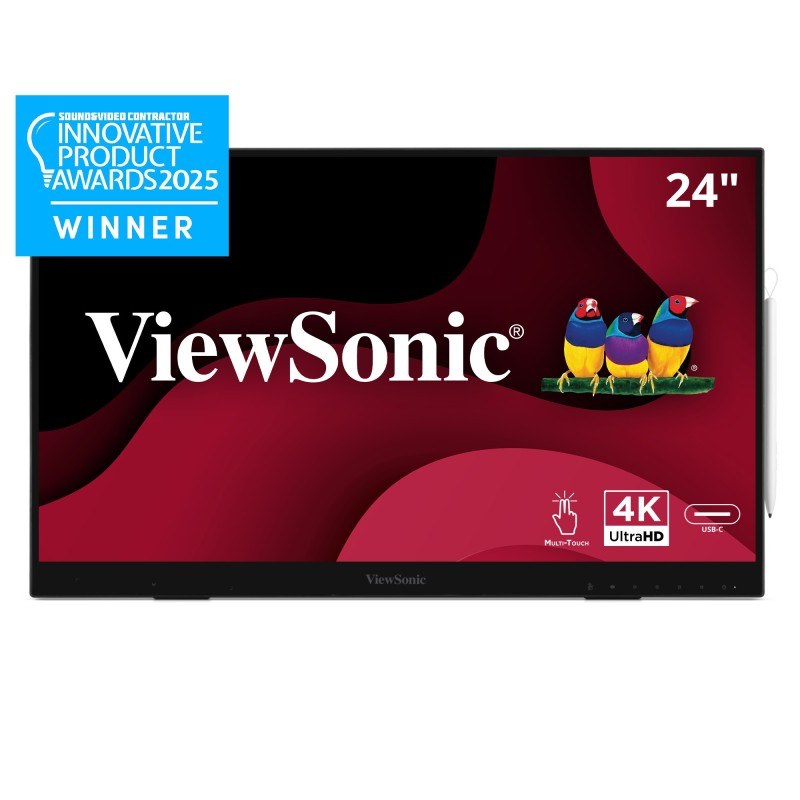

The ViewSonic ID2456-4K is a 24-inch 4K UHD IPS touch display that combines professional-grade stylus input with high-resolution IPS panel performance. MPP2.0 active stylus support with 4096 pressure levels makes it suitable for precision annotation, digital ink workflows, and drawing applications that demand nuanced pen response. USB-C 98W power delivery, HDMI, and DisplayPort connections cover a full range of connectivity scenarios.
Product Description
The ID2456-4K delivers 3840x2160 4K UHD resolution on a 23.8-inch IPS panel with 300 cd/m2 brightness and 178-degree viewing angles in both planes. It supports MPP2.0 active stylus input with 4096 pressure levels, providing the pen precision required for detailed annotation, CAD mark-up, creative design, and digital ink use cases where a basic touch screen is insufficient. USB-C carries video, data, and up to 98W of power delivery, capable of charging power-hungry laptops while in use. HDMI and DisplayPort inputs add broad source compatibility, while HDMI out enables downstream display connections. A built-in kickstand adjusts from 15 to 70 degrees to support everything from upright monitor viewing to near-flat drawing positions. VESA 75x75mm mount compatibility allows arm or fixed-wall installation when the kickstand is not required. The combination of 4K resolution, active stylus, and high-wattage USB-C PD makes the ID2456-4K suited to creative professionals, architects, engineers, and power users who need touch and pen precision in a desktop form factor.
Key Features
- 23.8-inch IPS panel, 3840x2160 4K UHD resolution

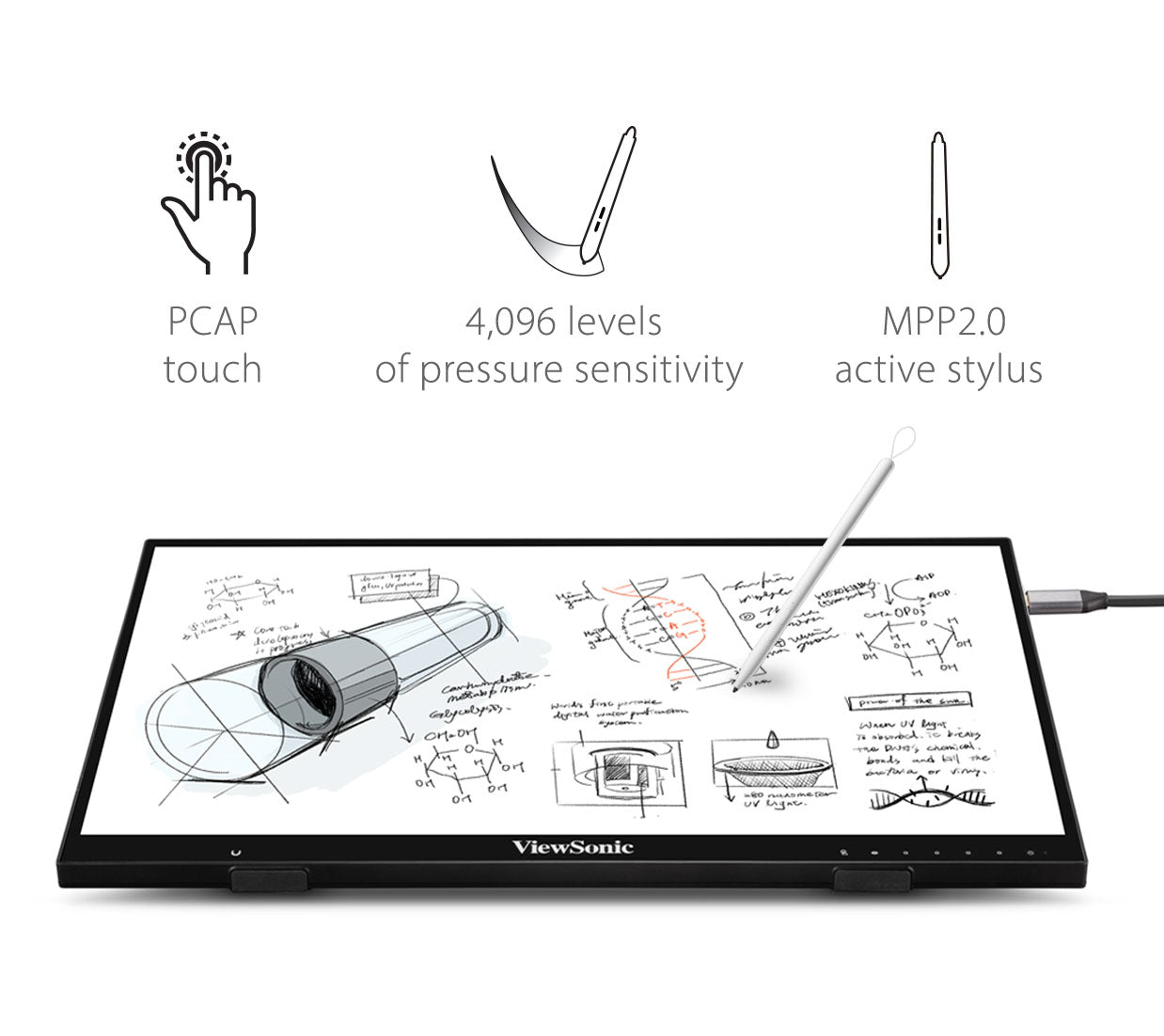

- MPP2.0 active stylus support, 4096 pressure levels

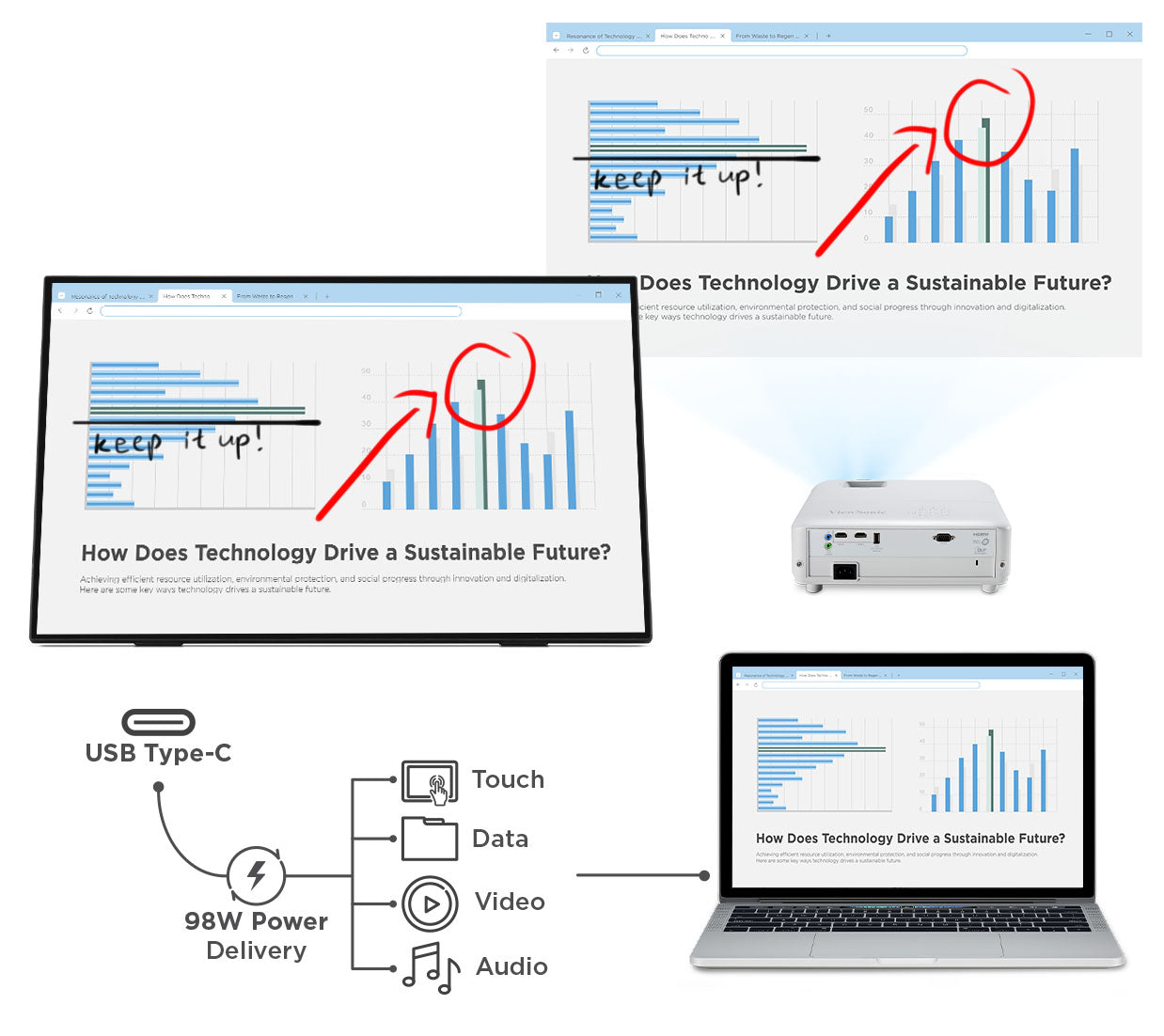

- USB-C with 98W power delivery (single-cable video + charging)
- HDMI in, DisplayPort in, HDMI out

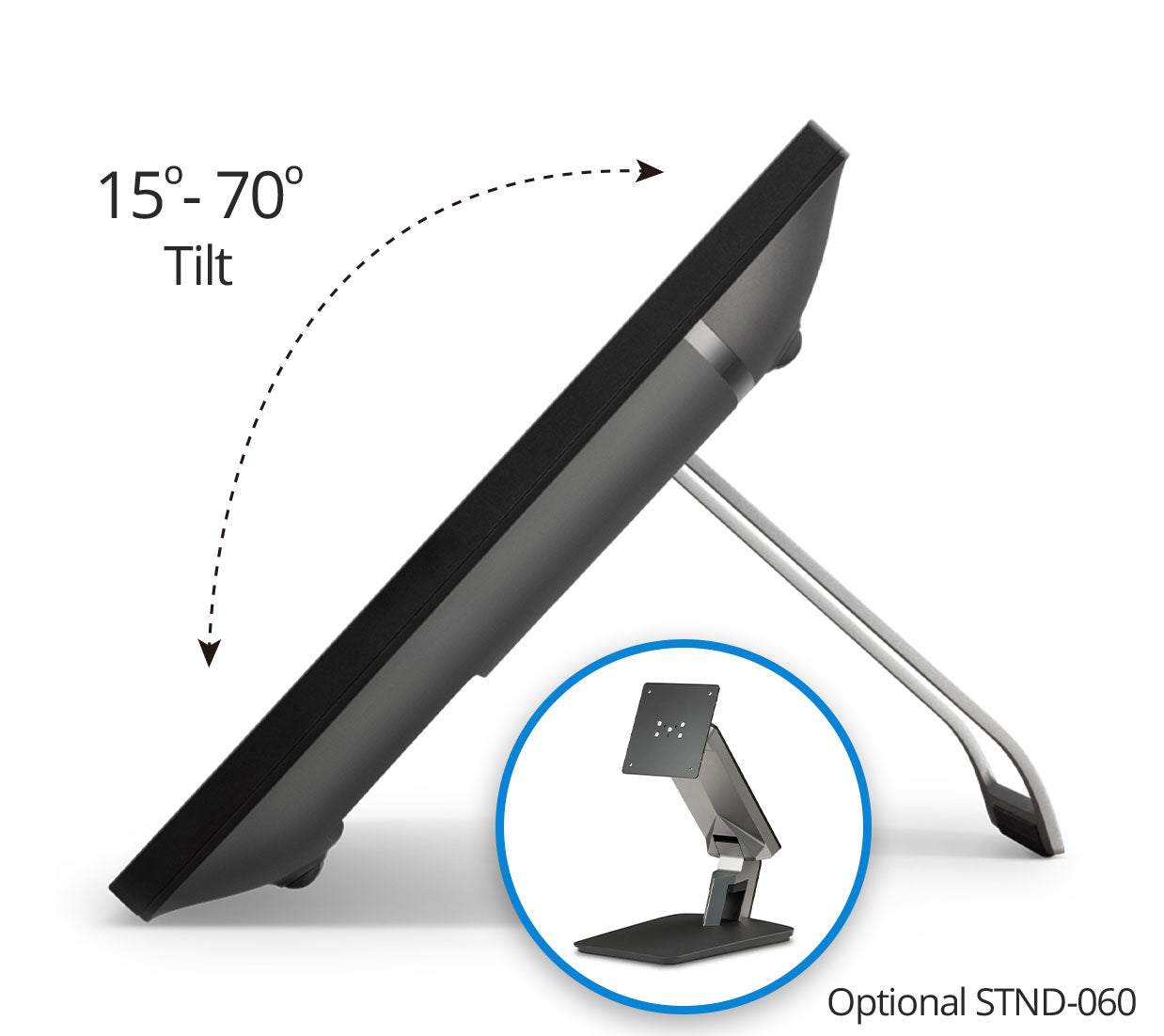

- Kickstand adjustable 15°–70° for monitor and drawing positions
- 300 cd/m2 brightness, 178°/178° viewing angles
- VESA 75x75mm mount compatible
- Three-year limited warranty
Typical Applications
- Digital annotation and document mark-up workflows
- Architectural and engineering drawing review
- Creative design and digital illustration
- Interactive training and instructional content creation
- High-resolution data visualization for technical users
Technical Specifications
| Specification | Value |
|---|---|
| Screen Size | 24" (23.8" viewable) |
| Resolution | 3840 x 2160 4K UHD |
| Panel Type | IPS |
| Refresh Rate | 60Hz |
| Brightness | 300 cd/m2 |
| Viewing Angles | 178° H / 178° V |
| Stylus Technology | MPP2.0 active stylus, 4096 pressure levels |
| USB-C Power Delivery | 98W |
| Video Inputs | USB-C x1, HDMI In x1, DisplayPort x1 |
| Video Output | HDMI Out x1 |
| Ergonomics | Kickstand 15°–70° |
| VESA Mount | 75 x 75mm |
| Warranty | 3-year limited |
Frequently Asked Questions
- What stylus does the ID2456-4K support?
- The ID2456-4K supports MPP2.0 (Microsoft Pen Protocol 2.0) active stylus devices with 4096 levels of pressure sensitivity. Compatible stylus is sold separately.
- How much power can the USB-C port deliver?
- The USB-C port delivers up to 98W of power, which is sufficient to charge most high-performance laptops while simultaneously carrying video and data.
- Is the kickstand adjustable, and to what angles?
- Yes. The kickstand adjusts from 15 to 70 degrees, covering upright monitor use through a nearly flat drawing position suitable for pen input workflows.
- Can the ID2456-4K output video to a second display?
- Yes. The HDMI Out port allows the ID2456-4K to pass video to a second downstream display for extended desktop or mirror configurations.
- Does the 4K resolution require a specific cable type?
- 4K 60Hz output requires either USB-C with DisplayPort Alt Mode (4K capable), HDMI 2.0 or higher, or DisplayPort 1.2 or higher. Verify that your source device and cable both support 4K@60Hz.
