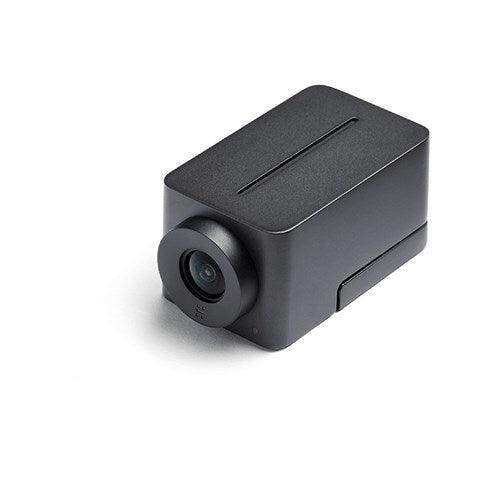

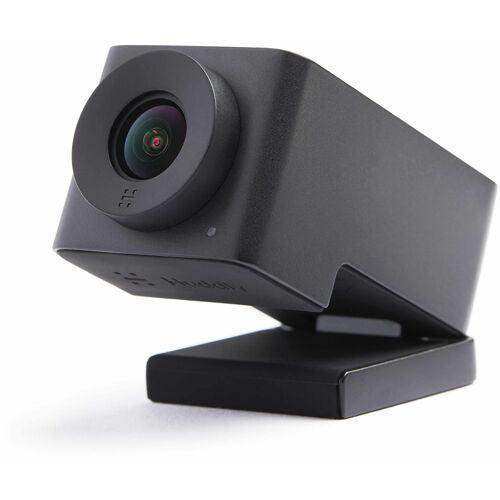

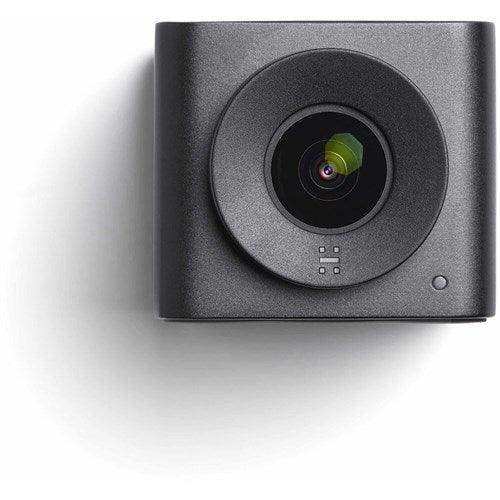

Huddly 7090043790573 IQ Compact Conferencing Camera (Camera Only; No cable or bracket)

Product Overview

The Huddly IQ (SKU: 7090043790573) is a compact, wide-angle conference camera designed for professional meeting rooms of all sizes. It delivers 1080p Full HD video with a 150-degree diagonal field of view, capturing every participant without manual adjustment. This listing includes the camera unit only — no USB cable, no microphone, and no mounting bracket are included. A Huddly-compatible USB cable must be purchased separately for operation.

Product Description

The Huddly IQ is built around a 12-megapixel 1/2.3-inch CMOS sensor and an f/2.8 wide-angle lens that provides 120 degrees horizontal, 90 degrees vertical, and 150 degrees diagonal field of view. The camera outputs 1080p video at 30 frames per second over a USB Type-C connector using SuperSpeed USB 3.0 (5 Gbps), and it is fully UVC 1.1 compliant for plug-and-play operation on Windows and macOS without additional drivers.

The IQ incorporates an onboard AI processing engine that powers several real-time features: Gallery View renders individual participant windows, Group Framing automatically adjusts the frame to include all detected participants, and Portrait Lighting corrects uneven room lighting on a per-person basis. Digital PTZ and Real-Time Dewarping allow remote operators or AV control systems to pan, tilt, zoom, and correct lens distortion in software without moving the physical camera head.

The aluminum unibody housing embeds a mounting hinge that allows the camera to sit on top of a display or be positioned on an integrated tripod mount. The camera draws power directly from the USB host at 5V/900mA, eliminating the need for a separate power supply. The Huddly IQ is certified for Microsoft Teams and Zoom, making it a straightforward choice for IT administrators deploying standardized conferencing hardware. The InSights Analytics API provides occupancy and usage data that integrates with room management platforms.

Key Features

• 150-Degree Diagonal FOV — Covers an entire conference table without panning, reducing the need for multiple cameras in small to medium rooms.
• AI Group Framing — Automatically detects and frames all meeting participants in real time, keeping the composition consistent as people enter or leave.
• Gallery View — Renders each participant as an individual video tile, improving remote participant visibility without additional software.
• Portrait Lighting — Applies per-person lighting correction to compensate for backlighting and uneven room illumination.
• Digital PTZ and Real-Time Dewarping — Enables software-based pan, tilt, zoom, and lens correction without mechanical movement.
• InSights Analytics API — Provides room occupancy and utilization data for integration with workplace analytics and room management systems.
• UVC 1.1 Plug-and-Play — Works with any UVC-compatible conferencing platform without proprietary drivers.
• Microsoft Teams and Zoom Certified — Pre-validated for use in Teams Rooms and Zoom Rooms deployments.
• Aluminum Unibody Construction — Durable housing with an embedded hinge and tripod mount for flexible installation options.
• USB Bus-Powered — Draws power from the host USB port at 5V/900mA, eliminating the need for an external power adapter.

Typical Applications

• Small to medium conference rooms requiring wide-angle coverage without multiple cameras
• Microsoft Teams Rooms and Zoom Rooms standardized deployments
• Huddle spaces where a compact camera footprint is required
• AV integrations where room occupancy analytics are collected via the InSights API
• Corporate IT rollouts requiring certified, plug-and-play USB conferencing hardware
• Installations where an extended USB run requires a separately purchased AOC cable

Technical Specifications

Frequently Asked Questions

Q: What cable does this camera require?
A: The Huddly IQ uses a proprietary USB Type-C cable. The cable is not included with this listing (SKU 7090043790573 — camera only). A Huddly-branded USB cable must be purchased separately for the camera to function.

Q: Does this camera include a microphone?
A: No. This listing is the camera unit only and does not include a microphone. For conference audio, a separate USB or Bluetooth speakerphone or ceiling microphone array is required.

Q: Is the Huddly IQ compatible with Microsoft Teams Rooms?
A: Yes. The Huddly IQ is certified for Microsoft Teams and Zoom, and it operates as a standard UVC 1.1 device, making it compatible with all major conferencing platforms that accept USB cameras.

Q: Can the camera be used with a USB extension cable?
A: Yes. For installations requiring longer cable runs, Huddly offers Active Optical Cable (AOC) USB 3.0 extensions in 10m (33ft) and 15m (49ft) lengths, available separately from Creation Networks.

Q: What mounting options does the Huddly IQ support?
A: The camera includes an embedded mounting hinge for display-top placement and a tripod mount on the underside. Third-party mounting brackets for wall or ceiling installation are also available.

Q: Does the IQ require any driver installation?
A: No. The camera is UVC 1.1 compliant and is recognized as a standard USB camera by Windows and macOS without driver installation. The Huddly software application is optional and enables AI features and firmware updates.

Q: What does the InSights Analytics API provide?
A: The InSights API provides room occupancy data, including headcount and meeting utilization metrics. This data can be integrated with workplace management platforms to support space planning and utilization reporting.
