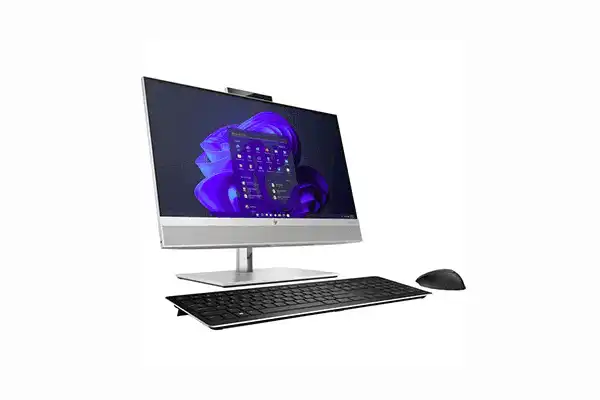

HP EliteOne 800 G6 – 23.8" AiO, Core i5-10500, 8GB
Product Overview
The HP EliteOne 800 G6 is a commercial all-in-one desktop that consolidates compute, display, and conferencing hardware into one chassis. This build (SKU 683H5UT#ABA) combines the 10th Gen Intel Core i5-10500 six-core processor with 8 GB of DDR4 memory behind a 23.8-inch FHD display. It serves as a dependable enterprise AiO PC for office desks, huddle rooms, and front-office stations. With vPro-capable manageability, it fits organizations standardizing a space-saving desktop platform across multiple locations.
Product Description
This HP EliteOne 800 G6 all-in-one desktop places the full computing platform behind a 23.8-inch FHD (1920 x 1080) IPS anti-glare panel, eliminating the separate tower from the workspace. The Intel Core i5-10500 provides six cores at a 3.1 GHz base frequency, reaching up to 4.5 GHz with Intel Turbo Boost, paired with Intel UHD Graphics 630 for office productivity, browser-heavy workloads, and video meetings. The 8 GB of DDR4 memory is installed across two customer-accessible SODIMM slots, leaving headroom for future expansion.
Storage runs on a PCIe NVMe M.2 solid-state drive for fast boot and load times. The integrated 5 MP pop-up camera with dual-array digital microphone keeps the lens concealed when not in use, supporting conference and huddle room deployments. Connectivity covers USB Type-C, USB Type-A, HDMI 2.0a, and DisplayPort 1.4, alongside gigabit Ethernet and Wi-Fi. Commercial-grade security is anchored by TPM 2.0 and HP Sure Start firmware protection, and the i5-10500 supports Intel vPro Technology for remote IT management.
Compare with the base i5-10500 configuration or step up to the 16 GB EliteOne 800 G6 build. The complete range is in our HP Inc. collection.
Key Features
- Intel Core i5-10500 processor — Six cores at up to 4.5 GHz Turbo support multitasking across business applications and conferencing.
- 8 GB DDR4 memory — Installed in customer-accessible SODIMM slots with room to expand as workloads increase.
- 23.8-inch FHD IPS display — The anti-glare 1920 x 1080 panel offers wide viewing angles for desk and meeting-room placement.
- Space-saving all-in-one design — Integrated display, compute, camera, and speakers reduce desktop cable clutter.
- vPro-capable manageability — The i5-10500 supports Intel vPro Technology for remote provisioning and management.
- Commercial-grade security — TPM 2.0 and HP Sure Start firmware protection provide a hardware-rooted defense layer.
Typical Applications
- Office desks and open-plan workstations standardizing on a commercial all-in-one desktop.
- Conference and huddle rooms using the built-in camera for video collaboration.
- Reception and front-office stations needing a single-unit enterprise AiO PC.
- Hot-desking and shared environments managed centrally by IT.
Technical Specifications
| Model/SKU | HP EliteOne 800 G6 24 All-in-One PC / 683H5UT#ABA |
| Processor | Intel Core i5-10500 (6 cores, 3.1 GHz base, up to 4.5 GHz, 12 MB L3) |
| Graphics | Integrated Intel UHD Graphics 630 |
| Memory | 8 GB DDR4 SODIMM, 2 slots, customer upgradeable |
| Storage | PCIe NVMe M.2 solid-state drive |
| Display | 23.8" diagonal FHD (1920 x 1080), IPS, anti-glare |
| Operating System | Windows 10 Pro / Windows 11 Pro |
| Camera | 5 MP FHD pop-up camera with dual-array digital microphone |
| Wireless/Ports | Intel Wi-Fi 5 + Bluetooth 5, Gigabit Ethernet; USB Type-C, USB Type-A, HDMI 2.0a, DisplayPort 1.4, headphone/mic combo |
| Security | TPM 2.0, HP Sure Start Gen6, HP Sure Sense, HP Sure Click, HP BIOSphere |
| Form Factor | All-in-one desktop |
Frequently Asked Questions
Is this all-in-one compatible with our standard business software?
Yes. With Windows 10 Pro or Windows 11 Pro it supports common productivity suites, line-of-business applications, and standard management agents used across enterprise fleets.
Can the EliteOne 800 G6 be VESA- or arm-mounted?
The chassis supports HP stand options and VESA-compatible mounting for wall, arm, or counter installation in reception and shared spaces. Verify the specific bracket against your mount first.
How do peripherals and an external display connect?
HDMI 2.0a and DisplayPort 1.4 drive an external monitor, and HDMI-in lets the AiO serve as a second display. USB Type-C and Type-A ports handle keyboards, mice, headsets, and docks.
Can I add more memory or storage?
Yes. The two SODIMM slots are customer accessible for DDR4 expansion beyond the installed 8 GB, and the M.2 slot accepts a PCIe NVMe SSD for added capacity.
What warranty and support are available?
The EliteOne 800 G6 ships with HP's 3-year limited warranty, with HP Care Pack extensions available. See our HP Inc. collection for options.
Does it support centralized fleet management?
Yes. The Core i5-10500 supports Intel vPro Technology, enabling out-of-band remote management and recovery for IT-administered desktop fleets.
