BSS AC-V Analog Wall Controller with Volume (White)

Product Overview

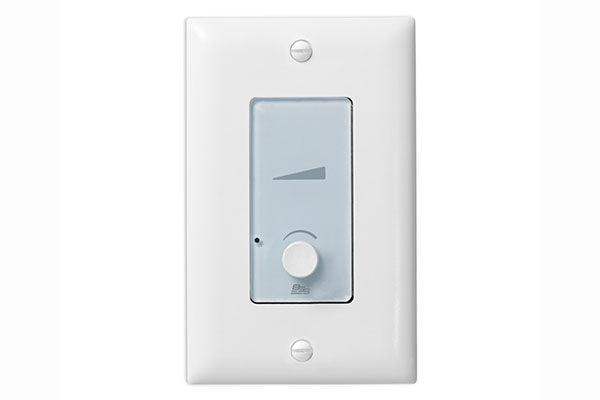

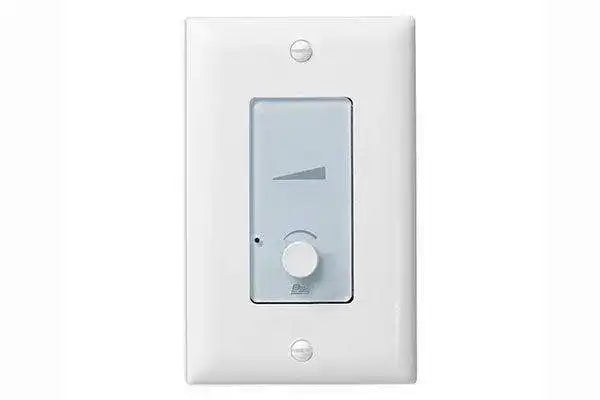

The BSS AC-V is a Soundweb Contrio analog wall controller featuring a logarithmic potentiometer for volume control in BSS Audio Soundweb London installations. It connects to a single General Purpose Input (GPI) on any Soundweb London device, providing intuitive room-level volume adjustment without requiring a networked keypad or control processor. This white US Decora single-gang variant suits standard North American wallplate assemblies with light-colored finishes, offering a practical and cost-effective analog control solution configured through HiQnet Audio Architect.

Product Description

The BSS AC-V Soundweb Contrio analog wall controller contains a 47k Ohm logarithmic potentiometer that translates physical knob rotation into a proportional voltage signal on a single GPI port of a Soundweb London processor. The logarithmic taper matches human volume perception, providing smooth and predictable level control at the room level. Configuration is handled entirely within HiQnet Audio Architect through drag-and-drop parameter mapping, allowing virtually any gain or level control in the Soundweb London signal flow to be assigned to the AC-V.

Because only one GPI is consumed per controller, up to 12 AC-V units can connect to a single standard Soundweb London device, and up to 36 can connect to a BLU-GPX GPI expander. This makes it straightforward to deploy individual volume controls in multiple zones — conference rooms, classrooms, lobbies, and common areas — all managed by a single Soundweb London processor. The white US Decora single-gang form factor integrates with standard North American wallplate hardware and coordinates with white electrical and low-voltage AV fixtures.

For installations requiring source selection rather than volume control, the companion AC-5S controller provides a five-position resistor-ladder selector with the same GPI-based connectivity. Both the AC-V and AC-5S are available at Creation Networks in black and white US Decora variants.

Key Features

• Logarithmic Volume Potentiometer — 47k Ohm log-taper pot delivers smooth, perceptually linear volume control matched to human hearing.
• Single GPI Connection — Requires only one General Purpose Input per controller, supporting up to 12 units per Soundweb London device or 36 per BLU-GPX.
• Soundweb London Compatible — Designed specifically for BSS Audio Soundweb London processors; compatible with all GPI-equipped Soundweb London devices and the BLU-GPX.
• HiQnet Audio Architect Configuration — Drag-and-drop parameter mapping in Audio Architect; any level or gain parameter in the signal flow can be assigned to the controller.
• White US Decora Form Factor — Single-gang US Decora plate style fits standard North American wallplate assemblies; white finish coordinates with light-colored interiors.
• Cost-Effective Room-Level Control — Provides user-accessible volume adjustment without the expense of a networked keypad or external control processor.
• No Additional Control Hardware Required — Operates directly from the GPI ports built into every Soundweb London device.
• Multi-Zone Scalability — Deploy multiple AC-V controllers across zones on a single Soundweb London system for distributed level control.
