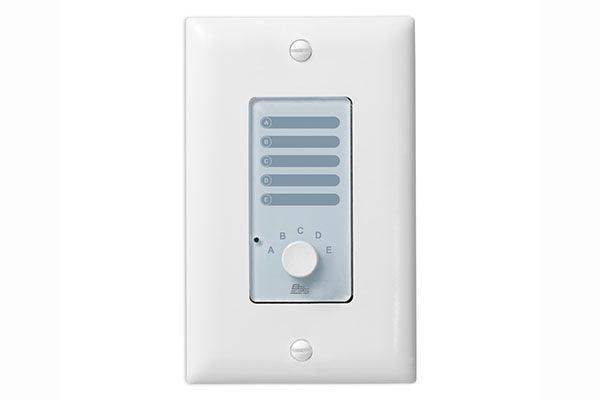

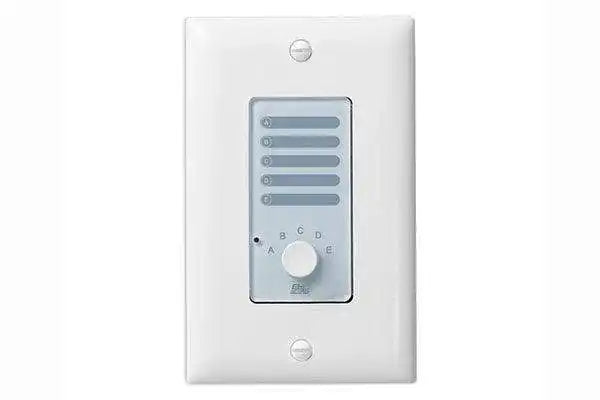

BSS AC-5S Analog Wall Controller with 5 Sources (White)

Product Overview

The BSS AC-5S is a Soundweb Contrio analog wall controller providing a five-position source selector for use with BSS Audio Soundweb London devices. Connecting to a single General Purpose Input (GPI) on any Soundweb London processor, the AC-5S enables straightforward source selection or preset recall at the room level without requiring a networked keypad. This white US Decora single-gang variant integrates cleanly into standard North American wallplate installations with light-colored décor, making it a cost-effective analog control solution for commercial AV systems configured in HiQnet Audio Architect.

Product Description

The BSS AC-5S Soundweb Contrio analog wall controller uses a five-position resistor ladder to present five discrete voltage states to a single GPI port on a connected Soundweb London device. Each of the five positions maps to a unique control action — typically source selection or scene/preset recall — configured via drag-and-drop in HiQnet Audio Architect. Because the controller requires only one GPI, up to 12 AC-5S units can connect to a single standard Soundweb London device, and up to 36 can connect to a BLU-GPX expander, allowing scalable room-level control across large multi-zone installations.

The AC-5S is part of the Soundweb Contrio family, which pairs low-cost analog controllers with the full processing power of the Soundweb London platform. No additional control processor is required: the GPI infrastructure built into every Soundweb London device is all that is needed to deploy the AC-5S. Wiring is straightforward, and the Audio Architect software provides flexible parameter mapping so virtually any controllable parameter in the signal flow can be assigned to the rotary selector positions. The white US Decora form factor matches standard single-gang wallplates and complements light-finish interiors in conference rooms, classrooms, and commercial meeting spaces.

For installations requiring volume control rather than source selection, the companion AC-V controller uses a 47k Ohm logarithmic potentiometer and shares the same GPI-based connectivity and physical form factor. Both controllers are available at Creation Networks in black and white US Decora variants.

Key Features

• Five-Position Source Selector — Resistor-ladder design provides five discrete GPI voltage states for source selection or preset recall.
• Single GPI Connection — Requires only one General Purpose Input per controller, allowing up to 12 units per Soundweb London device or 36 per BLU-GPX.
• Soundweb London Compatible — Designed specifically for use with BSS Audio Soundweb London processors and the BLU-GPX GPI expander.
• HiQnet Audio Architect Configuration — Configured via simple drag-and-drop in Audio Architect; virtually any signal-flow parameter can be mapped to the selector positions.
• White US Decora Form Factor — Single-gang US Decora plate style fits standard North American wallplate assemblies; white finish suits light-colored interiors.
• Cost-Effective Analog Control — Delivers room-level control without the cost of a networked keypad, ideal for budget-conscious commercial AV deployments.
• No Additional Control Processor Needed — Leverages the GPI infrastructure native to every Soundweb London device.
• Scalable Multi-Zone Deployment — Multiple AC-5S units can be distributed across zones within the same Soundweb London system.
