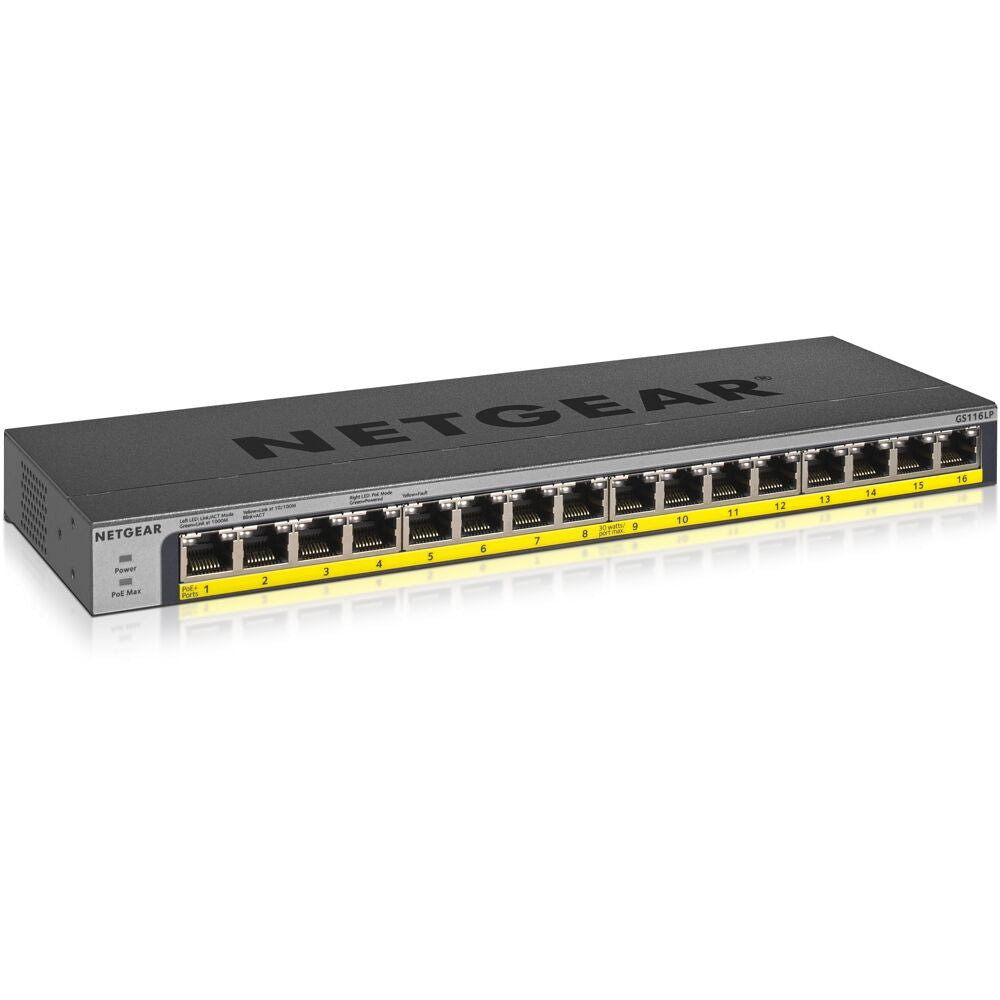

Netgear GS116LP-100NAS

Product Overview

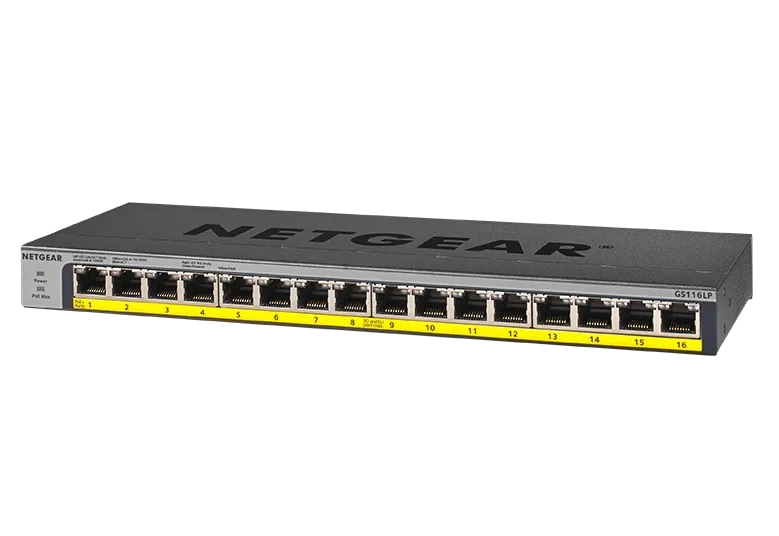

The NETGEAR GS116LP is a 16-port Gigabit PoE unmanaged switch that powers and connects AV endpoints over a single Ethernet cable. All sixteen ports support PoE and PoE+ up to 30W each, sharing a 76W power budget that can be expanded with NETGEAR FlexPoE adapters. The fanless metal chassis runs silently and mounts on a desk, wall, or 19-inch rack. It is a high-density choice for powering wireless access points, IP cameras, and VoIP phones across conference rooms and signage installs.

Product Description

The GS116LP 16-port Gigabit PoE switch is built for AV integrators who need many powered drops without running separate power lines. Every port supports IEEE 802.3af and 802.3at, delivering up to 30W per port within a 76W total PoE budget, enough to drive a mix of access points, PTZ or fixed IP cameras, and PoE phones across a floor or room. NETGEAR FlexPoE lets you raise the budget to 115W or 183W later by swapping in a higher-wattage adapter, so the deployment can scale without replacing the switch.

The 286 x 102 x 27 mm metal case ships with both wall-mount and rack-mount kits, giving flexible placement in an AV rack, a small cabinet, or behind a display wall. The fanless design keeps the switch completely silent for noise-sensitive rooms, and Energy Efficient Ethernet (IEEE 802.3az) reduces power use during light traffic. To compare managed PoE and higher-budget options, browse the full NETGEAR switch collection at Creation Networks. The GS116LP is backed by a NETGEAR ProSAFE lifetime warranty with lifetime next-business-day replacement.

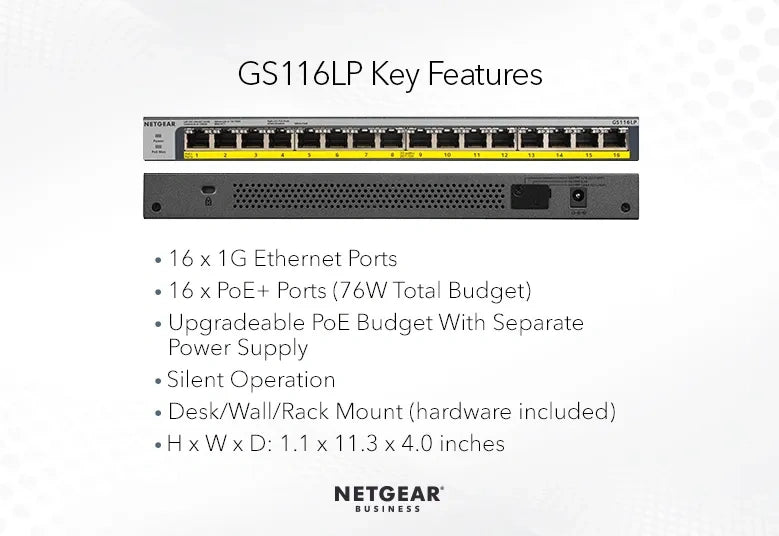

Key Features

• Sixteen PoE/PoE+ Ports — All sixteen Gigabit ports deliver up to 30W each for access points, IP cameras, and VoIP phones.
• 76W PoE Budget — A 76W total power budget supplies a mix of powered devices from a single switch.
• FlexPoE Expandability — The PoE budget scales to 115W or 183W simply by swapping in a higher-wattage NETGEAR power adapter.
• 32 Gbps Switching Fabric — A non-blocking store-and-forward fabric delivers full Gigabit speed across all sixteen ports.
• Fanless Silent Operation — Zero acoustic noise makes it well suited to conference rooms and other quiet AV spaces.
• Flexible Mounting — Included wall-mount and rack-mount kits allow desktop, wall, or 19-inch rack installation.
• Energy Efficient Ethernet — IEEE 802.3az lowers power consumption when ports are idle or lightly loaded.
• Lifetime Warranty — Backed by a NETGEAR ProSAFE lifetime hardware warranty with lifetime NBD replacement.

Technical Specifications

Specifications sourced from the NETGEAR datasheet.
