Furman PL-PRO DMC – 20A Rack Power Conditioner with Meters

Product Overview

The Furman PL-PRO DMC is a professional 20A rack-mount power conditioner designed for commercial AV installations where accurate power monitoring and clean, protected AC power are non-negotiable. This 1U unit delivers Furman's industry-standard SMP, LiFT, and EVS protection technologies in a single rack space, making it a trusted choice for boardroom AV racks, broadcast facilities, and permanent installation environments. The large digital voltmeter and ammeter give integrators and facilities managers real-time visibility into line voltage and true RMS current draw — critical data for diagnosing power issues before they affect equipment. At Creation Networks, the PL-PRO DMC is available at a discounted price, making professional-grade power conditioning more accessible for commercial AV projects.

Product Description

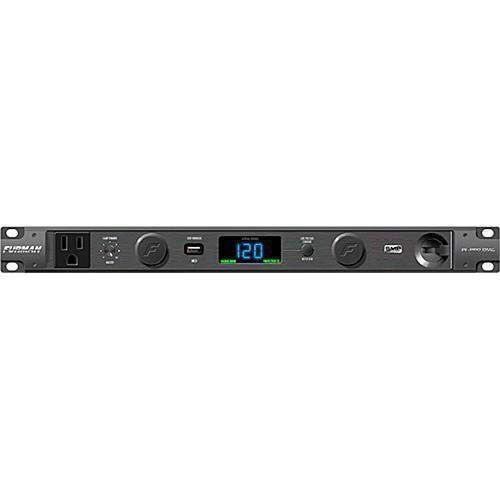

The Furman PL-PRO DMC is built for AV professionals who need reliable, clean power with real-time diagnostic capability. The front-panel large digital voltmeter continuously displays incoming line voltage, while the ammeter shows true RMS current draw — both readable at a glance from across a rack room. A dedicated dimmer button controls display brightness, reducing light interference in darkened environments such as broadcast studios and screening rooms.

Furman's Series Multi-Stage Protection (SMP) technology provides extreme voltage suppression beyond standard MOV-based surge protectors, clamping dangerous transients before they reach connected equipment. Linear Filtering Technology (LiFT) eliminates AC noise across the full bandwidth without current limiting, and Extreme Voltage Shutdown (EVS) automatically disconnects the outlets if line voltage exceeds safe thresholds — protecting six-figure AV systems from sustained overvoltage events. A rear BNC connector accommodates a standard gooseneck rack lamp, adding practical utility for equipment rooms and server closets where task lighting is needed during service calls.

The PL-PRO DMC operates on a 20A circuit with a high-inrush magnetic circuit breaker and draws just 12W at idle. Input voltage range is 90–139V AC, and maximum surge current handling is rated at 6,500 amperes. With a 1U form factor measuring 19" x 10.5" x 1.8" and weighing 12 lb, it integrates cleanly into standard 19" equipment racks. For commercial AV integrators and IT/facilities teams managing sensitive AV infrastructure, the PL-PRO DMC delivers the metering precision and protection depth that installed AV systems require.

Key Features

• Large Digital Voltmeter and Ammeter — Displays real-time line voltage and true RMS current draw directly on the front panel, supporting power diagnostics during commissioning and service.
• Adjustable Display Dimmer — Front-panel dimmer button reduces meter brightness for use in light-sensitive environments such as broadcast studios or screening rooms.
• SMP (Series Multi-Stage Protection) — Furman's Series Multi-Stage Protection clamps extreme voltage transients and surges before they reach connected AV equipment, far exceeding standard MOV-based protection.
• LiFT (Linear Filtering Technology) — Eliminates AC line noise across the full frequency bandwidth without restricting current delivery, preserving audio and video signal integrity.
• EVS (Extreme Voltage Shutdown) — Automatically disconnects AC outlets when line voltage rises above or falls below safe operating thresholds, protecting equipment from sustained voltage events.
• Rear BNC Lamp Connector — Accepts a standard gooseneck rack lamp via BNC connector on the rear panel, providing task lighting inside equipment racks during installation and maintenance.
• 20A High-Inrush Magnetic Circuit Breaker — Rated for 20A circuits with a magnetic breaker designed to handle the high inrush current demands of commercial AV equipment at power-up.
• 1U Rack-Mount Form Factor — Fits any standard 19" equipment rack in a single rack space, with a low 12W idle power draw that minimizes heat contribution in enclosed racks.

Typical Applications

• Boardroom AV rack installations requiring precise power monitoring
• Conference room and all-hands room AV system racks
• Broadcast studio equipment racks with sensitive audio and video gear
• Government and corporate AV infrastructure requiring reliable surge protection
• Training room and auditorium AV racks with mixed equipment loads
• Commercial meeting spaces managed by IT or facilities teams

Technical Specifications

Frequently Asked Questions

What circuit is required for the Furman PL-PRO DMC?

The PL-PRO DMC requires a dedicated 20A, 120V AC circuit. It uses a NEMA 5-20P plug. Ensure the circuit is properly grounded for full protection effectiveness.

How does SMP protection differ from standard surge protection?

Standard surge protectors use MOVs (metal-oxide varistors) that degrade over time with each surge event. Furman's SMP (Series Multi-Stage Protection) uses a series circuit topology that clamps transients without degrading, providing consistent protection throughout the product's service life.

What does the ammeter display measure?

The ammeter displays true RMS current draw across all connected loads in real time. This is particularly useful during AV system commissioning to verify that connected equipment does not exceed the 20A circuit capacity.

Can the PL-PRO DMC protect against sustained overvoltage from the utility supply?

Yes. The EVS (Extreme Voltage Shutdown) circuit monitors incoming line voltage continuously. If voltage rises above or falls below safe operating limits, EVS automatically disconnects all AC outlets to protect connected equipment.

Is the BNC lamp connector compatible with standard rack lamps?

Yes. The rear-panel BNC connector is compatible with standard BNC-type gooseneck rack lamps commonly used in professional AV and audio equipment racks.

What is the warranty on the Furman PL-PRO DMC?

The PL-PRO DMC carries Furman's standard limited warranty. Contact Creation Networks at creationnetworks.net for warranty registration assistance and authorized service information.

Does the PL-PRO DMC include isolated outlet banks?

Yes. The outlet banks are isolated to minimize inter-component interference, which is important when mixing audio equipment, video processors, and control systems in the same rack.
