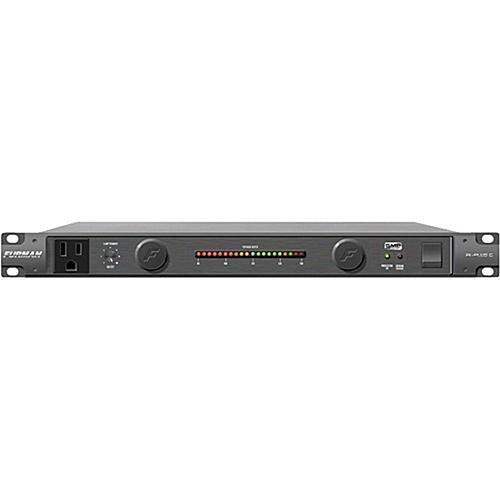

Furman PL-PLUS C – 15A Power Conditioner with LED Voltmeter

Product Overview

The Furman PL-PLUS C is a 15A rackmount power conditioner with voltmeter designed for AV racks where operators need to monitor incoming line voltage at a glance. It pairs Furman's SMP surge protection and LiFT noise filtration with a 20-segment LED line-voltage meter for continuous power monitoring in conference rooms, live sound rigs, and equipment closets. As a power conditioner with voltmeter aimed at commercial AV deployment, it adds active voltage verification to a single-rack-space chassis. This makes it a practical choice for line voltage monitoring power conditioner duty in installations where stable power matters.

Product Description

The PL-PLUS C is built for professionals who need to actively confirm power conditions on site. Its segmented LED voltmeter monitors and displays incoming line voltage, letting an integrator verify the voltage range from across a room or in low light without separate test equipment. Behind that meter, Series Multi-Stage Protection (SMP) delivers non-sacrificial surge suppression with zero ground contamination, LiFT filtration lowers the AC noise floor for cleaner audio and video, and Extreme Voltage Shutdown (EVS) powers down connected gear during dangerous over-voltage conditions.

The unit provides nine total outlets — eight on the rear panel and one front convenience outlet — split across two isolated banks to reduce inter-component interference, with three widely spaced outlets for bulky wall-wart transformers. Dual retractable front-panel LED lights and a rear BNC connector for a gooseneck lamp handle rack illumination. If your deployment calls for a precise digital readout of both voltage and current instead of the LED meter, compare the Furman PL-PLUS DMC with digital voltmeter, or review the full Furman power collection to spec the right unit.

Key Features

• 20-Segment LED Voltmeter — A tri-color segmented LED meter monitors and displays incoming line voltage so operators can verify the voltage range at a distance or in poor lighting.
• Series Multi-Stage Protection (SMP) — Non-sacrificial surge suppression with zero ground contamination protects connected equipment without degrading over time.
• Linear Filtering Technology (LiFT) — AC noise filtration lowers the noise floor for cleaner performance from consoles, DAWs, and amplifiers.
• Extreme Voltage Shutdown (EVS) — Continuous monitoring powers down the unit and connected gear during dangerous over-voltage conditions.
• Nine Total Outlets — Eight rear-panel outlets and one front convenience outlet provide ample distribution for a full rack of equipment.
• Two Isolated Banks — Isolated outlet banks minimize inter-component interference and noise contamination between connected devices.
• Dual Pull-Out LED Lights — Two dimmable, retractable front-panel lamps illuminate rack gear, with a rear BNC connector for an optional gooseneck lamp.
• Single Rack Space Design — The 19-inch steel chassis mounts in one rack unit with included rack ears for clean integration.

Technical Specifications
