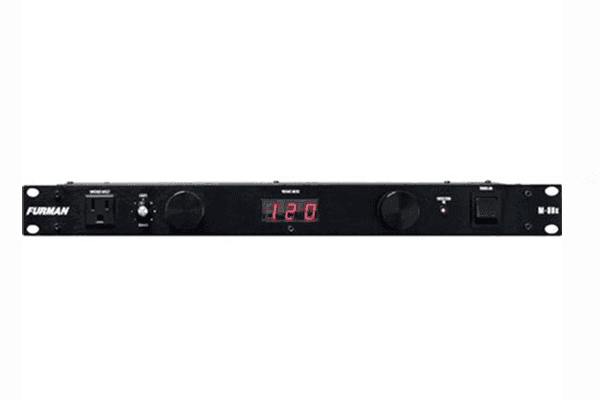

Furman M-8DX – 15A Conditioner, Digital Meter & Lights

Product Overview

The Furman M-8DX power conditioner is the top of the Merit Series, pairing clean-power protection with a front-panel digital voltmeter for racks that need active power monitoring. This 15A power conditioner with digital voltmeter delivers nine total outlets, standard surge protection, and RFI/EMI filtration, plus two dimmable pull-out lights for rack illumination. The three-digit LED voltmeter displays incoming AC voltage, letting integrators verify line conditions in bars, clubs, and other venues where power can be unreliable. As a rack-mount power conditioner with lights and a meter, the M-8DX consolidates protection, monitoring, and visibility into a single 1U chassis.

Product Description

The M-8DX includes every feature of the M-8LX — nine outlets, a 15-amp rating, standard surge protection, standard-level RFI/EMI filtration, and two dimmable pull-out light fixtures — and adds a bright red, three-digit LED voltmeter. The voltmeter displays the incoming voltage from the wall outlet so an engineer or contractor can confirm the rig is receiving safe line voltage before and during a session. Eight switched outlets sit on the rear panel with one front-panel convenience outlet, and the rear receptacles are spaced to accept oversized wall-wart adapters.

Standard surge and spike protection defends connected gear from the transients common on shared circuits, while the noise filtration reduces radio-frequency and electromagnetic interference that raises the noise floor on a console or DAW. The two retractable, dimmable lamps illuminate the rack without flooding a stage or control room with light, and a front-panel "Protection OK" LED confirms the protection circuitry is active. The steel chassis ships with rack ears for direct installation in any 19-inch equipment rack, typically in the top rack slot so the meter and lights stay in view.

If you do not need the voltmeter and want the same protection-plus-lights package at a lower price point, compare the Furman M-8LX. Browse the complete lineup in the Furman collection at Creation Networks.

Key Features

• Digital Voltmeter — A bright red three-digit LED display shows incoming AC line voltage so you can verify power conditions in venues with unreliable supply.
• Dual Pull-Out Lights — Two retractable, dimmable incandescent fixtures slide out from the front panel to illuminate the rack on dark stages and in dim equipment rooms.
• Standard Surge Protection — Line-to-neutral spike protection dissipates 150 joules and absorbs peak impulse currents up to 12,000 amps to defend connected gear from transients.
• RFI/EMI Filtration — Standard-level noise filtration greater than 26 dB reduces radio-frequency and electromagnetic interference that raises the noise floor on audio equipment.
• Nine Total Outlets — Eight rear-panel switched outlets plus one front-panel convenience outlet power a complete instrument, studio, or DJ rig from a single 15A circuit.
• Wall-Wart Spacing — Rear outlets are spaced to fit oversized adapters and power supplies without blocking adjacent receptacles.
• Protection OK Indicator — A front-panel LED confirms the surge protection circuitry is active and connected equipment is protected.
• Rack-Ready Steel Chassis — The 1U black steel chassis ships with rack ears for direct mounting in any standard 19-inch equipment rack.
