Facilis XP16 – 64TB Storage Expansion Unit

Product Overview

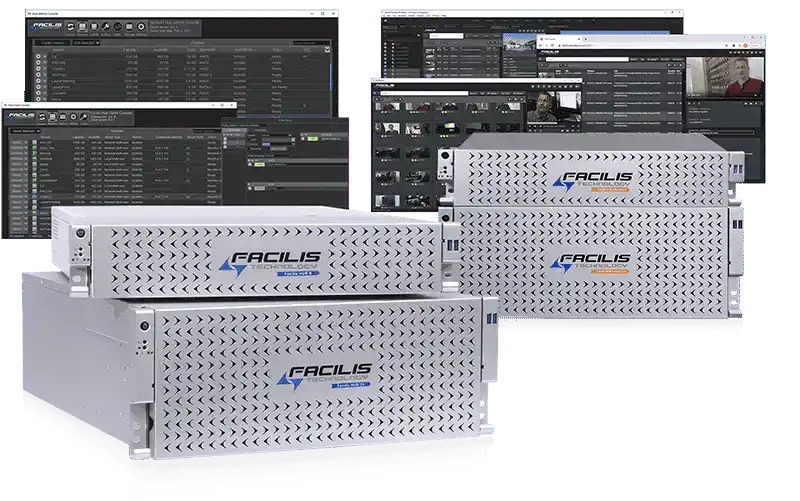

The Facilis XP16 64TB is a 4U rack-mount storage expansion unit designed to add 16 hard drives and 64TB of capacity to an existing Facilis HUB shared storage server. It is not a standalone storage server — the XP16 attaches to a host Facilis HUB via a dual or quad-port 12Gbps SAS connection and is fully managed by the host HUB's Facilis Shared File System, with no independent console or client-facing connections of its own. Facilities that have deployed a Facilis HUB and need to grow their storage pool can add one or more XP16 units without replacing the existing server or disrupting active workflows. The XP16 64TB is the entry-level capacity option in the XP16 expansion line, offering a cost-effective first step toward expanded shared storage headroom.

Product Description

The Facilis XP16 64TB connects to a host Facilis HUB server via 12Gbps SAS, extending the HUB's managed storage pool by 16 drives without requiring additional server licenses, a separate Web Console instance, or independent client connections. All volume management, user permissioning, and file system operations for the added capacity are handled entirely by the host HUB, making the XP16 transparent to connected editors once the expansion is integrated and provisioned. The 4U chassis occupies four rack units and ships with dual or quad-port 12Gb SAS connectivity options, giving integration teams flexibility in how the SAS link is configured based on the host HUB model and available controller ports. Redundant 600W n+1 power supplies in the XP16 chassis match the power architecture of the Facilis HUB family, providing consistent fault tolerance across the expanded storage system. Operating temperature range of 5°C–30°C and 100–240 VAC auto-switching power input are consistent with standard data-center and equipment-room environments. Sustained throughput contribution from the XP16 scales with configuration, allowing the expanded pool to support additional media streams as the facility's workflow demands grow. The physical dimensions — 26 inches deep, 19 inches wide, 7 inches tall — and 65-lb weight are representative of standard 4U rack hardware; facilities should confirm rack depth clearance and weight capacity before installation. Creation Networks supports the full Facilis XP16 line and can advise on compatibility with your specific HUB model and configuration; contact our team at creationnetworks.net for pre-purchase consultation.

Key Features

• Dedicated storage expansion unit — Adds 16 HDDs and 64TB of raw capacity to an existing Facilis HUB deployment; not a standalone server and requires a host HUB to operate.
• 12Gbps SAS connectivity to host HUB — Connects via dual or quad-port 12Gb SAS directly to the host Facilis HUB's SAS controller, extending the managed storage pool over a high-bandwidth internal link.
• Fully managed by host HUB — All volume management, user permissioning, and file system operations are handled by the host HUB's Facilis Shared File System; no separate console or license is required for the XP16 itself.
• Redundant power supplies — Two 600W n+1 power supplies with 100–240 VAC auto-switching input provide fault-tolerant power consistent with the Facilis HUB chassis architecture.
• Standard 4U rack form factor — Occupies 4U of rack space with standard 19-inch width; designed to rack alongside the host HUB in the same equipment cabinet.
• Scalable throughput — Contributes to the expanded storage pool's aggregate throughput, with sustained performance varying by configuration and host HUB specifications.
• Non-disruptive capacity growth — Allows facilities to expand storage capacity incrementally without replacing the existing HUB server or interrupting active production workflows during provisioning.

Typical Applications

• Post-production and editorial suites expanding an existing Facilis HUB deployment to accommodate growing media archives
• Broadcast studios and news production environments adding capacity to a Facilis HUB without replacing the core server
• House of worship media teams that have outgrown the initial HUB capacity and need additional headroom for archived recordings
• Government video departments requiring incremental, budget-staged storage expansion tied to existing Facilis infrastructure
• Corporate video and training rooms scaling storage capacity in step with increasing production volume

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which Facilis HUB models is the XP16 compatible with?

The XP16 is designed to attach to Facilis HUB servers via 12Gb SAS. Compatibility depends on the host HUB model and available SAS controller ports. Contact Creation Networks at creationnetworks.net to confirm compatibility with your specific HUB model before purchasing.

How does the XP16 connect to the host HUB?

The XP16 connects directly to the host Facilis HUB's 12Gb SAS controller via dual or quad-port 12Gbps SAS cables. There are no independent Fibre Channel or Ethernet connections on the XP16 — all client access to the expanded capacity is handled through the host HUB.

Does the XP16 require its own license or management console?

No. The XP16 is a passive expansion chassis managed entirely by the host HUB's Facilis Shared File System. No additional Facilis license, Web Console instance, or FastTracker seat is required for the XP16 itself. Volume provisioning and permissioning for the added capacity are handled through the existing host HUB's Web Console.

What is involved in installing and racking the XP16?

The XP16 is a standard 4U rack unit (D 26" x W 19" x H 7", 65 lbs with drives) designed to rack alongside the host HUB. Installation involves physical racking, 12Gb SAS cabling to the host HUB's SAS controller, and provisioning through the host HUB's Web Console. Creation Networks can provide installation coordination; contact our team at creationnetworks.net.

Will adding an XP16 disrupt active production workflows?

The XP16 is designed to add capacity to an existing Facilis HUB deployment. The exact impact on active workflows during integration depends on the host HUB model and configuration. Contact Creation Networks at creationnetworks.net for guidance on planning a minimal-disruption expansion.

What warranty and support are available for the XP16?

Warranty terms are not published for this product. Please contact Creation Networks at creationnetworks.net for current warranty coverage and available support options.
