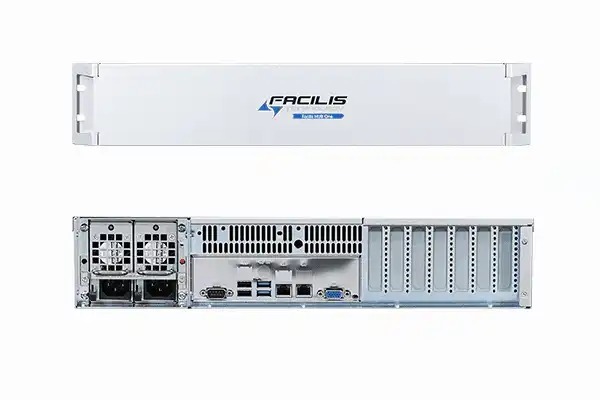

Facilis HUB One – 512TB Shared Storage Stack

Product Overview

The Facilis HUB One 512TB Shared Storage Stack is a high-capacity collaborative media storage system built for large broadcast, post-production, and multi-discipline production facilities with demanding concurrent storage requirements. This stack pairs the Facilis HUB One head unit with two D32 expansion drive units — each housing 32 drives — to deliver 512TB of self-healing RAID-protected shared storage managed through a single unified interface. Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity give facilities the choice of SAN or IP-based integration, or both. FastTracker MAM with unlimited seats and the Facilis Web Console are included, providing integrated asset management and storage administration from the moment the system is operational.

Product Description

The Facilis HUB One 512TB stack steps up to the D32 expansion platform, pairing the HUB One head unit with two 32-drive expansion units on 12Gb SAS controllers for a total of 512TB of pooled shared storage. The D32 configuration increases per-unit drive density compared to the D16 platform, making it appropriate for facilities that need significantly more capacity while managing the stack footprint. The head unit aggregates bandwidth across both expansion units, presenting the entire 512TB pool as a coherent, centrally managed resource to all connected workstations.

Self-healing RAID operates continuously across the drive pool, detecting and addressing drive conditions before they result in data loss — a critical requirement in facilities where production schedules cannot accommodate unplanned storage downtime. The Facilis Shared File System provides simultaneous cross-platform access for macOS, Windows, and Linux workstations, with no protocol translation layer that could introduce latency or compatibility issues for NLE applications. Virtual volumes are project-scoped and can be created, permissioned, and deployed to workstation desktops from the Web Console without workstation-side configuration changes.

The dual D32 configuration at 512TB is well-positioned for facilities that have moved past the upper limits of D16 configurations and need the drive density that 32-drive expansion units provide. Fibre Channel at 16/32/64Gb serves SAN-connected editing workstations directly, while Ethernet at 10/25/40/50/100 GbE connects workstations on IP-based networks. FastTracker MAM with unlimited seats eliminates per-seat licensing overhead for asset management, and the Web Console provides real-time visibility into bandwidth utilization across all connected clients and volumes.

Key Features

• Self-Healing RAID — Continuously monitors drive health and performs automatic rebuilds, maintaining data integrity without requiring manual storage maintenance.
• Dual D32 Stack Architecture — HUB One head unit paired with two 32-drive expansion units, delivering 512TB of pooled shared storage in a high-density configuration.
• Dual-Port Fibre Channel Connectivity — Supports 16/32/64Gb Fibre Channel for dedicated SAN access with the sustained throughput required by high-bitrate and uncompressed media formats.
• Dual-Port Ethernet Connectivity — Supports 10/25/40/50/100 GbE for IP-based integration with existing facility switching infrastructure.
• Facilis Shared File System — Concurrent cross-platform access for macOS, Windows, and Linux workstations from a single unified 512TB storage pool.
• FastTracker MAM – Unlimited Seats — Integrated media asset management included with the system, with no per-seat costs regardless of facility size.
• Facilis Web Console — Browser-based storage administration for volume provisioning, access control, and real-time per-client bandwidth monitoring.
• Active Directory Integration — Centralized user and group management via active directory for consistent access control across large, multi-role production teams.

Typical Applications

• Post-production and editorial facilities managing 512TB of media across multiple simultaneous projects and disciplines
• Broadcast studios and news production operations requiring high-availability shared storage for around-the-clock ingest, edit, and playout workflows
• House of worship media teams managing large-format archive, multi-camera production, and streaming from a central shared storage platform
• Government video departments requiring secure, permissioned storage at scale with active directory integration and full audit capability
• Large multi-suite facilities consolidating color grading, audio, editorial, and finishing onto a single centrally managed high-density storage stack

Technical Specifications

Specifications sourced from Facilis Technology. Detailed environmental specifications vary by configuration; contact Creation Networks for a full spec sheet.

Frequently Asked Questions

Is the Facilis HUB One 512TB compatible with my NLE?

Yes. The Facilis Shared File System supports Adobe Premiere Pro, Avid Media Composer, DaVinci Resolve, Final Cut Pro, and other major NLE applications on macOS, Windows, and Linux workstations simultaneously.

What network connection does the HUB One use?

The HUB One supports dual-port Fibre Channel (16/32/64Gb) for SAN connectivity and dual-port Ethernet (10/25/40/50/100 GbE) for IP network integration. Both can be deployed simultaneously depending on facility requirements.

Why choose the D32 configuration over D16 for 512TB?

The D32 expansion units provide higher drive density per unit compared to the D16 platform. For a given capacity tier, dual D32 units achieve the storage target with fewer expansion units required, which may simplify rack planning in some facility layouts. Contact Creation Networks to compare configuration options for your specific requirements.

How do the Web Console and FastTracker MAM support collaborative workflows?

The Web Console handles volume creation, permissioning, and bandwidth monitoring across the 512TB pool, while FastTracker MAM provides media metadata management, search, and project tracking — both accessible via browser with no client software installation required.

What does deployment look like for a 512TB dual D32 installation?

Installation involves racking the HUB One head unit and two D32 expansion units, connecting Fibre Channel or Ethernet cabling, and configuring the shared file system and Web Console. Creation Networks provides pre-sales consultation and deployment support; contact us at creationnetworks.net.

What warranty and support are available?

Warranty terms are set by Facilis Technology and may vary by configuration. Contact Creation Networks for current warranty details and support options before purchase.
