Facilis HUB One – 192TB Shared Storage Stack

Product Overview

The Facilis HUB One 192TB Shared Storage Stack is a high-capacity collaborative media storage solution engineered for large post-production facilities, broadcast operations, and multi-suite editorial environments. Built around the Facilis HUB One head unit paired with a self-healing RAID architecture, this system delivers the throughput and reliability required for simultaneous multi-user workflows at scale. It supports cross-platform connectivity across macOS, Windows, and Linux, making it a practical choice for facilities running mixed workstation environments. The stack ships with FastTracker MAM (unlimited seats) and the Facilis Web Console included, providing complete asset management and storage administration from day one.

Product Description

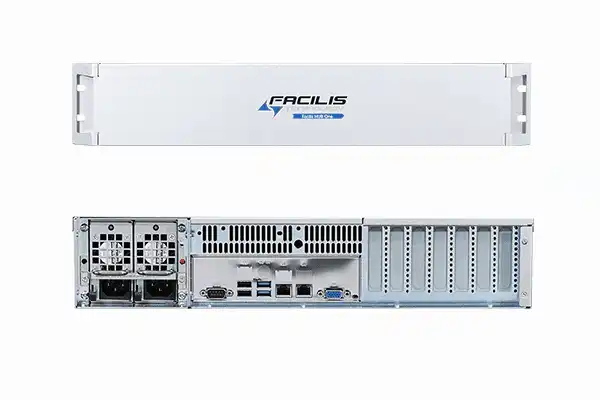

The Facilis HUB One 192TB stack is configured as a three-unit system: a HUB One head unit paired with two D16 expansion drive units, each housing 16 drives on 12Gb SAS controllers. This stack architecture allows the head unit to aggregate bandwidth across the expansion units, presenting a single high-capacity, high-performance storage pool to all connected clients. The self-healing RAID implementation continuously monitors drive health and rebuilds data automatically, reducing the risk of data loss and minimizing manual maintenance demands in production environments.

The Facilis Shared File System underpins the entire stack, enabling true concurrent multi-user access from any connected workstation regardless of operating system. Project-based virtual volumes can be created, permissioned, and deployed to workstation desktops directly from the Facilis Web Console — no IT intervention required for day-to-day volume management. Connectivity options include dual-port 16/32/64Gb Fibre Channel for low-latency SAN access and dual-port 10/25/40/50/100 GbE for IP-based network integration, giving facilities the flexibility to connect via the protocol best suited to their infrastructure.

FastTracker MAM is included with unlimited seats, providing media asset management alongside the storage system without per-seat licensing overhead. The Web Console delivers browser-based administration from any networked device, supporting active directory integration for centralized user and group management. For large facilities managing dozens of editors and colorists, this combination of shared file system, granular permissioning, and integrated MAM significantly reduces the administrative overhead typically associated with high-capacity shared storage. The 192TB capacity in this dual-D16 configuration is well-suited to facilities that have outgrown single-unit systems but do not yet require the petabyte-scale of the HUBVault tier.

Key Features

• Self-Healing RAID — Continuously monitors and automatically rebuilds drive arrays to protect against data loss without manual intervention.
• Dual D16 Stack Architecture — HUB One head unit paired with two 16-drive expansion units for 192TB of pooled, high-performance shared storage.
• Dual-Port Fibre Channel Connectivity — Supports 16/32/64Gb Fibre Channel for direct SAN attachment with low latency and high throughput to each connected workstation.
• Dual-Port Ethernet Connectivity — Supports 10/25/40/50/100 GbE for flexible IP-based integration into existing network infrastructure.
• Facilis Shared File System — Cross-platform concurrent access for macOS, Windows, and Linux workstations from a single unified storage pool.
• FastTracker MAM – Unlimited Seats — Integrated media asset management with no per-seat licensing, included with every HUB One system.
• Facilis Web Console — Browser-based storage administration for volume creation, user permissioning, and real-time bandwidth monitoring from any networked device.
• Virtual Volume Management — Project-based volumes can be created and deployed to workstation desktops on demand, simplifying access control across large editorial teams.

Typical Applications

• Post-production and editorial suites requiring shared, high-capacity storage for concurrent multi-editor workflows
• Broadcast studios and news production facilities managing large volumes of ingest, edit, and playout media
• House of worship media teams supporting multi-camera production, archive, and streaming operations
• Government video departments requiring secure, permissioned shared storage with active directory integration
• Large multi-suite facilities consolidating storage across color grading, audio, and finishing rooms onto a single managed platform

Technical Specifications

Specifications sourced from Facilis Technology. Detailed environmental specifications vary by configuration; contact Creation Networks for a full spec sheet.

Frequently Asked Questions

Is the Facilis HUB One 192TB compatible with my NLE?

Yes. The Facilis Shared File System supports all major non-linear editing applications including Adobe Premiere Pro, Avid Media Composer, DaVinci Resolve, and Final Cut Pro on macOS, Windows, and Linux workstations simultaneously.

What network connection does the HUB One use?

The HUB One supports dual-port Fibre Channel (16/32/64Gb) for SAN connectivity and dual-port Ethernet (10/25/40/50/100 GbE) for IP network integration. Facilities can use either or both protocols depending on their infrastructure.

How does the dual D16 stack configuration scale storage?

The two D16 expansion units connect to the HUB One head unit, which aggregates their capacity and bandwidth into a single storage pool. If additional capacity is needed over time, facilities can discuss expansion paths with Creation Networks to determine the appropriate upgrade configuration.

How do the Web Console and FastTracker MAM work together for collaborative workflows?

The Facilis Web Console handles storage administration — volume creation, permissioning, and bandwidth monitoring — while FastTracker MAM provides asset-level management including metadata tagging, search, and project tracking. Both are included with the system and operate from a browser without additional client software installs.

What does deployment look like for a large-capacity installation?

Installation typically involves racking the head unit and expansion units, connecting Fibre Channel or Ethernet cabling to workstations, and configuring the Facilis Shared File System and Web Console. Creation Networks provides pre-sales consultation and can coordinate deployment logistics; contact us at creationnetworks.net for project scoping.

What warranty and support are available?

Warranty terms and support coverage are set by Facilis Technology and may vary by configuration. Contact Creation Networks for current warranty details and available support options before purchase.
