Facilis FLASHPoint 24S – 184TB All-Flash Shared Storage

Product Overview

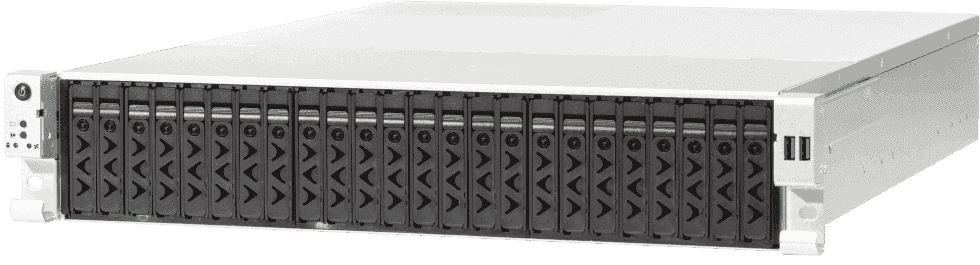

The Facilis FLASHPoint 24S 184TB is a 2U rack-mount all-flash shared storage server designed for the highest-demand post-production, broadcast, and VFX environments that require both maximum flash capacity and the throughput to support many simultaneous high-bandwidth users from a single chassis. Built as a true all-flash SAN, it delivers sustained throughput of approximately 6–10 GB/sec across 24 SSDs on 12Gb SAS controllers, providing ample headroom for 8K editorial, multi-stream 4K color grading, uncompressed ingest pipelines, and complex VFX compositing workflows. Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE accommodate both established SAN environments and modern Ethernet-routed IP networks. FastTracker MAM with unlimited seats and the Facilis Web Console are included.

Product Description

The Facilis FLASHPoint 24S 184TB all-flash shared storage server represents the highest-capacity configuration in the FLASHPoint 24S single-chassis line, delivering the full 6–10 GB/sec all-flash performance of the platform across a 184TB media library. This configuration is particularly well suited to facilities where the entire working media library must reside on flash-tier storage — 8K DI finishing, multi-stream RAW acquisition playback, real-time VFX rendering workflows, and broadcast operations where response time cannot be compromised by HDD rotational latency.

The true SAN architecture provides automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, distributing throughput intelligently to all connected clients even as concurrent user counts grow. The 2U chassis — D 22" x W 19" x H 3.5", 28 lbs — keeps the physical rack footprint minimal relative to its performance and capacity tier, and the redundant n+1 power supply (2 x 350W) ensures fault tolerance with efficient power consumption: startup and idle both at 107W, active at 137W (500 BTU/hr).

Dual-port 16/32/64Gb Fibre Channel provides the direct, low-latency SAN connectivity demanded by uncompressed 8K and high-frame-rate acquisition workflows. Dual-port 10/25/40/50/100 GbE accommodates IP-based clients and modern network designs. Four PCIe expansion slots allow additional interface cards to be added. Facilis Web Console and FastTracker MAM — included with unlimited seats — support Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS, Windows, and Linux, enabling this system to serve diverse multi-platform high-performance production teams without per-seat software overhead.

Key Features

• All-flash SAN performance — 24 SSDs on 12Gb SAS controllers deliver 6–10 GB/sec sustained throughput for 8K/4K color grading, multi-stream uncompressed video, and the most demanding VFX pipelines.
• True SAN architecture — Automatic load balancing across multiple server IP addresses and Fibre Channel interfaces maintains consistent high throughput for all connected clients at scale.
• 184TB all-flash capacity — The highest-capacity FLASHPoint 24S configuration provides all-SSD responsiveness across an entire large-scale active production library.
• Dual-port Fibre Channel connectivity — Supports 16, 32, and 64Gb Fibre Channel for direct, low-latency connections suited to uncompressed, high-frame-rate, and 8K acquisition workflows.
• High-speed Ethernet support — Dual-port 10/25/40/50/100 GbE provides flexible IP-based connectivity for modern and hybrid network environments.
• Compact 2U form factor — At D 22" x W 19" x H 3.5" and 28 lbs, the FLASHPoint 24S delivers maximum-capacity all-flash storage in a highly space-efficient rack footprint.
• FastTracker MAM — unlimited seats — Included media asset management with unlimited seats enables every team member to search and access shared media files without per-seat licensing overhead.
• Facilis Web Console — Browser-based management provides remote administration of storage volumes, user permissions, and system health from any networked device.

Typical Applications

• 8K DI finishing and color grading suites requiring all-flash performance across a full production library
• Multi-stream uncompressed RAW acquisition playback and high-frame-rate editorial at scale
• VFX finishing and compositing pipelines with the highest concurrent high-bandwidth read and write demands
• Broadcast studios and news operations requiring real-time multi-stream ingest and playback without storage latency
• Large post-production facilities running simultaneous 8K and 4K online finishing from a single shared storage system

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the FLASHPoint 24S?
The Facilis FLASHPoint 24S supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro. It operates on macOS, Windows, and Linux, making it a strong choice for demanding multi-platform post-production and broadcast facilities.

How do workstations connect to the FLASHPoint 24S?
Workstations connect via dual-port 16/32/64Gb Fibre Channel for direct, low-latency SAN access, or via dual-port 10/25/40/50/100 GbE for IP-based connectivity. Both interfaces operate simultaneously, supporting mixed connection types within the same facility.

How is the FLASHPoint 24S installed and rack-mounted?
The FLASHPoint 24S occupies 2U of standard rack space in a 19-inch equipment rack. Physical dimensions are D 22" x W 19" x H 3.5", and the unit weighs 28 lbs with drives installed. A qualified AV or IT integrator is recommended for installation and high-speed structured cabling.

How does the FLASHPoint 24S support collaborative high-bandwidth workflows?
The true SAN architecture automatically balances load across Fibre Channel and Ethernet interfaces as concurrent editors and colorists access the shared file system. Facilis Web Console manages volumes and permissions remotely, while FastTracker MAM — included with unlimited seats — provides cataloged, searchable access to all shared media files.

Is the FLASHPoint 24S 184TB the maximum single-chassis capacity?
Yes, 184TB is the highest capacity available for the FLASHPoint 24S single-chassis line. Contact Creation Networks at creationnetworks.net to discuss multi-chassis configurations or alternative platforms if your requirements exceed 184TB of all-flash shared storage.

What warranty and support options are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks at creationnetworks.net for current warranty details, support options, and service agreements specific to your purchase.
