Facilis HUB 32 – 192TB Shared Video Storage Server

Product Overview

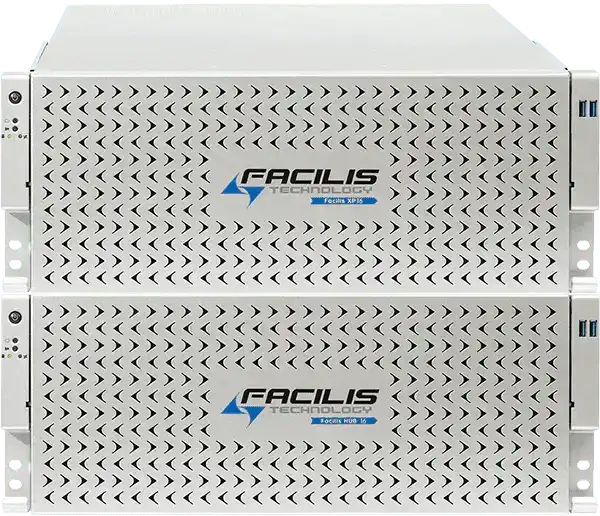

The Facilis HUB 32 192TB is an 8U rack-mount shared video storage server combining a 4U base unit with a 4U external expansion enclosure, presented to all connected workstations as a single unified file system. Engineered as a true SAN rather than a standard NAS, it supports simultaneous read/write access across every connected client without single-path bottlenecks. With 32 HDDs across an internal and external 12Gb SAS controller, the system delivers approximately 3.5 GB/sec of sustained throughput for multi-stream 4K and HDR post-production. Every unit ships with FastTracker MAM and Facilis Web Console at no additional licensing cost.

Product Description

The Facilis HUB 32 192TB provides a substantial shared storage foundation for mid-size post-production facilities, broadcast departments, and media teams that need reliable multi-user access to a common pool of project media. The 4U base chassis holds 16 HDDs on an internal 12Gb SAS controller; the paired 4U external expansion enclosure contributes another 16 HDDs on a second 12Gb SAS controller — together forming one contiguous file system accessible to all connected clients simultaneously.

Network connectivity spans dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, allowing integration into existing Fibre Channel fabrics or high-speed Ethernet switch infrastructures. Automatic load balancing across all active server interfaces means client traffic is distributed without manual configuration, and there is no single connection point that could limit aggregate bandwidth as the workgroup grows.

Redundant 600W n+1 power supplies per chassis guard against power supply failure during production hours. The system accepts 100–240 VAC input with auto-switching, making deployment straightforward regardless of local power standards. At 192TB, this configuration provides meaningful headroom for projects working with 4K RAW, ProRes 4444, or multi-camera DIT workflows before requiring additional capacity.

FastTracker MAM ships with unlimited seats, so every workstation on the network can participate in asset tracking, proxy generation, transcription, and AI metadata tagging without incremental licensing fees. The Facilis Web Console gives administrators browser-based control over volume creation, access permissions, and system monitoring from any networked machine.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• 32-drive configuration across two chassis — 16 HDDs on an internal 12Gb SAS controller plus 16 HDDs on an external 12Gb SAS controller, presented as one unified file system.
• High-speed dual connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE provide flexible client connection options for mixed-fabric facilities.
• Redundant power supplies — Two 600W n+1 power supplies per chassis ensure continued operation if one supply fails, with 100–240 VAC auto-switching input.
• Approximately 3.5 GB/sec sustained throughput — Supports simultaneous multi-stream 4K workflows across connected editorial, color, and finishing workstations.
• FastTracker MAM – unlimited seats included — Asset management with proxy creation, transcription, and AI tagging ships with every unit at no added licensing cost.
• Facilis Web Console included — Browser-based administration for volume creation, permission management, and system monitoring without per-seat client licenses.
• Scalable platform — The HUB 32 family spans 128TB to 960TB, allowing facilities to grow capacity within the same product line as project demands increase.

Typical Applications

• Post-production and editorial suites requiring simultaneous multi-user access to shared project media
• Broadcast studios and news production facilities with tight turnaround requirements
• House of worship media teams managing sermon recordings, live stream archives, and graphics libraries
• Government video departments handling high-volume media production workflows
• Corporate video and training rooms centralizing content for distributed editing teams
• Large-facility multi-suite environments sharing a common storage pool across multiple finishing rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

What NLEs and operating systems are compatible with the Facilis HUB 32?
The Facilis Shared File System supports macOS and Windows workstations and is compatible with Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, Final Cut Pro, and other professional NLEs. Avid project sharing and Adobe project sharing are supported natively.

How do clients connect to the HUB 32 over an AV network?
Clients connect via Fibre Channel (dual-port 16/32/64Gb FC) or over Ethernet (10/25/40/50/100 GbE). The server supports direct connections and switched network topologies, with automatic load balancing across available interfaces.

What is involved in installing and racking the HUB 32?
The system requires 8U of rack space total — 4U for the base unit and 4U for the external expansion enclosure. It should be installed in a temperature-controlled equipment room within the 5°C–30°C operating range, with standard IEC power connections and auto-switching 100–240 VAC input.

How do Web Console and FastTracker support collaborative workflows?
The Facilis Web Console provides browser-based volume creation, user permission assignment, and system health monitoring. FastTracker MAM — included with unlimited seats — enables asset searching, proxy generation, transcription, and metadata tagging for every file in the system without requiring a separate application license.

Can the HUB 32 192TB be expanded to a higher capacity later?
The HUB 32 line spans 128TB to 960TB. Expansion and upgrade options are available; contact Creation Networks at creationnetworks.net to discuss a capacity upgrade plan suited to your facility's growth timeline.

What warranty and support terms apply to the HUB 32?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks at creationnetworks.net for current warranty coverage details, support plan options, and service agreements available with your purchase.
