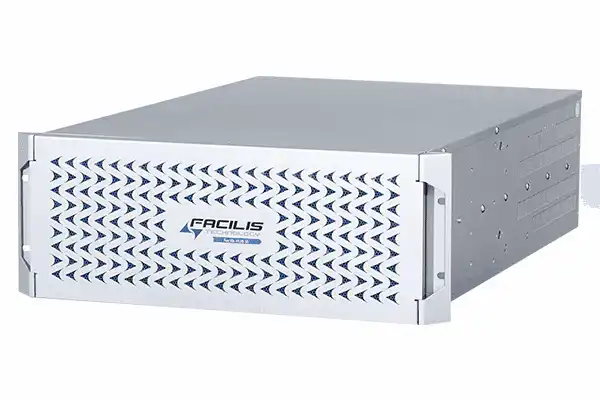

Facilis HUB 24 – 96TB Shared Video Storage Server

Product Overview

The Facilis HUB 24 96TB is a 4U rack-mount shared video storage server engineered for post-production editorial suites, broadcast facilities, and collaborative content creation environments. Built on a true SAN architecture rather than a standard NAS, it delivers sustained throughput of approximately 3 GB/sec across 24 HDDs on a 12Gb SAS controller. Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity provide the bandwidth and flexibility that demanding video workflows require. Included FastTracker MAM with unlimited seats and the Facilis Web Console make this system a complete shared storage solution out of the box.

Product Description

The Facilis HUB 24 96TB shared video storage server is purpose-built for the rigors of professional video production, offering a reliable and scalable foundation for multi-editor environments. Its true SAN architecture provides automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, eliminating the single-path bottlenecks common to NAS-based systems. With 96TB of raw HDD capacity spread across 24 drives on an internal 12Gb SAS controller, the HUB 24 handles everything from low-bitrate craft editorial to 4K film color grading within the same shared environment.

The dual-port 16/32/64Gb Fibre Channel interface pairs with dual-port 10/25/40/50/100 GbE to give integrators flexible connectivity options for both legacy and modern network infrastructures. Four expansion PCIe slots allow the system to grow alongside your facility's needs. The redundant n+1 power supply configuration (2 x 600W) ensures continuous operation, and the compact 4U chassis fits cleanly into a standard equipment rack.

Facilis Web Console is included at no additional cost, enabling administrators to create, modify, and permission project-based storage volumes from any browser on any device — no dedicated management workstation required. FastTracker MAM, also included with unlimited seats, provides immediate access to indexed media files through searchable catalogs that can be secured per user account. Together, these tools support Avid, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro workflows on macOS, Windows, and Linux without per-seat licensing overhead.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• 96TB HDD storage capacity — 24 HDDs managed by an internal 12Gb SAS controller deliver 96TB of raw capacity suited to high-volume video asset libraries.
• Dual-port Fibre Channel connectivity — Supports 16, 32, and 64Gb Fibre Channel for low-latency, high-bandwidth connections to editing workstations and switching infrastructure.
• High-speed Ethernet support — Dual-port 10/25/40/50/100 GbE provides flexible IP-based connectivity for facilities transitioning to or operating alongside IP-centric workflows.
• Redundant n+1 power supply — Two 600W power supplies in an n+1 configuration protect against single-PSU failure without interrupting active production sessions.
• FastTracker MAM — unlimited seats — The included media asset management application lets every editor on the team index, search, and access media files without additional licensing costs.
• Facilis Web Console — Browser-based management enables remote administration of volumes, user permissions, and system health from any network-connected device.
• Four PCIe expansion slots — Available slots accommodate additional interface cards, enabling the system to adapt as connectivity standards and facility requirements evolve.

Typical Applications

• Post-production and editorial suites requiring shared access to large video asset libraries
• Broadcast studios and news production environments with tight deadlines and multi-editor workflows
• House of worship media teams managing sermon recording, live streaming, and video archive
• Government video departments handling secure, multi-user content production
• Corporate video and training rooms requiring centralized media storage and team collaboration

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 24?
The Facilis HUB 24 supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro. It operates on macOS, Windows, and Linux, making it suitable for mixed-platform editorial environments.

How do workstations connect to the HUB 24?
Workstations connect via dual-port 16/32/64Gb Fibre Channel for direct SAN access, or via dual-port 10/25/40/50/100 GbE for IP-based connectivity. Both interfaces are available simultaneously, allowing mixed connection types within the same facility.

How is the HUB 24 installed and rack-mounted?
The HUB 24 occupies 4U of standard rack space in a 19-inch equipment rack. Physical dimensions are D 26" x W 19" x H 7", and the unit weighs 80 lbs with drives installed. Standard rack hardware and a qualified AV or IT integrator are recommended for installation.

How does the HUB 24 support collaborative workflows?
The Facilis Web Console allows administrators to create and permission project-based volumes remotely from any browser. FastTracker MAM — included with unlimited seats — provides all editors with searchable, catalog-driven access to shared media assets, supporting concurrent multi-user access without file-locking conflicts.

Can the HUB 24 be expanded beyond 96TB?
The HUB 24 family is available in capacities from 96TB up to 720TB within a single 4U chassis. Four PCIe expansion slots also allow additional interface cards to be added as connectivity requirements grow. Contact Creation Networks at creationnetworks.net to discuss the right configuration for your facility.

What warranty and support options are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks at creationnetworks.net for current warranty details, support options, and service agreements specific to your purchase.
