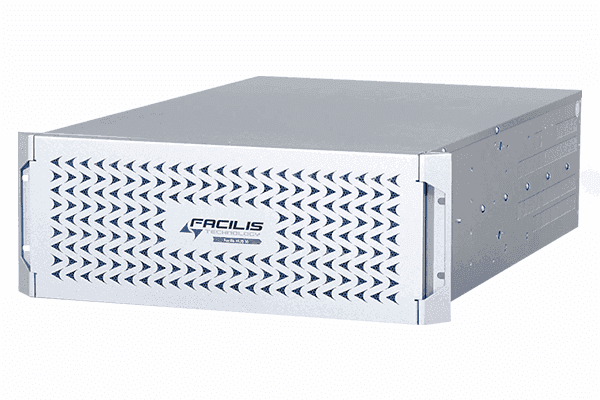

Facilis HUB 24 – 192TB Shared Video Storage Server

Product Overview

The Facilis HUB 24 192TB is a 4U rack-mount shared video storage server designed for post-production editorial suites, broadcast facilities, and collaborative media environments with substantial storage requirements. Built on a true SAN architecture, it delivers sustained throughput of approximately 3 GB/sec across 24 HDDs on a 12Gb SAS controller, providing the performance necessary for multi-editor 4K workflows. Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity support both legacy Fibre Channel infrastructures and modern high-speed Ethernet environments. FastTracker MAM with unlimited seats and the Facilis Web Console are included to complete the shared storage platform.

Product Description

The Facilis HUB 24 192TB shared video storage server addresses the needs of mid-to-large production facilities that require substantial on-premises capacity without stepping up to a multi-chassis solution. Its true SAN architecture provides automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, giving every connected workstation consistent, high-performance access to the shared file system. The 192TB capacity across 24 HDDs on an internal 12Gb SAS controller comfortably accommodates long-form projects, archive libraries, and simultaneous multi-editor workflows involving 4K and higher-resolution content.

The dual-port 16/32/64Gb Fibre Channel interface delivers direct, low-latency SAN connectivity to editing workstations, while dual-port 10/25/40/50/100 GbE supports IP-based clients and mixed-topology facilities. Four PCIe expansion slots allow the system to be extended with additional connectivity cards as future needs demand. The 4U chassis houses a redundant n+1 power supply (2 x 600W), protecting ongoing production from single-PSU failure and ensuring high availability during critical deadlines.

Facilis Web Console provides browser-based administration of project volumes, user permissions, and system monitoring from any network-connected device. FastTracker MAM, included with unlimited seats, gives editorial teams catalog-driven, searchable access to all shared media assets secured by individual user accounts. The platform integrates with Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro across macOS, Windows, and Linux without per-seat software fees.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• 192TB HDD storage capacity — 24 HDDs managed by an internal 12Gb SAS controller deliver 192TB of raw capacity for large-scale video production and archive requirements.
• Dual-port Fibre Channel connectivity — Supports 16, 32, and 64Gb Fibre Channel for low-latency, high-bandwidth direct connections to editing workstations and switching infrastructure.
• High-speed Ethernet support — Dual-port 10/25/40/50/100 GbE provides flexible IP-based connectivity for facilities with modern or hybrid network architectures.
• Redundant n+1 power supply — Two 600W power supplies in an n+1 configuration protect against single-PSU failure, supporting continuous production uptime.
• FastTracker MAM — unlimited seats — The included media asset management application lets every editor index, search, and access media files without per-seat licensing costs.
• Facilis Web Console — Browser-based management provides remote administration of volumes, permissions, and system health from any networked device.
• Four PCIe expansion slots — Available slots allow additional interface cards to be installed as connectivity standards and facility requirements evolve.

Typical Applications

• Post-production and editorial suites requiring shared access to large video asset libraries
• Broadcast studios and news production environments with multi-editor workflows and tight delivery schedules
• House of worship media teams managing long-form video production and archive
• Government video departments with secure, multi-user content production requirements
• Corporate video and training rooms requiring centralized, high-capacity media storage

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 24?
The Facilis HUB 24 supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro. It operates on macOS, Windows, and Linux, making it suitable for mixed-platform editorial environments.

How do workstations connect to the HUB 24?
Workstations connect via dual-port 16/32/64Gb Fibre Channel for direct SAN access, or via dual-port 10/25/40/50/100 GbE for IP-based connectivity. Both interfaces are available simultaneously, allowing mixed connection types within the same facility.

How is the HUB 24 installed and rack-mounted?
The HUB 24 occupies 4U of standard rack space in a 19-inch equipment rack. Physical dimensions are D 26" x W 19" x H 7", and the unit weighs 80 lbs with drives installed. A qualified AV or IT integrator is recommended for installation.

How does the HUB 24 support collaborative workflows?
Facilis Web Console allows administrators to create and permission project-based volumes from any browser. FastTracker MAM — included with unlimited seats — provides all editors with searchable, catalog-driven access to shared media assets, supporting concurrent multi-user access.

Can the HUB 24 be expanded beyond 192TB?
The HUB 24 family is available in capacities from 96TB up to 720TB within a single 4U chassis. Four PCIe expansion slots also allow additional interface cards to be added. Contact Creation Networks at creationnetworks.net to discuss the right configuration.

What warranty and support options are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks at creationnetworks.net for current warranty details, support options, and service agreements specific to your purchase.
