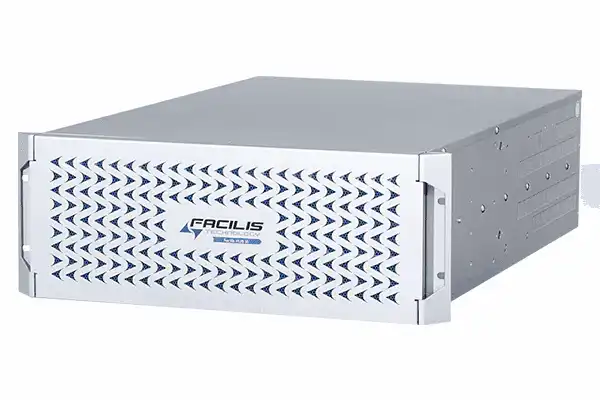

Facilis HUB 24 – 288TB Shared Video Storage Server

Product Overview

The Facilis HUB 24 288TB is a 4U rack-mount shared video storage server built for larger post-production facilities, broadcast studios, and multi-department media environments that require substantial on-premises capacity in a single chassis. Operating as a true SAN, it delivers sustained throughput of approximately 3 GB/sec across 24 HDDs on a 12Gb SAS controller, supporting concurrent access from multiple editors and workstations. Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE ensure broad connectivity compatibility across facility types. FastTracker MAM with unlimited seats and the Facilis Web Console are included to deliver a complete, ready-to-deploy shared storage platform.

Product Description

The Facilis HUB 24 288TB shared video storage server is purpose-built for facilities where a growing number of editors, colorists, and media professionals share access to a common library of video assets. Its true SAN architecture provides automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, ensuring consistent performance as the number of concurrent connections increases. The 288TB capacity across 24 HDDs on an internal 12Gb SAS controller handles long-form projects, multi-resolution proxies, and deep archive material within a single 4U system.

Dual-port 16/32/64Gb Fibre Channel connectivity supports high-speed direct SAN connections from editing workstations, while dual-port 10/25/40/50/100 GbE accommodates IP-based clients and facilities operating mixed-topology networks. Four PCIe expansion slots provide room for additional interface cards to address evolving connectivity requirements. The redundant n+1 power supply (2 x 600W) protects ongoing production from single-PSU failure, and the standard 4U rack footprint integrates cleanly into broadcast or post-production equipment racks.

The Facilis Web Console enables administrators to create, modify, and permission project-based volumes from any browser, while FastTracker MAM — included with unlimited seats — gives every team member searchable, catalog-driven access to shared media files. Together, these tools support Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS, Windows, and Linux without per-seat licensing complexity.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• 288TB HDD storage capacity — 24 HDDs on an internal 12Gb SAS controller provide 288TB of raw capacity suited to large-scale multi-editor production environments.
• Dual-port Fibre Channel connectivity — Supports 16, 32, and 64Gb Fibre Channel for low-latency, high-bandwidth connections to editing workstations and Fibre Channel switching infrastructure.
• High-speed Ethernet support — Dual-port 10/25/40/50/100 GbE delivers flexible IP-based connectivity for facilities with modern or hybrid network designs.
• Redundant n+1 power supply — Two 600W power supplies in an n+1 configuration safeguard continuous operation against single-PSU failure.
• FastTracker MAM — unlimited seats — Included media asset management with unlimited seats enables every editor to find and access shared media without additional software costs.
• Facilis Web Console — Browser-based management tool provides remote administration of storage volumes, user permissions, and system health.
• Four PCIe expansion slots — Available slots allow additional connectivity cards to be installed as facility requirements and network standards evolve.

Typical Applications

• Post-production and editorial suites managing large multi-project video libraries
• Broadcast studios and news production environments requiring shared storage across multiple simultaneous editors
• House of worship media teams with growing video production and archive needs
• Government video departments requiring secure, high-capacity shared storage
• Corporate video and training rooms with centralized media production operations

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 24?
The Facilis HUB 24 supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro. It operates on macOS, Windows, and Linux, making it well suited for multi-platform editorial environments.

How do workstations connect to the HUB 24?
Workstations connect via dual-port 16/32/64Gb Fibre Channel for direct SAN access, or via dual-port 10/25/40/50/100 GbE for IP-based connectivity. Both interfaces are available simultaneously, supporting mixed connection types within the same facility.

How is the HUB 24 installed and rack-mounted?
The HUB 24 occupies 4U of standard rack space in a 19-inch equipment rack. Physical dimensions are D 26" x W 19" x H 7", and the unit weighs 80 lbs with drives installed. A qualified AV or IT integrator is recommended for installation and cabling.

How does the HUB 24 support collaborative workflows?
Facilis Web Console allows administrators to create and permission project-based volumes from any browser. FastTracker MAM — included with unlimited seats — provides all editors with searchable, catalog-driven access to shared media assets, supporting concurrent multi-user sessions.

Can the HUB 24 be expanded beyond 288TB?
The HUB 24 family is available in capacities from 96TB up to 720TB within a single 4U chassis. Contact Creation Networks at creationnetworks.net for guidance on the best capacity tier for your facility.

What warranty and support options are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks at creationnetworks.net for current warranty details, support options, and service agreements specific to your purchase.
