Facilis HUB 16 – 96TB Shared Video Storage Server

Product Overview

The Facilis HUB 16 96TB is a 4U rack-mount shared video storage server engineered for post-production editorial, broadcast production, and large-scale collaborative content workflows. Delivering approximately 2 GB/sec of sustained throughput, the HUB 16 96TB supports a substantial number of simultaneous editor workstations running Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro without bandwidth contention. As a true SAN, the Facilis Shared File System manages concurrent multi-platform access natively — no NAS overhead, no single-path bottlenecks. The 96TB configuration provides meaningful headroom for facilities working with high-resolution formats and multi-project archive requirements. FastTracker MAM (unlimited seats) and the Facilis Web Console are included at no additional cost.

Product Description

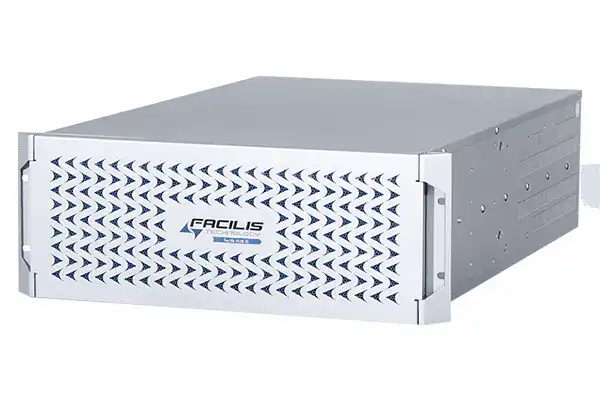

The HUB 16 96TB houses 16 HDDs on 12Gb SAS controllers within a 4U chassis measuring D 26 x W 19 x H 7 inches and weighing 70 lbs fully populated. The 16-drive array delivers the aggregate sequential bandwidth needed for simultaneous multi-stream 4K and HDR editorial, color grading, and audio post sessions. The Facilis Shared File System translates that raw bandwidth into usable throughput across all connected workstations, with automatic load balancing preventing any individual client from monopolizing available I/O.

Connectivity options include dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, covering both dedicated FC SAN deployments and high-speed Ethernet environments. Redundant 2 x 600W n+1 power supplies ship as standard, providing the fault tolerance that mission-critical broadcast and production facilities require. Five PCIe expansion slots allow future installation of additional HBA cards or network adapters as the facility's infrastructure scales.

FastTracker MAM ships with unlimited seats, so the full editorial and production team can index, tag, search, and retrieve assets from any connected workstation without per-seat licensing. Avid bin-locking, Adobe Premiere Pro Productions sharing, and DaVinci Resolve collaborative project modes are all supported natively. The Facilis Web Console handles volume administration through a browser interface, making routine tasks such as volume creation, resizing, and permission assignments accessible to facility managers without command-line expertise.

The HUB 16 line spans seven capacity configurations: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB — all in the same 4U chassis. Contact Creation Networks to discuss which tier, connectivity option, and support plan best fits your facility's current workflow and growth roadmap.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• ~2 GB/sec sustained throughput — Benchmark-confirmed throughput supports a high number of simultaneous 4K and HDR editing streams across the workstation fleet.
• Redundant 2 x 600W n+1 power supplies — Dual hot-swappable power supplies provide fault tolerance for mission-critical production and broadcast environments.
• Flexible high-speed connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE provide multiple integration paths for existing AV and broadcast network environments.
• 16-drive 12Gb SAS array — Sixteen HDDs on 12Gb SAS controllers deliver the aggregate sequential bandwidth required for simultaneous multi-editor, multi-format workflows.
• FastTracker MAM — unlimited seats — Ships with an unlimited-seat FastTracker license for the entire facility without additional per-seat licensing costs.
• Facilis Web Console included — Browser-based management console enables volume creation, resizing, and permission management without dedicated management hardware.
• Broad capacity range — Available in 64TB through 480TB configurations, all in the same 4U chassis, to accommodate current needs and long-term project growth.

Typical Applications

• Post-production and editorial suites
• Broadcast studios and news production
• House of worship media teams
• Government video departments
• Corporate video and training rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 16?
The Facilis Shared File System supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS and Windows. Linux workstation support is also available, making the HUB 16 compatible with mixed-platform post-production and broadcast environments.

How does the HUB 16 connect to the AV network?
The HUB 16 supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity. Workstations connect through the existing FC fabric or Ethernet switch infrastructure; no proprietary cabling is required beyond standard SFP or HBA hardware.

How is the HUB 16 installed and rack-mounted?
The HUB 16 ships in a 4U rack-mount chassis (D 26" x W 19" x H 7") compatible with any EIA-standard 19-inch equipment rack. The unit weighs 70 lbs fully populated; plan for appropriate rack support and cable management. A Creation Networks AV integrator can assist with site survey, rack planning, and initial system configuration.

How does collaborative workflow management work?
The Facilis Web Console gives administrators browser-based control over the Shared File System — creating volumes, managing permissions, and monitoring usage without dedicated management software. FastTracker MAM (included, unlimited seats) adds media asset management for the full team, including integration with Adobe Premiere Pro Projects and Avid bin-locking workflows.

What capacity options are available in the HUB 16 line?
The HUB 16 family is available in seven configurations: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB. All share the same 4U chassis and connectivity options. Contact Creation Networks to discuss which tier fits your current project load and anticipated storage growth.

What warranty and support are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks directly for warranty details, support coverage options, and service-level agreements applicable to your purchase.
