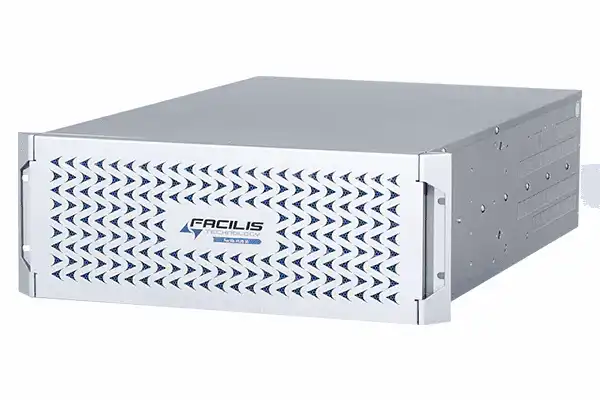

Facilis HUB 16 – 64TB Shared Video Storage Server

Product Overview

The Facilis HUB 16 64TB is a 4U rack-mount shared video storage server designed for mid-to-large post-production facilities, broadcast studios, and collaborative editorial environments. Delivering approximately 2 GB/sec of sustained throughput, the HUB 16 provides double the bandwidth of the HUB 8 line and supports a greater number of simultaneous editor workstations without performance degradation. Like all Facilis systems, it operates as a genuine SAN rather than a NAS, using the Facilis Shared File System to manage concurrent multi-platform access for teams working in Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro. FastTracker MAM (unlimited seats) and the Facilis Web Console are included, covering media asset management and storage administration from initial deployment.

Product Description

The HUB 16 64TB houses 16 HDDs across a 12Gb SAS controller array in a 4U chassis measuring D 26 x W 19 x H 7 inches, weighing 70 lbs fully populated. The larger drive count relative to the HUB 8 yields both higher capacity per chassis and increased aggregate sequential bandwidth, which the Facilis Shared File System translates directly into usable throughput for simultaneous multi-stream editing, color grading, and audio post sessions.

Connectivity options include dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, giving AV integrators the flexibility to deploy the HUB 16 on an existing FC fabric or a high-speed Ethernet core. The HUB 16 ships with redundant 2 x 600W (n+1) power supplies as standard, providing fault tolerance for mission-critical broadcast and production environments where unplanned downtime carries direct operational cost. Five PCIe expansion slots allow additional HBA or NIC cards to be installed as the facility's network architecture develops.

FastTracker MAM ships with an unlimited-seat license, enabling every workstation on the shared network to index, tag, search, and access assets without individual software procurement. Avid Media Composer project sharing, Adobe Premiere Pro Productions workflow, and DaVinci Resolve collaborative projects are all supported natively through the Facilis Shared File System. The Facilis Web Console provides browser-based volume management — create, resize, and permission volumes without a dedicated management workstation or command-line access.

The HUB 16 line spans seven capacity options: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB, all in the same 4U chassis. Contact Creation Networks to discuss which capacity tier, connectivity configuration, and integration path best fits your facility's current workflow and growth trajectory.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• ~2 GB/sec sustained throughput — Benchmark-confirmed throughput — double the HUB 8 — supports a higher number of simultaneous 4K and HDR editing streams without bandwidth contention.
• Redundant 2 x 600W n+1 power supplies — Dual hot-swappable power supplies provide fault tolerance, keeping the system operational if one supply fails during production.
• Flexible high-speed connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE provide multiple integration paths for existing AV and broadcast network environments.
• 16-drive 12Gb SAS array — Sixteen HDDs on 12Gb SAS controllers deliver the aggregate sequential bandwidth needed for simultaneous multi-editor, multi-format workflows.
• FastTracker MAM — unlimited seats — Ships with an unlimited-seat FastTracker license covering the entire facility's workstation count without additional licensing overhead.
• Facilis Web Console included — Browser-based management console enables volume creation, resizing, and permission management without dedicated management hardware or software.
• Broad capacity range — Available in 64TB through 480TB configurations, all in the same 4U chassis, to accommodate current needs and anticipated project growth.

Typical Applications

• Post-production and editorial suites
• Broadcast studios and news production
• House of worship media teams
• Government video departments
• Corporate video and training rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 16?
The Facilis Shared File System supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS and Windows. Linux workstation support is also available, making the HUB 16 compatible with mixed-platform post-production and broadcast environments.

How does the HUB 16 connect to the AV network?
The HUB 16 supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity. Workstations connect through the existing FC fabric or Ethernet switch infrastructure; no proprietary cabling is required beyond standard SFP or HBA hardware.

How is the HUB 16 installed and rack-mounted?
The HUB 16 ships in a 4U rack-mount chassis (D 26" x W 19" x H 7") compatible with any EIA-standard 19-inch equipment rack. The unit weighs 70 lbs fully populated; plan for appropriate rack support and cable management. A Creation Networks AV integrator can assist with site survey, rack planning, and initial system configuration.

How does collaborative workflow management work?
The Facilis Web Console gives administrators browser-based control over the Shared File System — creating volumes, managing permissions, and monitoring usage without dedicated management software. FastTracker MAM (included, unlimited seats) adds media asset management for the full team, including integration with Adobe Premiere Pro Projects and Avid bin-locking workflows.

What capacity options are available in the HUB 16 line?
The HUB 16 family is available in seven configurations: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB. All share the same 4U chassis and connectivity options. Contact Creation Networks to discuss which tier fits your current project load and anticipated storage growth.

What warranty and support are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks directly for warranty details, support coverage options, and service-level agreements applicable to your purchase.
