Facilis HUB 16 – 352TB Shared Video Storage Server

Product Overview

The Facilis HUB 16 352TB is a 4U rack-mount shared video storage server built for demanding post-production studios, high-output broadcast operations, and large-scale collaborative content environments where on-line storage depth is a primary requirement. Delivering approximately 2 GB/sec of sustained throughput, the HUB 16 352TB provides a large workstation fleet with concurrent access to the same shared file system running Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro without bandwidth contention. At 352TB of usable capacity, this configuration supports extensive camera-original archives, long-term project libraries, and continuous production cycles across multiple concurrent shows or productions. FastTracker MAM (unlimited seats) and the Facilis Web Console are included at no additional licensing cost.

Product Description

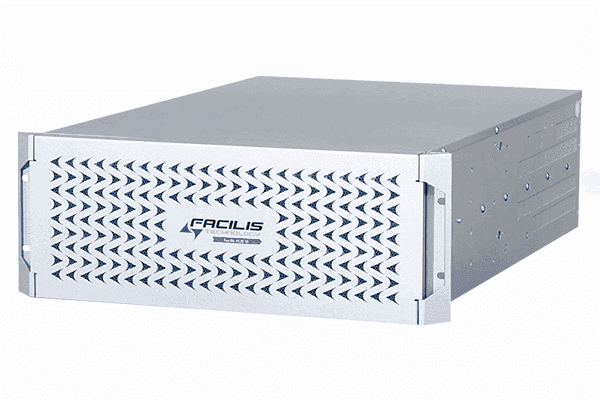

The HUB 16 352TB houses 16 HDDs on 12Gb SAS controllers in a 4U chassis measuring D 26 x W 19 x H 7 inches and weighing 70 lbs fully populated. The Facilis Shared File System operates as a genuine SAN, employing automatic load balancing across all server IP addresses and Fibre Channel interfaces to distribute client I/O and maintain consistent per-editor throughput as workstation count increases. This architecture distinguishes the HUB 16 from NAS-based shared storage, which relies on a single-path protocol stack that can degrade under concurrent multi-client load.

Connectivity options include dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, accommodating both FC SAN fabrics and high-speed Ethernet infrastructure. The standard 2 x 600W n+1 redundant power supply configuration provides fault tolerance for facilities that cannot afford unplanned storage downtime during live or time-sensitive production. Five PCIe expansion slots allow future installation of additional HBA cards, high-speed NIC cards, or other I/O adapters as the network architecture evolves.

FastTracker MAM ships with an unlimited-seat license, giving every workstation on the shared network the ability to index, search, tag, and retrieve assets across the full 352TB pool without additional software expense. The Facilis Web Console delivers browser-based administration for volume creation, permission control, storage monitoring, and user access management. Avid bin-locking, Adobe Premiere Pro Productions, and DaVinci Resolve collaborative project workflows are all supported natively through the Facilis Shared File System.

The HUB 16 line covers seven capacity tiers — 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB — all sharing the same 4U chassis, connectivity options, and included software. Contact Creation Networks to discuss site survey, rack design, network integration, and support planning for a HUB 16 deployment at your facility.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• ~2 GB/sec sustained throughput — Benchmark-confirmed throughput supports a large simultaneous workstation count running 4K, HDR, and high-bitrate production formats concurrently.
• Redundant 2 x 600W n+1 power supplies — Standard dual hot-swappable power supplies ensure continuous storage availability in mission-critical broadcast and production facilities.
• Flexible high-speed connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE support both FC SAN fabrics and high-speed Ethernet deployment scenarios.
• 16-drive 12Gb SAS array — Sixteen HDDs on 12Gb SAS controllers provide the aggregate bandwidth for simultaneous multi-editor, multi-project, multi-format production workflows.
• FastTracker MAM — unlimited seats — Unlimited-seat MAM license covers the full facility without incremental per-seat software costs at any workstation count.
• Facilis Web Console included — Browser-based administration covers volume management, permission control, and storage monitoring across 352TB of shared capacity.
• Maximum HUB 16 single-chassis capacity — At 352TB, this configuration delivers the highest storage density available within the HUB 16 chassis for facilities requiring maximum on-line capacity.

Typical Applications

• Post-production and editorial suites
• Broadcast studios and news production
• House of worship media teams
• Government video departments
• Corporate video and training rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 16?
The Facilis Shared File System supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS and Windows. Linux workstation support is also available, making the HUB 16 compatible with mixed-platform post-production and broadcast environments.

How does the HUB 16 connect to the AV network?
The HUB 16 supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity. Workstations connect through the existing FC fabric or Ethernet switch infrastructure; no proprietary cabling is required beyond standard SFP or HBA hardware.

How is the HUB 16 installed and rack-mounted?
The HUB 16 ships in a 4U rack-mount chassis (D 26" x W 19" x H 7") compatible with any EIA-standard 19-inch equipment rack. The unit weighs 70 lbs fully populated; plan for appropriate rack support and cable management. A Creation Networks AV integrator can assist with site survey, rack planning, and initial system configuration.

How does collaborative workflow management work?
The Facilis Web Console gives administrators browser-based control over the Shared File System — creating volumes, managing permissions, and monitoring usage without dedicated management software. FastTracker MAM (included, unlimited seats) adds media asset management for the full team, including integration with Adobe Premiere Pro Projects and Avid bin-locking workflows.

What capacity options are available in the HUB 16 line?
The HUB 16 family is available in seven configurations: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB. All share the same 4U chassis and connectivity options. Contact Creation Networks to discuss which tier fits your current project load and anticipated storage growth.

What warranty and support are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks directly for warranty details, support coverage options, and service-level agreements applicable to your purchase.
