Facilis HUB 16 – 256TB Shared Video Storage Server

Product Overview

The Facilis HUB 16 256TB is a 4U rack-mount shared video storage server designed for large post-production studios, broadcast facilities, and content operations requiring substantial on-line storage paired with high multi-client throughput. With approximately 2 GB/sec of sustained throughput, the HUB 16 256TB serves a large number of simultaneous workstations running Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro from a single shared file system. The 256TB capacity tier accommodates multi-project production schedules, camera-original archives, and high-resolution deliverables across long production cycles. FastTracker MAM (unlimited seats) and the Facilis Web Console are included at no additional licensing cost.

Product Description

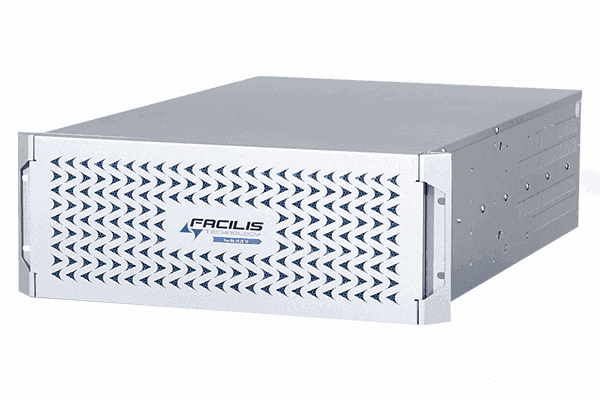

The HUB 16 256TB houses 16 HDDs on 12Gb SAS controllers in a 4U chassis measuring D 26 x W 19 x H 7 inches and weighing 70 lbs fully populated. The Facilis Shared File System operates as a true SAN, using automatic load balancing to distribute client connections across all available server IP addresses and Fibre Channel interfaces, so that per-client throughput remains consistent as more editors and colorists connect to the system simultaneously.

Connectivity options include dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, providing integration flexibility for both dedicated FC SAN environments and high-speed Ethernet network architectures. The standard 2 x 600W n+1 redundant power supply configuration provides fault tolerance for production environments where continuous uptime is required. Five available PCIe expansion slots accommodate future HBA or NIC additions as the facility's network infrastructure scales.

FastTracker MAM is included with an unlimited-seat license — the full team can index, tag, search, and retrieve media across the 256TB pool without per-seat software costs. The Facilis Web Console delivers browser-based administration for volume creation, permission management, storage monitoring, and user access control. Avid bin-locking, Adobe Premiere Pro Productions workflow, and DaVinci Resolve collaborative projects are supported natively through the Facilis Shared File System.

The HUB 16 line covers seven capacity tiers: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB — all in the same 4U chassis with identical connectivity and software. Contact Creation Networks to discuss integration design, site survey, rack planning, and long-term support options.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• ~2 GB/sec sustained throughput — Benchmark-confirmed throughput supports a large simultaneous workstation fleet running 4K, HDR, and high-bitrate production formats.
• Redundant 2 x 600W n+1 power supplies — Standard dual hot-swappable power supplies protect mission-critical broadcast and production operations from unplanned downtime.
• Flexible high-speed connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE support both FC SAN fabrics and high-speed Ethernet deployments.
• 16-drive 12Gb SAS array — Sixteen HDDs on 12Gb SAS controllers deliver aggregate sequential bandwidth for concurrent multi-editor, multi-format, multi-project workflows.
• FastTracker MAM — unlimited seats — Unlimited-seat FastTracker MAM license supports the full facility workstation count without incremental licensing costs.
• Facilis Web Console included — Browser-based administration covers volume creation, permissions, and monitoring across the 256TB pool.
• Broad capacity range — Available in 64TB through 480TB configurations in the same 4U chassis to match current and projected storage requirements.

Typical Applications

• Post-production and editorial suites
• Broadcast studios and news production
• House of worship media teams
• Government video departments
• Corporate video and training rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 16?
The Facilis Shared File System supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS and Windows. Linux workstation support is also available, making the HUB 16 compatible with mixed-platform post-production and broadcast environments.

How does the HUB 16 connect to the AV network?
The HUB 16 supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity. Workstations connect through the existing FC fabric or Ethernet switch infrastructure; no proprietary cabling is required beyond standard SFP or HBA hardware.

How is the HUB 16 installed and rack-mounted?
The HUB 16 ships in a 4U rack-mount chassis (D 26" x W 19" x H 7") compatible with any EIA-standard 19-inch equipment rack. The unit weighs 70 lbs fully populated; plan for appropriate rack support and cable management. A Creation Networks AV integrator can assist with site survey, rack planning, and initial system configuration.

How does collaborative workflow management work?
The Facilis Web Console gives administrators browser-based control over the Shared File System — creating volumes, managing permissions, and monitoring usage without dedicated management software. FastTracker MAM (included, unlimited seats) adds media asset management for the full team, including integration with Adobe Premiere Pro Projects and Avid bin-locking workflows.

What capacity options are available in the HUB 16 line?
The HUB 16 family is available in seven configurations: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB. All share the same 4U chassis and connectivity options. Contact Creation Networks to discuss which tier fits your current project load and anticipated storage growth.

What warranty and support are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks directly for warranty details, support coverage options, and service-level agreements applicable to your purchase.
