Facilis HUB 16 – 128TB Shared Video Storage Server

Product Overview

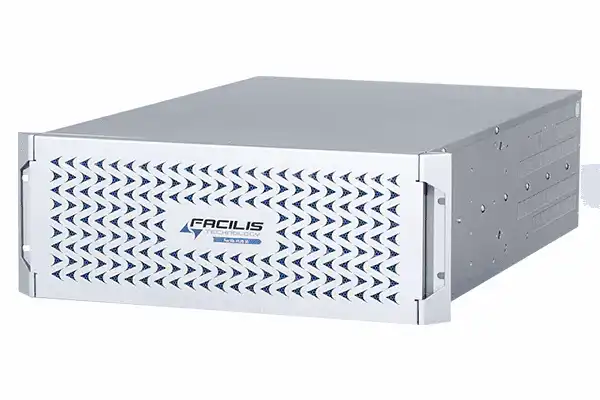

The Facilis HUB 16 128TB is a 4U rack-mount shared video storage server built for post-production facilities, broadcast studios, and collaborative editorial departments requiring both high capacity and high bandwidth. At approximately 2 GB/sec of sustained throughput, the HUB 16 128TB enables a large number of simultaneous editor workstations to access shared media in Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro without contention. The 128TB configuration offers a balanced combination of storage depth and per-drive performance, well-suited to facilities running concurrent feature, episodic, or news production projects. FastTracker MAM (unlimited seats) and the Facilis Web Console are included with every unit at no additional licensing cost.

Product Description

Sixteen HDDs on 12Gb SAS controllers are housed in a 4U chassis measuring D 26 x W 19 x H 7 inches and weighing 70 lbs fully populated. The 16-drive configuration provides the aggregate sequential bandwidth the Facilis Shared File System uses to serve multiple simultaneous client streams — including 4K camera originals, high-bitrate HDR deliverables, and audio post sessions — without requiring separate storage tiers for different workflow types.

Connectivity options span dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, supporting both FC SAN fabrics and high-speed Ethernet deployments. Redundant 2 x 600W n+1 power supplies ship as standard on all HUB 16 units, ensuring continuous operation in the event of a single power supply failure during a live production. Five PCIe expansion slots provide forward compatibility for additional HBA cards, network adapters, or specialized I/O as the facility's infrastructure requirements grow.

FastTracker MAM ships with an unlimited-seat license, allowing every workstation on the shared network to index, tag, search, and access project assets without per-seat software procurement. The Facilis Web Console provides browser-based administration of the shared file system — volume creation, resizing, snapshot scheduling, and user permissions are all managed from a standard web browser without a dedicated management terminal or command-line tools.

The HUB 16 line covers seven capacity tiers — 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB — all in the same 4U chassis. Contact Creation Networks for site survey, rack planning, network integration design, and ongoing support options.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• ~2 GB/sec sustained throughput — Benchmark-confirmed throughput supports simultaneous 4K and HDR editing, color grading, and audio post sessions across the full workstation fleet.
• Redundant 2 x 600W n+1 power supplies — Dual hot-swappable power supplies provide fault tolerance for mission-critical broadcast and production workflows.
• Flexible high-speed connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE support integration with both FC SAN fabrics and high-speed Ethernet cores.
• 16-drive 12Gb SAS array — Sixteen HDDs on 12Gb SAS controllers deliver the aggregate sequential bandwidth required for multi-editor, multi-format production workflows.
• FastTracker MAM — unlimited seats — Ships with an unlimited-seat FastTracker MAM license enabling the entire facility to index, search, and access shared media.
• Facilis Web Console included — Browser-based management console covers volume creation, resizing, and permission management without dedicated management hardware.
• Broad capacity range — Available in 64TB through 480TB configurations, all in the same 4U chassis, to scale with the facility's long-term storage requirements.

Typical Applications

• Post-production and editorial suites
• Broadcast studios and news production
• House of worship media teams
• Government video departments
• Corporate video and training rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 16?
The Facilis Shared File System supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS and Windows. Linux workstation support is also available, making the HUB 16 compatible with mixed-platform post-production and broadcast environments.

How does the HUB 16 connect to the AV network?
The HUB 16 supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity. Workstations connect through the existing FC fabric or Ethernet switch infrastructure; no proprietary cabling is required beyond standard SFP or HBA hardware.

How is the HUB 16 installed and rack-mounted?
The HUB 16 ships in a 4U rack-mount chassis (D 26" x W 19" x H 7") compatible with any EIA-standard 19-inch equipment rack. The unit weighs 70 lbs fully populated; plan for appropriate rack support and cable management. A Creation Networks AV integrator can assist with site survey, rack planning, and initial system configuration.

How does collaborative workflow management work?
The Facilis Web Console gives administrators browser-based control over the Shared File System — creating volumes, managing permissions, and monitoring usage without dedicated management software. FastTracker MAM (included, unlimited seats) adds media asset management for the full team, including integration with Adobe Premiere Pro Projects and Avid bin-locking workflows.

What capacity options are available in the HUB 16 line?
The HUB 16 family is available in seven configurations: 64TB, 96TB, 128TB, 192TB, 256TB, 384TB, and 480TB. All share the same 4U chassis and connectivity options. Contact Creation Networks to discuss which tier fits your current project load and anticipated storage growth.

What warranty and support are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks directly for warranty details, support coverage options, and service-level agreements applicable to your purchase.
