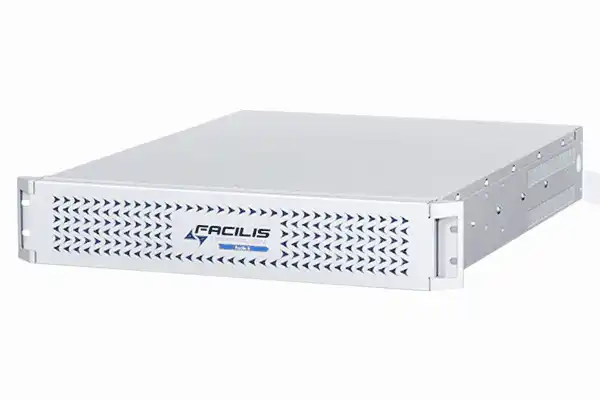

Facilis HUB 8 – 32TB Shared Video Storage Server

Product Overview

The Facilis HUB 8 32TB is a 2U rack-mount shared video storage server engineered for post-production editorial, color grading, and collaborative content creation. As a true Storage Area Network rather than a conventional NAS, the HUB 8 delivers high-bandwidth shared file access for teams working simultaneously in Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro. With approximately 1 GB/sec sustained throughput and flexible Fibre Channel or high-speed Ethernet connectivity, a single 32TB HUB 8 can support multiple editor workstations without bottlenecks. It ships with FastTracker MAM and the Facilis Web Console included, covering both media asset management and day-to-day storage administration out of the box.

Product Description

The HUB 8 32TB occupies just 2U of rack space, making it a practical fit for edit suites, machine rooms, and compact broadcast facilities where rack real estate is at a premium. The 12Gb SAS controller drives eight HDDs in a single chassis, providing the combination of raw capacity and sequential read/write performance that post-production workloads demand. Unlike a NAS, the Facilis Shared File System operates as a SAN with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, so no single path becomes a choke point as your team grows.

Connectivity options include dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE, giving integrators the flexibility to match the HUB 8 to the existing AV network infrastructure — whether that means a direct FC fabric, a 10GbE switch, or a high-density 100GbE core. Five PCIe expansion slots allow future addition of HBA cards or network adapters without replacing the chassis.

Every HUB 8 ships with an unlimited-seat license of FastTracker MAM, which indexes, tags, and surfaces media across the shared file system for all connected workstations. The Facilis Web Console provides browser-based volume management — create, resize, and reassign volumes on the fly without taking the system offline. Together, these tools give smaller post teams the workflow infrastructure typically found only in larger broadcast facilities.

The HUB 8 family spans five capacities — 32TB, 48TB, 64TB, 96TB, and 128TB — so teams can start at a scale that fits today's project load and upgrade later. Contact Creation Networks to discuss configuration, connectivity, and integration with your existing edit infrastructure.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• ~1 GB/sec sustained throughput — Benchmark-confirmed sequential throughput supports multiple simultaneous 4K and high-bitrate HDR streams across connected workstations.
• Flexible high-speed connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE provide multiple integration paths for existing AV and broadcast network environments.
• Compact 2U rack-mount chassis — The 22 x 19 x 3.5-inch enclosure fits standard commercial equipment racks and weighs 32 lbs fully populated with drives.
• FastTracker MAM — unlimited seats — Every unit ships with FastTracker Media Asset Management, enabling the entire team to index, tag, search, and access media without per-seat licensing fees.
• Facilis Web Console included — Browser-based management console lets administrators create and modify shared volumes without a separate management workstation or dedicated software installation.
• Five PCIe expansion slots — Spare slots accommodate additional Fibre Channel HBAs or network cards as connectivity requirements evolve.
• Scalable capacity line — Available in 32TB, 48TB, 64TB, 96TB, and 128TB configurations to match project and team size without over-provisioning.

Typical Applications

• Post-production and editorial suites
• Broadcast studios and news production
• House of worship media teams
• Government video departments
• Corporate video and training rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 8?
The Facilis Shared File System supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS and Windows. Linux workstation support is also available, making the HUB 8 compatible with mixed-platform post-production environments.

How does the HUB 8 connect to the AV network?
The HUB 8 supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity. Workstations connect through the existing FC fabric or Ethernet switch fabric; no proprietary cabling is required beyond standard SFP or HBA infrastructure.

How is the HUB 8 installed and rack-mounted?
The HUB 8 ships in a standard 2U rack-mount chassis (D 22" x W 19" x H 3.5") compatible with any EIA-standard 19-inch equipment rack. Rack ears are included, and the unit weighs 32 lbs fully populated. A Creation Networks AV integrator can assist with rack design, cable management, and initial configuration.

How does collaborative workflow management work?
The Facilis Web Console gives administrators browser-based control over the Shared File System — creating volumes, managing permissions, and monitoring usage without dedicated management software. FastTracker MAM (included, unlimited seats) layers media asset management on top, allowing the full team to index, tag, search, and access project media from any connected workstation.

What capacity options are available in the HUB 8 line?
The HUB 8 family is available in five configurations: 32TB, 48TB, 64TB, 96TB, and 128TB. All share the same 2U chassis and connectivity options. Contact Creation Networks to discuss which capacity best fits your current project load and anticipated growth.

What warranty and support are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks directly for warranty details, support coverage options, and service-level agreements applicable to your purchase.
