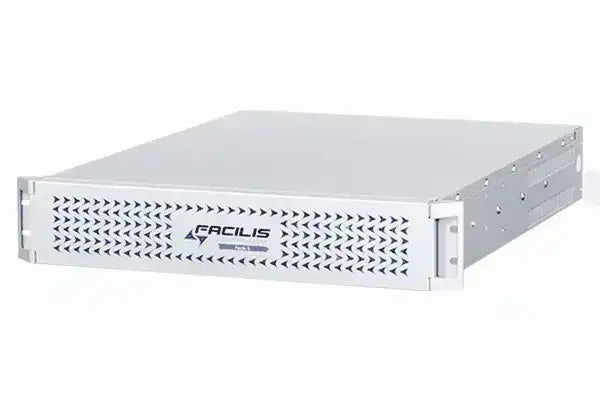

Facilis HUB 8 – 128TB Shared Video Storage Server

Product Overview

The Facilis HUB 8 128TB is a 2U rack-mount shared video storage server built for post-production editorial, color grading, and high-capacity collaborative workflows. Operating as a genuine SAN rather than a standard NAS, it provides high-bandwidth shared file access for multi-editor teams working simultaneously in Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro. At 128TB, this configuration represents the highest-capacity option in the HUB 8 line, making it well-suited for facilities producing high-volume, high-resolution content — feature film, long-form documentary, or news archive operations. FastTracker MAM and the Facilis Web Console are bundled at no additional licensing cost, providing media asset management and storage administration out of the box.

Product Description

Despite holding 128TB of usable capacity, the HUB 8 occupies only 2U of rack space in a chassis measuring D 22 x W 19 x H 3.5 inches — a density that makes it practical for facilities with constrained rack environments. Eight HDDs on a 12Gb SAS controller provide the sustained sequential bandwidth that simultaneous multi-stream 4K and HDR editorial workflows require, while the Facilis Shared File System manages concurrent client access without relying on NFS or SMB protocol layers.

The HUB 8 128TB supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity, enabling integration with both dedicated FC SAN fabrics and high-speed Ethernet network cores. Automatic load balancing distributes client connections across available interfaces, keeping throughput consistent as the number of active editors increases. Five available PCIe expansion slots provide room for additional HBA cards or network adapters as infrastructure requirements change over time.

FastTracker MAM ships with unlimited seats, so every workstation on the shared network can index, tag, search, and retrieve assets — feature-length project libraries, dailies archives, and completed deliverables alike — without additional software procurement. The Facilis Web Console handles volume management through a browser interface, allowing administrators to create, resize, and assign volumes without command-line access or a dedicated management terminal.

The HUB 8 family spans five capacity tiers — 32TB, 48TB, 64TB, 96TB, and 128TB — all in the same compact 2U chassis. For teams that have outgrown the HUB 8 footprint, the HUB 16 line starts at 64TB in a 4U chassis with approximately 2 GB/sec sustained throughput. Contact Creation Networks for configuration guidance and deployment planning.

Key Features

• True SAN architecture — Operates as a Storage Area Network with automatic load balancing across multiple server IP addresses and Fibre Channel interfaces, not a single-path NAS.
• ~1 GB/sec sustained throughput — Benchmark-confirmed sequential throughput supports multiple simultaneous 4K and high-bitrate HDR streams across connected workstations.
• Flexible high-speed connectivity — Dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE provide multiple integration paths for existing AV and broadcast network environments.
• Compact 2U rack-mount chassis — The 22 x 19 x 3.5-inch enclosure fits standard commercial equipment racks and weighs 32 lbs fully populated with drives.
• FastTracker MAM — unlimited seats — Every unit ships with FastTracker Media Asset Management, enabling the entire team to index, tag, search, and access media without per-seat licensing fees.
• Facilis Web Console included — Browser-based management console lets administrators create and modify shared volumes without a separate management workstation or dedicated software installation.
• Five PCIe expansion slots — Spare slots accommodate additional Fibre Channel HBAs or network cards as connectivity requirements evolve.
• Highest HUB 8 capacity — At 128TB, this is the maximum capacity in the HUB 8 line, maximizing storage density per rack unit for high-volume production environments.

Typical Applications

• Post-production and editorial suites
• Broadcast studios and news production
• House of worship media teams
• Government video departments
• Corporate video and training rooms

Technical Specifications

Specifications sourced from Facilis Technology. Connectivity and power-supply options may vary by configuration.

Frequently Asked Questions

Which NLEs and operating systems are compatible with the Facilis HUB 8?
The Facilis Shared File System supports Avid Media Composer, Adobe Premiere Pro, DaVinci Resolve, and Final Cut Pro on macOS and Windows. Linux workstation support is also available, making the HUB 8 compatible with mixed-platform post-production environments.

How does the HUB 8 connect to the AV network?
The HUB 8 supports dual-port 16/32/64Gb Fibre Channel and dual-port 10/25/40/50/100 GbE connectivity. Workstations connect through the existing FC fabric or Ethernet switch fabric; no proprietary cabling is required beyond standard SFP or HBA infrastructure.

How is the HUB 8 installed and rack-mounted?
The HUB 8 ships in a standard 2U rack-mount chassis (D 22" x W 19" x H 3.5") compatible with any EIA-standard 19-inch equipment rack. Rack ears are included, and the unit weighs 32 lbs fully populated. A Creation Networks AV integrator can assist with rack design, cable management, and initial configuration.

How does collaborative workflow management work?
The Facilis Web Console gives administrators browser-based control over the Shared File System — creating volumes, managing permissions, and monitoring usage without dedicated management software. FastTracker MAM (included, unlimited seats) layers media asset management on top, allowing the full team to index, tag, search, and access project media from any connected workstation.

What capacity options are available in the HUB 8 line?
The HUB 8 family is available in five configurations: 32TB, 48TB, 64TB, 96TB, and 128TB. All share the same 2U chassis and connectivity options. Contact Creation Networks to discuss which capacity best fits your current project load and anticipated growth.

What warranty and support are available?
Facilis Technology does not publish a specific warranty term publicly. Contact Creation Networks directly for warranty details, support coverage options, and service-level agreements applicable to your purchase.
