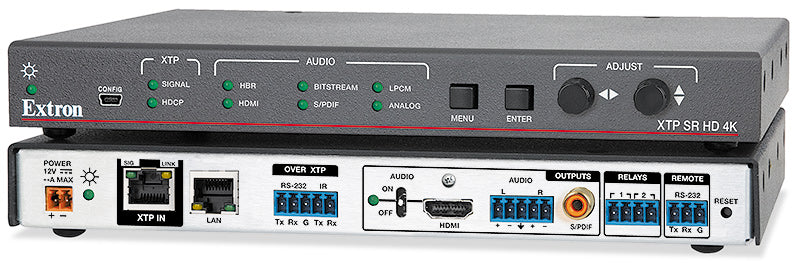

Extron XTP SR HD 4K HDMI Scaling Receiver
Product Overview
The Extron XTP SR HD 4K is an HDMI scaling receiver for XTP Systems that extends video, audio, bidirectional RS-232/IR, and Ethernet up to 330 feet (100 m) over a single shielded CATx cable. It incorporates Vector 4K scaling (640x480 to 3840x2160), HDCP 2.3, audio de-embedding (S/PDIF and analog stereo), two relays for room control, and WindoWall support for videowall applications. Remote power capability from an XTP CrossPoint matrix switcher eliminates local AC power at the endpoint. Available at Creation Networks.
Product Description
The XTP SR HD 4K is a single-endpoint scaling receiver designed for use with XTP Systems and XTP CrossPoint matrix switchers. It receives HDMI, DVI, RGB, HD component, and standard definition video from XTP transmitters over one shielded CATx cable, then scales and outputs HDMI video at the display's native resolution. Vector 4K scaling delivers best-in-class upscaling and downscaling; scaler bypass mode passes 3D, 4K/60 at 4:2:0, and other high-bandwidth formats unprocessed. WindoWall mode enables videowall applications within XTP Systems — up to eight walls per system with up to eight presets per wall for full-screen, span, or mixed display configurations. EDID Minder and Key Minder manage EDID and HDCP across the system. Audio is de-embedded to S/PDIF and analog stereo, with volume control and muting. RS-232 and IR insertion enables control of a remote display over the same twisted pair cable. Two normally-open relays control room functions (lighting, screens, lifts). Available at Creation Networks.
Key Features
- XTP Twisted Pair Receiver — 330 Feet — Receives HDMI, DVI, RGB, HD component, and SD video from XTP transmitters over one shielded CATx cable; 24 AWG minimum; XTP DTP 24 strongly recommended.
- Vector 4K Scaling Engine — 640x480 through 3840x2160 scaled output; best-in-class upscaling and downscaling; FILL and FOLLOW aspect ratio modes; scaler bypass for 4K/60 4:2:0, 3D, and custom formats.
- HDCP 2.3 Compliant — EDID Minder and Key Minder for reliable HDCP compliance and fast switching; HDCP Visual Confirmation (full-screen green on non-compliant displays).
- WindoWall Mode — Videowall support within XTP Systems; up to 8 videowalls; up to 8 presets per wall; full-screen, span, or mixed; any aspect ratio up to 8x8.
- Audio De-Embedding — HDMI audio to S/PDIF (coaxial RCA) and balanced/unbalanced analog stereo (3.5 mm captive screw); volume control and muting; multi-channel bitstream and LPCM 7.1 supported on HDMI output.
- Bidirectional RS-232 and IR Insertion — Controls a remote display or AV device over the same CATx cable; shared 3.5 mm captive screw connector.
- Ethernet Pass-Through — 10/100 RJ-45 Ethernet extension to remote Ethernet-enabled devices, reducing independent network drops.
- Two Normally-Open Relays — Controls room functions (projector lifts, screens, lighting); 24 V / 1 A contact rating; shared 3.5 mm, 4-pole captive screw.
- Remote Power from XTP CrossPoint — Powered over the twisted pair cable from a compatible XTP matrix switcher, eliminating local AC power at the endpoint.
- Compact 1" Half-Rack Enclosure — 1.0" H x 8.68" W x 6.0" D; 1.6 lbs (0.7 kg); mounts behind displays or under tables; convection cooled.
Technical Specifications
| XTP SR HD 4K — Technical Specifications (SKU 60-1524-02) | |
|---|---|
| XTP input | 1 RJ-45 (shielded CATx, 24 AWG or better); up to 330 ft (100 m) |
| Video output | 1 HDMI type A; 640x480 to 3840x2160; HDMI 1.4 (10.2 Gbps); HDCP 2.3 |
| Scaler bypass | Passes 4K/60 4:2:0, 3D, and custom formats unprocessed |
| Video processing | 24-bit; 297 MHz pixel clock; Vector 4K scaling; FILL/FOLLOW aspect ratio |
| Audio outputs | 1 analog stereo balanced/unbalanced (3.5 mm captive screw, 5-pole); 1 S/PDIF coaxial RCA; HDMI embedded; volume control –100 to 0 dB |
| RS-232/IR insertion | 1 bidirectional RS-232 (3.5 mm, 5-pole, shared with IR); up to 115200 baud |
| Ethernet extension | 1 RJ-45 (10/100 Base-T) pass-through to remote devices |
| Relays | 2 normally-open; 24 V / 1 A; 3.5 mm captive screw, 4-pole |
| Control | RS-232 (3.5 mm, 3-pole); front-panel USB mini-B; SIS protocol |
| Power | External Extron Everlast; 100–240 VAC; 12 VDC 1.5 A; or remote from XTP CrossPoint; 11.2 W device |
| Enclosure | 1.0" H x 8.68" W x 6.0" D (2.5 x 22.1 x 15.2 cm); 1.6 lbs (0.7 kg); passive convection |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application
The XTP SR HD 4K is installed at the display end of an XTP System deployment — behind a flat panel or projector — receiving 4K-scaled video from an XTP CrossPoint matrix switcher via a single CATx cable run, and controlling the display and room via RS-232, IR, and relay outputs.
