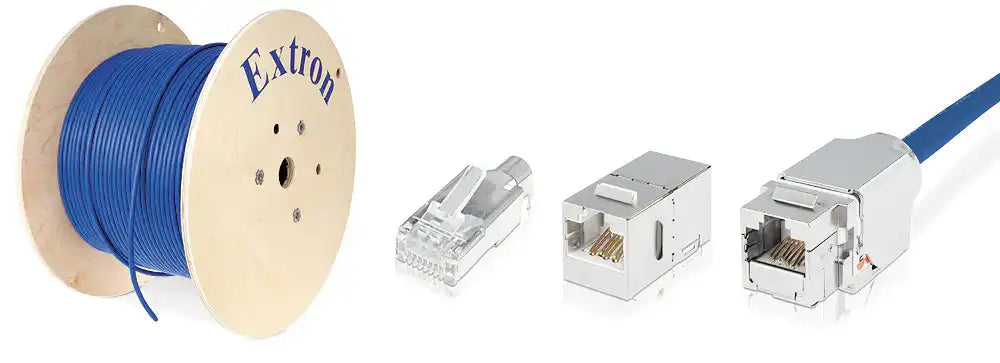

Extron XTP DTP 24P/1000 Plenum 1000' (305 m) spool
Product Description
The Extron XTP DTP 24P/1000 is a plenum-rated bulk shielded twisted pair cable engineered for signal transmission with Extron XTP Systems and DTP Systems, supplied on a 1000' (305 m) spool. This Extron XTP DTP 24P plenum cable is certified to 475 MHz bandwidth at distances up to 330 feet (100 meters) and has been independently tested and verified to meet the performance requirements set by the HDBaseT Alliance, making it a dependable backbone for HDBaseT-based AV extension.
XTP DTP 24 cable uses an SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield, providing added protection from outside interference while keeping the cable flexible and easy to pull. It is engineered and tested to exceed the HDMI error rate specification of less than one pixel per billion at 100 meters, delivering reliable video, audio, control, and data transport across long architectural runs. The plenum-rated jacket meets building-code requirements for installation in air-handling plenum spaces such as above drop ceilings and in raised-floor returns.
This bulk cable suits commercial AV infrastructure projects including conference rooms, classrooms, lecture halls, auditoriums, and command-and-control facilities where XTP and DTP transmitters and receivers extend high-resolution signals over a single twisted pair link. For installations that call for a heavier 22 AWG S/FTP cable with a fully shielded RJ-45 coupler, see the Extron XTP DTP 22 RJ-45 coupler and plenum cable. Browse the full Extron collection for matching transmitters, receivers, and connectivity modules.
Key Features
- SF/UTP construction — Four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for added protection from outside interference.
- Certified to 475 MHz — Rated bandwidth at distances up to 330 feet (100 meters) for reliable high-resolution AV extension.
- HDBaseT Alliance verified — Independently tested and verified to meet the performance requirements set by the HDBaseT Alliance.
- Exceeds HDMI error rate spec — Engineered and tested to exceed the HDMI error rate specification of less than one pixel per billion at 100 meters.
- Plenum-rated jacket — Meets building-code requirements for installation in air-handling plenum spaces.
- 1000' (305 m) spool — Bulk length supports large-scale and multi-room installations with minimal splicing.
- Engineered for XTP and DTP systems — Optimized for signal transmission with Extron XTP Systems and DTP Systems.
Technical Specifications
| Cable type | Shielded twisted pair, SF/UTP design |
| Conductors | Four unshielded 24 AWG twisted pairs inside an overall braid and foil shield |
| Bandwidth | Certified to 475 MHz at distances up to 330 feet (100 meters) |
| Maximum distance | 330 feet (100 meters) |
| Performance verification | Independently tested and verified to HDBaseT Alliance requirements |
| HDMI error rate | Exceeds spec of less than one pixel per billion at 100 meters |
| Jacket rating | Plenum |
| Spool length | 1000 feet (305 meters) |
| Compatibility | Extron XTP Systems and DTP Systems |
Frequently Asked Questions
What systems is this cable designed for?
The XTP DTP 24P/1000 is engineered for signal transmission with Extron XTP Systems and DTP Systems and is verified to HDBaseT Alliance performance requirements, so it also serves HDBaseT-based AV extension.
What is the maximum run length?
The cable is certified to 475 MHz at distances up to 330 feet (100 meters) and is tested to exceed the HDMI error rate specification of less than one pixel per billion at 100 meters.
What does the P in XTP DTP 24P mean?
The P designates a plenum-rated jacket, which meets building-code requirements for installation in air-handling plenum spaces such as above drop ceilings.
How is the cable shielded?
It uses an SF/UTP design with four unshielded 24 AWG twisted pairs inside an overall braid and foil shield, providing added protection from outside interference.
Should I choose 24 AWG or 22 AWG cable?
This is a 24 AWG SF/UTP cable. For a heavier 22 AWG S/FTP cable supplied with a fully shielded RJ-45 coupler and CAT 6A AAP module, see the Extron XTP DTP 22 coupler and plenum cable. Contact Creation Networks for help selecting cable for your XTP or DTP deployment.
