Extron XTP DTP 24 Coupler - Shielded RJ-45 Coupler AAP Module Package of 10
Extron XTP DTP 24 Coupler - Shielded RJ-45 Coupler AAP Module Package of 10 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron XTP DTP 24 Coupler - Shielded RJ-45 Coupler AAP Module Packa...

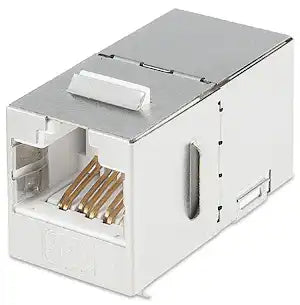

Extron XTP DTP 24 Coupler is a single-space AAP AV Connectivity Module featuring one shielded RJ-45 female to female coupler optimized for Extron XTP DTP 24 Shielded Twisted Pair Cable. This passive pass-through adapter enables reliable in-line extension of high-bandwidth AV, audio, control, and data signals over CAT 6A performance levels in professional installations. The mountable metal plate construction ensures secure, durable integration into architectural environments, maintaining signal integrity without active electronics or power requirements.
This coupler is ideal for conference rooms, classrooms, control rooms, lecterns, table boxes, and wall-mounted applications needing extended shielded twisted pair cable runs for 4K/8K video, embedded audio, RS-232/IR control, and Ethernet in XTP or DTP systems. It supports direct coupling of pre-terminated XTP DTP 24 cables, minimizing signal degradation and interference in Extron AAP-compatible frames, select interfaces, and enclosures.
Features Chart
| Feature | Benefit |
|---|---|
| Single-space AAP form factor | Compact fit into Extron interfaces, AAP mounting frames, and compatible enclosures |
| Shielded RJ-45 female to female coupler | Provides low-loss extension of Extron XTP DTP 24 shielded twisted pair cable |
| CAT 6A optimized | Supports high-bandwidth transmission for 4K/8K video, audio, control, and data signals |
| Shielded cable compatibility | Reduces electromagnetic interference and crosstalk in AV distribution systems |
| Mountable metal plate | Delivers professional durability, secure mounting, and vibration resistance |
| Pass-through design | Maintains full signal integrity with no latency, power needs, or active processing |
| AAP series compatibility | Seamlessly integrates with Extron's modular architectural connectivity ecosystem |
| Quick-connect coupler type | Enables fast, tool-free connection and disconnection of shielded RJ-45 cables |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One shielded RJ-45 Female to Female Coupler |
| Cable Compatibility | Extron XTP DTP 24 Shielded Twisted Pair Cable |
| Cable Category | CAT 6A |
| Form Factor | Single Space AAP module |
| Mounting | Mountable metal plate |
| Type | Coupler / Pass-through |
| Compatibility | Select Extron interfaces, AAP AV connectivity mounting frames, AAP-compatible products |
| Signal Type | High-speed shielded twisted pair pass-through (optimized for XTP/DTP systems) |
| Size | Single Space |
Compare Chart
| Aspect | Extron XTP DTP 24 Coupler | Extron XTP DTP 22 RJ-45 Coupler | Extron MAAP1XTPFTP24CO |
|---|---|---|---|
| Connector Type | Shielded RJ-45 coupler | Shielded RJ-45 coupler | XTP DTP 24 shielded coupler |
| Cable Compatibility | XTP DTP 24 shielded | XTP DTP 22 shielded | XTP DTP 22/24 shielded |
| Form Factor | Single Space AAP | Single Space AAP | Double Space MAAP Mini |
| Mounting System | AAP frames/enclosures | AAP frames/enclosures | MAAP frames/enclosures |
| Primary Use | Extension of XTP DTP 24 runs | Extension of XTP DTP 22 runs | Extension of XTP DTP 22/24 runs |
| Shielding | Yes (shielded) | Yes (shielded) | Yes (shielded) |
| Ideal For | High-performance shielded runs | High-performance shielded runs | Similar shielded extensions |
FAQ
- What cable is this coupler designed for? It is specifically for Extron XTP DTP 24 Shielded Twisted Pair Cable, optimized for high-bandwidth AV signal extension.
- Which mounting systems are compatible? It fits select Extron interfaces, AAP AV connectivity mounting frames, wall boxes, table boxes, and other AAP-compatible products.
- Why use a shielded coupler? Shielding minimizes electromagnetic interference and crosstalk, ensuring reliable transmission of 4K/8K video, audio, control, and data signals.
- Does it require power or active components? No, it is a fully passive coupler with no electronics or power needs.
- Can it be used with XTP DTP 22 cable? It is optimized for XTP DTP 24; for XTP DTP 22, use the corresponding XTP DTP 22 coupler.
- Is it suitable for professional AV installations? Yes, the AAP design, metal plate, and shielded compatibility ensure durable, high-performance connectivity in conference rooms, classrooms, and architectural setups.
