Extron XTP DTP 22P Precision-Terminated Shielded Twisted Pair Plenum Cables 75' (22.8 m) Plenum
Extron XTP DTP 22P Precision-Terminated Shielded Twisted Pair Plenum Cables 75' (22.8 m) Plenum is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron XTP DTP 22P Precision-Terminated Shielded Twisted Pair Plenu...

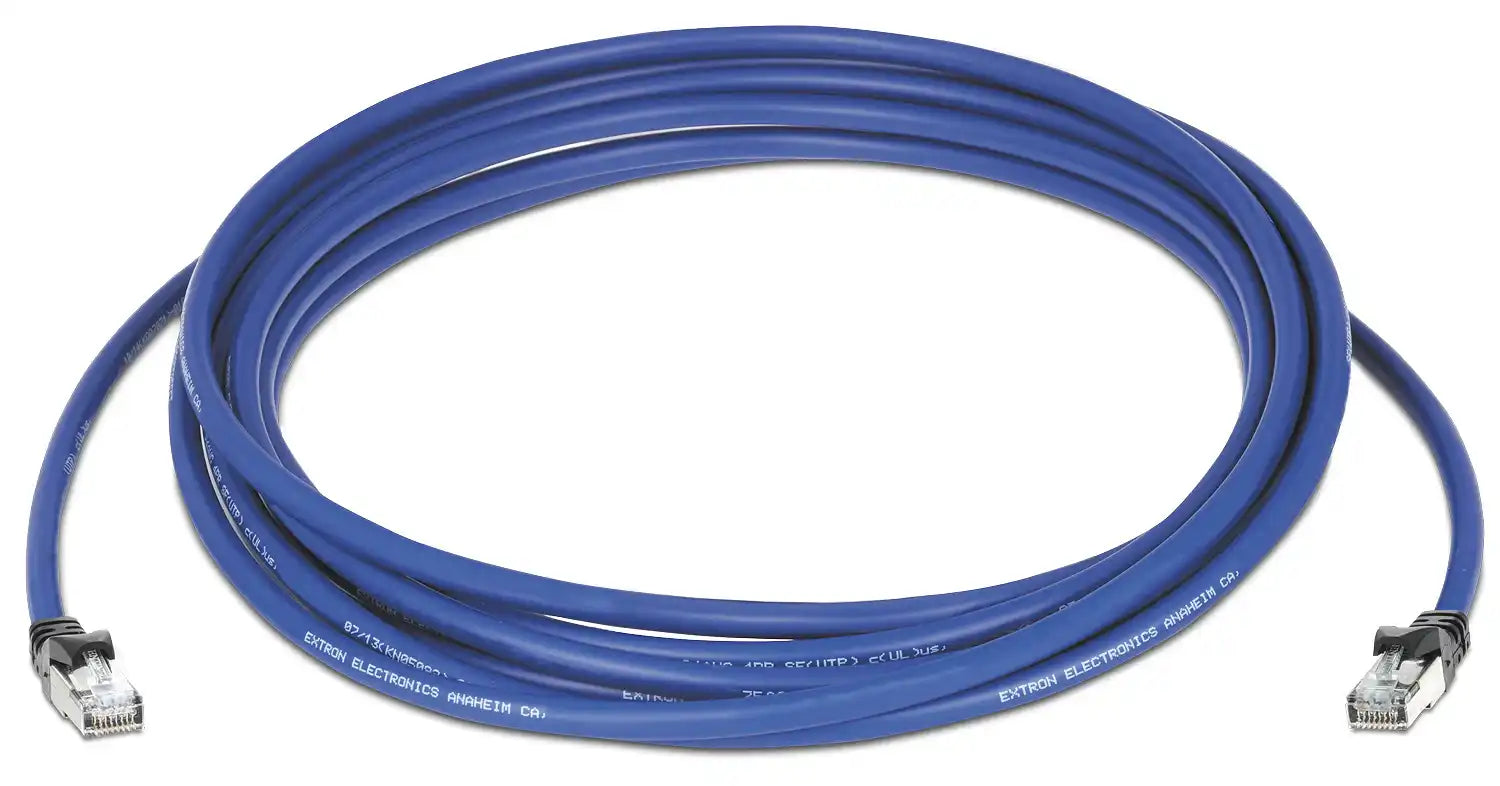

The Extron XTP DTP 22P Series consists of precision factory-terminated, plenum-rated shielded twisted pair cable assemblies optimized for high-speed signal transmission in Extron XTP Systems and DTP systems. These S/FTP cables feature four individually shielded twisted pairs inside an overall braided shield, delivering superior performance for uncompressed 4K/60 Hz video at 4:4:4 chroma subsampling while ensuring signal integrity for HDMI 2.0b content. The plenum-rated NEC CMP jacket makes them fully compliant for installation in air-handling spaces, ideal for long-distance AV distribution in classrooms, conference rooms, auditoriums, houses of worship, corporate facilities, and other professional environments requiring reliable, interference-resistant cabling.
Engineered with 22 AWG solid copper conductors and bandwidth certified to 500 MHz, the cables support distances up to 330 feet (100 meters) with minimal attenuation and excellent protection from external EMI/RFI interference. Factory-terminated with Extron XTP DTP 22 RJ-45 plugs and molded strain reliefs, they provide plug-and-play reliability, reducing installation time and ensuring consistent high-quality performance when used with compatible DTP transmitters, receivers, and matrix switchers.
Features Chart
| Feature | Benefit |
|---|---|
| Precision Factory-Terminated RJ-45 Plugs | Ensures consistent, reliable connections without field termination |
| S/FTP Shielded Twisted Pair Design | Provides superior protection from EMI/RFI interference |
| Supports Uncompressed 4K/60 @ 4:4:4 | Delivers high-resolution video with full chroma subsampling |
| Plenum-Rated NEC CMP Jacket | Compliant for safe installation in air-handling spaces |
| Bandwidth Certified to 500 MHz | Maintains signal integrity over distances up to 330 feet (100 m) |
| 22 AWG Solid Copper Conductors | Optimizes performance for high-speed DTP and XTP systems |
| Molded Strain Reliefs | Enhances durability and protects terminations during installation |
| Optimized for XTP and DTP Systems | Guarantees compatibility and maximum performance with Extron equipment |
Specifications Table
| Specification | Details |
|---|---|
| Cable Type | Shielded twisted pair (S/FTP) |
| Conductor Gauge | 22 AWG solid copper |
| Shielding | Four individually shielded pairs + overall braid |
| Jacket Rating | Plenum (NEC CMP) |
| Connectors | Extron XTP DTP 22 RJ-45 plugs (both ends) |
| Maximum Distance | 330' (100 m) |
| Supported Resolution | 4K/60 Hz @ 4:4:4 (uncompressed HDMI 2.0b) |
| Bandwidth | Certified to 500 MHz |
| Applications | Long-distance AV signal extension in plenum spaces |
| Compatibility | Extron XTP Systems and DTP Systems |
Compare Chart
| Aspect | Extron XTP DTP 22P Series | Extron XTP DTP 22 Series | Generic CAT6A Plenum Cable |
|---|---|---|---|
| Termination | Factory precision RJ-45 | Bulk or terminated variants | Typically field-terminated |
| Shielding | S/FTP (individual + overall) | Shielded twisted pair | Varies (often U/FTP or F/UTP) |
| Max Resolution/Distance | 4K/60 @ 4:4:4 up to 330' | 4K/60 @ 4:4:4 up to 330' | Varies, often lower performance |
| Plenum Rating | NEC CMP | Available in plenum versions | CMP variants available |
| Primary Use | XTP/DTP optimized AV | XTP/DTP systems | General networking/AV |
| Bandwidth | Certified 500 MHz | High performance | Cat6A 500 MHz typical |
| Strain Relief | Molded on plugs | Varies | None or basic |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the maximum supported distance for the XTP DTP 22P Series? These cables support reliable transmission up to 330 feet (100 meters) for uncompressed 4K/60 @ 4:4:4 video.
- Are these cables plenum-rated? Yes, they feature a NEC CMP-rated plenum jacket, making them compliant for installation in air-handling spaces.
- What type of shielding do they use? They employ an S/FTP design with four individually shielded twisted pairs inside an overall braided shield for maximum interference protection.
- Are the cables factory-terminated? Yes, they are precision factory-terminated with Extron XTP DTP 22 RJ-45 plugs and molded strain reliefs for consistent performance.
- What systems are these cables optimized for? They are specifically engineered for superior performance with Extron XTP Systems and DTP systems.
- What resolutions do they support? The cables are designed to maintain signal integrity for uncompressed 4K/60 Hz video at 4:4:4 chroma subsampling.
