Extron XTP DTP 22 RJ-45 Coupler - CAT 6A AAP Module Non-Plenum 1000' (305 m) spool
Extron XTP DTP 22 RJ-45 Coupler - CAT 6A AAP Module Non-Plenum 1000' (305 m) spool is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron XTP DTP 22 RJ-45 Coupler - CAT 6A AAP Module Non-Plenum 1000...

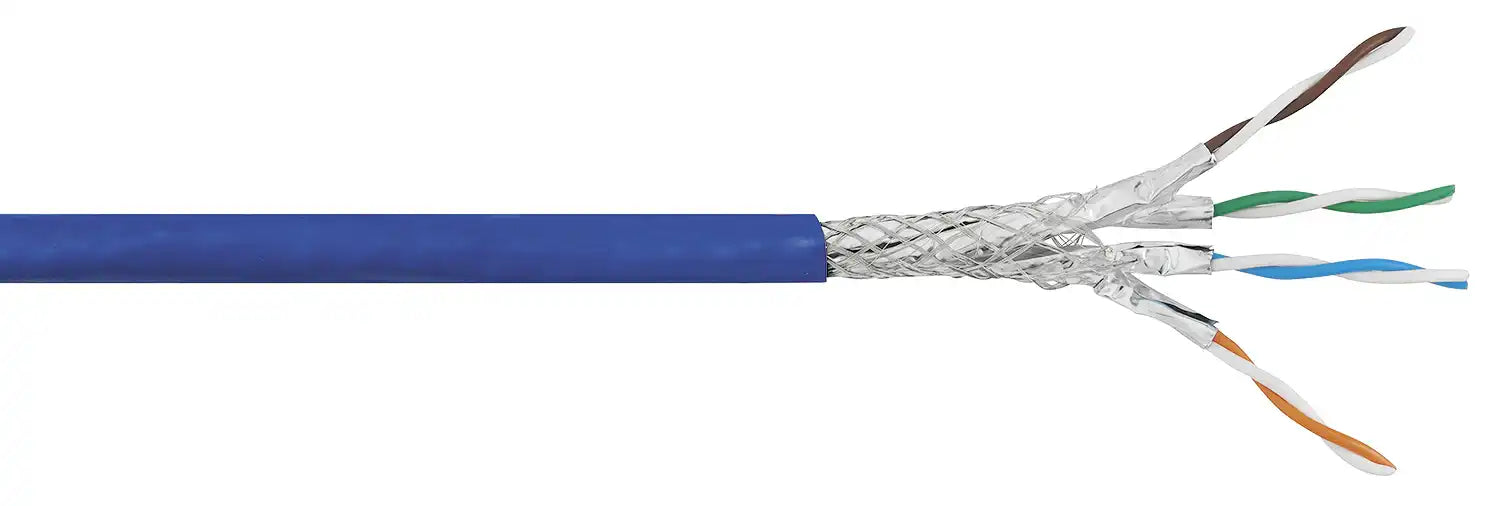

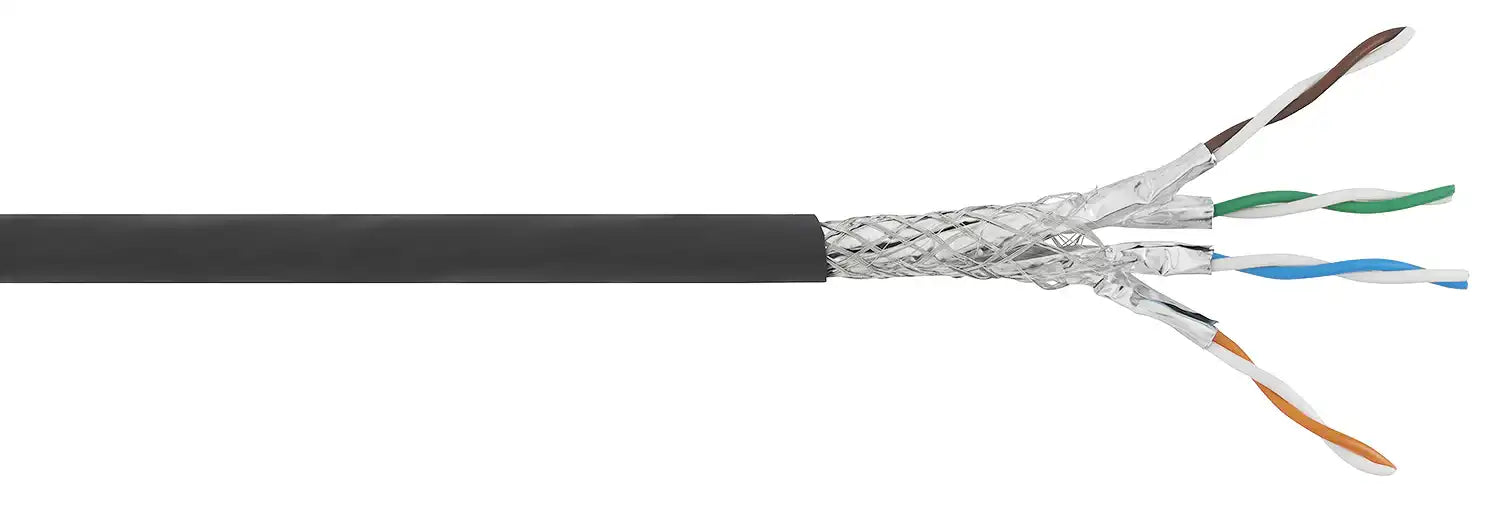

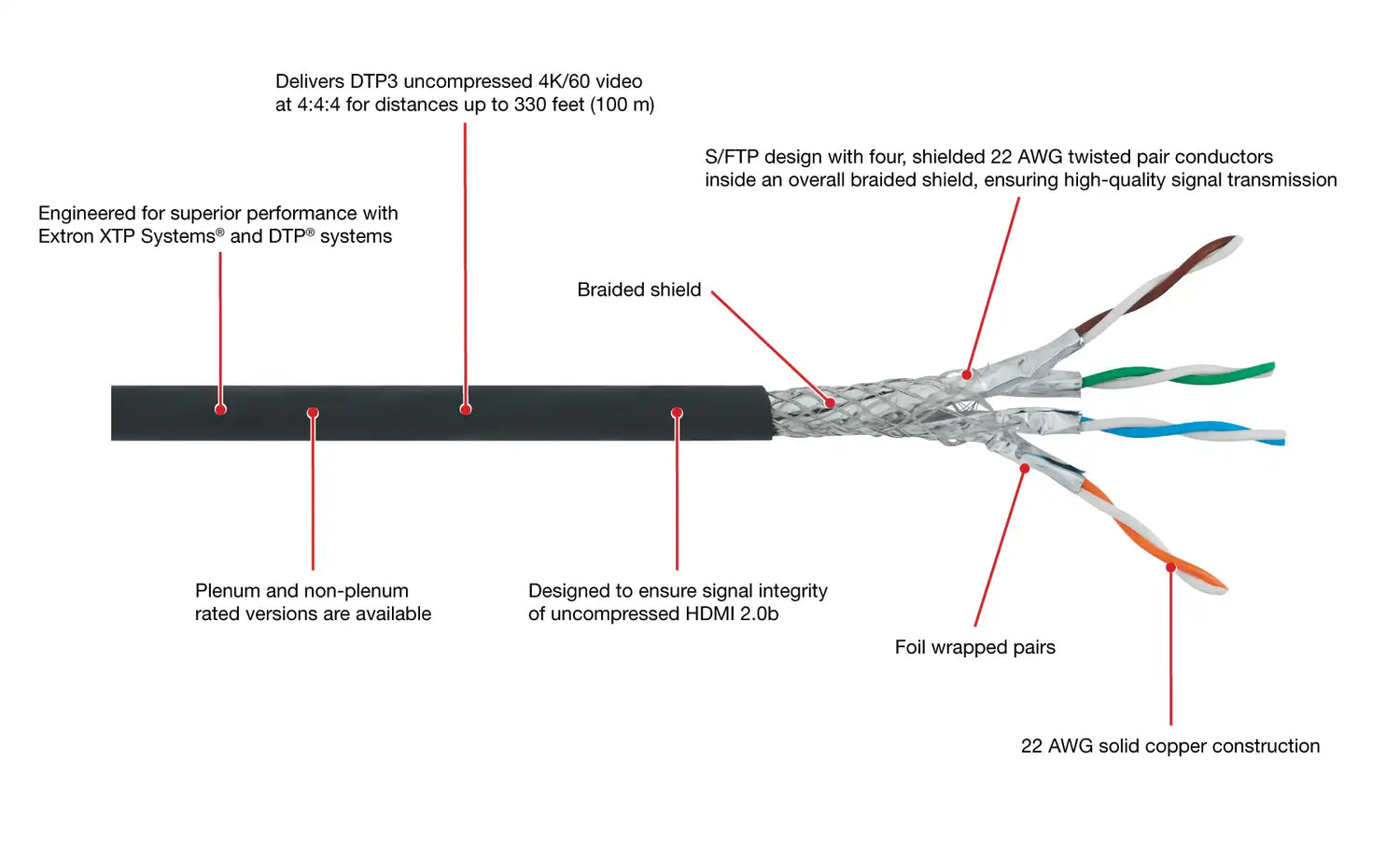

Extron XTP DTP 22 is a premium shielded twisted pair (S/FTP) cable engineered for optimal high-speed signal transmission in Extron XTP Systems and DTP Systems. It features four shielded 22 AWG solid copper twisted pairs inside an overall braided shield, providing superior protection against outside interference and ensuring high-quality performance. This cable supports uncompressed 4K/60 video at 4:4:4, HDMI 2.0b signal integrity, and bandwidth certified to 500 MHz over distances up to 330 feet (100 meters). Available in plenum and non-plenum versions on 1,000-foot spools, it delivers reliable AV, embedded audio, control, and data extension in professional installations.
This cable is ideal for conference rooms, classrooms, auditoriums, atriums, and other open-ceiling or long-run environments requiring interference-free transmission of high-bandwidth signals. It works seamlessly with Extron DTP3-capable transmitters/receivers and other XTP/DTP products, enabling clean, high-performance AV distribution over shielded twisted pair infrastructure. The robust S/FTP construction minimizes crosstalk and EMI, making it suitable for demanding 4K/8K video, Dante audio networks, IP control, and integrated AV systems.
Features Chart
| Feature | Benefit |
|---|---|
| S/FTP construction | Four individually shielded twisted pairs inside an overall braided shield for maximum interference protection |
| 22 AWG solid copper conductors | Ensures low resistance, high conductivity, and consistent signal quality over long distances |
| Bandwidth certified to 500 MHz | Supports uncompressed 4K/60 4:4:4 video and HDMI 2.0b signals up to 330 feet (100 meters) |
| Plenum and non-plenum options | Meets various building code requirements for air-handling spaces or general use |
| 1,000-foot spools | Provides ample length for large-scale or multi-room installations without splicing |
| Optimized for XTP/DTP systems | Engineered specifically for Extron XTP Systems and DTP Systems performance |
| Shielded design | Reduces EMI/RFI and crosstalk for reliable AV, audio, control, and data transmission |
| Sequential length markings | Simplifies accurate measurement and cutting during deployment |
Specifications Table
| Specification | Details |
|---|---|
| Cable Type | Shielded twisted pair (S/FTP) |
| Conductors | Four shielded 22 AWG solid bare copper twisted pairs |
| Shielding | Individual pair foil + overall tinned copper braid |
| Jacket Material | PVC (non-plenum) or plenum-rated |
| Bandwidth | Certified to 500 MHz up to 330 feet (100 meters) |
| Maximum Distance | 330 feet (100 meters) for uncompressed 4K/60 4:4:4 video |
| Spool Length | 1,000 feet (305 meters) |
| Compatibility | Extron XTP Systems, DTP Systems, DTP3 transmitters/receivers |
| Signal Support | Uncompressed HDMI 2.0b, 4K/60 video, embedded audio, control, data |
Compare Chart
| Aspect | Extron XTP DTP 22 | Extron XTP DTP 24 | Extron XTP DTP 22P (plenum) |
|---|---|---|---|
| Gauge | 22 AWG solid copper | 24 AWG | 22 AWG solid copper |
| Shielding | S/FTP (individual + overall braid) | S/FTP | S/FTP (plenum-rated jacket) |
| Bandwidth/Distance | 500 MHz up to 330 ft (100 m) | Higher bandwidth spec | Same as non-plenum |
| Plenum Rating | Non-plenum available | Non-plenum | Plenum-rated |
| Primary Use | High-performance shielded runs | Similar high-speed applications | Air-handling spaces |
| Conductor Count | Four twisted pairs | Four twisted pairs | Four twisted pairs |
| Ideal For | General long-run AV/control | Alternative shielded option | Plenum-required environments |
FAQ
- What signals can this cable carry? It supports uncompressed 4K/60 4:4:4 video, HDMI 2.0b, embedded audio, RS-232/IR control, and data over Extron XTP/DTP systems.
- What is the maximum recommended distance? Up to 330 feet (100 meters) for uncompressed 4K/60 4:4:4 video and similar high-bandwidth signals.
- Is plenum-rated version available? Yes, XTP DTP 22P offers a plenum-rated jacket for air-handling spaces, with identical electrical performance.
- Why use shielded cable? Shielding (S/FTP with overall braid) minimizes EMI/RFI and crosstalk for reliable long-distance transmission in professional AV environments.

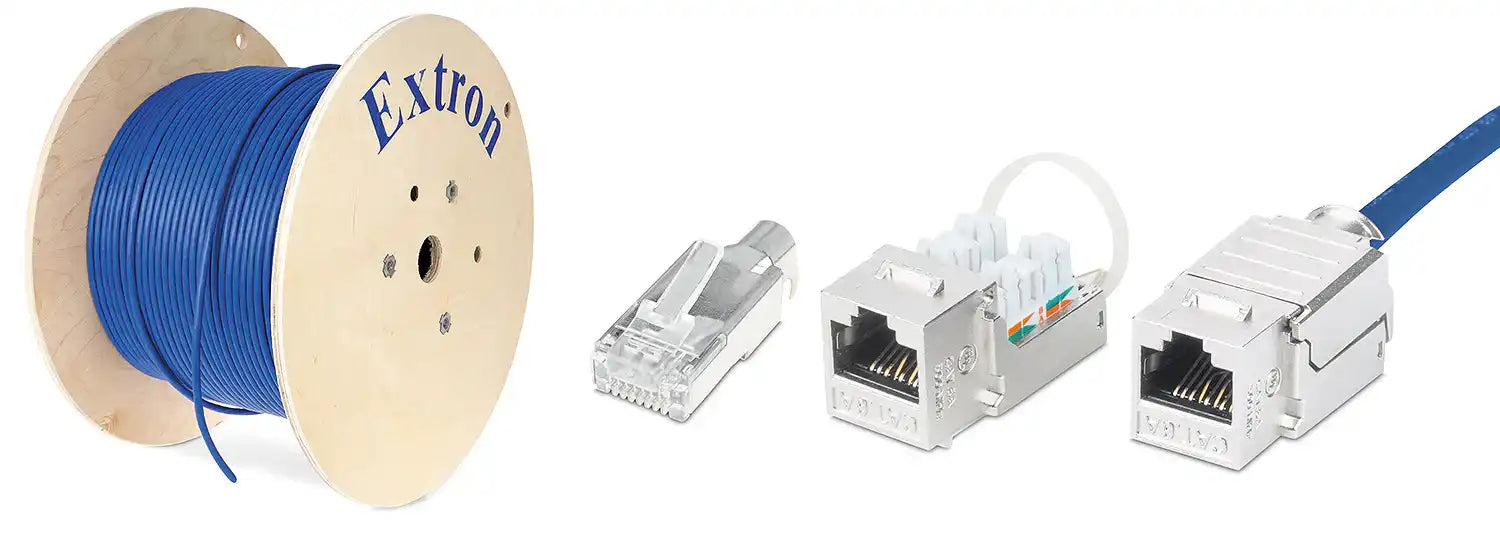

- Does it require special termination? It is compatible with Extron shielded RJ-45 plugs and couplers designed for XTP DTP 22 cable.
- Is it suitable for architectural installations? Yes, the robust construction, long spool length, and high performance make it ideal for fixed AV distribution in conference rooms, classrooms, and large venues.
