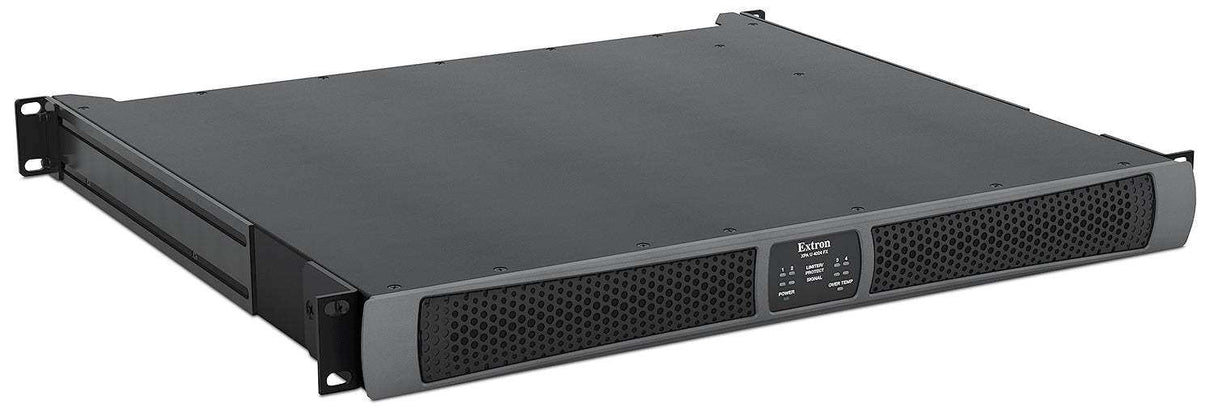

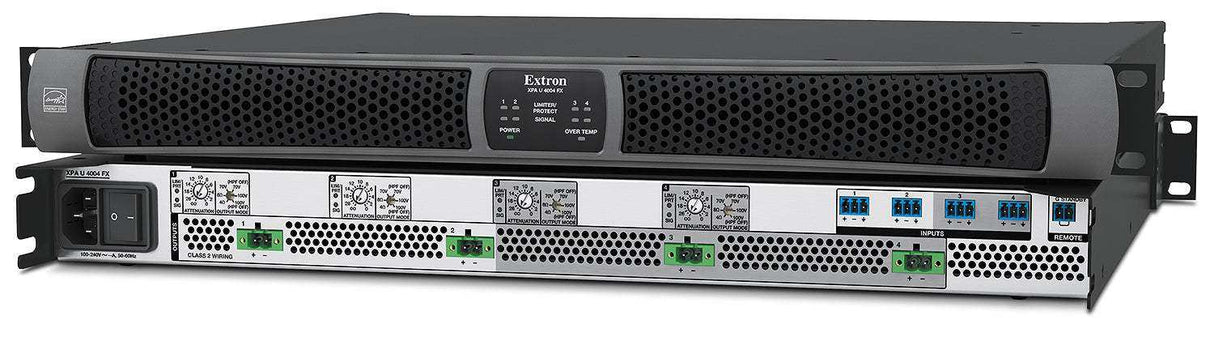

Extron XPA U 4004 FX Four Channel Configurable Output Audio Power Amplifier 400 Watts Per Channel

The Extron XPA U 4004 FX is an ENERGY STAR qualified, four-channel, high-performance audio power amplifier that can deliver 400 watts simultaneously into 8 ohm, 4 ohm, 70 volt, and 100 volt loads in multi-zone systems. Rotary switches on the rear panel make it quick and easy to independently select an output mode per channel to power each zone. This highly efficient amplifier includes ECO Standby with InstaWake+ that automatically maximizes the time in its lowest power state, for the most energy savings possible. For maximum flexibility, the total power of two adjacent 400 watt channels is shared, delivering up to 800 watts per single channel, according to system requirements. The fan-cooled enclosure does not require adjacent empty rack spaces and includes front and rear rack mount hardware for stability.

Configurable Output Modes and Flexible Power Allocation

Output modes can be independently configured per channel for 8 ohm, 4 ohm, 70 volt or 100 volt operation, with the option of adding a high pass filter in 70V or 100V mode. This allows a single XPA U 4004 FX amplifier to drive multiple types of speakers simultaneously, saving cost and space.

The total power of each odd/even channel pair is shared between the two channels. This adds to the multi-zone flexibility of the XPA U 4004 FX by allowing a single amplifier to meet the SPL requirements of multiple speaker zones.

The combination of flexible power allocation and configurable output modes allows a single XPA U 4004 FX to accommodate a high power stereo pair of low impedance speakers in addition to multiple zones of 70V or 100V speakers.

InstaWake+ with Intelligent ECO Standby

The XPA U 4004 FX includes intelligent ECO Standby technology that places the amplifier into standby after just a few seconds of inactivity. When in standby, it draws under one watt of power. When signal is detected, it comes out of standby in under 5 milliseconds, fast enough that even the sharpest beginning of audio is not cut off. This exclusive Extron technology automatically maximizes the amplifier's time in its lowest power state to conserve more power than ever before. For applications where the amplifier is required to remain active at all times, the auto-standby and ECO Standby features can be easily and independently disabled.

Compact Installations

The fan-cooled XPA U 4004 FX doesn't require adjacent empty rack spaces for cooling, allowing it to consume less rack space than competing amplifiers. Combined with hundreds of precise design choices, this enables many XPA U 4004 FX units to be efficiently stacked in an equipment rack.

Designed by Extron

All circuits in an Extron power amplifier are designed by our team of dedicated power amplifier engineers, ensuring that each model meets or exceeds our high standards of excellence. By designing everything in-house, Extron engineers can meticulously and effectively optimize for maximum performance, reliability, power efficiency, and reduced heat.

Rock-Solid Reliability

Product reliability is a high priority at Extron and we go to great lengths to engineer products with industry-leading low failure rates, driven by rigorous testing of everything we ship. The elimination of short-lived electrolytic capacitors in the signal path,  PCB designs that exclude the use of failure-prone wire harnesses, the use of long life fans, and accelerated burn-in testing ensure the XPA U 4004 FX will provide many years of service.

Features

• Four 400 watt channels into 8 ohms, 4 ohms, 70V, or 100V — The XPA U 4004 FX is designed for large, high-powered multi-zone integration projects.
• Configurable output mode per channel — Allows this single amplifier model to be used in multi-zone installations with unique configurations per channel.
• Flexible power allocation to match system requirements — 800 total watts is shared between adjacent odd/even channel pairs to provide the right amount of power where it's needed.
• InstaWake+™ exits auto-standby mode in under 5 milliseconds — The XPA U 4004 FX quickly returns to full power in less than 5 ms upon signal detection.
• ECO Standby delivers power only when needed, maximizing energy savings — Enabled by default, ECO Standby allows the XPA U 4004 FX to quickly and automatically enter standby mode when no audio signal is detected, greatly reducing power consumption.
• ENERGY STAR® qualified amplifier — The XPA U 4004 FX is an ENERGY STAR qualified amplifier and energy efficient product that conserves energy and reduces costs.
• Auto standby — The XPA U 4004 FX can alternatively be configured to automatically enter standby mode after 25 minutes of inactivity. All modes of auto-standby can be completely disabled if required.
• HPF selectable for 70V and 100V channel modes — Prevents saturation of speaker transformer cores.
• Rack-mountable 1U, full rack width enclosure — With the capability to deliver high performance in one rack space, the XPA U 4004 FX reduces rack space requirements for many installations.
• Rear rack mounts included — The included rear rack mounts are easy to install and provide additional stability.

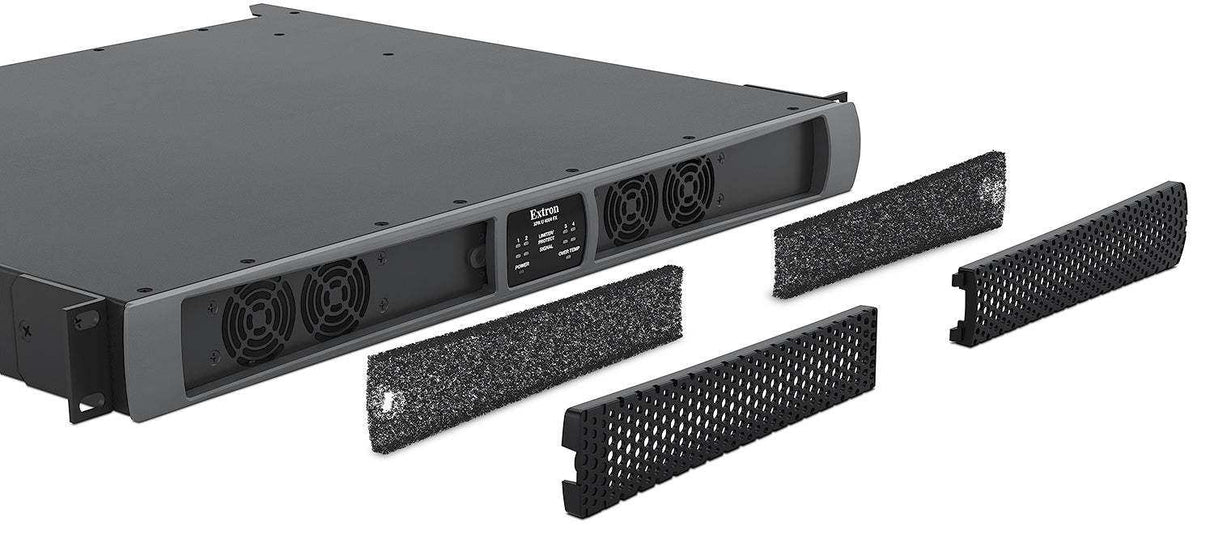

• Front to rear fan-cooled — Premium, long lifespan fans that run quietly at low RPM actively push heat away from sensitive components, extending their life. Includes washable and replaceable foam air filters.
• Freely stackable while maintaining cool operation

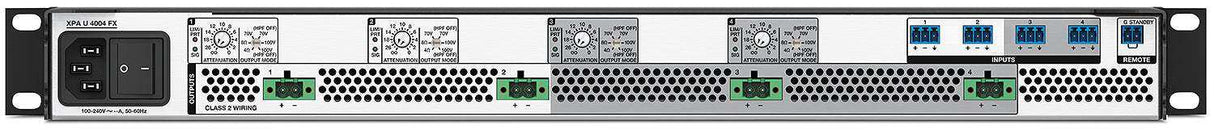

• Rotary output mode selection switches — Easily, quickly, and reliably select the required output mode.
• Professional grade signal-to-noise and THD+N performance — The XPA U 4004 FX delivers professional grade performance, featuring 100 dB signal-to-noise ratio and THD+N of less than 0.1%.
• Ultra low inrush current at power up - no need for power sequencing — Allows multiple XPA Ultra FX series amplifiers to be powered on simultaneously without overloading power circuits. This eliminates the need for power sequencing.
• Power factor correction - removes harmonic content on AC line — The XPA U 4004 FX features power factor correction technology that smooths out the high peak currents of the amplifier’s current draw, minimizing the presence of high frequency harmonics on the AC power line, preventing audible artifacts from being transmitted to other audio equipment in the system.
• Rear panel recessed, detented level controls — Provides attenuation of input signals for adjusting audio system gain staging. These controls are located on the rear panel to prevent tampering with level adjustments. Laser etched markings provide enhanced visibility of settings for ease of configuration.
• Remote standby port — Enables the XPA U 4004 FX to be remotely powered down when not in use, reducing operating cost.
• Automatic clip limiter — Detects actual onset of clipping. Gain is automatically reduced without audible artifacts to protect speakers from clipping distortion.
• Multiple protection circuits — Activate during output shorts, thermal overload, or DC faults to prevent damage to the amplifier and speakers.
• Minimal inrush current when exiting standby allows for operation without extra power sequencing hardware
• 5 mm screw-lock captive screw speaker connectors — Enable simple, secure connections with 22 to 12 AWG speaker cables.

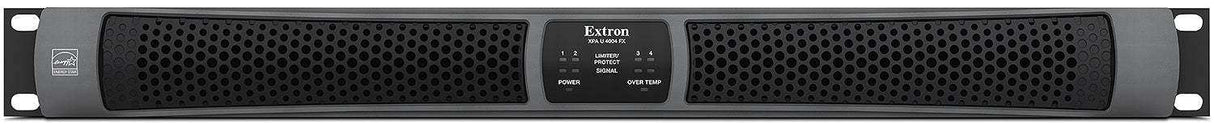

• Front and rear-mounted signal and protection indication LEDs — Provide convenient indication of input signal presence and protection circuit activation from both sides of an equipment rack.
• Front panel over-temperature LED — Provides visual indication that the amplifier's temperature has exceeded the optimal value, well in advance of the onset of thermal protection circuitry.
• Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
