Extron WPD 101 U USB Type-C; White Wallplates

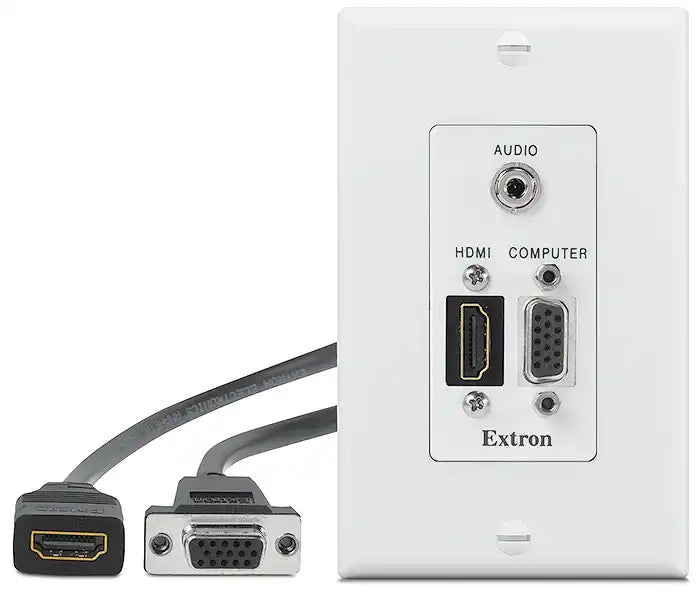

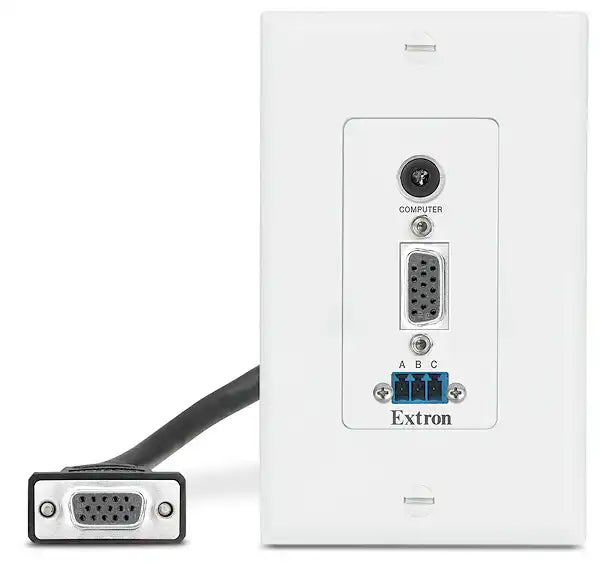

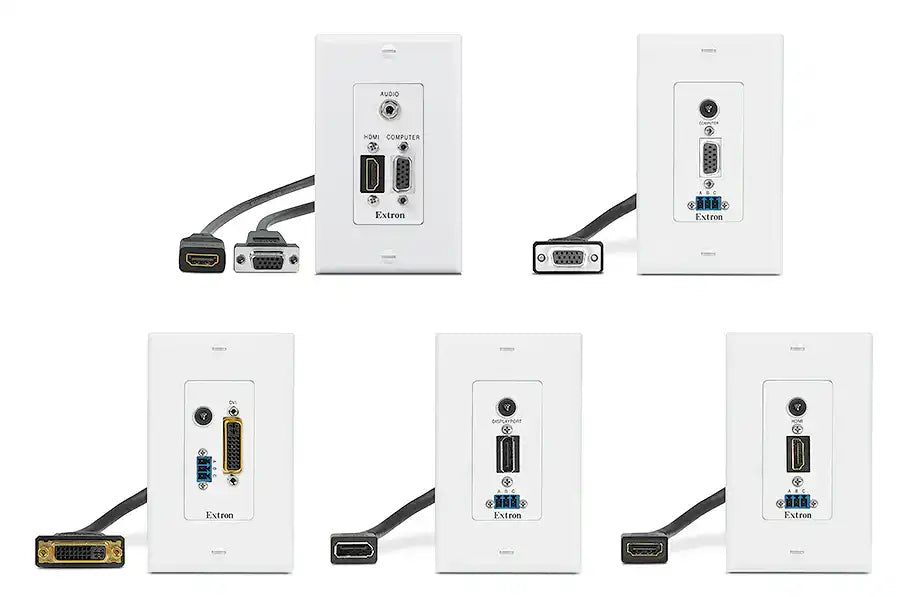

The Extron WPD 100 AV Series consists of single-gang decorator-style wallplates offering pass-through connectivity for HDMI, VGA, network, USB, and 3.5 mm audio in professional AV installations. These modules feature connectors on pigtails, keystone couplers, or captive screw adapters, with signals transmitted unprocessed to preserve full integrity and compatibility. Matching covers hide unused audio or control ports, ensuring a clean appearance in classrooms, conference rooms, floor boxes, or furniture-mounted setups.
Available in black and white finishes, the series includes variants like the WPD 101 U supporting DisplayPort Alt Mode up to 4K/60, USB data rates to 5 Gbps, and USB Power Delivery up to 60 W for device charging. They fit standard US one-gang junction boxes and integrate with AAP mounting frames for expanded AV connectivity.
Features Chart
| Feature | Benefit |
|---|---|

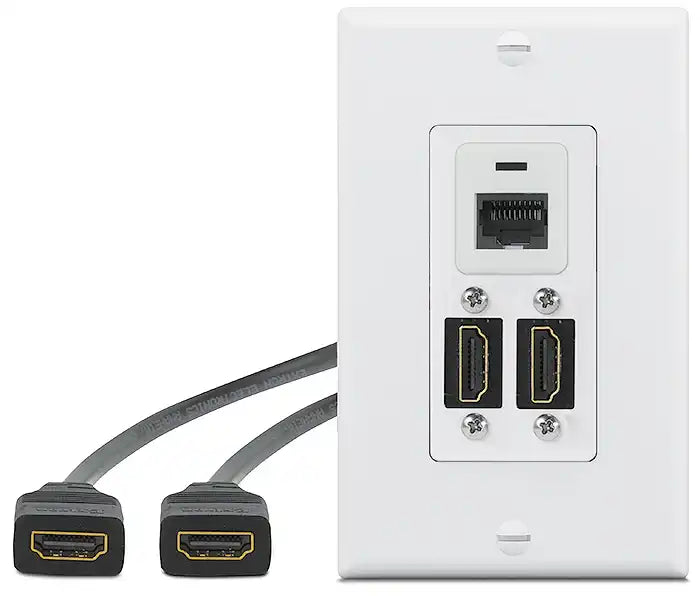

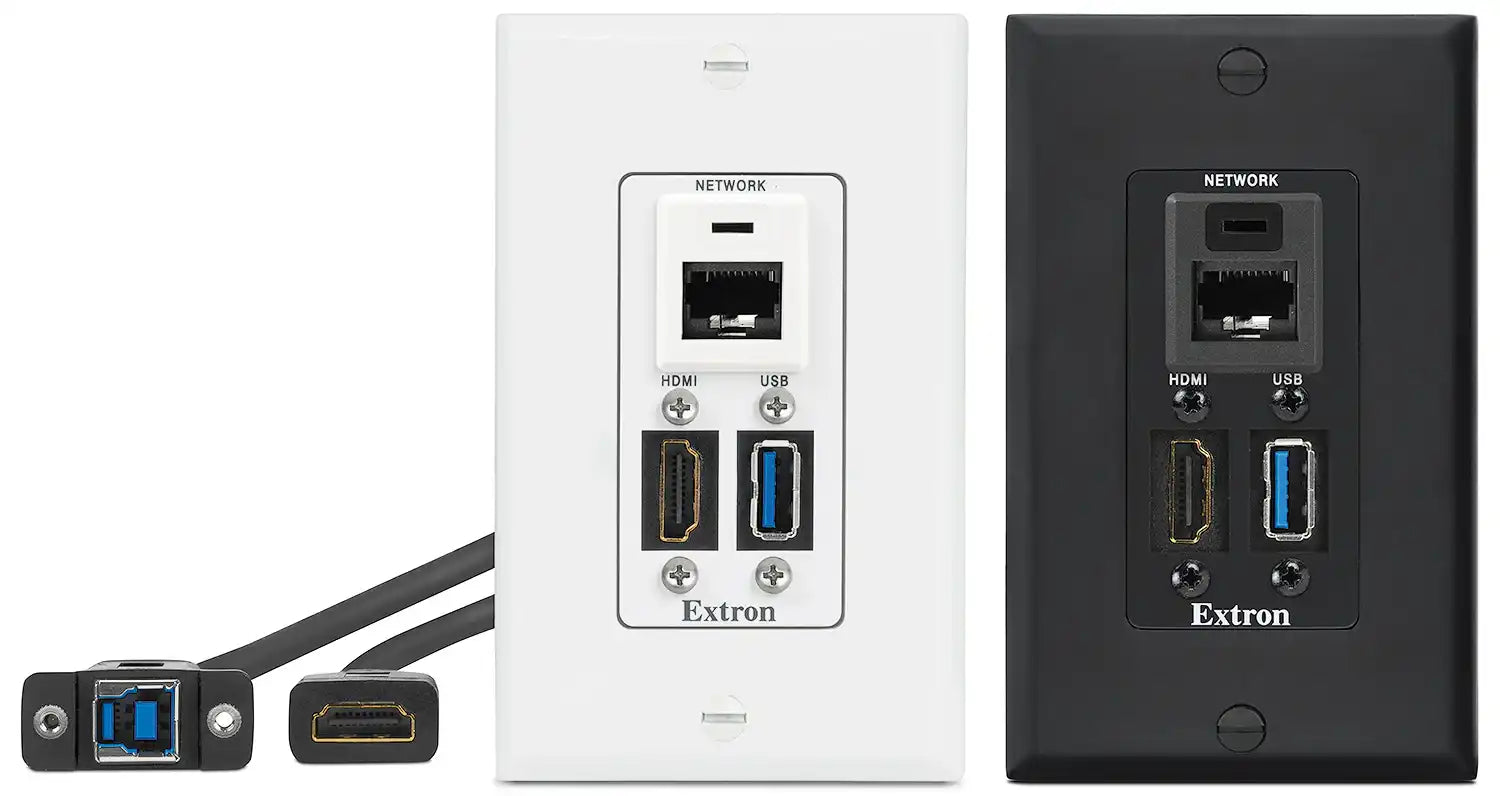

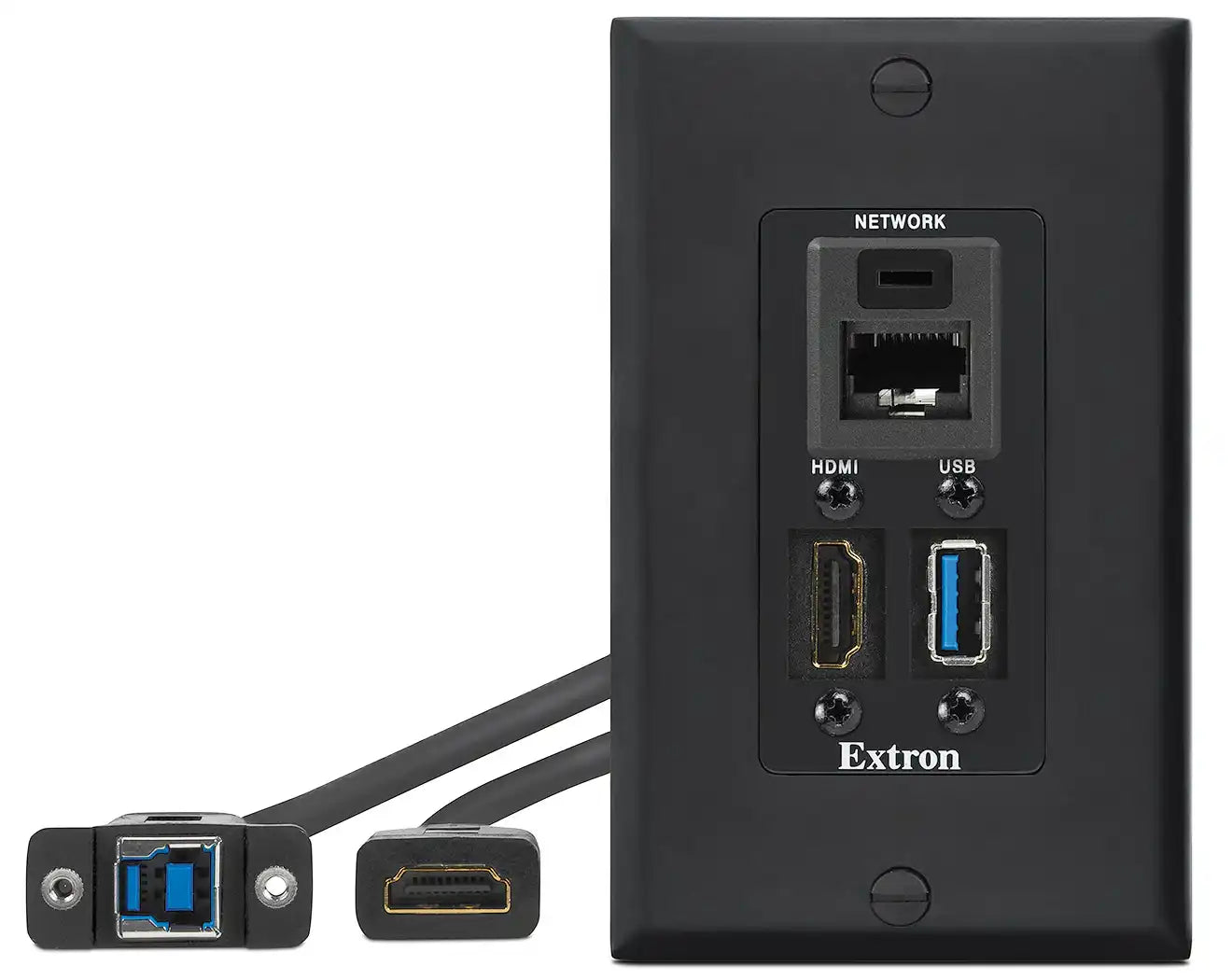

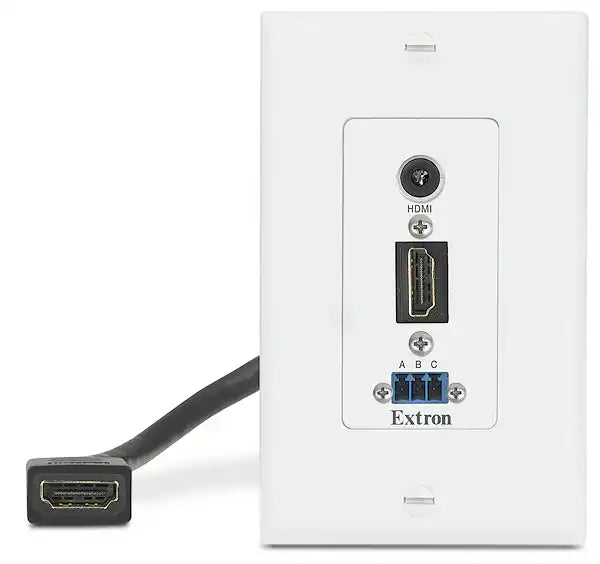

| HDMI female to female on pigtail | Provides direct, unprocessed HDMI video/audio pass-through |
| RJ-45 female to female CAT 5e barrel | Enables reliable network connectivity extension |

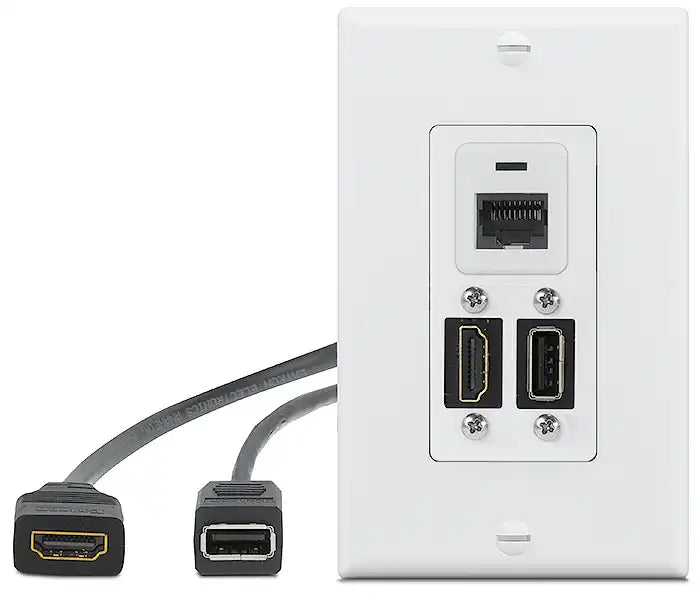

| USB 2.0 Type-A female to female on pigtail | Supports standard USB peripheral connections |

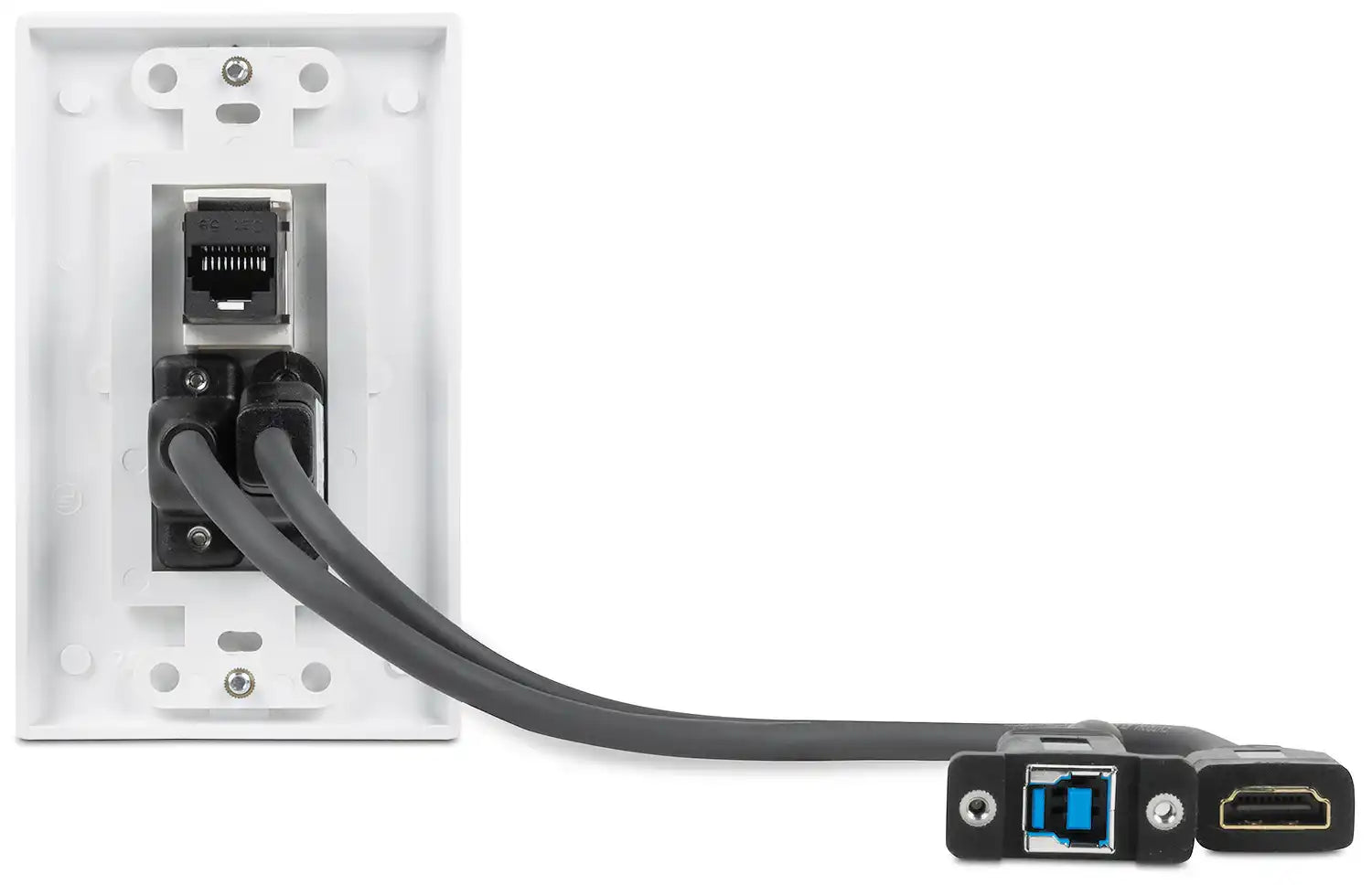

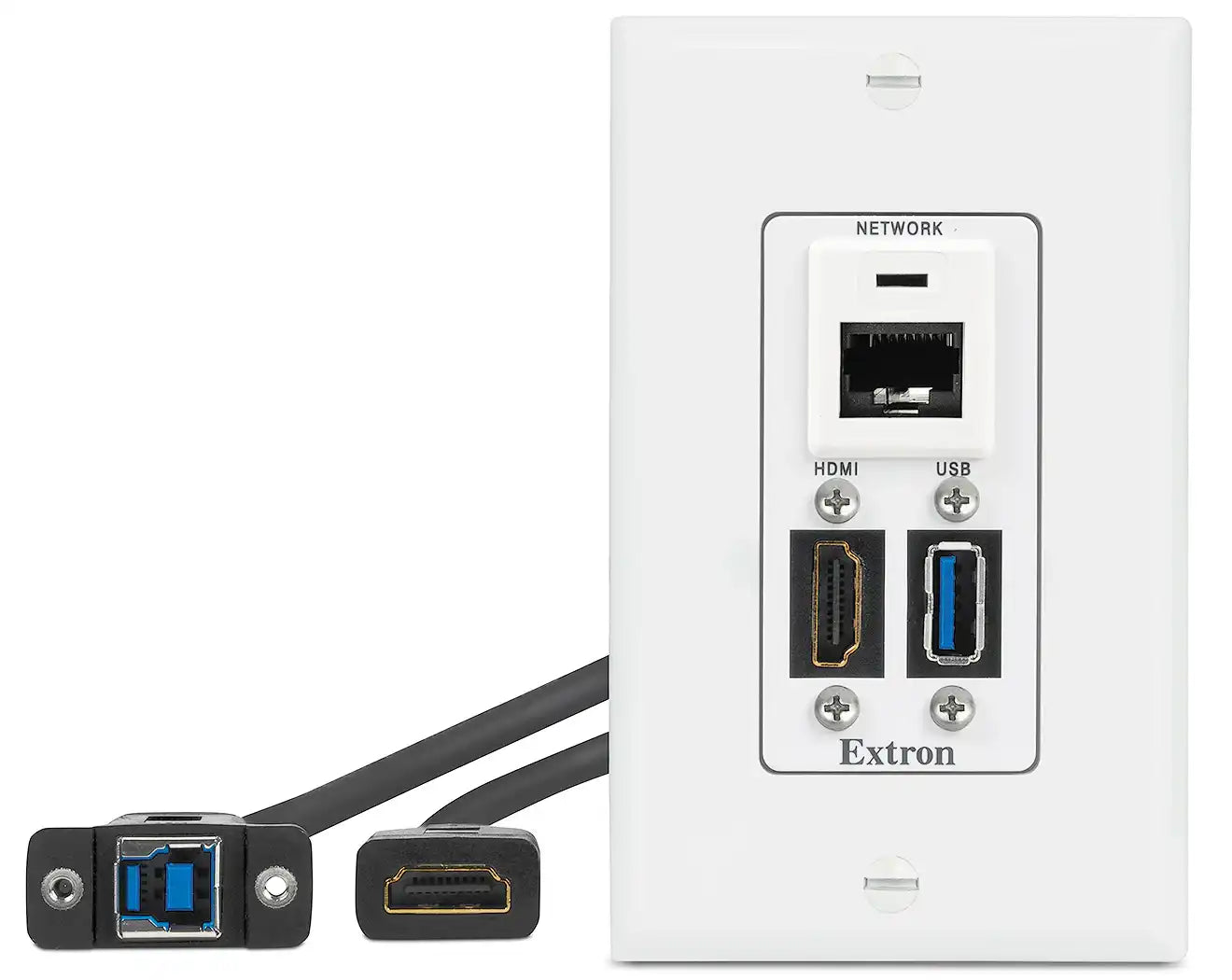

| USB 3.2 Type-A to Type-B reversible pigtail | Offers flexible orientation for Type-A or Type-B front-facing use |

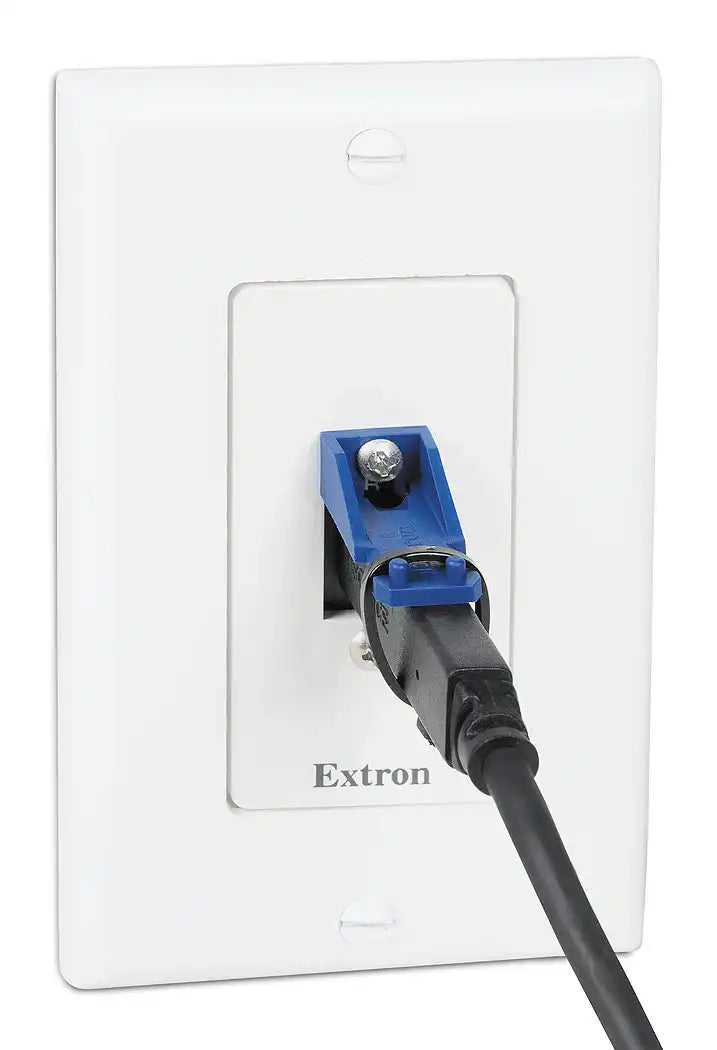

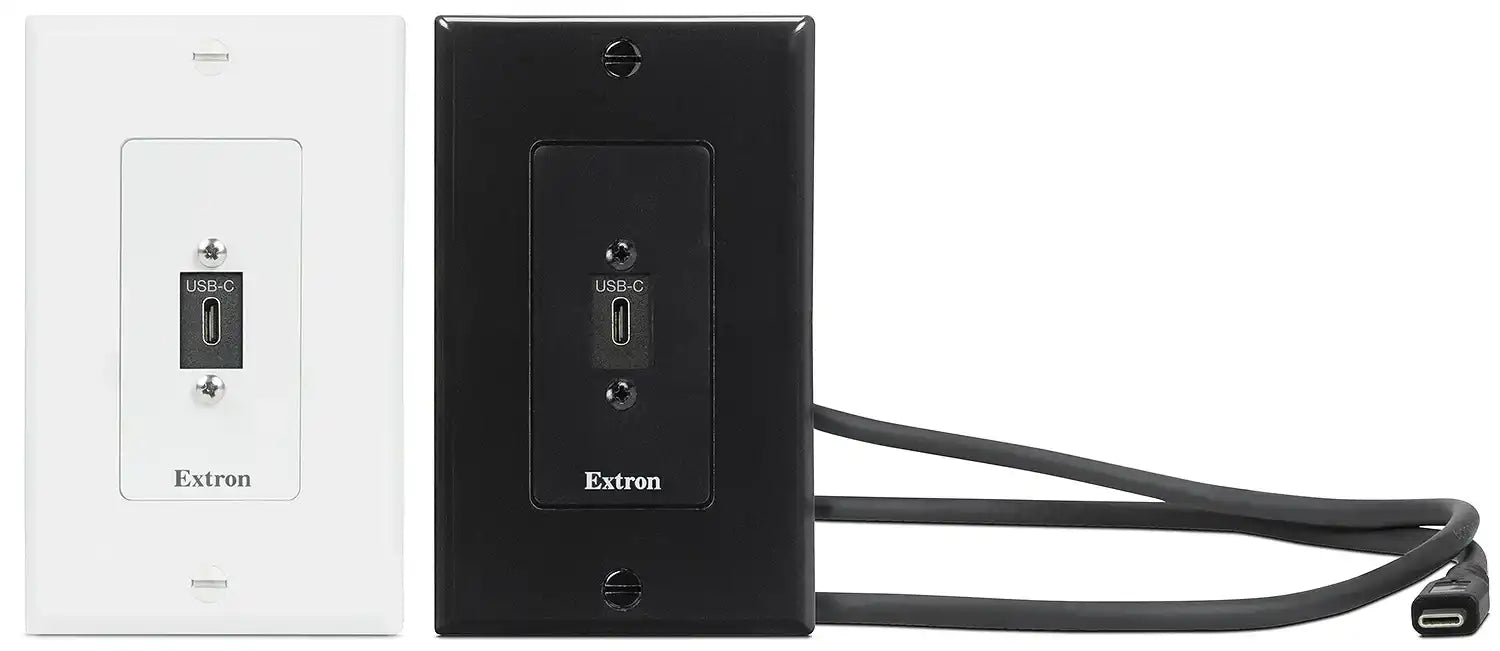

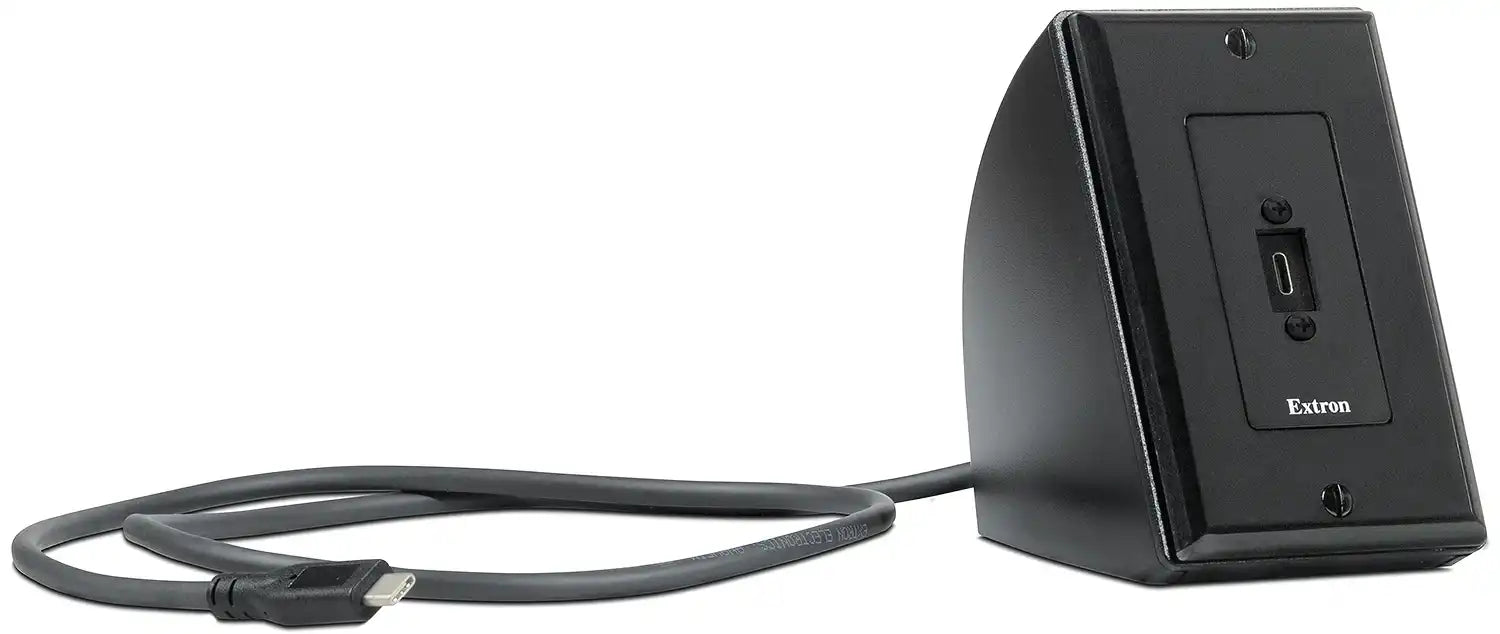

| USB-C female to male on 3' (90 cm) cable | Allows extended reach for modern USB-C device connections and charging |
| DisplayPort Alt Mode up to 4K/60 (select models) | Handles high-resolution video with USB integration |
| USB Power Delivery up to 60 W (select models) | Charges laptops, tablets, and mobile devices directly |
| Matching port covers included | Maintains neat, dust-protected appearance when ports are unused |
Specifications Table
| Specification | Details |
|---|---|

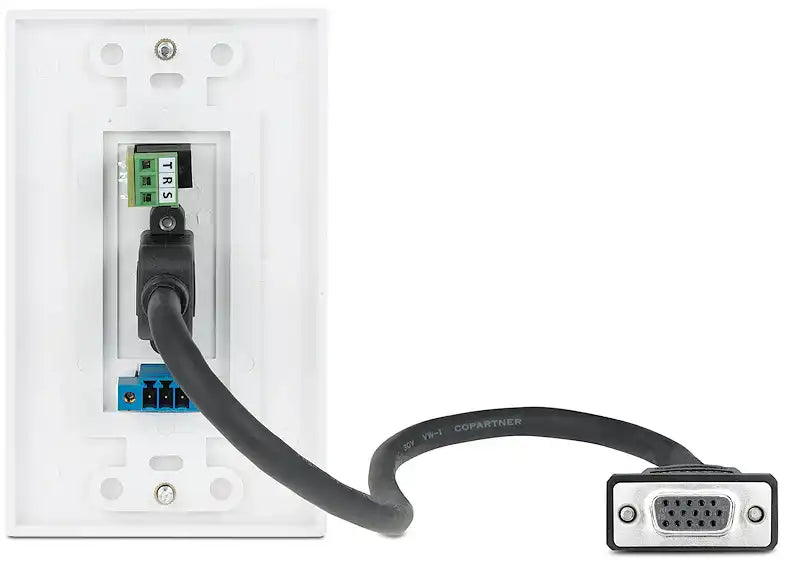

| Connectors | HDMI female to female pigtail; RJ-45 female to female CAT 5e; USB 2.0 Type-A female to female pigtail; USB 3.2 Type-A to Type-B reversible pigtail; USB-C female to male 3' (90 cm) cable; 3.5 mm stereo mini jack to captive screw (variants) |

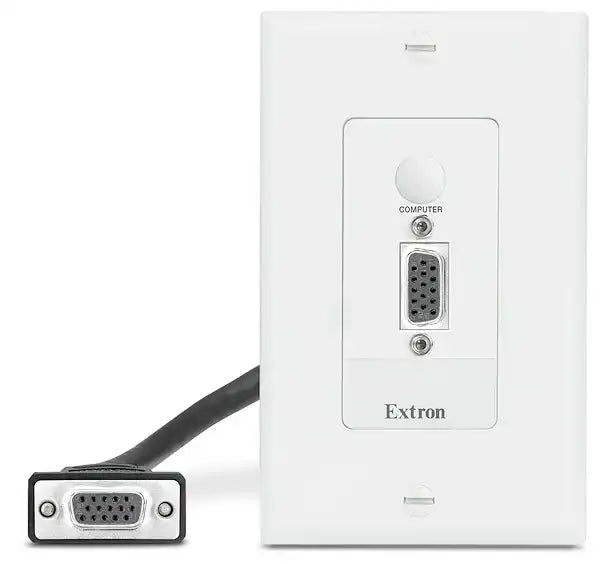

| Signal Types | HDMI, VGA, DisplayPort Alt Mode, network (CAT 5e), USB 2.0/3.2, 3.5 mm audio; unprocessed pass-through |
| Max Video Capabilities | DisplayPort Alt Mode up to 4K/60 (select models); HDMI up to high resolutions (cable-dependent) |
| USB Capabilities | Data rates up to 5 Gbps; Power Delivery up to 60 W (select models) |
| Enclosure Type | Single-gang decorator-style module |
| Mounting | Standard US one-gang junction box; compatible with AAP 314/AAP 424 frames |
| Color/Finish | Black or white |
| Dimensions | Standard single-gang decorator size |
| Power Requirements | Passive for most; USB PD up to 60 W sourced externally (select models) |
| Warranty | Standard Extron warranty (typically 3 years) |
Compare Chart
| Aspect | Extron WPD 100 AV Series | Extron WPB 109 (HDMI/VGA/Audio) | Kramer WP Series (HDMI/USB/Audio) |
|---|---|---|---|
| Ports | HDMI, USB (various), RJ-45, 3.5 mm audio | HDMI, VGA, 3.5 mm audio | HDMI, USB, audio variants |
| Mounting Style | Single-gang decorator US | One-gang standard | Decorator or multi-gang |
| USB Support | Up to USB 3.2, PD 60 W, reversible pigtails | None | USB 2.0 or higher in some |
| Power Delivery | Up to 60 W (select models) | None | Limited or none |
| Signal Processing | Passive pass-through | Passive pass-through | Passive or active options |
| Construction | Metal/plastic decorator, black/white | Metal, black/white | Plastic or metal |
| Max Resolution | 4K/60 DisplayPort Alt Mode (select) | Up to 4K@30Hz HDMI | Up to 4K in newer models |
| Port Covers | Included for audio/control | None specified | Varies |
FAQ
- What connectors are available in the WPD 100 AV Series? Options include HDMI pigtail, RJ-45 CAT 5e, USB 2.0/3.2 pigtails, USB-C extended cable, and 3.5 mm audio to captive screw.
- Does the series support device charging? Select models like WPD 101 U provide USB Power Delivery up to 60 W for charging laptops, tablets, and other devices.
- Is any power required for basic operation? Most configurations are passive pass-through with no external power needed; USB PD models source power from connected devices.
- What mounting options are supported? Fits standard US one-gang junction boxes and compatible with AAP 314/AAP 424 frames for decorator-style AV modules.
- Are unused ports protected? Yes, matching covers are included to conceal audio and captive screw ports when not in use.
- What video resolutions are supported? Select models handle DisplayPort Alt Mode up to 4K/60; HDMI capabilities depend on cable quality and system limits.
