Extron WPC 210 A MK gang - White Wallplate

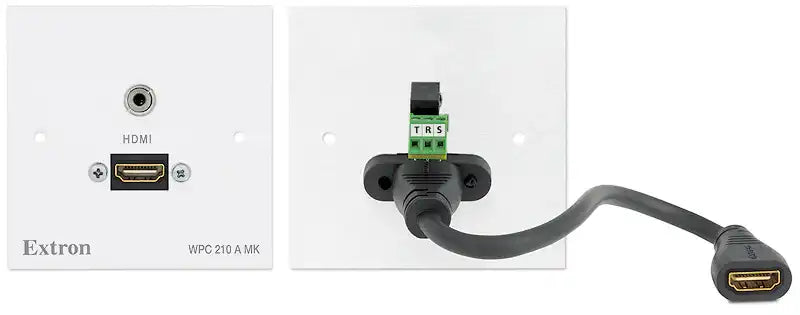

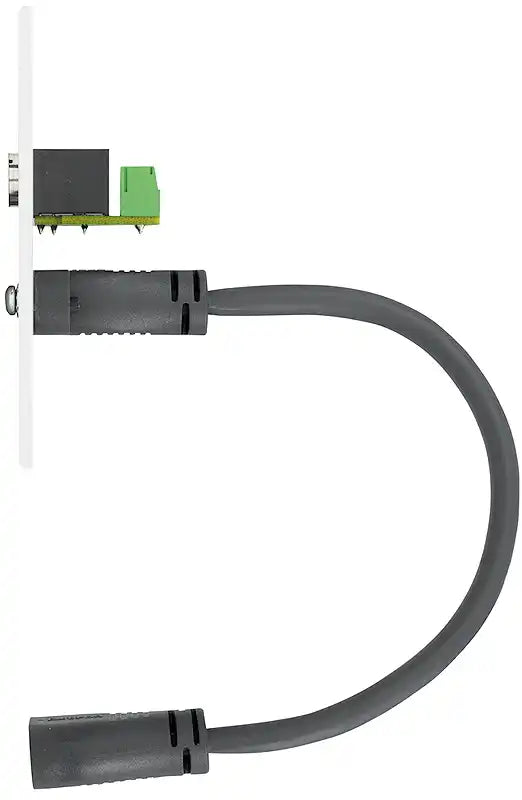

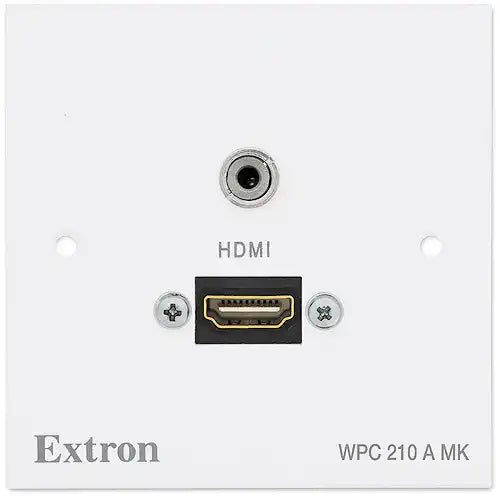

The Extron WPC 210 A MK is a metal wallplate designed for one-gang MK-type junction boxes used in the UK, Middle East, Singapore, Hong Kong, and similar markets. It delivers reliable pass-through connectivity for HDMI digital video/audio and stereo PC audio via an HDMI female to female connector on a 6" (15 cm) pigtail and a 3.5 mm stereo mini jack to captive screw connectors. Signals remain unprocessed to maintain original quality, with HDCP compliance supporting protected content and seamless source-to-display performance in classrooms, conference rooms, and presentation spaces.
The wallplate mounts in standard 40 mm deep MK junction boxes for clean architectural integration. It features a cover for the audio port when not in use, metal construction in white finish, and passive design requiring no external power, making it ideal for straightforward AV input points with organized rear cable routing.
Features Chart
| Feature | Benefit |
|---|---|
| HDMI female to female on 6" (15 cm) pigtail | Allows direct HDMI source connection with full pass-through signal integrity |
| 3.5 mm stereo mini jack to captive screw connectors | Enables secure wiring for balanced or unbalanced stereo audio inputs |
| Unprocessed signal pass-through | Preserves original HDMI and audio quality without conversion or loss |
| HDCP compliant | Ensures compatibility with protected digital content playback |
| Audio port cover | Protects the 3.5 mm jack from dust when not connected |
| Metal construction in white finish | Provides durability and professional aesthetic match for installations |
| Designed for one-gang MK junction boxes | Fits standard UK/Middle East-style boxes with 40 mm depth for easy mounting |
| Passive operation (no power required) | Simplifies setup and eliminates power supply needs or failures |
Specifications Table
| Specification | Details |
|---|---|
| Connectors | 1 x HDMI female to HDMI female (6" / 15 cm pigtail); 1 x 3.5 mm stereo mini jack to 3-pole captive screw |
| Signal Type | HDMI (digital video/audio); Stereo audio (PC) |
| Max HDMI Capabilities | Up to 4096 x 2160 at 30 Hz 4:4:4 8-bit; supports up to 10.2 Gbps data rate (subject to cable limits) |
| Enclosure Type | Metal wallplate |
| Color/Finish | White |
| Mounting | One-gang MK-type junction boxes (UK, Middle East, Singapore, Hong Kong markets) |
| Depth Requirement | Compatible with 40 mm deep junction boxes; allow at least 1.85" (47 mm) for device plus cable clearance |
| Product Weight | 0.2 lb (0.1 kg) |
| Power Requirements | None (passive pass-through) |
| Regulatory Compliance | CE, RoHS, WEEE |
| Warranty | 3 years parts and labor |
Compare Chart
| Aspect | Extron WPC 210 A MK | Extron WPC 210 A EU | Kramer WP-580 (HDMI/Audio Variant) |
|---|---|---|---|
| Ports | HDMI + Stereo Audio | HDMI + Stereo Audio | HDMI + Stereo Audio (often with VGA) |
| Mounting Style | One-gang MK junction boxes | One-gang EU junction boxes | Multi-gang or decorator options |
| HDMI Pigtail Length | 6" (15 cm) | 6" (15 cm) | Varies, often fixed connectors |
| Audio Connector | 3.5 mm to captive screw | 3.5 mm to captive screw | 3.5 mm or RCA variants |
| Signal Processing | Passive pass-through | Passive pass-through | Passive or active models |
| Construction | Metal, white | Metal, RAL9010 white | Plastic or metal |
| HDCP Compliance | Yes | Yes | Yes |
| Region Focus | UK/Middle East/Singapore/Hong Kong | European standard | Global, often US/EU focus |
FAQ
- What signals does the WPC 210 A MK support? It offers unprocessed pass-through for HDMI (video and embedded audio) and stereo PC audio, with HDCP compliance for protected content.
- What is the HDMI pigtail length? The HDMI connector includes a 6" (15 cm) pigtail for convenient rear connections within the junction box.
- Does the wallplate require any power? No, it operates passively with no external power supply required.
- How is the audio jack protected? A built-in cover shields the 3.5 mm stereo mini jack from dust and damage when not in use.
- What junction boxes are compatible? It mounts in one-gang MK-type electrical junction boxes common in the UK, Middle East, Singapore, Hong Kong, and similar regions.
- Does it support 4K resolutions? Yes, it handles HDMI up to 4096 x 2160 at 30 Hz with 4:4:4 chroma and 8-bit depth, depending on cable quality and system limits.
