Extron WPC 210 A EU Wallplate EU gang - RAL9010 White

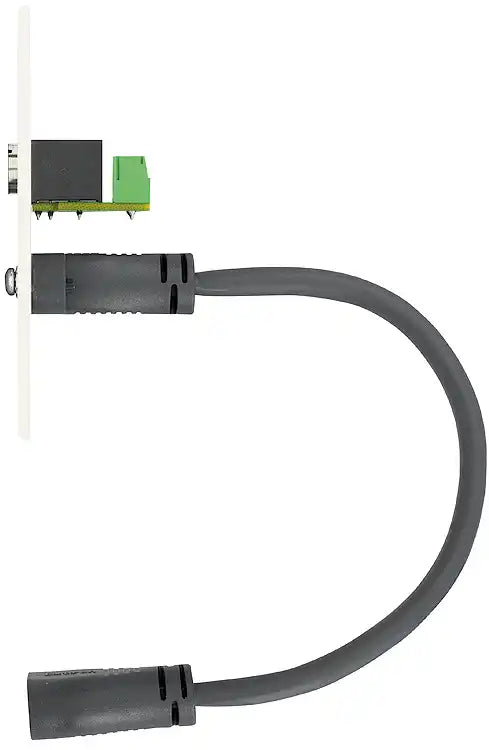

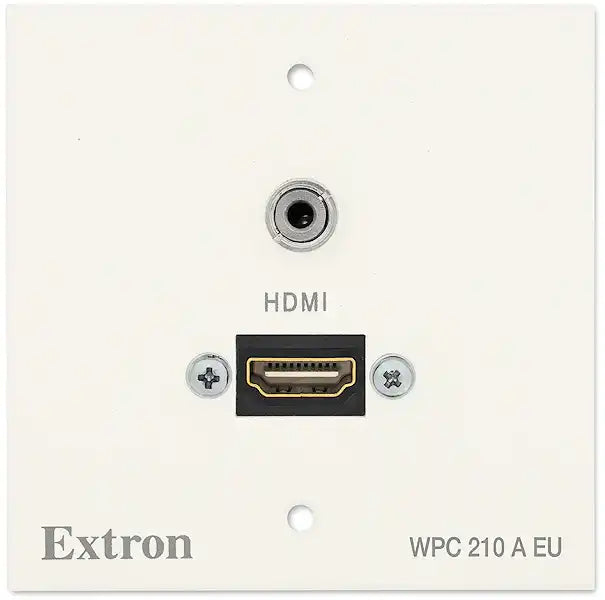

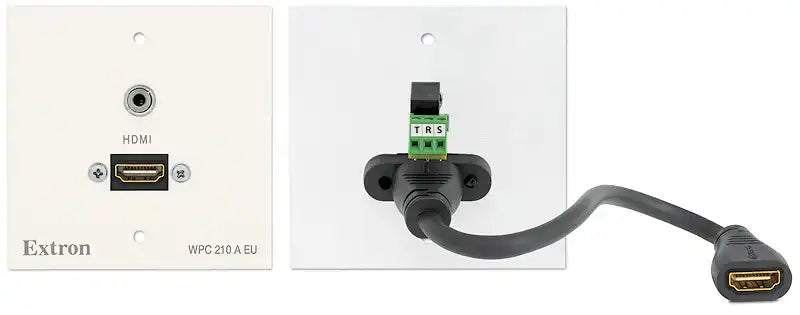

The Extron WPC 210 A EU is a wall-mounted connectivity solution designed for standard European single junction boxes with 40 mm depth. It provides reliable pass-through for HDMI digital video/audio and stereo PC audio, featuring an HDMI female to female connector on a 6" (15 cm) pigtail and a 3.5 mm stereo mini jack to captive screw connectors. Signals remain unprocessed to preserve original quality, with full HDCP compliance ensuring protected content transmission and optimal source-to-display performance in classrooms, conference rooms, and presentation environments.
Constructed from durable metal in RAL9010 white finish, the wallplate integrates cleanly into European architectural setups. The audio port includes a cover for protection when unused, and rear pigtails allow straightforward cable routing behind the wall for organized, professional installations without active signal conversion.
Features Chart
| Feature | Benefit |
|---|---|
| HDMI female to female on 6" (15 cm) pigtail | Enables direct HDMI source connection with full digital signal pass-through |
| 3.5 mm stereo mini jack to captive screw connectors | Provides secure, flexible wiring for balanced or unbalanced PC audio inputs |
| Unprocessed signal pass-through | Maintains original HDMI and audio signal integrity without degradation |
| HDCP compliant | Supports protected content playback and reliable EDID communication |
| Audio port cover | Protects unused audio connector from dust and damage |
| Metal construction in RAL9010 white | Ensures durability and aesthetic match for European installations |
| Designed for 40 mm deep European junction boxes | Allows easy integration into standard single-gang EU wall boxes |
| Passive design (no power required) | Simplifies installation and eliminates power-related failures |
Specifications Table
| Specification | Details |
|---|---|
| Connectors | 1 x HDMI female to HDMI female (6" / 15 cm pigtail); 1 x 3.5 mm stereo mini jack to 3-pole captive screw |
| Signal Type | HDMI (digital video/audio); Stereo audio (PC) |
| Max HDMI Capabilities | Up to 4096 x 2160 at 30 Hz (4K support) |
| Enclosure Type | Metal |
| Color/Finish | RAL9010 white |
| Mounting | Standard European single junction boxes (40 mm deep) |
| Depth Requirement | Compatible with 40 mm junction box depth |
| Power Requirements | None (passive pass-through) |
| Warranty | 3 years parts and labor |
| Regulatory Compliance | HDCP compliant; RoHS/WEEE (typical Extron standards) |
Compare Chart
| Aspect | Extron WPC 210 A EU | Extron WPB 109 (US One-Gang) | Kramer WP-580 (HDMI/VGA/Audio) |
|---|---|---|---|
| Ports | HDMI + Stereo Audio | HDMI + VGA + Stereo Audio | HDMI + VGA + Stereo Audio |
| Mounting Style | European single junction box | US one-gang standard | Multi-gang or decorator options |
| HDMI Pigtail Length | 6" (15 cm) | 10" | Varies, often fixed |
| Audio Connector | 3.5 mm to captive screw | 3.5 mm to captive screw | 3.5 mm or RCA variants |
| Signal Processing | Passive pass-through | Passive pass-through | Passive or active models |
| Construction | Metal, RAL9010 white | Metal, black/white | Plastic or metal |
| HDCP Compliance | Yes | Yes | Yes |
| Depth Requirement | 40 mm junction box | ~2.25" for cables | Varies |
FAQ
- What signals does the WPC 210 A EU support? It provides unprocessed pass-through for HDMI (video and audio) and stereo PC audio, with full HDCP compliance.
- What is the HDMI pigtail length? The HDMI connector uses a 6" (15 cm) pigtail for flexible rear connections in the junction box.
- Does the wallplate require power? No, it is fully passive with no external power supply needed for operation.
- How is the audio port handled when not in use? A built-in cover protects the 3.5 mm audio jack from dust and debris.
- What mounting is required? It installs directly into standard European single junction boxes with a minimum 40 mm depth.
- Is it compatible with 4K content? Yes, it supports HDMI resolutions up to 4096 x 2160 at 30 Hz, depending on cable quality and source/display capabilities.
