Extron IN1808 Series Eight Input 4K/60 Seamless Presentation Switchers

Product Overview

The Extron IN1808 is an eight-input 4K/60 seamless presentation switcher with integrated DTP2 signal extension, Vector 4K scaling, ProDSP with AEC, an optional integrated amplifier, and an optional IPCP Pro xi control processor — in a compact 1U or 2U rack-mount enclosure depending on model. Eight inputs (4 HDMI, 2 DisplayPort, 2 DTP2) route to one non-scaled HDMI output and one Vector 4K-scaled DTP2 output, with DTP2 extension to 330 feet over shielded CAT 6A. Available at Creation Networks.

Product Description

The Extron IN1808 series is a family of eight-input 4K/60 seamless presentation switchers designed for conference rooms, training rooms, and smaller AV spaces that need compact, high-performance switching at 4K/60 with 4:4:4 color sampling across all inputs and outputs. The 8x2 matrix routes four HDMI, two DisplayPort, and two DTP2 inputs to one non-scaled HDMI output and one independently scaled DTP2 output, with the Vector 4K engine providing seamless switching, freeze effects, and per-output resolution control. DTP2 outputs extend 4K/60 video, audio, and RS-232 up to 330 feet over shielded CAT 6A cable to DTP2 endpoints and HDBaseT displays. ProDSP delivers 32/64-bit floating point audio processing with four-channel AEC, eight-group automixer, and four mic/line inputs with 48V phantom power. IPCP Q models include the IPCP Pro 355MQ xi quad-core control processor with 2 GB RAM, 8 GB Flash, and a three-port isolated AV LAN switch. Amplifier-equipped models include either a 100W mono Class D amplifier at 70V (MA 70 models) or a 2x50W stereo Class D amplifier (SA models). Available at Creation Networks.

Key Features

• Eight-Input 4K/60 Seamless Switcher — Four HDMI 2.0, two DisplayPort 1.2, and two DTP2 inputs route to one non-scaled HDMI and one scaled DTP2 output at 4K/60 with 4:4:4 chroma sampling.
• Vector 4K Seamless Switching — Extron-patented Vector 4K scaling with freeze/fade and cut-through-black seamless transitions on the scaled DTP2 output for glitch-free source changes.
• DTP2 Signal Extension to 330 Feet over CAT 6A — Extends 4K/60 video, audio, and RS-232 up to 330 feet over shielded CAT 6A to DTP2 endpoints and HDBaseT displays.
• DisplayPort 1.2 and HDMI 2.0 Inputs — Native 4K/60 input from both DisplayPort-equipped computers and HDMI 2.0 sources without adapters.
• HDBaseT-Compatible DTP2 Output — DTP2 output configurable for HDBaseT mode to drive compatible displays directly.
• ProDSP 32/64-Bit Floating Point Audio — Four-channel AEC, eight-group automixer, 24-bit/48 kHz conversion, EQ, delay, ducking, and feedback suppression.
• Four Mic/Line Inputs with 48V Phantom Power — -18 dB to +80 dB gain adjustment per input for condenser microphone support.

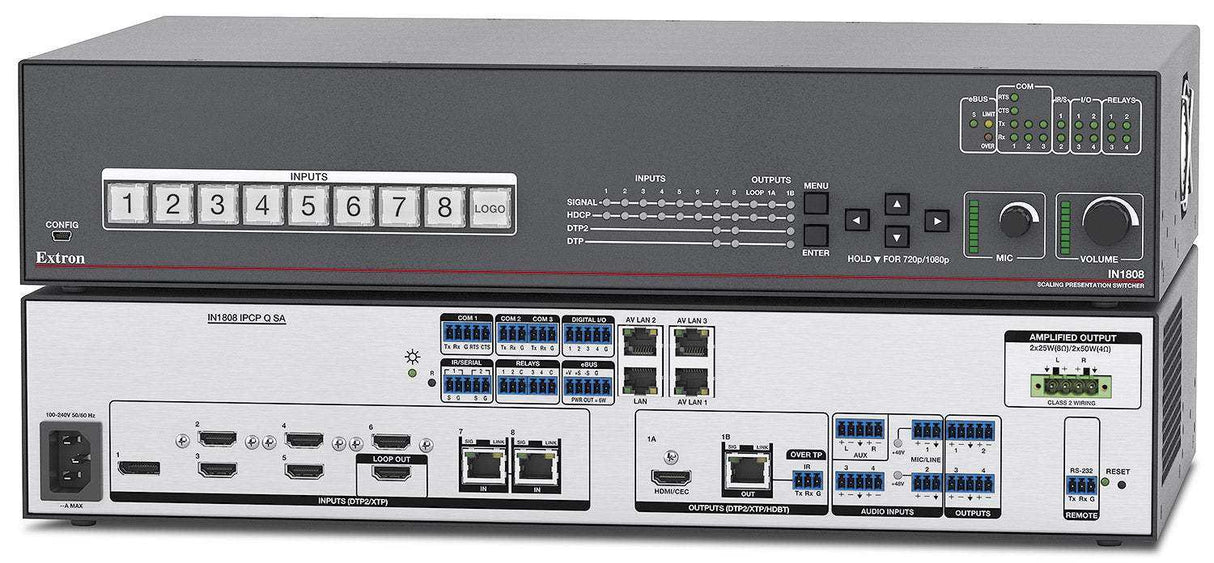

• Available with IPCP Pro 355MQ xi Control Processor — IPCP Q models include a quad-core control processor with 2 GB RAM, 8 GB Flash, three-port isolated AV LAN switch, serial ports, digital I/O, and relays.
• Available with Integrated Amplifier — SA models: 2x50W stereo Class D at 4/8 ohms; MA 70 models: 100W mono Class D at 70V — both with CDRS ripple suppression.
• EDID Minder, Key Minder, and SpeedSwitch — Continuous HDCP management and fast switching for protected content.
• Compact 1U or 2U Enclosure — Base model 1U; IPCP models 2U; full rack width, 10.5" deep.
• Extron Everlast Internal Power Supply — Universal power; 7-year warranty.

Technical Specifications

Typical Application

The IN1808 series is deployed in compact conference rooms, training rooms, and presentation spaces where eight-input 4K/60 seamless switching, DTP2 signal extension to remote displays, DSP with AEC, and optional integrated amplification and AV control are required in a minimal 1U or 2U rack footprint. It is specified in standard corporate conference room designs where both DisplayPort-equipped laptops and HDMI sources are common at the table or lectern.

Spec Sheet PDF Download

Download the Extron IN1808 Series Spec Sheet (PDF)
