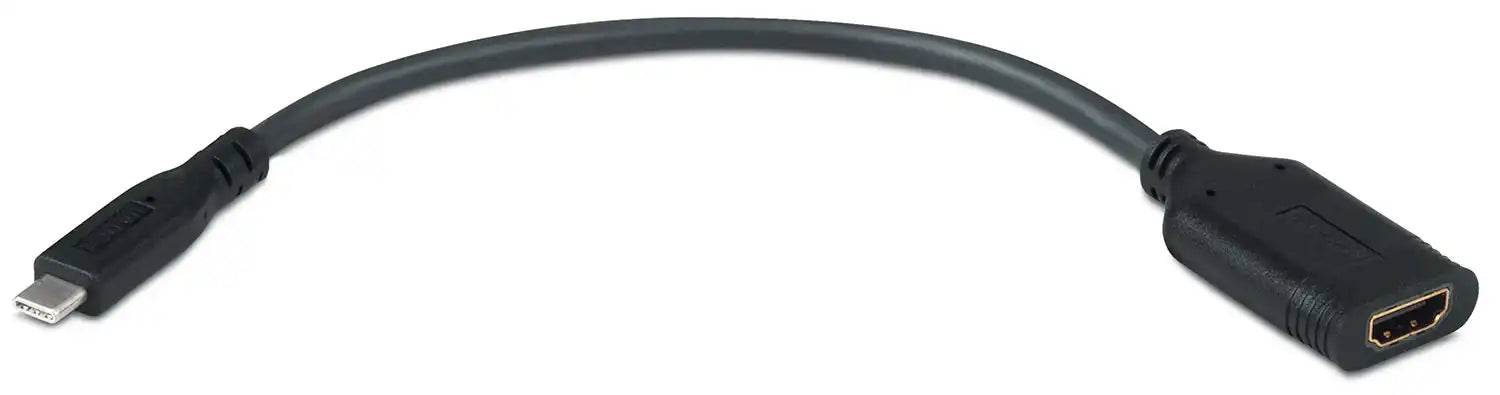

Extron USBCH-D USB-C to HDMI Adapter Cable 6" (15 cm)
Extron USBCH-D USB-C to HDMI Adapter Cable 6" (15 cm) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron USBCH-D USB-C to HDMI Adapter Cable 6" (15 cm)
The Extron USBCH-D is a compact, high-performance adapter cable that connects USB-C equipped devices supporting DisplayPort Alt Mode to HDMI displays, projectors, switchers, or other HDMI-equipped AV equipment. It transmits digital video and audio signals up to 4K/60 Hz with 4:4:4 chroma subsampling, full EDID pass-through for automatic resolution negotiation, HDCP compliance for protected content, and embedded multi-channel audio support. This makes it an essential bridging solution for modern USB-C sources—such as laptops, tablets, smartphones, or media players—integrating into existing HDMI-based presentation systems in conference rooms, classrooms, boardrooms, training facilities, and control environments.

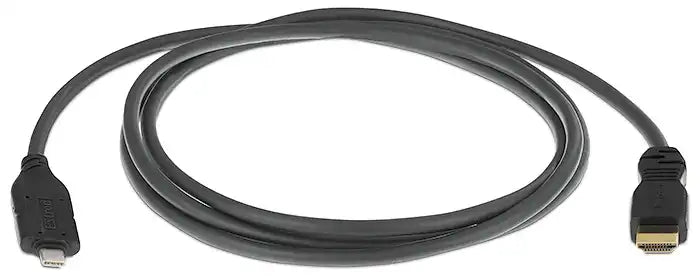

Available in two practical lengths: a 6-inch (15 cm) version with USB-C male to HDMI female for direct plug-in to HDMI cables or inputs, and a 6-foot (1.8 m) version with USB-C male to HDMI male for extended reach. The passive design requires no external power or drivers, delivering plug-and-play simplicity and reliable performance in professional AV setups.
Features Chart
| Feature | Benefit |
|---|---|
| USB-C to HDMI Connectivity | Bridges USB-C DisplayPort Alt Mode sources to HDMI displays/equipment |
| Supports 4K/60 @ 4:4:4 Resolution | Delivers high-bandwidth, high-quality video with full chroma sampling |
| EDID Pass-Through | Enables source to detect display capabilities for optimal settings |
| HDCP Compliant | Ensures secure transmission of protected digital content |
| Embedded Multi-Channel Audio | Passes audio alongside video in a single cable |
| Compact 6" (15 cm) Variant | Ideal for short, direct connections with minimal added bulk |
| Extended 6' (1.8 m) Variant | Provides practical reach for desktop or under-table installations |
| Plug-and-Play Operation | No power, drivers, or configuration required for immediate use |
Specifications Table
| Specification | Details |
|---|---|
| Connector Variants | 6" (15 cm): USB-C Male to HDMI Female; 6' (1.8 m): USB-C Male to HDMI Male |
| Cable Type | Passive USB-C to HDMI adapter cable |
| Maximum Resolution | 4K/60 Hz @ 4:4:4 (3840x2160 @ 60 Hz) |
| Signal Type | DisplayPort Alt Mode (video, audio) |
| Compliance | HDCP compliant; EDID pass-through |
| Applications | USB-C source to HDMI display/device connectivity |
| Compatibility | USB-C devices with DisplayPort Alt Mode; HDMI inputs |
| Power Requirement | None (passive) |
Compare Chart
| Aspect | Extron USBCH-D | Extron USBC-DP Adapter | Monoprice USB-C to HDMI Cable |
|---|---|---|---|
| Connector Variants | USB-C M to HDMI F/M | USB-C M to DP F/M | USB-C M to HDMI M typical |
| Max Resolution | 4K/60 @ 4:4:4 | 4K/30 | 4K/60 @ 4:4:4 typical |
| Active/Passive | Passive | Passive | Passive or active |
| Length Options | 6" and 6' | 6" and 6' | Varies, often 3-6' |
| Power Delivery | None | None | Varies, often none |
| Primary Use | USB-C to HDMI adaptation | USB-C to DisplayPort bridging | General consumer/pro bridging |
| EDID/HDCP Support | Yes | Yes | Yes |
| Installation Ease | Plug-and-play | Plug-and-play | Plug-and-play |
FAQ
- What is the main purpose of the USBCH-D adapter cable? It connects USB-C devices with DisplayPort Alt Mode support to HDMI displays or AV equipment, transmitting video, audio, and control signals.
- What resolutions does it support? It is verified for 4K/60 Hz @ 4:4:4, providing high-quality video with full chroma subsampling and embedded audio.
- Are there different versions available? Yes, a 6-inch (15 cm) version with USB-C male to HDMI female, and a 6-foot (1.8 m) version with USB-C male to HDMI male.
- Does it pass EDID and HDCP? Yes, EDID is passed from the HDMI display to the USB-C source for proper resolution detection, and it is fully HDCP compliant.
- Is external power required? No, it is a passive adapter with no power needs.
- What equipment is compatible? It works with any USB-C device supporting DisplayPort Alt Mode and HDMI inputs on monitors, projectors, switchers, or AV systems.
